INA2126EA/250G4 datasheet, PDF

Datasheet> All Categories > semiconductor> Analog mixed-signal IC> INA2126EA/250G4

INA2126EA/250G4: DescriptionDUAL INSTRUMENTATION AMPLIFIER, 500 uV OFFSET-MAX, 0.2 MHz BAND WIDTH, PDSO16; Categorysemiconductor Analog mixed-signal IC; File Size1MB，19 Pages; ManufacturerBurr-Brown; Websitehttp://www.burr-brown.com/

Download Datasheet Parametric View All

INA2126EA/250G4 Overview

DUAL INSTRUMENTATION AMPLIFIER, 500 uV OFFSET-MAX, 0.2 MHz BAND WIDTH, PDSO16

INA2126EA/250G4 Parametric

Parameter Name	Attribute value
Number of functions	2
Number of terminals	16
Maximum supply/operating voltage	18 V
Maximum operating temperature	85 Cel
Minimum operating temperature	-40 Cel
Rated supply voltage	15 V
Maximum negative supply voltage	-18 V
Rated negative supply voltage	-15 V
Rated bandwidth	0.2000 kHz
Rated rotation rate	0.4000 V/us
Maximum input offset voltage	500 mV
Processing package description	GREEN, PLASTIC, SSOP-16
Lead-free	Yes
EU RoHS regulations	Yes
China RoHS regulations	Yes
state	ACTIVE
packaging shape	RECTANGULAR
Package Size	SMALL OUTLINE, SHRINK PITCH
surface mount	Yes
Terminal form	GULL WING
Terminal spacing	0.6350 mm
terminal coating	NICKEL PALLADIUM GOLD
Terminal location	DUAL
Packaging Materials	PLASTIC/EPOXY
Temperature level	INDUSTRIAL
Amplifier type	INSTRUMENTATION AMPLIFIER
maximum alpha vios	5 uV/Cel
Maximum voltage gain	10000
Minimum voltage gain	5
Rated voltage gain	100
maximum nonlinearity	0.0120 %
Minimum Common Mode Rejection Ratio	74 dB
Maximum input bias current IIB	0.0500 uA
Maximum input offset current IIO	0.0050 uA

Preview

Download Datasheet

View All

IN A

126

INA

212

INA

126

INA

212

INA126

INA2126

INA

212

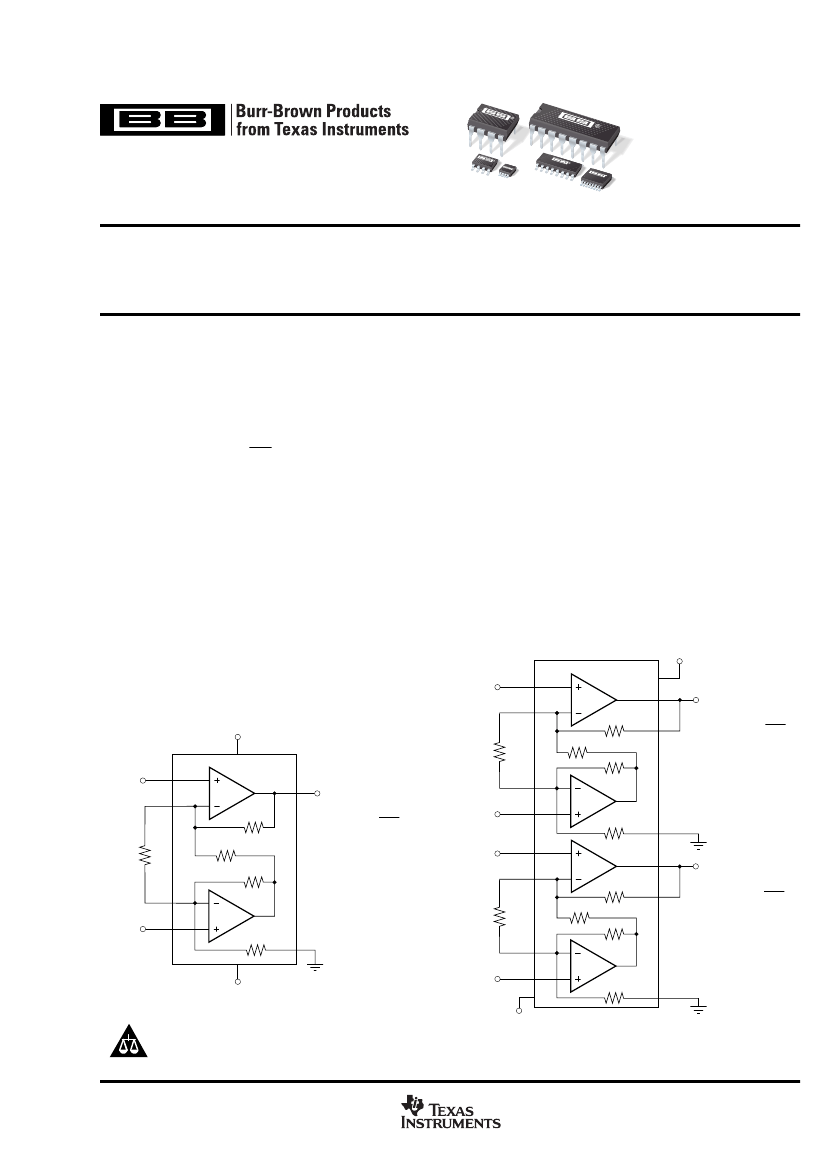

SBOS062A – JANUARY 1996 – REVISED AUGUST 2005

Micro

POWER

INSTRUMENTATION AMPLIFIER

Single and Dual Versions

DESCRIPTION

The INA126 and INA2126 are precision instrumentation ampli-

fiers for accurate, low noise differential signal acquisition. Their

two-op-amp design provides excellent performance with very

low quiescent current (175µA/channel). This, combined with a

wide operating voltage range of

±1.35V

±18V,

makes them

ideal for portable instrumentation and data acquisition sys-

tems.

Gain can be set from 5V/V to 10000V/V with a single

external resistor. Laser trimmed input circuitry provides low

offset voltage (250µV max), low offset voltage drift (3µV/°C

max) and excellent common-mode rejection.

Single version package options include 8-pin plastic DIP,

SO-8 surface mount, and fine-pitch MSOP-8 surface-mount.

Dual version is available in the space-saving SSOP-16 fine-

pitch surface mount, SO-16, and 16-pin DIP. All are specified

for the –40°C to +85°C industrial temperature range.

V+

INA2126

40kΩ

10kΩ

–

= (V

– V

) G

G=5+

80kΩ

FEATURES

LOW QUIESCENT CURRENT: 175

A/chan.

WIDE SUPPLY RANGE:

1.35V to

18V

LOW OFFSET VOLTAGE: 250

V max

LOW OFFSET DRIFT: 3

C max

LOW NOISE: 35nV/√ Hz

LOW INPUT BIAS CURRENT: 25nA max

8-PIN DIP, SO-8, MSOP-8 SURFACE- MOUNT

DUAL: 16-Pin DIP, SO-16, SSOP-16

APPLICATIONS

INDUSTRIAL SENSOR AMPLIFIER:

Bridge, RTD, Thermocouple

PHYSIOLOGICAL AMPLIFIER:

ECG, EEG, EMG

MULTI-CHANNEL DATA ACQUISITION

PORTABLE, BATTERY OPERATED SYSTEMS

V+

INA126

V+

40kΩ

10kΩ

–

= (V

– V

) G

G=5+

80kΩ

–

10kΩ

40kΩ

10kΩ

–

= (V

– V

) G

G=5+

80kΩ

–

40kΩ

–

V–

10kΩ

V–

40kΩ

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of

Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

All trademarks are the property of their respective owners.

PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of Texas Instruments

standard warranty. Production processing does not necessarily include

testing of all parameters.
