PD - 95896
IRFPS3815PbF
HEXFET
®
Power MOSFET
l
l
l
l
l
l
l
Advanced Process Technology
Ultra Low On-Resistance
Dynamic dv/dt Rating
175°C Operating Temperature
Fast Switching
Fully Avalanche Rated
Lead-Free
D
V
DSS
= 150V
G
S
R
DS(on)
= 0.015Ω
I
D
= 105A
Description
The HEXFET
®
Power MOSFETs from International
Rectifier utilize advanced processing techniques to
achieve extremely low on-resistance per silicon area.
This benefit, combined with the fast switching speed
and ruggedized device design that HEXFET power
MOSFETs are well known for, provides the designer
with an extremely efficient and reliable device for use in
a wide variety of applications.
Super-247™
Absolute Maximum Ratings
Parameter
I
D
@ T
C
= 25°C
I
D
@ T
C
= 100°C
I
DM
P
D
@T
C
= 25°C
V
GS
E
AS
I
AR
E
AR
dv/dt
T
J
T
STG
Continuous Drain Current, V
GS
@ 10V
Continuous Drain Current, V
GS
@ 10V
Pulsed Drain Current
Power Dissipation
Linear Derating Factor
Gate-to-Source Voltage
Single Pulse Avalanche Energy
Avalanche Current
Repetitive Avalanche Energy
Peak Diode Recovery dv/dt
Operating Junction and
Storage Temperature Range
Soldering Temperature, for 10 seconds
Max.
105
74
390
441
2.9
± 30
1610
58
38
3.0
-55 to + 175
300 (1.6mm from case )
Units
A
W
W/°C
V
mJ
A
mJ
V/ns
Thermal Resistance
Parameter
R
θJC
R
θCS
R
θJA
Junction-to-Case
Case-to-Sink, Flat, Greased Surface
Junction-to-Ambient
Typ.
–––
0.24
–––
Max.
0.34
–––
40
Units
°C/W
www.irf.com
1
09/13/04
IRFPS3815PbF
Electrical Characteristics @ T
J
= 25°C (unless otherwise specified)
V
(BR)DSS
∆V
(BR)DSS
/∆T
J
R
DS(on)
V
GS(th)
g
fs
I
DSS
I
GSS
Q
g
Q
gs
Q
gd
t
d(on)
t
r
t
d(off)
t
f
L
D
L
S
C
iss
C
oss
C
rss
C
oss
C
oss
C
oss
eff.
Parameter
Drain-to-Source Breakdown Voltage
Breakdown Voltage Temp. Coefficient
Static Drain-to-Source On-Resistance
Gate Threshold Voltage
Forward Transconductance
Drain-to-Source Leakage Current
Gate-to-Source Forward Leakage
Gate-to-Source Reverse Leakage
Total Gate Charge
Gate-to-Source Charge
Gate-to-Drain ("Miller") Charge
Turn-On Delay Time
Rise Time
Turn-Off Delay Time
Fall Time
Internal Drain Inductance
Internal Source Inductance
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
Output Capacitance
Output Capacitance
Effective Output Capacitance
Min.
150
–––
–––
3.0
47
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
Typ.
–––
0.18
–––
–––
–––
–––
–––
–––
–––
260
53
150
22
130
51
60
5.0
13
6810
1570
480
9820
670
1270
Max. Units
Conditions
–––
V
V
GS
= 0V, I
D
= 250µA
––– V/°C Reference to 25°C, I
D
= 1mA
0.015
Ω
V
GS
= 10V, I
D
= 63A
5.0
V
V
DS
= 10V, I
D
= 250µA
–––
S
V
DS
= 50V, I
D
= 58A
25
V
DS
= 100V, V
GS
= 0V
µA
250
V
DS
= 80V, V
GS
= 0V, T
J
= 150°C
100
V
GS
= 30V
nA
-100
V
GS
= -30V
390
I
D
= 58A
80
nC V
DS
= 120V
230
V
GS
= 10V
–––
V
DD
= 75V
–––
I
D
= 58A
ns
–––
R
G
= 1.03Ω
–––
V
GS
= 10V
D
Between lead,
–––
6mm (0.25in.)
nH
G
from package
–––
and center of die contact
S
–––
V
GS
= 0V
–––
pF
V
DS
= 25V
–––
ƒ = 1.0MHz, See Fig. 5
–––
V
GS
= 0V, V
DS
= 1.0V, ƒ = 1.0MHz
–––
V
GS
= 0V, V
DS
= 120V, ƒ = 1.0MHz
–––
V
GS
= 0V, V
DS
= 0V to 120V
Source-Drain Ratings and Characteristics
I
S
I
SM
V
SD
t
rr
Q
rr
t
on
Notes:
Parameter
Continuous Source Current
(Body Diode)
Pulsed Source Current
(Body Diode)
Diode Forward Voltage
Reverse Recovery Time
Reverse RecoveryCharge
Forward Turn-On Time
Min. Typ. Max. Units
Conditions
D
MOSFET symbol
––– ––– 105
showing the
A
G
integral reverse
––– ––– 390
S
p-n junction diode.
––– ––– 1.3
V
T
J
= 25°C, I
S
= 58A, V
GS
= 0V
––– 270 410
ns
T
J
= 25°C, I
F
= 58A
––– 2990 4490 nC di/dt = 100A/µs
Intrinsic turn-on time is negligible (turn-on is dominated by L
S
+L
D
)
Repetitive rating; pulse width limited by
max. junction temperature. (See fig. 11)
Starting T
J
= 25°C, L = 0.96mH
R
G
= 25Ω, I
AS
= 58A. (See Figure 12)
Pulse width
≤
300µs; duty cycle
≤
2%.
C
oss
eff. is a fixed capacitance that gives the same charging time
as C
oss
while V
DS
is rising from 0 to 80% V
DSS
I
SD
≤
58A, di/dt
≤
450A/µs, V
DD
≤
V
(BR)DSS
,
T
J
≤
175°C
2
www.irf.com
IRFPS3815PbF
1000
VGS
TOP
15V
12V
10V
8.0V
7.0V
6.0V
5.5V
BOTTOM 5.0V
1000
I
D
, Drain-to-Source Current (A)
100
I
D
, Drain-to-Source Current (A)
VGS
15V
12V
10V
8.0V
7.0V
6.0V
5.5V
BOTTOM 5.0V
TOP
100
10
1
5.0V
5.0V
10
0.1
0.01
0.1
50µs PULSE WIDTH
T
J
= 25
°
C
1
10
100
1
0.1
50µs PULSE WIDTH
T
J
= 175
°
C
1
10
100
V
DS
, Drain-to-Source Voltage (V)
V
DS
, Drain-to-Source Voltage (V)

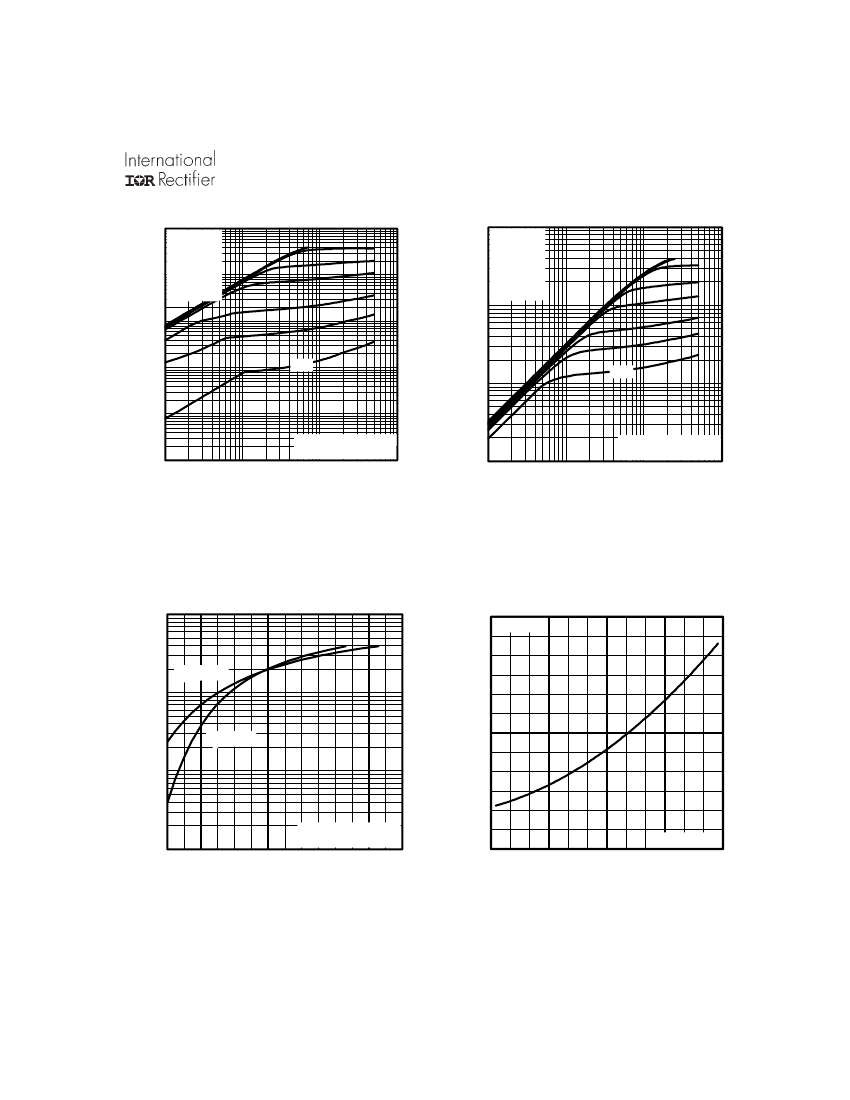

Fig 1.
Typical Output Characteristics
Fig 2.
Typical Output Characteristics
1000
3.0
R
DS(on)
, Drain-to-Source On Resistance
(Normalized)
I
D
= 97A
I
D
, Drain-to-Source Current (A)
2.5
T
J
= 175
°
C
100
2.0
T
J
= 25
°
C
10
1.5
1.0
0.5
1
5
6
7
8
V DS = 50V
50µs PULSE WIDTH
9
10
11
12
0.0
-60 -40 -20 0
V
GS
= 10V
20 40 60 80 100 120 140 160 180
V
GS
, Gate-to-Source Voltage (V)
T
J
, Junction Temperature (
°
C)
Fig 3.
Typical Transfer Characteristics
Fig 4.
Normalized On-Resistance
Vs. Temperature
www.irf.com
3
IRFPS3815PbF
12000
20
10000
V
GS
, Gate-to-Source Voltage (V)
VGS = 0V,
f = 1 MHZ
Ciss = C + Cgd, C
gs
ds SHORTED
Crss = C
gd
I
D
= 58A
V
DS
= 120V
V
DS
= 75V
V
DS
= 30V
16
Ciss
C, Capacitance(pF)
8000
Coss = C + Cgd
ds
Coss
6000
12
8
4000
Crss
2000
4
0
1
10
100
1000
0
0
100
200
FOR TEST CIRCUIT
SEE FIGURE 13
300
400
VDS, Drain-to-Source Voltage (V)
Q
G
, Total Gate Charge (nC)

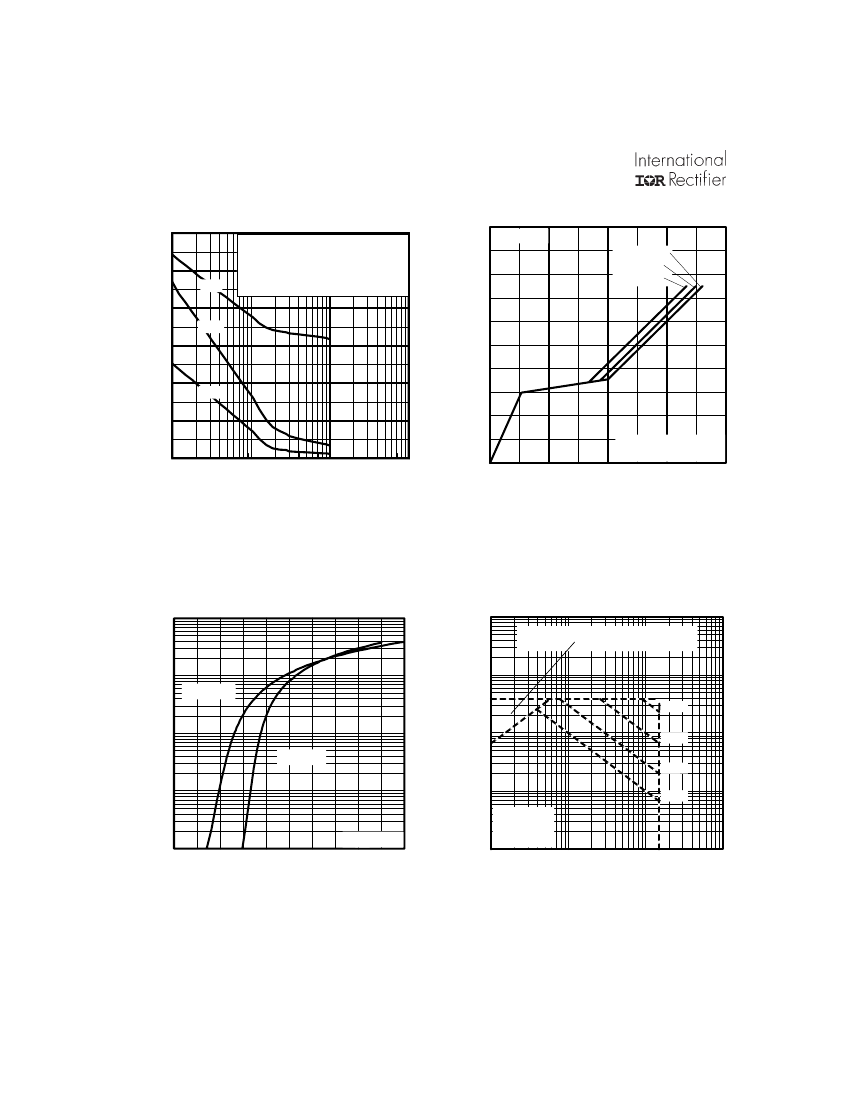

Fig 5.
Typical Capacitance Vs.
Drain-to-Source Voltage
Fig 6.
Typical Gate Charge Vs.
Gate-to-Source Voltage
1000
10000
I
SD
, Reverse Drain Current (A)
OPERATION IN THIS AREA LIMITED
BY R
DS(on)
T
J
= 175
°
C
I
D
, Drain Current (A)
100
1000
10us
100us
1ms
10
10ms
10
100
T
J
= 25
°
C
1
0.1
0.0
V
GS
= 0 V
0.4
0.8
1.2
1.6
2.0
1
1
T
C
= 25 ° C
T
J
= 175 ° C
Single Pulse
10
100
1000
V
SD
,Source-to-Drain Voltage (V)
V
DS
, Drain-to-Source Voltage (V)
Fig 7.
Typical Source-Drain Diode
Forward Voltage
Fig 8.
Maximum Safe Operating Area
4
www.irf.com
IRFPS3815PbF
120
V
DS
100
R
D
V
GS
R
G
D.U.T.
+
I
D
, Drain Current (A)
80
-
V
DD
10V
60
Pulse Width
≤ 1
µs
Duty Factor
≤ 0.1 %
40
20
V
DS
90%
0
25
50
75
100
125
150
175
T
C
, Case Temperature ( °C)
10%
V
GS
t
d(on)
t
r
t
d(off)
t
f

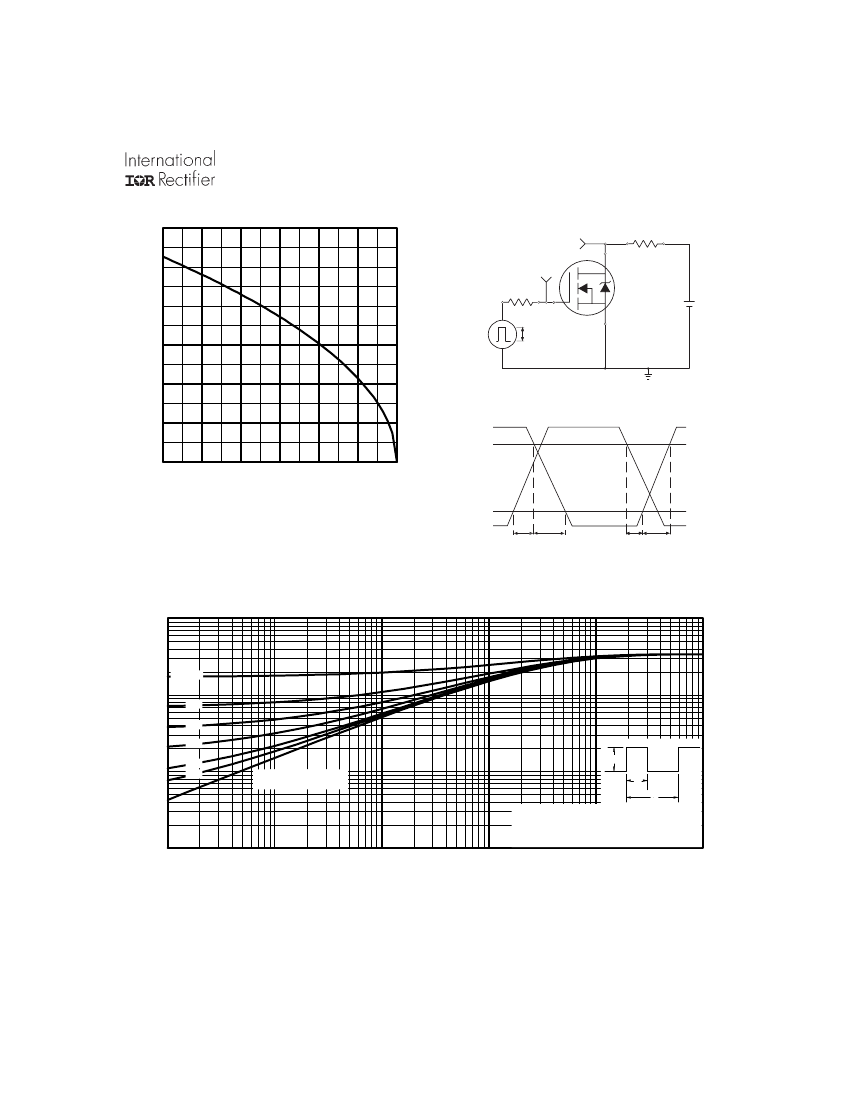

Fig 9.
Maximum Drain Current Vs.
Case Temperature
1
Thermal Response (Z
thJC
)
D = 0.50
0.1
0.20
0.10
0.05
0.02
0.01
P
DM
SINGLE PULSE
(THERMAL RESPONSE)
t
1
t
2
Notes:
1. Duty factor D = t
1
/ t
2
2. Peak T
J
= P
DM
x Z
thJC
+ T
C
0.0001
0.001
0.01
0.1
1
0.01
0.001
0.00001
t
1
, Rectangular Pulse Duration (sec)
Fig 11.
Maximum Effective Transient Thermal Impedance, Junction-to-Case
www.irf.com
5
