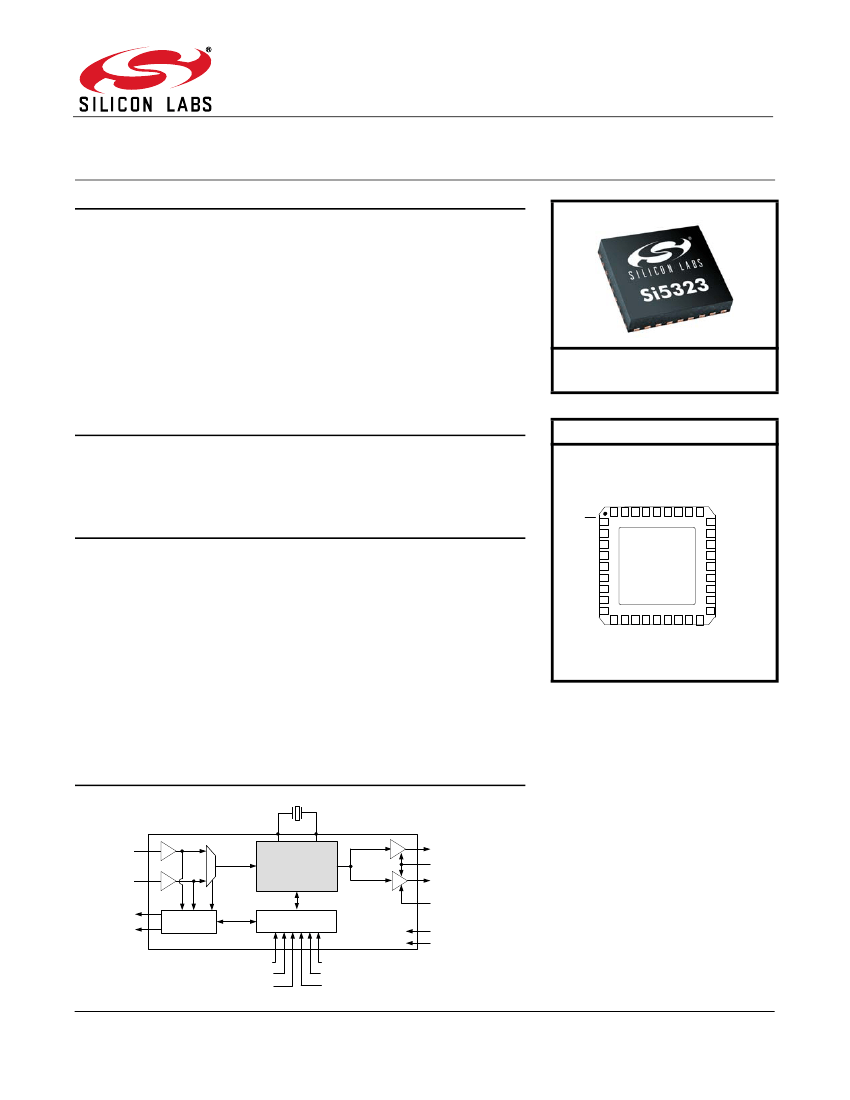

Si5323

I N

- P

ROGRAMMABLE

R E C I S I O N

LOCK

ULTIPLIER

I T T E R

TTENUA TOR

Features



Pin-selectable output frequencies

ranging from 8 kHz–708 MHz

Ultra-low jitter clock outputs as low

as 250 fs rms (12 kHz–20 MHz)

270 fs rms (50 kHz–80 MHz)

Integrated loop filter with selectable

loop bandwidth (60 Hz–8.4 kHz)

Meets ITU-T G.8251 and Telcordia

OC-192 GR-253-CORE jitter

specifications

Hitless input clock switching with

phase build-out and digital hold



Dual clock outputs with selectable

signal format (LVPECL, LVDS, CML,

CMOS)

Support for ITU G.709 FEC ratios

(255/238, 255/237, 255/236)

LOL, LOS alarm outputs

Pin-controlled output phase adjust

Single supply 1.8 ±5%, 2.5 or 3.3 V

±10% operation with high PSRR

On-chip voltage regulator

Small size: 6 x 6 mm 36-lead QFN

Ordering Information:

See page 33.

Applications

SONET/SDH OC-48/STM-16 and

OC-192/STM-64 line cards



GbE/10GbE, 1/2/4/8/10GFC line cards



Pin Assignments

ITU G.709 line cards



Optical modules



Test and measurement



Synchronous Ethernet



RST 1

FRQTBL

CKOUT1–

CKOUT2+

CKOUT2–

36 35 34 33 32 31 30 29 28

27 FRQSEL3

26 FRQSEL2

25 FRQSEL1

Description

The Si5323 is a jitter-attenuating precision clock multiplier for high-speed

communication systems, including SONET OC-48/OC-192, Ethernet, and Fibre

Channel. The Si5323 accepts dual clock inputs ranging from 8 kHz to 707 MHz

and generates two equal frequency-multiplied clock outputs ranging from 8 kHz to

1050 MHz. The input clock frequency and clock multiplication ratio are selectable

from a table of popular SONET, Ethernet, and Fibre Channel rates. The Si5323 is

based on Silicon Laboratories' 3rd-generation DSPLL

technology, which

provides any-frequency synthesis and jitter attenuation in a highly integrated PLL

solution that eliminates the need for external VCXO and loop filter components.

The DSPLL loop bandwidth is digitally programmable, providing jitter performance

optimization at the application level. Operating from a single 1.8, 2.5, or 3.3 V

supply, the Si5323 is ideal for providing clock multiplication and jitter attenuation in

high performance timing applications.

C1B 3

C2B 4

VDD 5

XA 6

GND

CKOUT1+

24 FRQSEL0

23 BWSEL1

22 BWSEL0

21 CS_CA

20 INC

19 DEC

LOL

SFOUT0

GND

Pad

GND 8

AUTOSEL 9

10 11 12 13 14 15 16 17 18

CKIN2+

DBL2_BY

CKIN1+

CKIN1–

VDD

RATE0

CKIN2–

RATE1

Functional Block Diagram

Xtal or Refclock

CKIN1

CKOUT1

DSPLL

CKIN2

Signal Format

CKOUT2

Disable/BYPASS

Loss of Signal

Loss of Lock

Signal Detect

Control

VDD (1.8, 2.5, or 3.3 V)

GND

Frequency Select

Bandwidth Select

Rate Select

Manual/Auto Switch

Clock Select

Skew Control

Rev. 1.0 1/11

SFOUT1

VDD

Si5323

Si5323

ABLE O F

ONTENTS

Section

Page

1. Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

1.1. Three-Level (3L) Input Pins (No External Resistors) . . . . . . . . . . . . . . . . . . . . . . . . .9

1.2. Three-Level Input Pins (Example with External Resistors) . . . . . . . . . . . . . . . . . . . . .9

2. Typical Phase Noise Plots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

2.1. Example: SONET OC-192 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3. Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.1. External Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.2. Further Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.3. Frequency Plan Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

4. Pin Descriptions: Si5323 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

5. Ordering Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

6. Package Outline: 36-Pin QFN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

7. Recommended PCB Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

8. Si5323 Device Top Mark . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Document Change List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
