S2A, S2B, S2D, S2G, S2J, S2K, S2M
www.vishay.com
Vishay General Semiconductor
Surface Mount Glass Passivated Rectifier

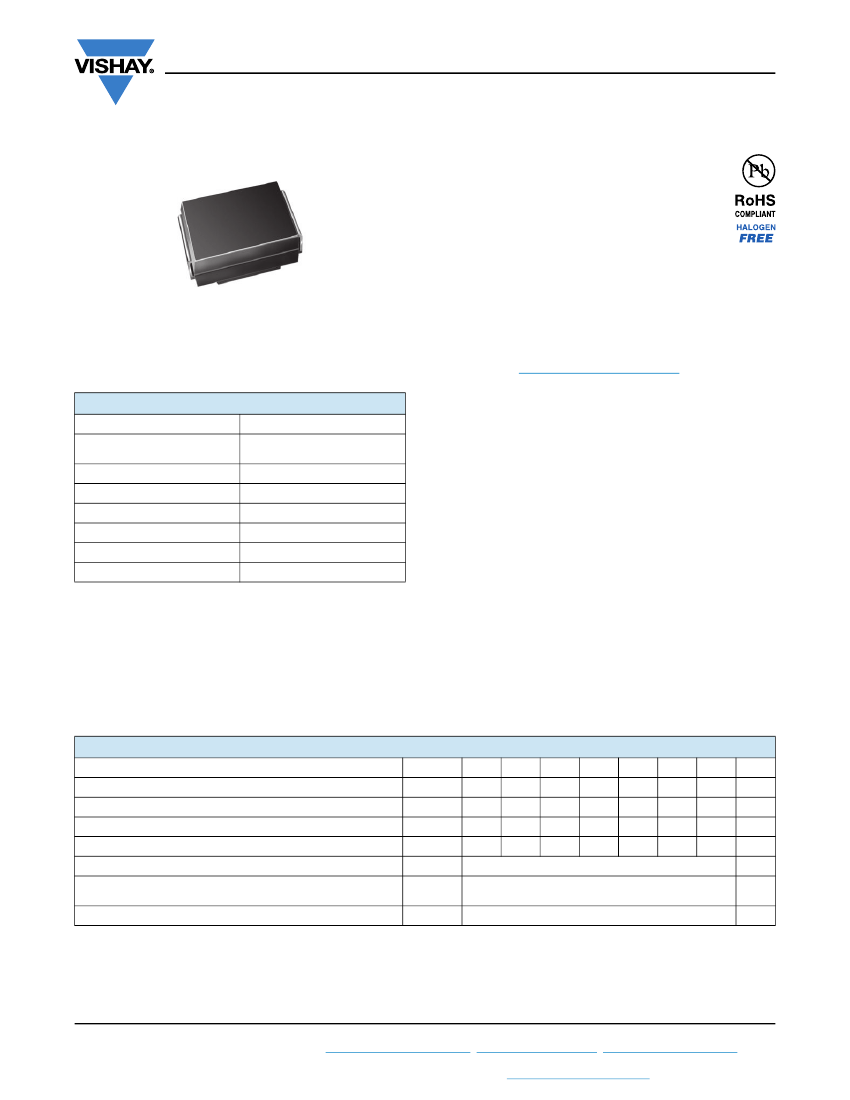

FEATURES
Low profile package
Ideal for automated placement
Glass passivated pellet chip junction
Low forward voltage drop
Available
Low leakage current
High forward surge capability
Meets MSL level 1, per J-STD-020, LF maximum peak
of 260 °C
• AEC-Q101 qualified available
- Automotive ordering code: base P/NHE3 or P/NHM3
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
•
•
•
•
•
•
•
SMB
(DO-214AA)
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
I
R
V
F
T
J
max.
Package
Diode variations
1.5 A
50 V, 100 V, 200 V, 400 V, 600 V,
800 V, 1000 V
50 A
1.0 μA
1.15 V
150 °C
SMB (DO-214AA)
Single
TYPICAL APPLICATIONS
For use in general purpose rectification of power supplies,
inverters, converters and freewheeling diodes for consumer,
automotive and telecommunication.
MECHANICAL DATA
Case:
SMB (DO-214AA)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Base P/N-M3 - halogen-free, RoHS-compliant, commercial
grade
Base P/NHE3_X - RoHS-compliant and AEC-Q101 qualified
Base P/NHM3_X - halogen-free, RoHS-compliant and
AEC-Q101 qualified
(“_X” denotes revision code e.g. A, B,.....)
Terminals:
Matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3, M3, HE3, and HM3 suffix meets JESD 201 class 2
whisker test
Polarity:
Color band denotes cathode end
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Device marking code
Max. repetitive peak reverse voltage
Max. RMS voltage
Max. DC blocking voltage
Max. average forward rectified current at T
L
= 100 °C
Peak forward surge current 8.3 ms single half sine-wave
superimposed on rated load
Operating and storage temperature range
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
T
J
, T
STG
SYMBOL
S2A
SA
50
35
50
S2B
SB
100
70
100
S2D
SD
200
140
200
S2G
SG
400
280
400
1.5
50
-55 to +150
S2J
SJ
600
420
600
S2K
SK
800
560
800
S2M
SM
1000
700
1000
V
V
V
A
A
°C
UNIT
Revision: 21-Jul-17
Document Number: 88712
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
S2A, S2B, S2D, S2G, S2J, S2K, S2M
www.vishay.com
Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Max. instantaneous forward
voltage
Max. DC reverse current at
rated DC blocking voltage
Typical reverse recovery time
Typical junction capacitance
TEST CONDITIONS
1.5 A
T
A
= 25 °C
T
A
= 125 °C
I
F
= 0.5 A, I
R
= 1.0 A, I
rr
= 0.25 A
4.0 V, 1 MHz
SYMBOL
V
F
I
R
t
rr
C
J
S2A
S2B
S2D
S2G
1.15
1.0
125
2.0
16
S2J
S2K
S2M
UNIT
V
μA
μs
pF
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Typical thermal resistance
(1)
SYMBOL
R
θJA
R
θJL
S2A
S2B
S2D
S2G
53
16
S2J
S2K
S2M
UNIT
°C/W
Note
(1)
Thermal resistance from junction to ambient and from junction to lead mounted on PCB with 0.3" x 0.3" (8.0 mm x 8.0 mm) copper pad areas
ORDERING INFORMATION
(Example)
PREFERRED P/N
S2J-E3/52T
S2J-E3/5BT
S2JHE3_A/H
(1)
S2JHE3_A/I
(1)
S2J-M3/52T
S2J-M3/5BT
S2JHM3_A/H
(1)
S2JHM3_A/I
(1)
(1)
UNIT WEIGHT (g)
0.096
0.096
0.096
0.096
0.096
0.096
0.096
0.096
PREFERRED PACKAGE CODE
52T
5BT
H
I
52T
5BT
H
I
BASE QUANTITY
750
3200
750
3200
750
3200
750
3200
DELIVERY MODE
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
Note
AEC-Q101 qualified

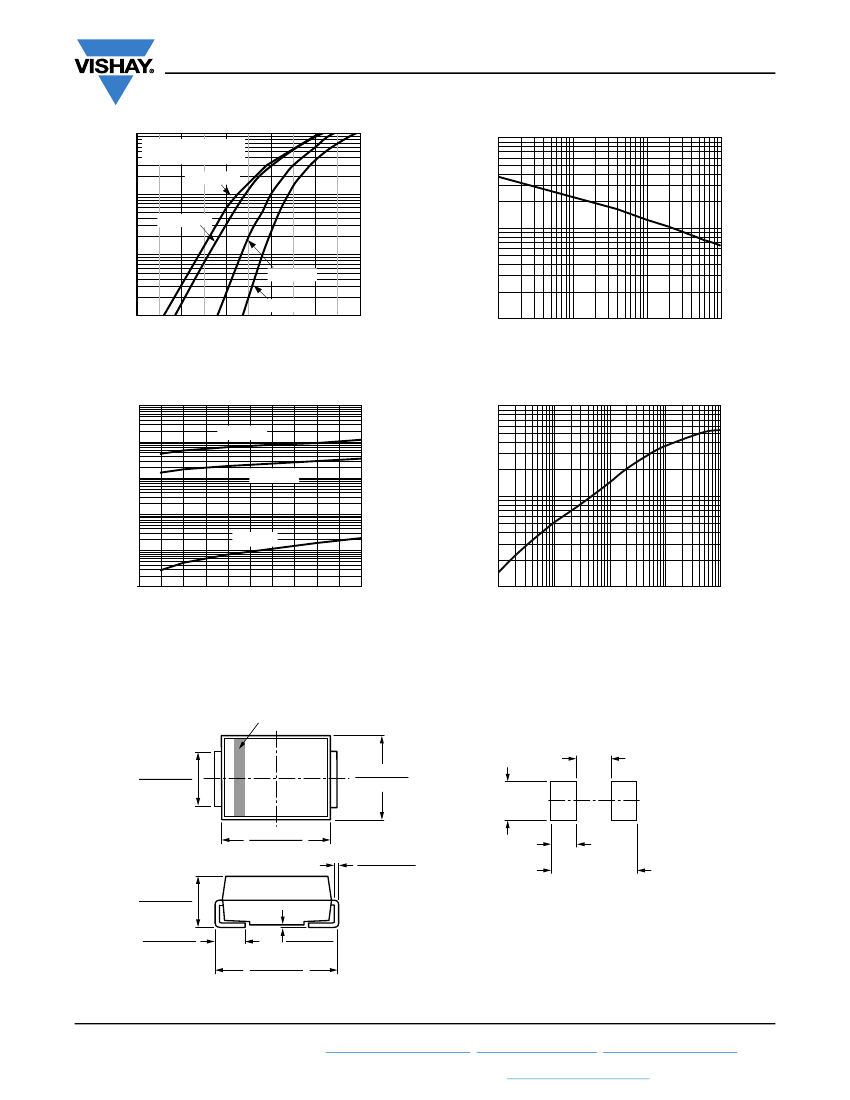

RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise noted)
1.75
Resistive or Inductive Load
50
T
L
= 100 °C
8.3 ms Single Half Sine-Wave
40
Average Forward Current (A)
1.50
1.25
1.00
0.75
0.50
0.25
0
50
70
90
110
130
150
60 Hz Resistive or
Inductive Load
P.C.B. Mounted
0.27" x 0.27" (7.0 mm x 7.0 mm)
Copper Pad Areas
Peak Forward Surge Current (A)
30
20
10
0
1
10
100
Lead Temperature (°C)
Number of Cycles at 60 Hz
Fig. 1 - Forward Current Derating Curve
Fig. 2 - Max. Non-Repetitive Peak Forward Surge Current
Revision: 21-Jul-17
Document Number: 88712
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
S2A, S2B, S2D, S2G, S2J, S2K, S2M
www.vishay.com
Vishay General Semiconductor
100
10
Instantaneous Forward Current (A)
Pulse Width = 300 μs
1% Duty Cycle
T
J
= 150 °C
1
T
J
= 125 °C
0.1
T
J
= 25 °C
T
J
= -40 °C
0.3
0.5
0.7
0.9
1.1
1.3
1
0.1
1
10
100
Junction Capacitance (pF)
10
0.01
Instantaneous Forward Voltage (V)
Fig. 3 - Typical Instantaneous Forward Characteristics
Reverse Voltage (V)
Fig. 5 - Typical Junction Capacitance
1000
T
J
= 150 °C
100
100
10
T
J
= 125 °C
Transient Thermal Impedance (°C/W)
Instantaneous Reverse Current (µA)
10
1
T
J
= 25 °C
0.1
0.01
0
20
40
60
80
100
1
0.01
0.1
1
10
100
Percent of Rated Peak Reverse Voltage (%)
t - Pulse Duration (s)
Fig. 4 - Typical Reverse Characteristics
Fig. 6 - Typical Transient Thermal Impedance
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
SMB
(DO-214AA)
Cathode Band
Mounting Pad Layout
0.085 (2.159) MAX.
0.086 (2.20)
0.077 (1.95)
0.155 (3.94)
0.130 (3.30)
0.086 (2.18) MIN.
0.180 (4.57)
0.160 (4.06)
0.012 (0.305)
0.006 (0.152)
0.096 (2.44)
0.084 (2.13)
0.060 (1.52)
0.030 (0.76)
0.008 (0.2)
0 (0)
0.220 (5.59)
0.205 (5.21)
0.060 (1.52) MIN.
0.220 (5.59) REF.
Revision: 21-Jul-17
Document Number: 88712
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
