FR20D02

Description
Rectifiers 200V 20A Fast Recovery
Categorysemiconductor    Discrete semiconductor
File Size699KB，4 Pages
ManufacturerGeneSiC Semiconductor
Environmental Compliance
Download Datasheet Parametric Compare View All

FR20D02 Online Shopping

Suppliers Part Number Price MOQ In stock
FR20D02 - - View Buy Now

FR20D02 Overview

Rectifiers 200V 20A Fast Recovery

FR20D02 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerGeneSiC Semiconductor
Product CategoryRectifiers
RoHSDetails
Mounting StyleStud Mount
Package / CaseDO-5
Vr - Reverse Voltage200 V
If - Forward Current20 A
TypeFast Recovery Rectifiers
Vf - Forward Voltage1.4 V
Max Surge Current250 A
Ir - Reverse Current25 uA
Recovery Time200 ns
PackagingBulk
ProductRectifiers
Factory Pack Quantity5
Unit Weight1.005308 oz

Preview

Download Datasheet

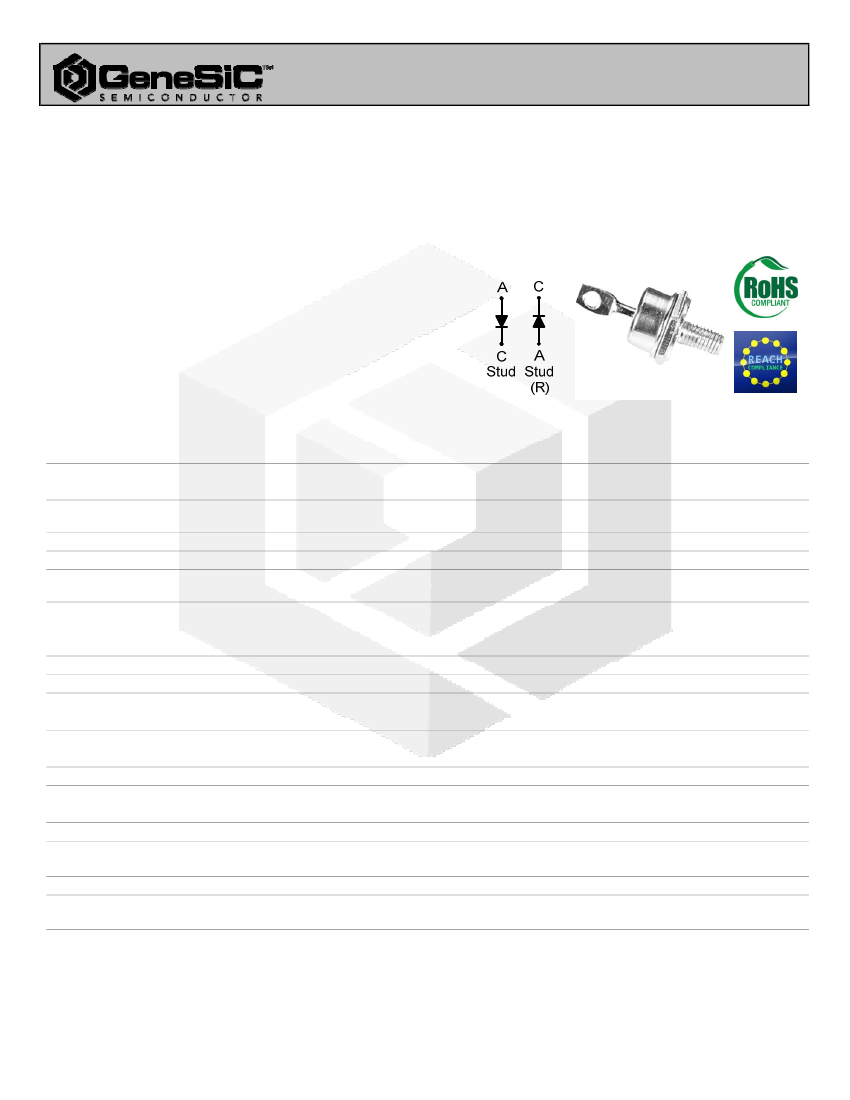

FR20A02 thru FR20JR02
Silicon Fast
Recovery Diode
Features
• High Surge Capability
• Types from 50 V to 600 V V
RRM
• Not ESD Sensitive
Note:
1. Standard polarity: Stud is cathode.
2. Reverse polarity (R): Stud is anode.
3. Stud is base.
DO-5 Package
V
RRM
= 50 V - 600 V
I
F
= 20 A
Maximum ratings, at T
j
= 25 °C, unless otherwise specified ("R" devices have leads reversed)
Parameter
Repetitive p
p
peak reverse
voltage
RMS reverse voltage
DC blocking voltage
Continuous forward current
Surge non-repetitive forward
current, Half Sine Wave
Operating temperature
Storage temperature
Symbol
V
RRM
V
RMS
V
DC
I
F
I
F,SM
T
j
T
stg
T
C
≤ 100 °C
T
C
= 25 °C, t
p
= 8.3 ms
Conditions
FR20A(R)02 FR20B(R)02 FR20D(R)02 FR20G(R)02 FR20J(R)02 Unit
50
35
50
20
250
-55 to 150
-55 to 150
100
70
100
20
250
-55 to 150
-55 to 150
200
140
200
20
250
-55 to 150
-55 to 150
400
280
400
20
250
-55 to 150
-55 to 150
600
420
600
20
250
-55 to 150
-55 to 150
V
V
V
A
A
°C
°C
Electrical characteristics, at Tj = 25 °C, unless otherwise specified
Parameter
Diode forward voltage
Reverse current
Symbol
V
F
I
R
Conditions
I
F
= 20 A, T
j
= 25 °C
V
R
= 50 V, T
j
= 25 °C
V
R
= 50 V, T
j
= 150 °C
I
F
=0.5 A, I
R
=1.0 A,
I
RR
= 0.25 A
FR20A(R)02 FR20B(R)02 FR20D(R)02 FR20G(R)02 FR20J(R)02 Unit
1.0
25
10
1.0
25
10
1.0
25
10
1.0
25
10
1.0
25
10
V
μA
mA
Recovery Time
Maximum reverse recovery
time
T
RR
200
200
200
200
250
nS
Thermal characteristics
Thermal resistance, junction
- case
R
thJC
0.6
0.6
0.6
0.6
0.6
°C/W

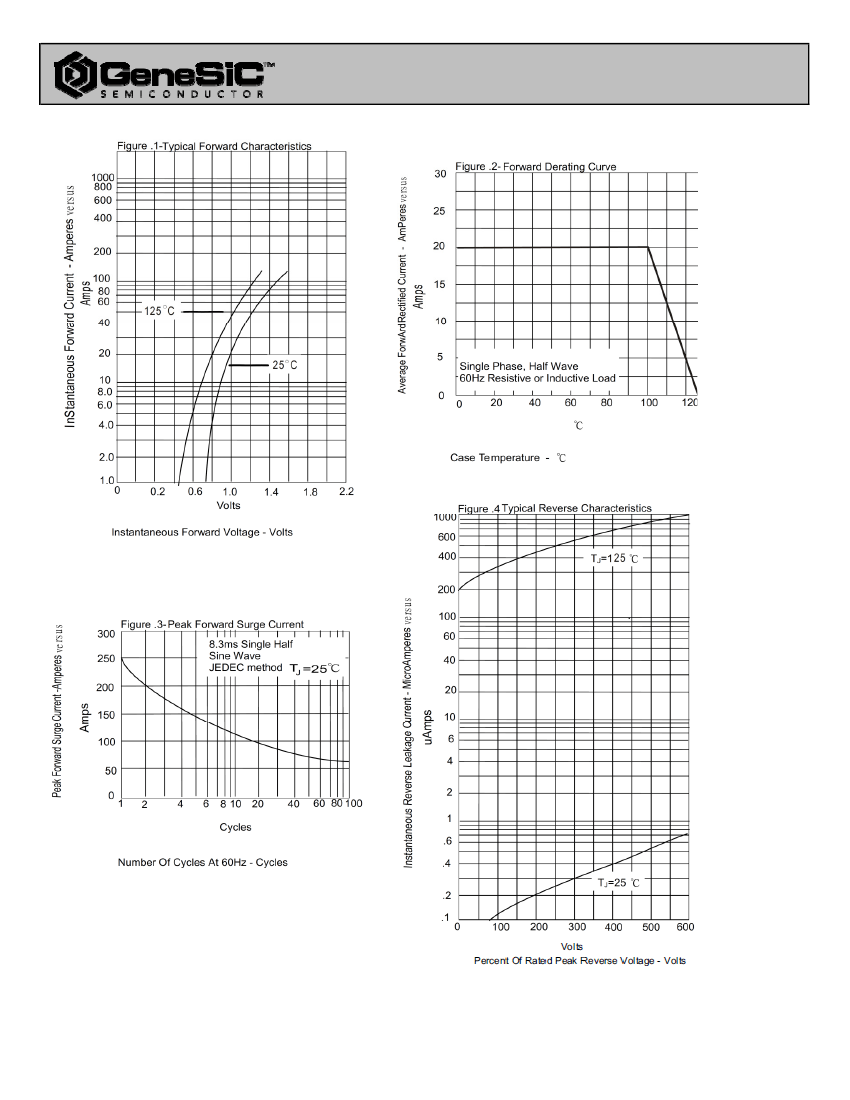

Feb 2016
Latest version of this datasheet at: www.genesicsemi.com/silicon-products/fast-recovery-rectifiers/
1

FR20D02 Related Products

FR20D02 FR20DR02 FR20A02
Description Rectifiers 200V 20A Fast Recovery Rectifiers 200V 20A REV Leads Fast Recovery Rectifiers 50V 20A Fast Recovery
Product Attribute Attribute Value Attribute Value Attribute Value
Manufacturer GeneSiC Semiconductor GeneSiC Semiconductor GeneSiC Semiconductor
Product Category Rectifiers Rectifiers Rectifiers
RoHS Details Details Details
Mounting Style Stud Mount Stud Mount Stud Mount
Package / Case DO-5 DO-5 DO-5
Vr - Reverse Voltage 200 V 200 V 50 V
If - Forward Current 20 A 20 A 20 A
Type Fast Recovery Rectifiers Fast Recovery Rectifiers Fast Recovery Rectifiers
Vf - Forward Voltage 1.4 V 1.4 V 1.4 V
Max Surge Current 250 A 250 A 250 A
Ir - Reverse Current 25 uA 25 uA 25 uA
Recovery Time 200 ns 200 ns 200 ns
Packaging Bulk Bulk Bulk
Product Rectifiers Rectifiers Rectifiers
Factory Pack Quantity 5 5 5
Unit Weight 1.005308 oz 1.005308 oz 1.005308 oz
