FUSB302B
FUSB302B Programmable
USB Type‐C Controller w/PD
Description
The FUSB302B targets system designers looking to implement
a DRP/SRC/SNK USB Type-C connector with low amount of
programmability.
The FUSB302B enables the USB Type-C detection including
attach, and orientation. The FUSB302B integrates the physical layer
of the USB BMC power delivery protocol to allow up to 100 W of
power and role swap. The BMC PD block enables full support for
alternative interfaces of the Type-C specification.
Features
www.onsemi.com

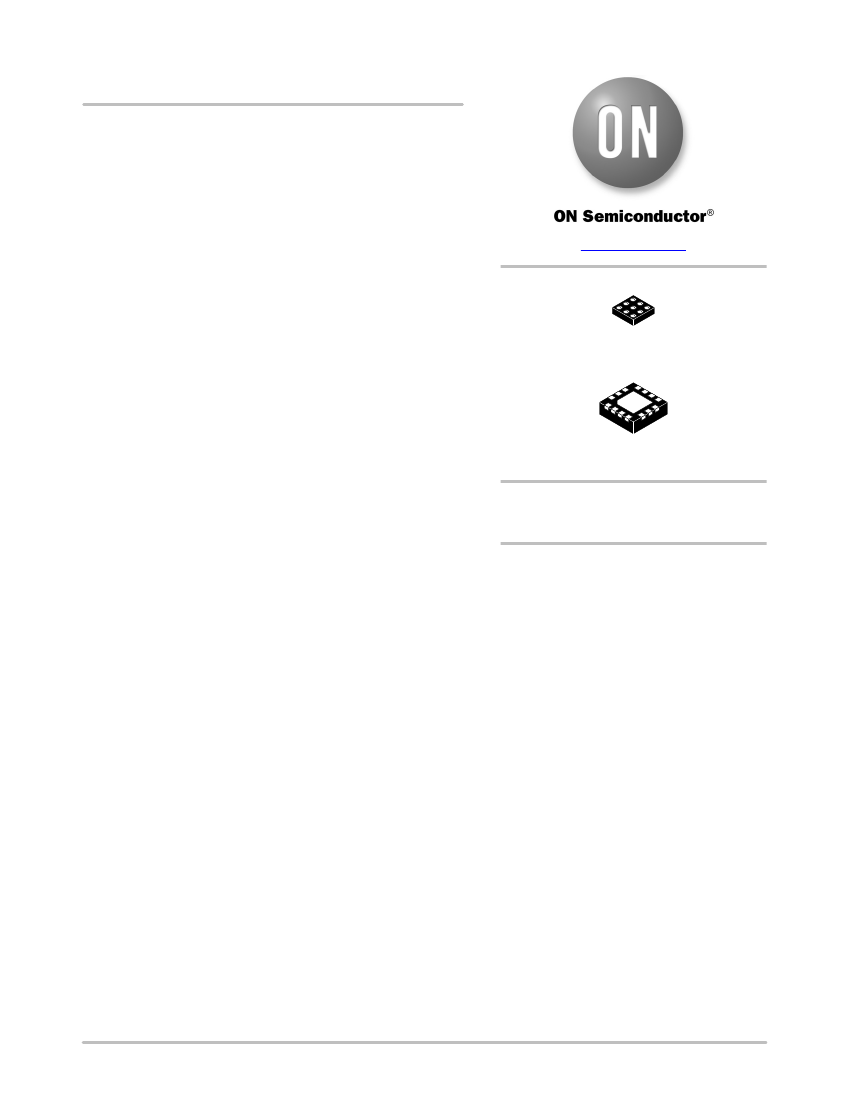

WLCSP9
CASE 567TN
•
Dual-role Functionality with Autonomous DRP Toggle
•
Ability to Connect as Either a Host or a Device Based on What Has
•
Been Attached
Software Configurable Either as a Dedicated Host, Dedicated
Device, or Dual Role
♦
Dedicated Devices can Operate both on a Type-C Receptacle or
a Type-C Plug with a Fixed CC and VCONN Channel
Full Type-C 1.2 Support. Integrates the Following Functionality of
the CC Pin:
♦
Attach/Detach Detection as Host
♦
Current Capability Indication as Host
♦
Current Capability Detection as Device
♦
Audio Adapter Accessory Mode
♦
Debug Accessory Mode
♦
Active Cable Detection
Integrates CCx to VCONN Switch with Over-current Limiting for
Powering USB3.1 Full Featured Cables
USB Power Delivery (PD) 2.0, Version 1.2 Support:
♦
Automatic GoodCRC Packet Response
♦
Automatic Retries of Sending a Packet if a GoodCRC is Not
Received
♦
Automatic Soft Reset Packet Sent with Retries if Needed
♦
Automatic Hard Reset Ordered Set Sent
Dead Battery Support (SNK Mode Support when No Power Applied)
Low Power Operation: I
CC
= 25
mA
(Typical)
AEC−Q100 Automotive Qualified Temperature Grade 2:
(−40°C to +105°C)
Packaged in:
♦
9-ball WLCSP (1.215 mm
×
1.260 mm)
♦
14-lead MLP (2.5 mm
×
2.5 mm, 0.5 mm Pitch)
Smartphones
Tablets
Laptops
Notebooks
WQFN14
CASE 510BR
•
ORDERING INFORMATION
See detailed ordering and shipping information on page 2 of
this data sheet.
•
•
•
•
•
•
Applications
•
•
•
•
•
•
•
•
1
Power Adapters
Cameras
Dongles
Automotive
©
Semiconductor Components Industries, LLC, 2015
November, 2017 − Rev. 4
Publication Order Number:
FUSB302B/D
FUSB302B
USB Type-C
Connector
VBUS
OVP
Charger
VCONN
FUSB302
CC1
USB Type-C
Detection
Control PD
CC2
I
2
Ct
Processor
TX1/RX1
USB Switch
USB 3.1
TX2/RX2
5Gbps
Figure 1. Block Diagram
Table 1. ORDERING INFORMATION
Part Number
FUSB302BUCX
FUSB302BMPX
FUSB302B01MPX
FUSB302B10MPX
FUSB302B11MPX
FUSB302BVMPX
Top Mark
H4
UA
UP
US
UT
DA
−40 to 105°C
−40 to 85°C
14-lead MLP 2.5 mm
×
2.5 mm,
0.5 mm Pitch
3,000 / Tape and Reel
Operating
Temperature Range
−40 to 85°C
Package
9-ball Wafer-level Chip Scale
Package (WLCSP), 0.4 mm Pitch
Shipping
†
†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging
Specifications Brochure,
BRD8011/D.
www.onsemi.com
2
FUSB302B
14
CC2
13
VCONN
12
VCONN
11
CC1
11
CC1
12
VCONN
13
VCONN
14
CC2
1
CC2
10
CC1
10
CC1
1
CC2
2
VBUS
TOP
THROUGH
VIEW
Connect to GND for
Thermal
9
GND
9
GND
BOTTOM
VIEW
Connect to GND for
Thermal
2
VBUS
3
VDD
8
GND
8
GND
3
VDD
4
VDD
5
INT_N
6
SCL
7
SDA
7
SDA
6
SCL
5
INT_N
4
VDD
Figure 5. FUSB302BMPX Pin Assignment (N/C = No Connect)
Table 3. PIN DESCRIPTION
Name
Type
Description
USB TYPE-C CONNECTOR INTERFACE
CC1/CC2
I/O
Type-C connector Configuration Channel (CC) pins. Initially used to determine when an attach has
occurred and what the orientation of the insertion is. Functionality after attach depends on mode of
operation detected.
Operating as a host:
1. Sets the allowable charging current for VBUS to be sensed by the attached device
2. Used to communicate with devices using USB BMC Power Delivery
3. Used to detect when a detach has occurred
Operating as a device:
1. Indicates what the allowable sink current is from the attached host. Used to communicate with
devices using USB BMC Power Delivery
Ground
VBUS input pin for attach and detach detection when operating as an upstream facing port
(Device). Expected to be an OVP protected input.
GND
VBUS
POWER INTERFACE
VDD
VCONN
Ground
Input
Power
Power Switch
Input supply voltage.
Regulated input to be switched to correct CC pin as VCONN to power USB3.1 full-featured cables
and other accessories.
SIGNAL INTERFACE
SCL
SDA
INT_N
Input
Open-Drain I/O
Open-Drain
Output
I
2
C serial clock signal to be connected to the phone-based I
2
C master.
I
2
C serial data signal to be connected to the phone-based I
2
C master
Active LOW open drain interrupt output used to prompt the processor to read the I
2
C register bits
