Green
US1A - US1M
1.0A SURFACE MOUNT ULTRA-FAST RECTIFIER
Features
•
•
•
•
•
•
•
Glass Passivated Die Construction
Ultra-Fast Recovery Time for High Efficiency
Surge Overload Rating to 30A Peak
High Current Capability
Ideally Suited for Automated Assembly
Lead Free Finish/RoHS Compliant (Note 1)
Green Molding Compound (No Halogen and Antimony)
(Note 2)
Mechanical Data
•
•
•
•
•
•
Case: SMA
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Lead Free Plating (Matte Tin Finish). Solderable per
MIL-STD-202, Method 208
Polarity: Cathode Band or Cathode Notch
Weight: 0.064 grams (approximate)
Top View
Bottom View
Ordering Information
(Note 3)
Part Number*
US1x-13-F
*x = Device type, e.g. US1A-13-F.
Notes:
1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied, see EU Directive 2002/95/EC Annex Notes.
2. Product manufactured with Data Code 0924 (week 24, 2009) and newer are built with Green Molding Compound.
3. For packaging details, go to our website at http://www.diodes.com.
Case
SMA
Packaging
5000/Tape & Reel
Marking Information
YWW
US1x
US1x = Product type marking code, ex: US1A
= Manufacturers’ code marking
YWW = Date code marking
Y = Last digit of year (ex: 2 for 2002)
WW = Week code (01 to 53)
US1A - US1M
Document number: DS16008 Rev. 10 - 2
1 of 4
www.diodes.com
October 2011
© Diodes Incorporated
US1A - US1M
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage (Note 4)
RMS Reverse Voltage
Average Rectified Output Current
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
@ T
T
= 75°C
I
O
I
FSM
US1A
50
35
US1B
100
70
US1D
200
140
US1G
400
280
1.0
30
US1J
600
420
US1K
800
560
US1M
1000
700
Unit
V
V
A
A
Thermal Characteristics
Characteristic
Maximum Thermal Resistance, Junction to Terminal
Operating and Storage Temperature Range
Symbol
R
θ
JT
T
J,
T
STG
Value
30
-65 to +150
Unit
°C/W
°C
Electrical Characteristics
Characteristic
Forward Voltage Drop
Peak Reverse Current
at Rated DC Blocking Voltage (Note 4)
Reverse Recovery Time (Note 5)
Typical Total Capacitance (Note 6)
Notes:
@T
A
= 25°C unless otherwise specified
Symbol
V
FM
I
RM
t
rr
C
T
50
20
US1A
US1B
1.0
US1D
US1G
1.3
5.0
100
US1J
US1K
1.7
US1M
Unit
V
μA
75
10
ns
pF
@ I
F
= 1.0A
@ T
A
= 25°C
@ T
A
= 100°C
4. Short duration pulse test used to minimize self-heating effect.
5. Measured at 1.0MHz and applied reverse voltage of 4.0V DC.
6. Measured with I
F
= 0.5A, I
R
= 1.0A, I
rr
= 0.25A. See figure 5.
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
10
I
O
, AVERAGE RECTIFIED CURRENT (A)
1.0
US1A - US1D
US1G
1.0
US1J - US1M
0.5
0.1
0
25
0.01
0
0.4
0.8
1.2
1.6
2.0
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics
75
50
100
125
150
T
T
, TERMINAL TEMPERATURE (
°
C)
Fig. 1 Forward Current Derating Curve
US1A - US1M
Document number: DS16008 Rev. 10 - 2
2 of 4
www.diodes.com
October 2011
© Diodes Incorporated

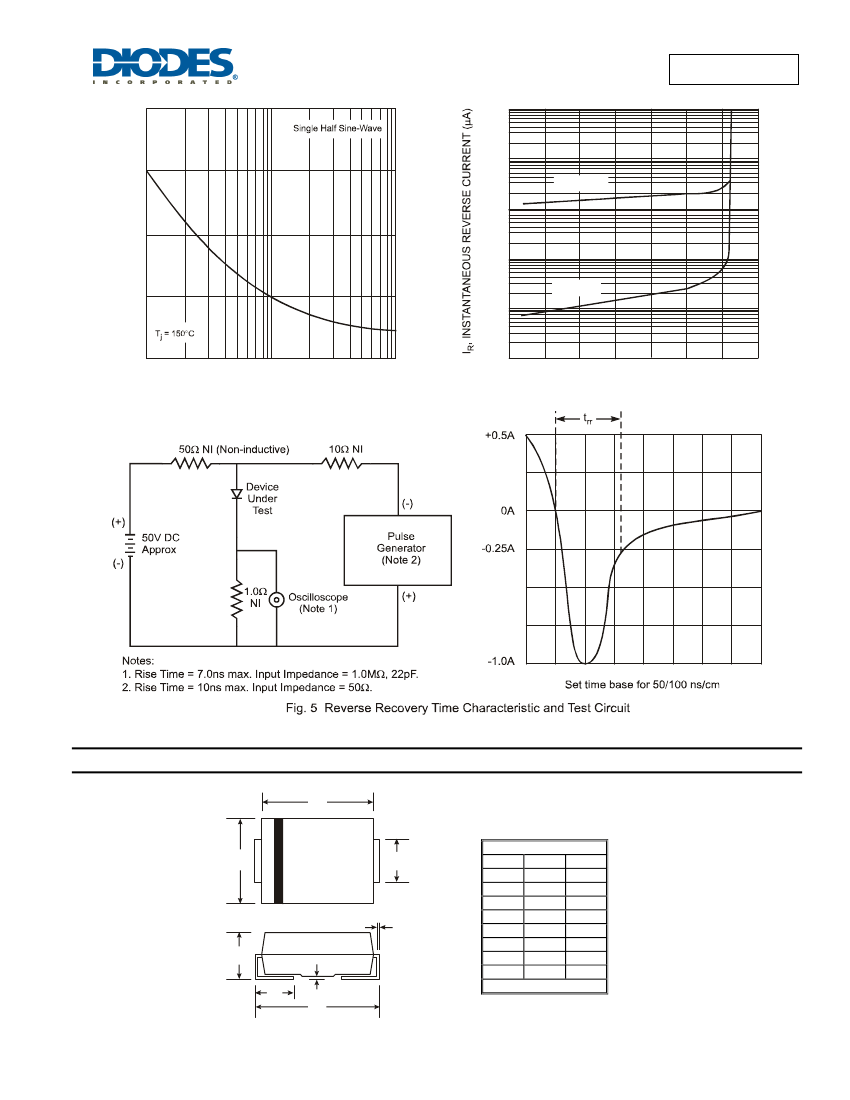

US1A - US1M
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
40
1,000
100
30
T
j
= 100
°
C
10
20
1.0
10
T
j
= 25
°
C
0.1
0
1
10
100
NUMBER OF CYCLES AT 60Hz
Fig. 3 Forward Surge Current Derating Curve
0.01
0
20
40
60
80
100
120 140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Fig. 4 Typical Reverse Characteristics
Package Outline Dimensions
B
A
C
D
J
H
E
G
SMA
Dim
Min
Max
A
2.29
2.92
B
4.00
4.60
C
1.27
1.63
D
0.15
0.31
E
4.80
5.59
G
0.05
0.20
H
0.76
1.52
J
2.01
2.30
All Dimensions in mm
US1A - US1M
Document number: DS16008 Rev. 10 - 2
3 of 4
www.diodes.com
October 2011
© Diodes Incorporated
US1A - US1M
Suggested Pad Layout
C
X
Dimensions Value (in mm)
Z
6.5
G
1.5
X
1.7
Y
2.5
C
4.0
Y
G
Z
