CMPD6263C TR

Description
Schottky Diodes & Rectifiers Dual Common Cathode Low Current
Categorysemiconductor    Discrete semiconductor
File Size748KB,5 Pages
ManufacturerCentral Semiconductor
Environmental Compliance
Download Datasheet Parametric View All

CMPD6263C TR Overview

Schottky Diodes & Rectifiers Dual Common Cathode Low Current

CMPD6263C TR Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerCentral Semiconductor
Product CategorySchottky Diodes & Rectifiers
RoHSDetails
ProductSchottky Diodes
Mounting StyleSMD/SMT
Package / CaseSOT-23
If - Forward Current15 mA
Vrrm - Repetitive Reverse Voltage70 V
Vf - Forward Voltage395 mV
Ifsm - Forward Surge Current50 mA
ConfigurationDual Common Cathode
TechnologySi
Ir - Reverse Current200 nA
Minimum Operating Temperature- 65 C
Maximum Operating Temperature+ 150 C
PackagingCut Tape
PackagingMouseReel
PackagingReel
Operating Temperature Range- 65 C to + 150 C
Pd - Power Dissipation350 mW
Factory Pack Quantity3000
Unit Weight0.000282 oz
CMPD6263
CMPD6263A
CMPD6263C
CMPD6263S
SURFACE MOUNT SILICON
SCHOTTKY DIODES
w w w. c e n t r a l s e m i . c o m
DESCRIPTION:
The CENTRAL SEMICONDUCTOR CMPD6263 series
devices are silicon Schottky diodes designed for low
current surface mount fast switching applications
requiring a low forward voltage drop.

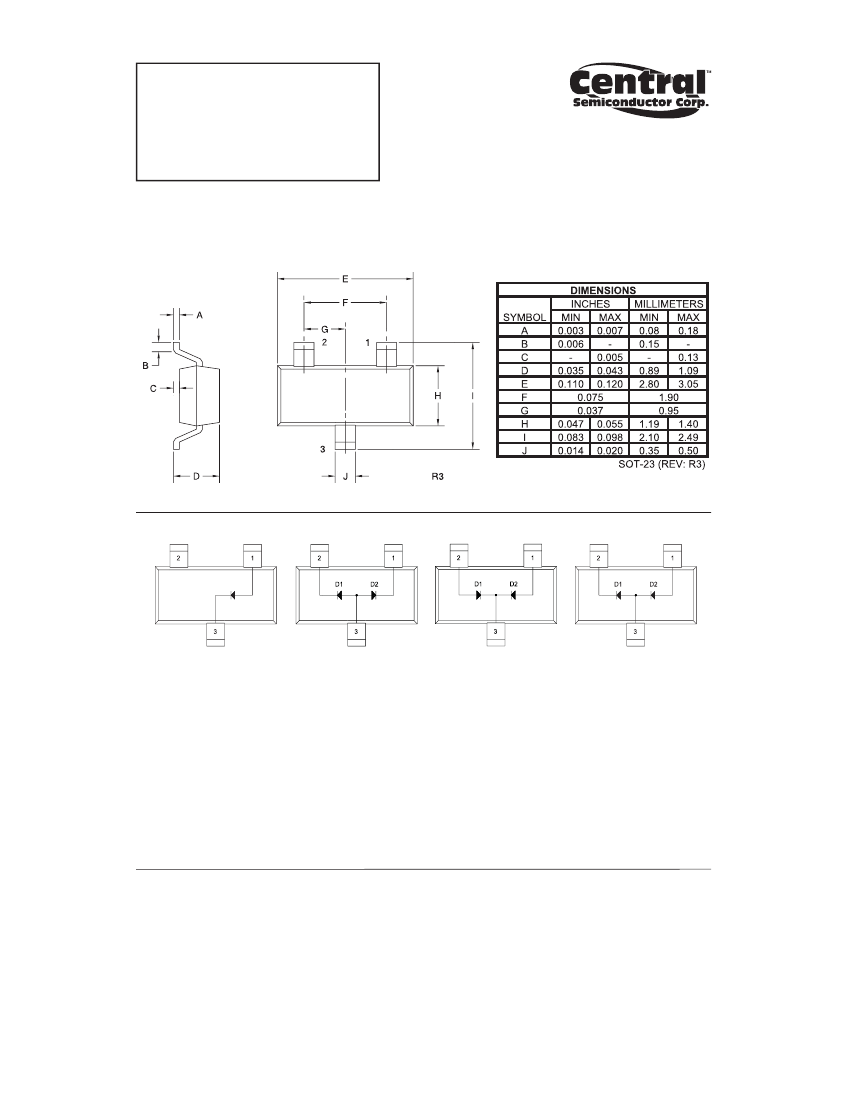

SOT-23 CASE
The following
CMPD6263
CMPD6263A
CMPD6263C
CMPD6263S
configurations are available:
SINGLE
DUAL, COMMON ANODE
DUAL, COMMON CATHODE
DUAL, IN SERIES
MARKING
MARKING
MARKING
MARKING
SYMBOL
VRRM
IF
IFSM
PD
TJ, Tstg
Θ
JA
CODE:
CODE:
CODE:
CODE:
D76
D98
D97
D96
UNITS
V
mA
mA
mW
°C
°C/W
MAXIMUM RATINGS:
(TA=25°C)
Peak Repetitive Reverse Voltage
Continuous Forward Current
Peak Forward Surge Current, tp=1.0s
Power Dissipation
Operating and Storage Junction Temperature
Thermal Resistance
70
15
50
350
-65 to +150
357

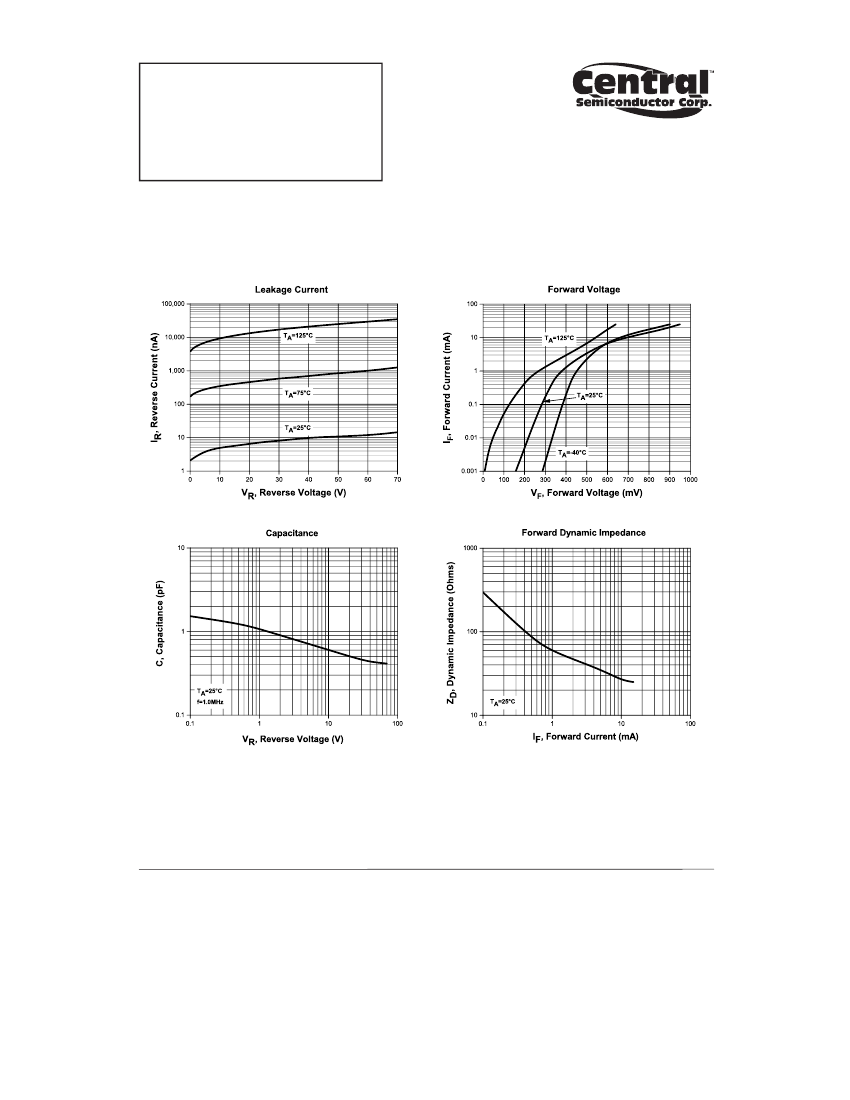

ELECTRICAL CHARACTERISTICS PER DIODE:
(TA=25°C unless otherwise noted)
SYMBOL
TEST CONDITIONS
MIN
TYP
MAX
IR
BVR
VF
CJ
VR=50V
IR=10µA
IF=1.0mA
VR=0, f=1.0MHz
70
395
410
2.0
10
200
UNITS
nA
V
mV
pF
R7 (11-December 2015)
