FAN2500S33X

Description
LDO Voltage Regulators 100 mA CMOS Dropout
CategoryPower/power management    The power supply circuit
File Size884KB,15 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Environmental Compliance
Download Datasheet Parametric Compare View All

FAN2500S33X Online Shopping

Suppliers Part Number Price MOQ In stock
FAN2500S33X - - View Buy Now

FAN2500S33X Overview

LDO Voltage Regulators 100 mA CMOS Dropout

FAN2500S33X Parametric

Parameter NameAttribute value
Brand NameON Semiconductor
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerON Semiconductor
package instructionLSSOP, TSOP5/6,.11,37
Manufacturer packaging code527AH
Reach Compliance Codecompliant
ECCN codeEAR99
Samacsys DescriptionIC, Fairchild, FAN2500S33X Fairchild Semiconductor FAN2500S33X, LDO Voltage Regulator, 100mA, 3.3 V /-2%, 2.7 ??? 6.5 Vin, 5-Pin SOT-23
AdjustabilityFIXED
Maximum drop-back voltage 10.14 V
Nominal dropback voltage 10.1 V
Maximum absolute input voltage7 V
Maximum input voltage6.5 V
Minimum input voltage2.7 V
JESD-30 codeR-PDSO-G5
JESD-609 codee3
length2.9 mm
Maximum load regulation0.066%
Humidity sensitivity level1
Number of functions1
Output times1
Number of terminals5
Working temperatureTJ-Max125 °C
Working temperature TJ-Min-40 °C
Maximum output current 10.1 A
Maximum output voltage 13.366 V
Minimum output voltage 13.234 V
Nominal output voltage 13.3 V
Package body materialPLASTIC/EPOXY
encapsulated codeLSSOP
Encapsulate equivalent codeTSOP5/6,.11,37
Package shapeRECTANGULAR
Package formSMALL OUTLINE, LOW PROFILE, SHRINK PITCH
method of packingTAPE AND REEL
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Regulator typeFIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height1.45 mm
surface mountYES
technologyCMOS
Terminal surfaceTin (Sn)
Terminal formGULL WING
Terminal pitch0.95 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Maximum voltage tolerance2%
width1.65 mm

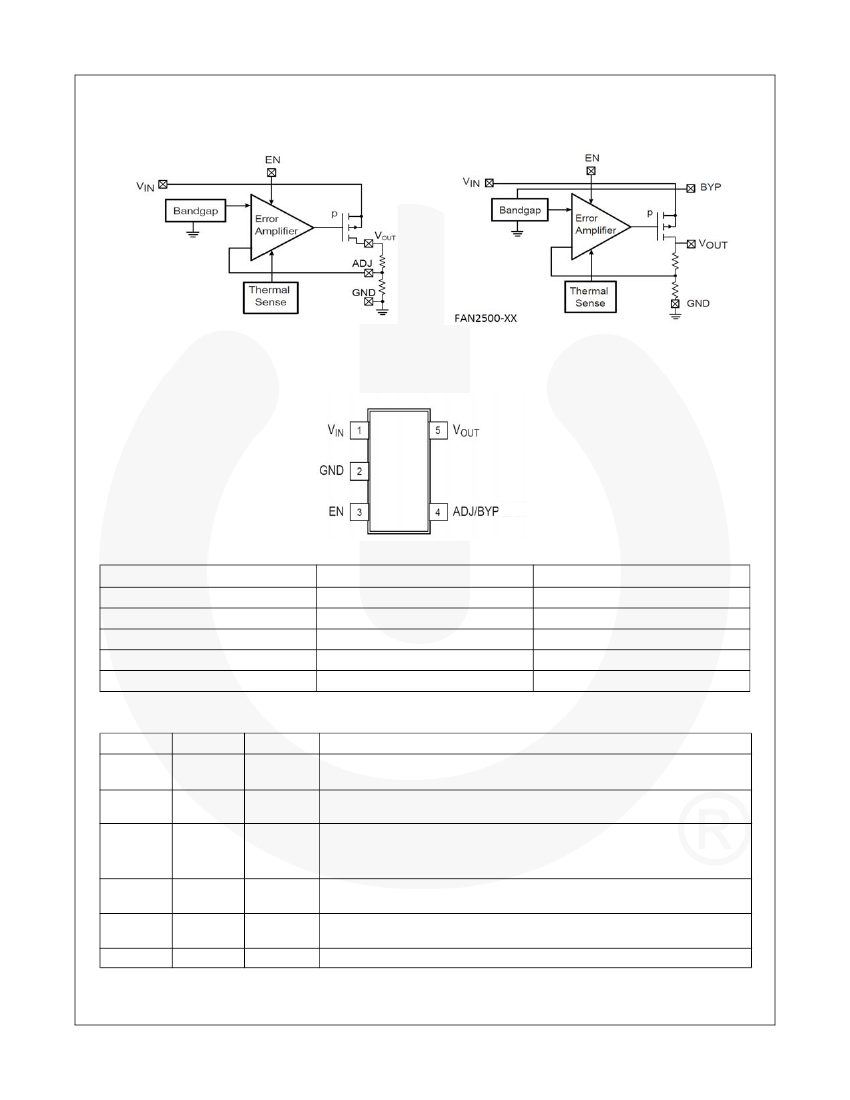

Is Now Part of
To learn more about ON Semiconductor, please visit our website at
www.onsemi.com
Please note: As part of the Fairchild Semiconductor integration, some of the Fairchild orderable part numbers
will need to change in order to meet ON Semiconductor’s system requirements. Since the ON Semiconductor
product management systems do not have the ability to manage part nomenclature that utilizes an underscore
(_), the underscore (_) in the Fairchild part numbers will be changed to a dash (-). This document may contain
device numbers with an underscore (_). Please check the ON Semiconductor website to verify the updated
device numbers. The most current and up-to-date ordering information can be found at
www.onsemi.com.
Please
email any questions regarding the system integration to
Fairchild_questions@onsemi.com.
ON Semiconductor and the ON Semiconductor logo are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor owns the rights to a number
of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of ON Semiconductor’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent-Marking.pdf. ON Semiconductor reserves the right
to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability
arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using ON
Semiconductor products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by ON Semiconductor. “Typical” parameters which may be provided in ON
Semiconductor data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s
technical experts. ON Semiconductor does not convey any license under its patent rights nor the rights of others. ON Semiconductor products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA
Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use ON Semiconductor products for any such unintended
or unauthorized application, Buyer shall indemnify and hold ON Semiconductor and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out
of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that ON Semiconductor was negligent regarding the design or manufacture of the part. ON Semiconductor
is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner.

FAN2500S33X Related Products

FAN2500S33X FAN2500S30X
Description LDO Voltage Regulators 100 mA CMOS Dropout LDO Voltage Regulators 100 mA CMOS Dropout
Brand Name ON Semiconductor ON Semiconductor
Is it lead-free? Lead free Lead free
Maker ON Semiconductor ON Semiconductor
package instruction LSSOP, TSOP5/6,.11,37 LSSOP, TSOP5/6,.11,37
Manufacturer packaging code 527AH 527AH
Reach Compliance Code compliant compliant
ECCN code EAR99 EAR99
Adjustability FIXED FIXED
Maximum drop-back voltage 1 0.14 V 0.14 V
Nominal dropback voltage 1 0.1 V 0.1 V
Maximum absolute input voltage 7 V 7 V
Maximum input voltage 6.5 V 6.5 V
Minimum input voltage 2.7 V 2.7 V
JESD-30 code R-PDSO-G5 R-PDSO-G5
JESD-609 code e3 e3
length 2.9 mm 2.9 mm
Maximum load regulation 0.066% 0.06%
Humidity sensitivity level 1 1
Number of functions 1 1
Output times 1 1
Number of terminals 5 5
Working temperatureTJ-Max 125 °C 125 °C
Working temperature TJ-Min -40 °C -40 °C
Maximum output current 1 0.1 A 0.1 A
Maximum output voltage 1 3.366 V 3.06 V
Minimum output voltage 1 3.234 V 2.94 V
Nominal output voltage 1 3.3 V 3 V
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code LSSOP LSSOP
Encapsulate equivalent code TSOP5/6,.11,37 TSOP5/6,.11,37
Package shape RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE, LOW PROFILE, SHRINK PITCH SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
method of packing TAPE AND REEL TAPE AND REEL
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED
Certification status Not Qualified Not Qualified
Regulator type FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height 1.45 mm 1.45 mm
surface mount YES YES
technology CMOS CMOS
Terminal surface Tin (Sn) Tin (Sn)
Terminal form GULL WING GULL WING
Terminal pitch 0.95 mm 0.95 mm
Terminal location DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED
Maximum voltage tolerance 2% 2%
width 1.65 mm 1.65 mm
