Revision 2.1 (06-02-10)
PRODUCT PREVIEW
2
SMSC USB3318 REV
C
Hi-Speed USB Transceiver with 1.8V-3.3V ULPI Interface - 13MHz Reference Clock
General Description
The USB3318 is a highly integrated Hi-Speed USB 2.0 Transceiver (PHY) that supports systems
architectures based on a 13MHz reference clock. It is designed to be used in both commercial and
industrial temperature applications.
The USB3318 meets all of the electrical requirements to be used as a Hi-Speed USB Host, Device,
or an On-the-Go (OTG) device. In addition to the supporting USB signaling the USB3318 also provides
USB UART mode.
USB3318 uses the industry standard UTMI+ Low Pin Interface (ULPI) to connect the USB PHY to the
Link. The industry standard ULPI interface uses a method of in-band signaling and status byte transfers
between the Link and PHY, to facilitate a USB session. By using in-band signaling and status byte
transfers the ULPI interface requires only 12 pins.
The USB3318 uses SMSC’s “wrapper-less” technology to implement the ULPI interface. This “wrapper-
less” technology allows the PHY to achieve a low latency transmit and receive time. SMSC’s low
latency transceiver allows an existing UTMI Link to be reused by adding a UTMI to ULPI bridge. By
adding a bridge to the ASIC the existing and proven UTMI Link IP can be reused.
REFCLK
CPEN
ESD Protection
VBUS
ID
OTG
Low Jitter
Integrated
PLL
BIAS
RBIAS
DP
DM
Hi-Speed
USB
Transceiver
ULPI
Registers
and State
Machine
Integrated
Power
Management
RESETB
VBAT
VDD33
VDD18
VDDIO
Carkit
ULPI Interface
STP
NXT
DIR
CLKOUT
DATA[7:0]
Figure 1 USB3318 Block Diagram
The USB3318 is designed to run with a 13MHz reference clock. By using a reference clock from the
Link the USB3318 is able to remove the cost of a crystal reference from the design.
The USB3318 includes a integrated 3.3V LDO regulator to generate its own supply from power applied
at the
VBAT
pin. The voltage on the
VBAT
pin can range from 3.1 to 5.5V. The regulator dropout
voltage is less than 100mV which allows the PHY to continue USB signaling when the voltage on
VBAT
drops to 3.1V. The USB transceiver will continue to operate at lower voltages, although some
parameters may be outside the limits of the USB specifications. If the user would like to provide a 3.3V
supply to the USB3318, the
VBAT
and
VDD33
pins should be connected together.
The USB3318 also includes integrated pull-up resistors that can be used for detecting the attachment
of a USB Charger. By sensing the attachment to a USB Charger, a product using the USB3318 can
charge its battery at more than the 500mA allowed when charging from a USB Host.
SMSC USB3318 REV
C
PRODUCT PREVIEW
3
Revision 2.1 (06-02-10)
Hi-Speed USB Transceiver with 1.8V-3.3V ULPI Interface - 13MHz Reference Clock
Package Outline
Revision 2.1 (06-02-10)
PRODUCT PREVIEW
4
SMSC USB3318 REV
C

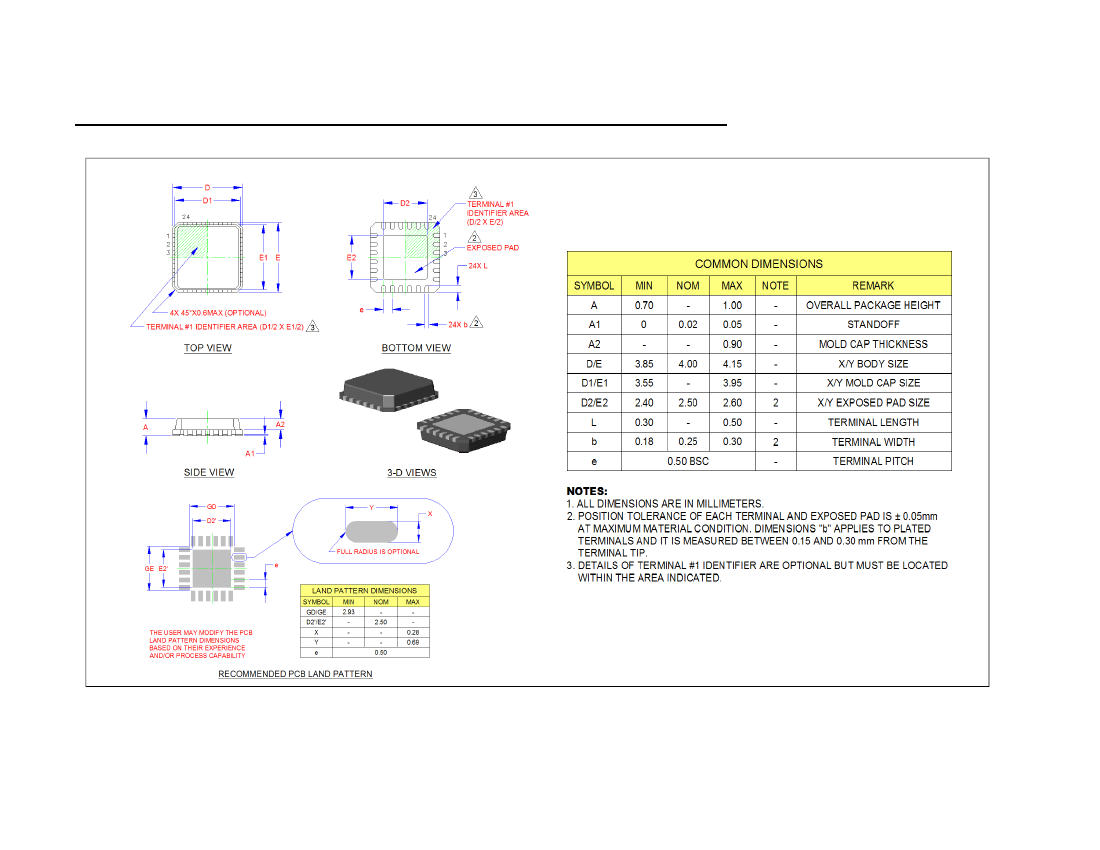

Figure 2 24-Pin QFN, 4x4mm Body, 0.5mm Pitch
