ICL7667CBA+ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> ICL7667CBA+

ICL7667CBA+: DescriptionGate Drivers Dual Power Inverting MOSFET Driver; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size143KB，4 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html; Environmental Compliance

Download Datasheet Parametric Compare View All

ICL7667CBA+ Overview

Gate Drivers Dual Power Inverting MOSFET Driver

ICL7667CBA+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Maxim
Parts packaging code	SOIC
package instruction	ROHS COMPLIANT, SOIC-8
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	6 weeks
Is Samacsys	N
high side driver	YES
Interface integrated circuit type	BUFFER OR INVERTER BASED MOSFET DRIVER
JESD-30 code	R-PDSO-G8
JESD-609 code	e3
length	4.9 mm
Humidity sensitivity level	1
Number of functions	2
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
power supply	4.5/15 V
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage	17 V
Minimum supply voltage	4.5 V
Nominal supply voltage	15 V
surface mount	YES
Temperature level	COMMERCIAL
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Disconnect time	0.06 µs
connection time	0.04 µs
width	3.9 mm
Base Number Matches	1

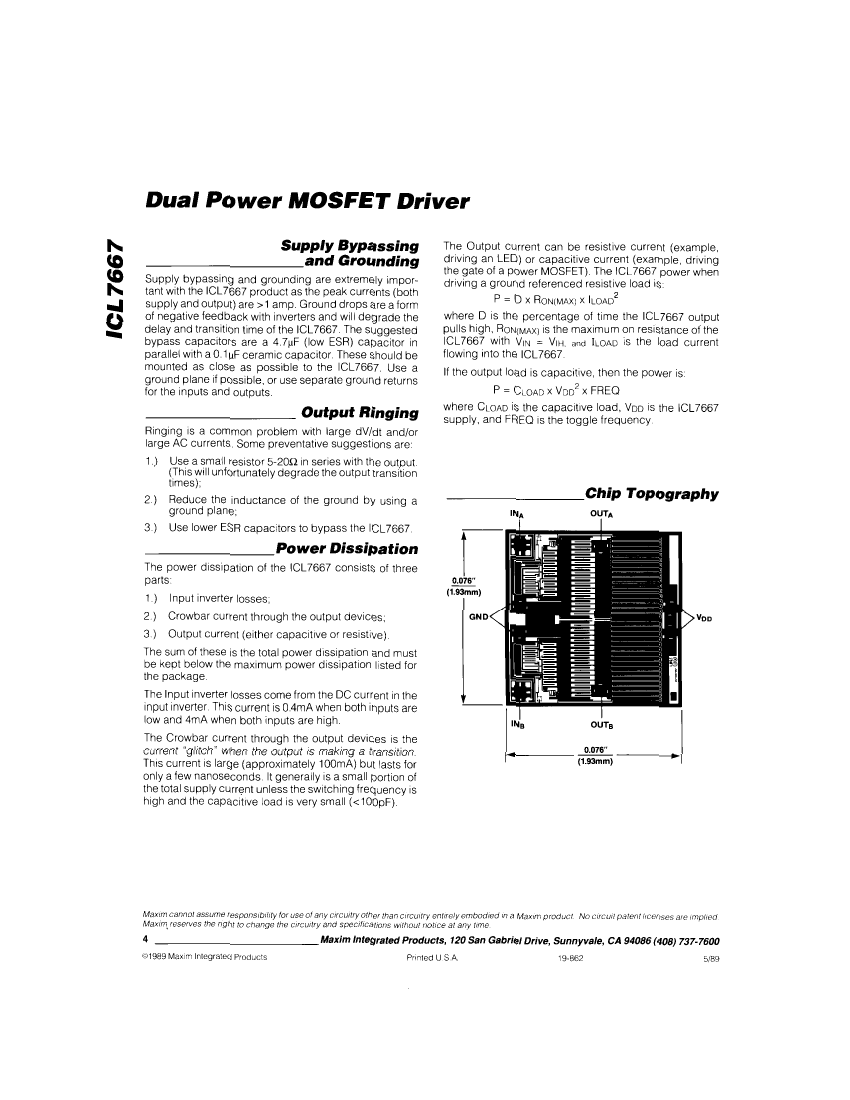

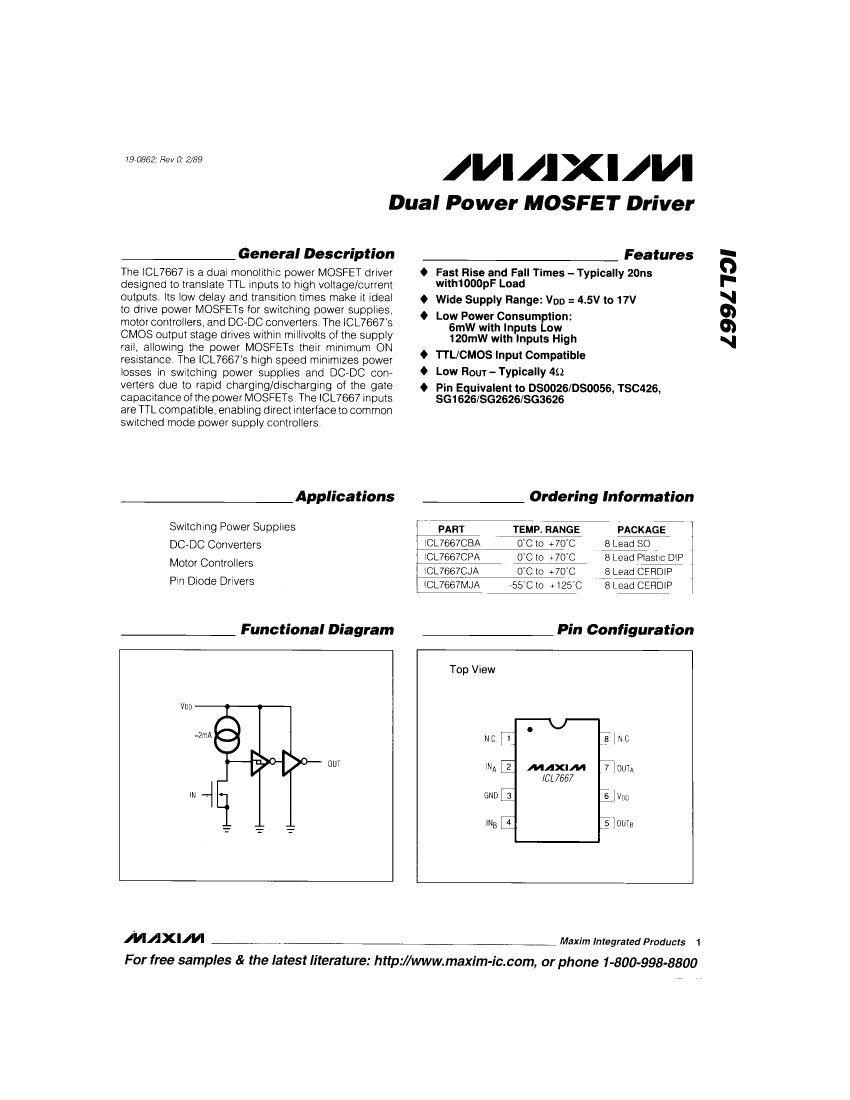

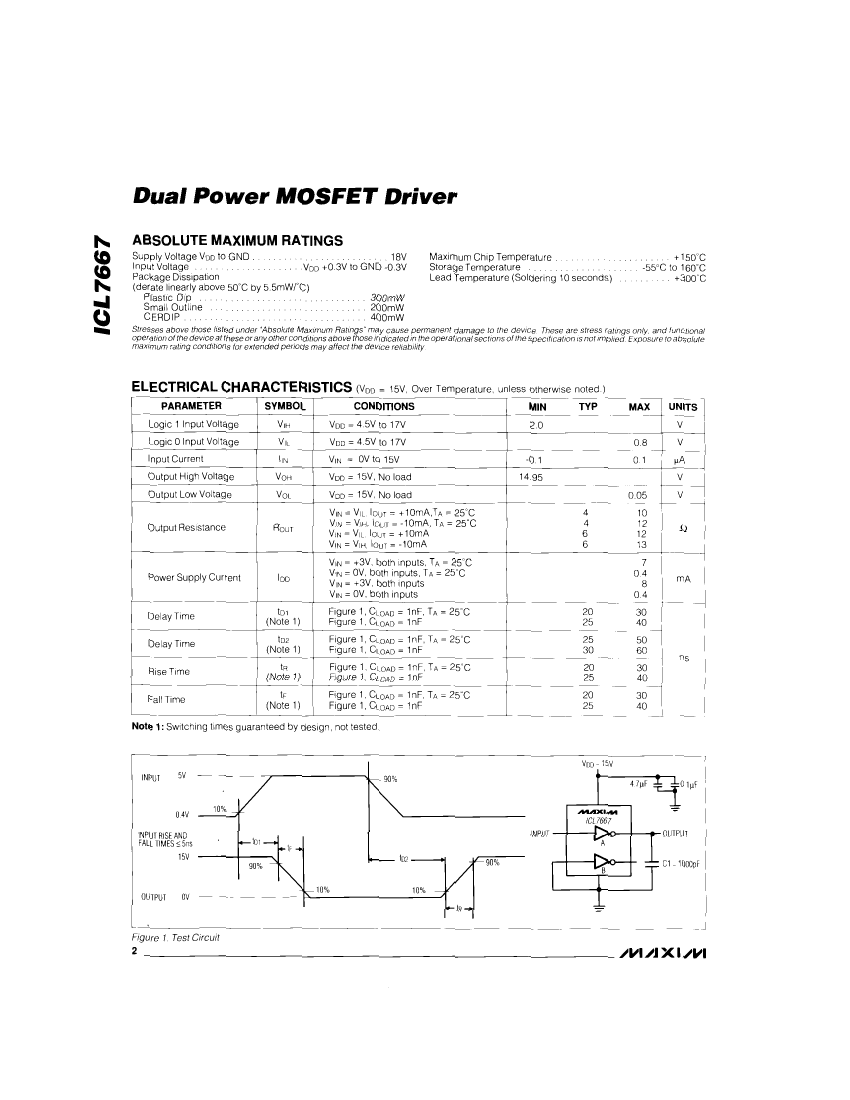

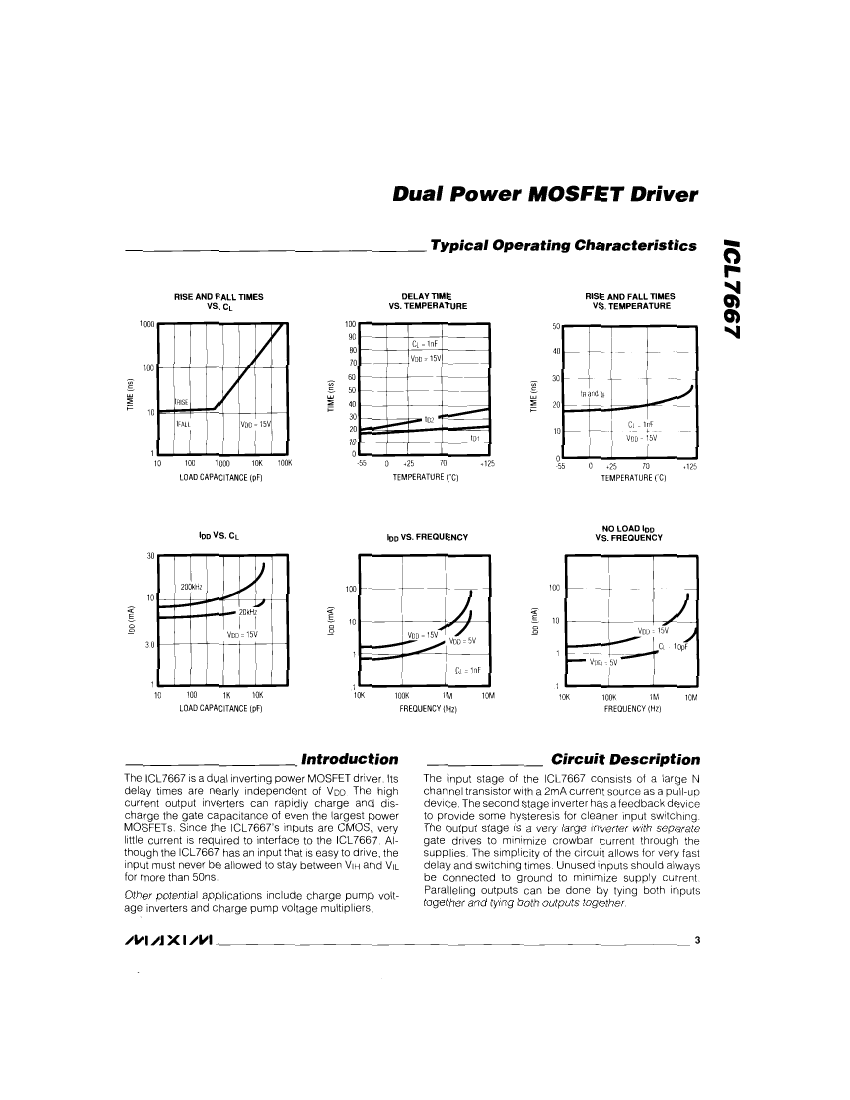

Preview

Download Datasheet

View All

ICL7667CBA+ Related Products

	ICL7667CBA+	ICL7667EBA-T	ICL7667CBA-T	ICL7667MJA	ICL7667EBA	ICL7667MJA-883B	ICL7667C/D	ICL7667EPA+	ICL7667CPA	ICL7667EBA+
Description	Gate Drivers Dual Power Inverting MOSFET Driver	Gate Drivers Dual Power Inverting MOSFET Driver	Gate Drivers Dual Power Inverting MOSFET Driver	Gate Drivers ICL7667MJA	Gate Drivers Dual Power Inverting MOSFET Driver	Gate Drivers Dual-Power MOSFET Driver (Inverting)	Gate Drivers Dual Power MOSFET Driver (Inverting)	Gate Drivers Dual Power Inverting MOSFET Driver	Gate Drivers Dual Power Inverting MOSFET Driver	Gate Drivers Dual Power Inverting MOSFET Driver
Is it lead-free?	Lead free	Contains lead	Contains lead	Contains lead	Contains lead	-	Contains lead	Lead free	Contains lead	Lead free
Is it Rohs certified?	conform to	incompatible	incompatible	incompatible	incompatible	-	incompatible	conform to	incompatible	conform to
Maker	Maxim	Maxim	Maxim	Maxim	Maxim	-	Maxim	Maxim	Maxim	Maxim
Parts packaging code	SOIC	SOIC	SOIC	DIP	SOIC	-	DIE	DIP	DIP	SOIC
package instruction	ROHS COMPLIANT, SOIC-8	SOP, SOP8,.25	SOP, SOP8,.25	DIP, DIP8,.3	SOP, SOP8,.25	-	DIE-8	DIP, DIP8,.3	PLASTIC, DIP-8	SOP,
Contacts	8	8	8	8	8	-	8	8	8	8
Reach Compliance Code	compliant	not_compliant	not_compliant	not_compliant	not_compliant	-	not_compliant	compliant	not_compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99	EAR99
high side driver	YES	YES	YES	-	YES	-	-	YES	YES	YES
Interface integrated circuit type	BUFFER OR INVERTER BASED MOSFET DRIVER	BUFFER OR INVERTER BASED MOSFET DRIVER	BUFFER OR INVERTER BASED MOSFET DRIVER	-	BUFFER OR INVERTER BASED MOSFET DRIVER	-	-	BUFFER OR INVERTER BASED MOSFET DRIVER	BUFFER OR INVERTER BASED MOSFET DRIVER	BUFFER OR INVERTER BASED MOSFET DRIVER
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	-	R-PDSO-G8	-	-	R-PDIP-T8	R-PDIP-T8	R-PDSO-G8
JESD-609 code	e3	e0	e0	-	e0	-	-	e3	e0	e3
length	4.9 mm	4.9 mm	4.9 mm	-	4.9 mm	-	-	9.375 mm	9.375 mm	4.9 mm
Number of functions	2	2	2	-	2	-	-	2	2	2
Number of terminals	8	8	8	-	8	-	-	8	8	8
Maximum operating temperature	70 °C	85 °C	70 °C	-	85 °C	-	-	85 °C	70 °C	85 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	-	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	-	SOP	-	-	DIP	DIP	SOP
Encapsulate equivalent code	SOP8,.25	SOP8,.25	SOP8,.25	-	SOP8,.25	-	-	DIP8,.3	DIP8,.3	-
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	-	SMALL OUTLINE	-	-	IN-LINE	IN-LINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	NOT SPECIFIED	245	-	240	-	-	260	240	260
power supply	4.5/15 V	4.5/15 V	4.5/15 V	-	4.5/15 V	-	-	4.5/15 V	4.5/15 V	-
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	-	-	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	1.75 mm	1.75 mm	-	1.75 mm	-	-	4.572 mm	4.572 mm	1.75 mm
Maximum supply voltage	17 V	17 V	17 V	-	17 V	-	-	17 V	17 V	17 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	-	4.5 V	-	-	4.5 V	4.5 V	4.5 V
Nominal supply voltage	15 V	15 V	15 V	-	15 V	-	-	15 V	15 V	15 V
surface mount	YES	YES	YES	-	YES	-	-	NO	NO	YES
Temperature level	COMMERCIAL	INDUSTRIAL	COMMERCIAL	-	INDUSTRIAL	-	-	INDUSTRIAL	COMMERCIAL	INDUSTRIAL
Terminal surface	Matte Tin (Sn)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn85Pb15)	-	Tin/Lead (Sn/Pb)	-	-	Matte Tin (Sn)	Tin/Lead (Sn85Pb15)	Matte Tin (Sn)
Terminal form	GULL WING	GULL WING	GULL WING	-	GULL WING	-	-	THROUGH-HOLE	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	-	1.27 mm	-	-	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	-	DUAL	-	-	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	NOT SPECIFIED	NOT SPECIFIED	-	20	-	-	30	20	30
Disconnect time	0.06 µs	0.06 µs	0.06 µs	-	0.06 µs	-	-	0.06 µs	0.06 µs	0.06 µs
connection time	0.04 µs	0.04 µs	0.04 µs	-	0.04 µs	-	-	0.04 µs	0.04 µs	0.04 µs
width	3.9 mm	3.9 mm	3.9 mm	-	3.9 mm	-	-	7.62 mm	7.62 mm	3.9 mm
