BD678 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> BD678

BD678: DescriptionDarlington Transistors 4A 60V Bipolar; Categorysemiconductor Discrete semiconductor; File Size73KB，4 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn

Download Datasheet Parametric Compare View All

BD678 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BD678	-	-	View	Buy Now

BD678 Overview

Darlington Transistors 4A 60V Bipolar

BD678 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	ON Semiconductor
Product Category	Darlington Transistors
RoHS	N
Configuration	Single
Transistor Polarity	PNP
Collector- Emitter Voltage VCEO Max	60 V
Emitter- Base Voltage VEBO	5 V
Collector- Base Voltage VCBO	60 V
Maximum DC Collector Current	4 A
Maximum Collector Cut-off Current	200 uA
Pd - Power Dissipation	40 W
Mounting Style	Through Hole
Package / Case	TO-225-3
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 150 C
Packaging	Bulk
Height	11.04 mm
Length	7.74 mm
Width	2.66 mm
Continuous Collector Current	4 A
DC Collector/Base Gain hfe Min	750
Factory Pack Quantity	500
Unit Weight	0.068784 oz

Preview

Download Datasheet

View All

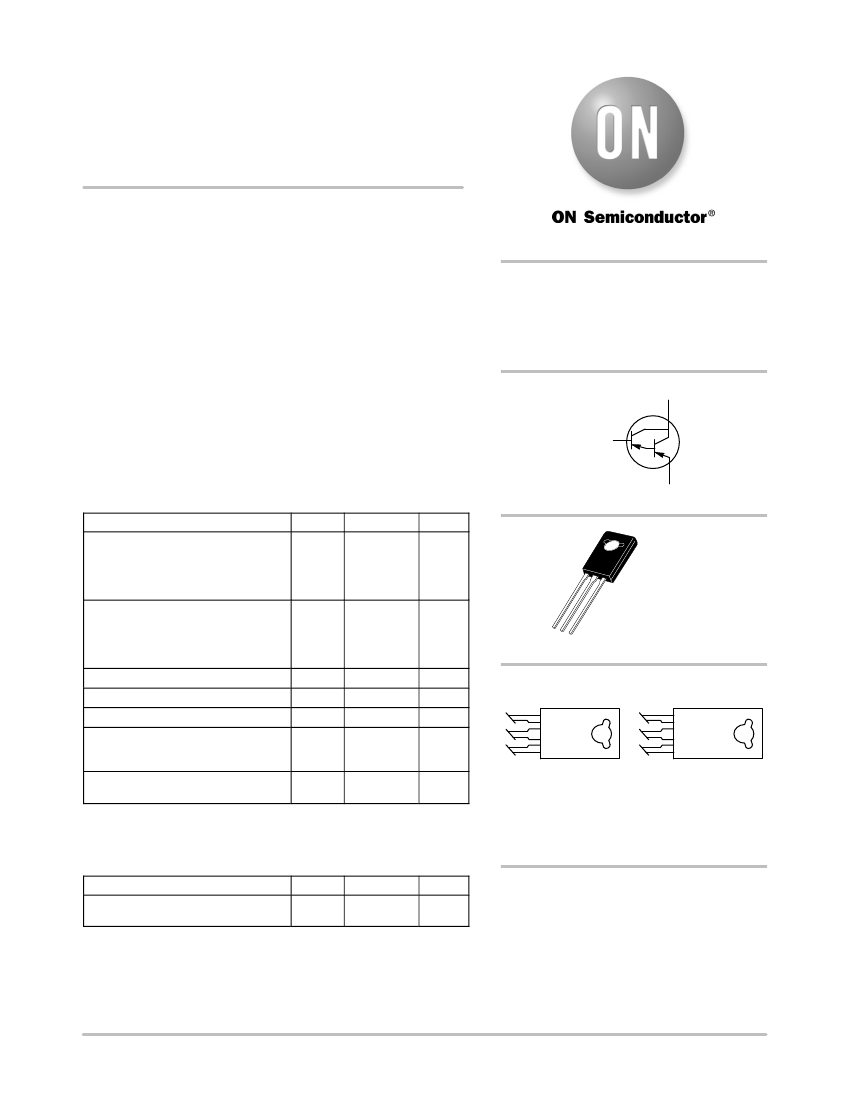

BD676G,

BD678G,

BD680G,

BD682G,

BD676AG,

BD678AG,

BD680AG,

BD682TG

http://onsemi.com

Plastic Medium-Power

Silicon PNP Darlingtons

This series of plastic, medium−power silicon PNP Darlington

transistors can be used as output devices in complementary

general−purpose amplifier applications.

Features

•

High DC Current Gain

•

Monolithic Construction

•

BD676, 676A, 678, 678A, 680, 680A, 682 are complementary

with BD675, 675A, 677, 677A, 679, 679A, 681

•

BD678, 678A, 680, 680A are equivalent to MJE 700, 701, 702, 703

•

These Devices are Pb−Free and are RoHS Compliant*

MAXIMUM RATINGS

Rating

Collector-Emitter Voltage

BD676G, BD676AG

BD678G, BD678AG

BD680G, BD680AG

BD682G, BD682TG

Collector-Base Voltage

BD676G, BD676AG

BD678G, BD678AG

BD680G, BD680AG

BD682G, BD682TG

Emitter-Base Voltage

Collector Current

Base Current

Total Device Dissipation

@ T

= 25°C

Derate above 25°C

Operating and Storage Junction

Temperature Range

Symbol

CEO

100

0.32

, T

stg

−55 to +150

W/°C

°C

5.0

4.0

0.1

Vdc

Adc

Vdc

Value

Unit

Vdc

4.0 AMP DARLINGTON

POWER TRANSISTORS

PNP SILICON

45, 60, 80, 100 VOLT, 40 WATT

COLLECTOR 2, 4

BASE 3

EMITTER 1

TO−225

CASE 77−09

STYLE 1

1 2

MARKING DIAGRAMS

YWW

BD6xxG

YWW

BD6xxAG

Stresses exceeding those listed in the Maximum Ratings table may damage the

device. If any of these limits are exceeded, device functionality should not be

assumed, damage may occur and reliability may be affected.

= Year

= Work Week

BD6xx = Device Code

xx = 76, 78, 80, 82, or 82T

= Pb−Free Package

THERMAL CHARACTERISTICS

Characteristic

Thermal Resistance,

Junction−to−Case

Symbol

qJC

Max

3.13

Unit

°C/W

ORDERING INFORMATION

See detailed ordering and shipping information in the package

dimensions section on page 3 of this data sheet.

*For additional information on our Pb−Free strategy and soldering details, please

download the ON Semiconductor Soldering and Mounting Techniques

Reference Manual, SOLDERRM/D.

Semiconductor Components Industries, LLC, 2013

December, 2013 − Rev. 14

Publication Order Number:

BD676/D
