RP201K281D-TR Overview

LDO Voltage Regulators Low voltage LDO Regulator

RP201K281D-TR Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Ricoh Electronics
Product Category	LDO Voltage Regulators
RoHS	Details
Mounting Style	SMD/SMT
Package / Case	DFN1212-6
Output Voltage	2.8 V
Output Current	150 mA
Number of Outputs	1 Output
Input Voltage MAX	5.25 V
Input Voltage MIN	1.4 V
Output Type	Fixed
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Load Regulation	18 mV
Dropout Voltage	120 mV
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Product	LDO Regulators
Type	CMOS LDO Regulator
Output Voltage Range	-
PSRR / Ripple Rejection - Typ	70 dB
Voltage Regulation Accuracy	1 %
Line Regulation	0.02 % / V
Operating Supply Current	55 uA
Pd - Power Dissipation	400 mW
Factory Pack Quantity	5000

Preview

Download Datasheet

View All

RP201Q

(SC-88A) and RP201N (SOT-23-5) are the discontinued products as of January 2017.

RP201x SERIES

3-MODE 150mA LDO REGULATOR

NO.EA-234-170126

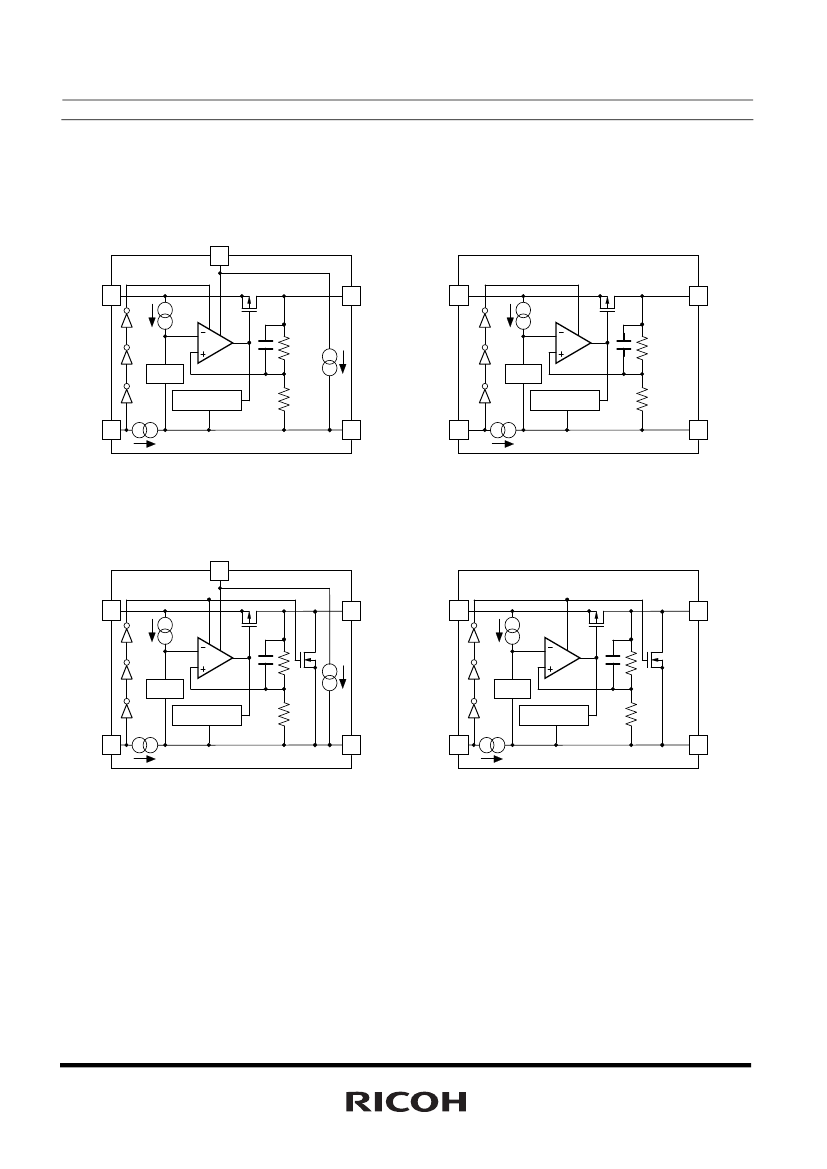

OUTLINE

The RP201x Series consist of CMOS-based voltage regulator ICs with high output voltage accuracy, low

dropout voltage and low supply current. These ICs perform with the chip enable function and realize a standby

mode with ultra low supply current. To prevent the destruction by over current, the current limit circuit is included.

The RP201x Series have 3-mode. One is standby mode with CE pin. Other two modes are realized with ECO

Function. Fast Response Mode (Fast Mode) and Fast and Low Power auto-change Mode (Auto ECO Mode) are

alternative with Auto Eco pin (AE pin). Supply current of IC itself at light load is automatically reduced at Auto

ECO Mode compared with Fast Mode. The output voltage is maintained between Fast Mode and Auto ECO Mode.

Without AE pin type is also available. It is an LDO regulator with Auto ECO mode. (RP201Z in WLCSP.)

Since the packages for these ICs are SOT-23-5, SC-88A, thin DFN(PLP)1212-6, and WLCSP-4-P5, high

density mounting of the ICs on boards is possible. RP201Q (SC-88A), RP201K (DFN(PLP)1212-6) and RP201N

(SOT-23-5) has AE pin, then if the AE pin is "H", Fast Mode is available. If the AE pin is set at "L" level, Auto ECO

Mode operation is available.

FEATURES



Supply Current (Low power Mode) .............................. Typ. 1.0A (V

OUT

1.85V)

Supply Current (Fast Mode)......................................... Typ. 55A

Supply Current (Standby Mode) .................................. Typ. 0.1A

Ripple Rejection ........................................................... Typ. 70dB (f½1kHz)

Input Voltage Range .................................................... 1.4V to 5.25V

Output Voltage Range.................................................. 0.8V to 4.0V (0.1V steps)

(

For other voltages, please refer to MARK INFORMATIONS.)

Output Voltage Accuracy..............................................

1.0%

OUT

> 2.0V, T

opt

½25C)

Temperature-Drift Coefficient of Output Voltage .......... Typ.

50ppm/C

Dropout Voltage ........................................................... Typ. 0.12V (I

OUT

½150mA,

OUT

½2.8V)

Line Regulation ............................................................ Typ. 0.02%/V

Packages ..................................................................... WLCSP-4-P5, DFN(PLP)1212-6, SC-88A,

SOT-23-5

Built-in Fold Back Protection Circuit ............................ Typ. 50mA (Current at short mode)

Ceramic capacitors are recommended ........................ 1.0F or more

APPLICATIONS



Power source for portable communication equipment.



Power source for electrical appliances such as cameras, VCRs and camcorders.



Power source for battery-powered equipment.
