02DZ8.2-X(TPH3,F) datasheet, PDF

Datasheet> All Categories > semiconductor> Discrete semiconductor> 02DZ8.2-X(TPH3,F)

02DZ8.2-X(TPH3,F): DescriptionZener Diodes 8.2V 150mW; Categorysemiconductor Discrete semiconductor; File Size505KB，9 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/; Environmental Compliance

Download Datasheet Parametric View All

02DZ8.2-X(TPH3,F) Overview

Zener Diodes 8.2V 150mW

02DZ8.2-X(TPH3,F) Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Toshiba Semiconductor
Product Category	Zener Diodes
RoHS	Details
Vz - Zener Voltage	8.2 V
Mounting Style	SMD/SMT
Package / Case	SOD-323
Pd - Power Dissipation	200 mW
Voltage Tolerance	2.5 %
Zener Current	5 mA
Zz - Zener Impedance	20 Ohms
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 125 C
Configuration	Single
Test Current	5 mA
Height	0.9 mm
Length	1.7 mm
Termination Style	SMD/SMT
Type	Voltage Regulator
Width	1.25 mm
Ir - Reverse Current	500 nA
Factory Pack Quantity	3000
Unit Weight	0.001164 oz

Preview

Download Datasheet

View All

02DZ2.0~02DZ24

TOSHIBA Diode Silicon Epitaxial Planar Type

02DZ2.0~02DZ24

Constant Voltage Regulation Applications

Reference Voltage Applications

The mounting of four devices on an ultra-compact package allows the

number of parts and the mounting cost to be reduced.

Nominal voltage tolerance about ±2.5%

(2.0V~24V)

Unit: mm

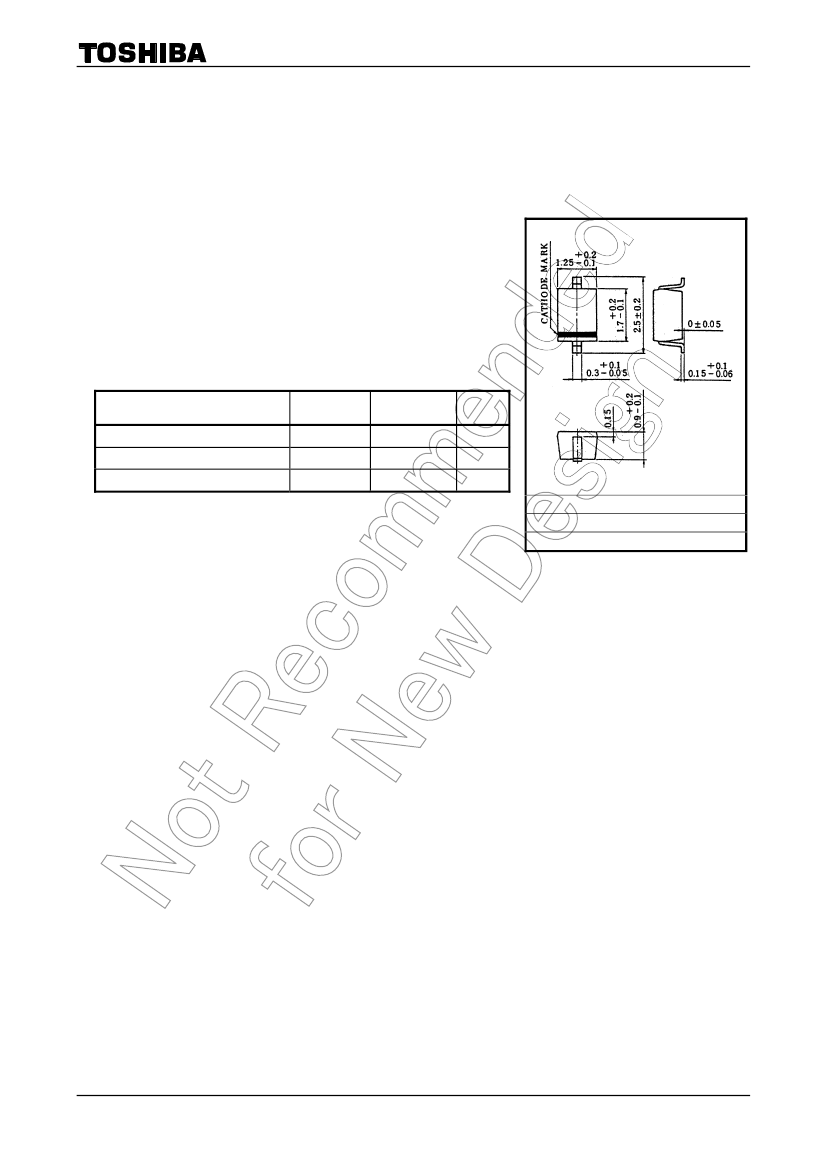

Absolute Maximum Ratings

(Ta = 25°C)

Characteristic

Power dissipation

Junction temperature

Storage temperature range

Symbol

stg

Rating

200

125

−55~125

Unit

°C

Note:

Using continuously under heavy loads (e.g. the application of high

temperature/current/voltage and the significant change in

temperature, etc.) may cause this product to decrease in the

reliability significantly even if the operating conditions (i.e.

operating temperature/current/voltage, etc.) are within the absolute

maximum ratings.

Please design the appropriate reliability upon reviewing the Toshiba

Semiconductor Reliability Handbook (“Handling

Precautions”/“Derating Concept and Methods”) and individual

reliability data (i.e. reliability test report and estimated failure rate,

etc).

JEDEC

−

JEITA

−

1-1E1A

TOSHIBA

Weight: 4.5mg (typ.)

Mounted on a glass epoxy circuit board of 20 × 20mm, pad

dimensions of 4 × 4mm.

Electrical Characteristics

(See Pages 3~5.)

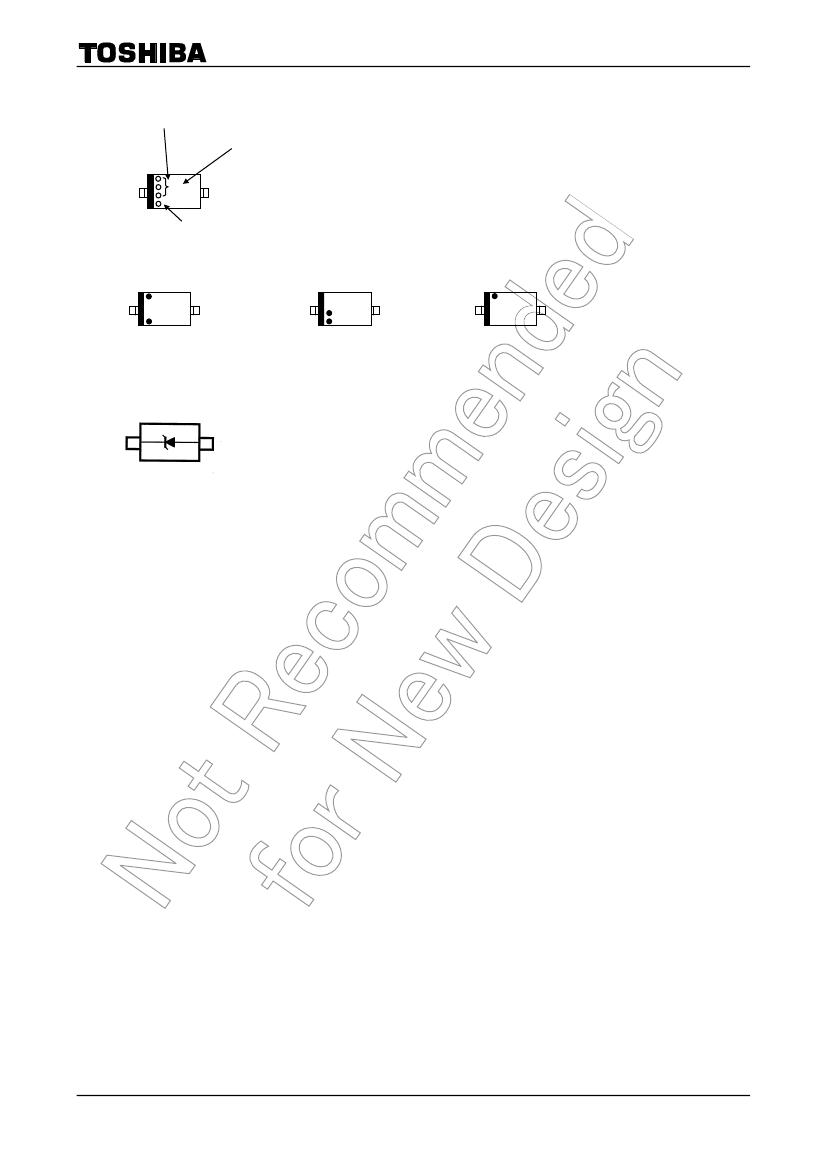

2007-11-01
