BAS70-04-TP

Description
Schottky Diodes & Rectifiers 200mA 70V
CategoryDiscrete semiconductor    diode
File Size280KB,4 Pages
ManufacturerMicro Commercial Components (MCC)
Environmental Compliance
Download Datasheet Parametric Compare View All

BAS70-04-TP Online Shopping

Suppliers Part Number Price MOQ In stock
BAS70-04-TP - - View Buy Now

BAS70-04-TP Overview

Schottky Diodes & Rectifiers 200mA 70V

BAS70-04-TP Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMicro Commercial Components (MCC)
package instructionROHS COMPLIANT, PLASTIC PACKAGE-3
Contacts3
Reach Compliance Codecompliant
ECCN codeEAR99
ConfigurationSERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)0.41 V
JESD-30 codeR-PDSO-G3
JESD-609 codee3
Humidity sensitivity level1
Number of components2
Number of terminals3
Maximum operating temperature125 °C
Maximum output current0.07 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)260
Maximum power dissipation0.2 W
Certification statusNot Qualified
Maximum repetitive peak reverse voltage70 V
Maximum reverse recovery time0.005 µs
surface mountYES
technologySCHOTTKY
Terminal surfaceMatte Tin (Sn)
Terminal formGULL WING
Terminal locationDUAL
Maximum time at peak reflow temperature10
Base Number Matches1
MCC
Micro Commercial Components
TM
  omponents
20736 Marilla
Street Chatsworth

  !"#
$ %    !"#
BAS40
THRU
BAS70
Surface Mount
Schottky Barrier Diode
200 mWatt
SOT-23
A
D
Features
SOT-23 Package For surface mount application
Protects from line to V
CC
and line to ground
Low forward voltage and reverse recovery characteristics

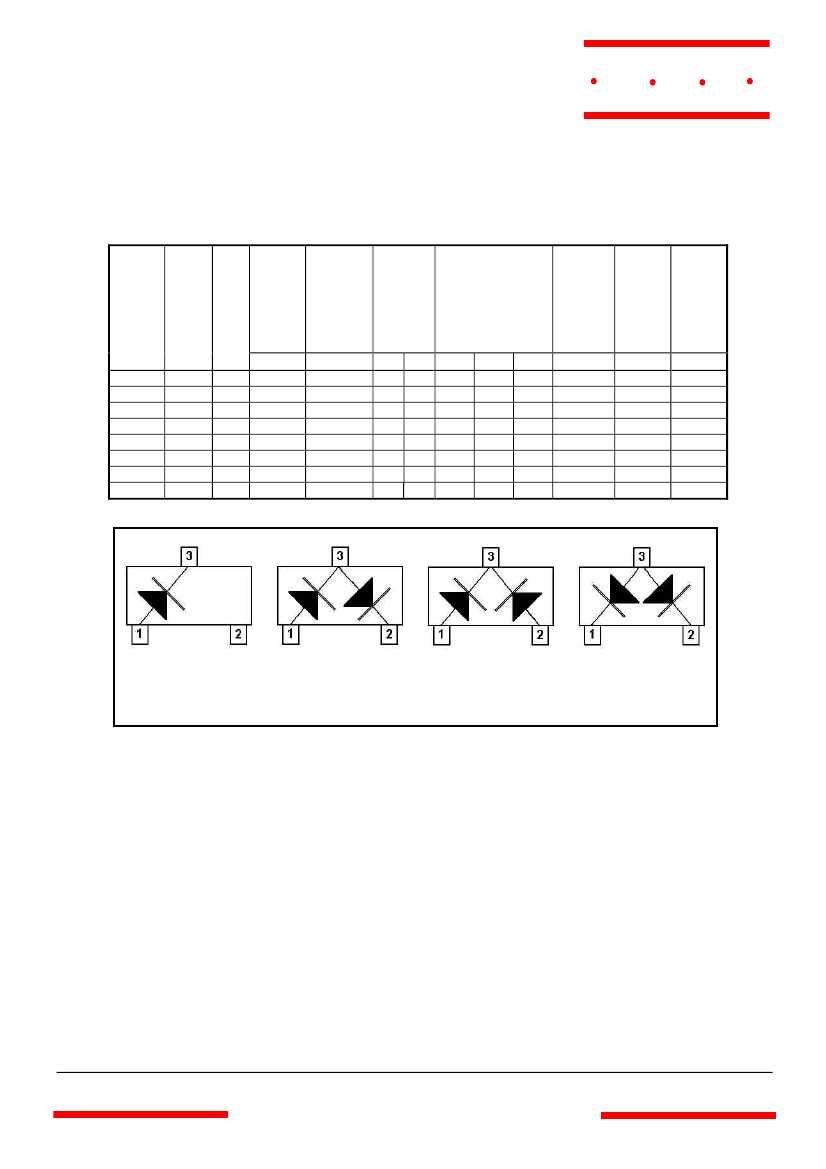

Bidirectional-low-forward available with “ -04” suffix (Figure 2)
Tape & Reel EIA Standard 481.
Mechanical Data
Epoxy meets UL 94 V-0 flammability rating
Moisture Sensitivity Level 1
Halogen free available upon request by adding suffix "-HF"
Mounting Position: Any
Weight: .008 grams (approx.)
C
B
MAXIMUM RATINGS
Operating Temperature: -55 C to +125 C
Storage Temperature: -55 C to +150 C
Power Dissipation: 200 mWatts @ T
amb
=25 C
BAS40
I
F
o
o
=200mA
@
T
a
=
25 C
o
=70mA
@
T
a
=
25 C
G
H
J
o
o
F
E
o
o
Forward Continuous Current:
BAS70
I
F
BAS40 I
FSM
=600mA @ tp<1s, Tamb=25
o
C
Surge Forward Current:
o
BAS70 I
FSM
=100mA @ tp<1s, Tamb=25 C
DIM
A
B
C
D
E
F
G
H
J
K
K
DIMENSIONS
INCHES
MIN
.110
.083
.047
.035
.070
.018
.0005
.035
.003
.015
MM
MIN
2.80
2.10
1.20
.89
1.78
.45
.013
.89
.085
.37
DESCRIPTION
Various configurations of Schottky barrier’ s diodes in SOT-23
package are provided for general-purpose use in high-speed
switching ,mixers and detector applications. They may also be
used for signal integrity and counteract the transmission-line
effects with (PC) board trances by clamping over/and undershoot
from signal reflections with the schottky-low-threshold voltages.
This type of termination also does not depend on matching
the transmission line characteristic impedance, making it
particularly useful where line impendance is unknown or a
variable. This methode of termination can control distortions of
clock, data, address, and control lines as well as provides a
stabilizing effect on signal jitter. It can also significantly reduce
power consumption compared to standard resistor-based
termination methods.
MAX
.120
.104
.055
.041
.081
.024
.0039
.044
.007
.020
MAX
3.04
2.64
1.40
1.03
2.05
.60
.100
1.12
.180
.51
NOTE
Suggested Solder
Pad Layout
.031
.800
.035
.900
.079
2.000
inches
mm
.037
.950
.037
.950
Revision:
D
www.mccsemi.com
1 of
4
2013/11/25

BAS70-04-TP Related Products

BAS70-04-TP BAS70-05-TP BAS40-04-TP
Description Schottky Diodes & Rectifiers 200mA 70V Schottky Diodes & Rectifiers 200mA 70V Schottky Diodes & Rectifiers 200mA 40V
Is it lead-free? Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to
Maker Micro Commercial Components (MCC) Micro Commercial Components (MCC) Micro Commercial Components (MCC)
package instruction ROHS COMPLIANT, PLASTIC PACKAGE-3 ROHS COMPLIANT, PLASTIC PACKAGE-3 ROHS COMPLIANT, PLASTIC PACKAGE-3
Contacts 3 3 3
Reach Compliance Code compliant compliant compliant
ECCN code EAR99 EAR99 EAR99
Configuration SERIES CONNECTED, CENTER TAP, 2 ELEMENTS COMMON CATHODE, 2 ELEMENTS SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials SILICON SILICON SILICON
Diode type RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE
Maximum forward voltage (VF) 0.41 V 0.41 V 0.38 V
JESD-30 code R-PDSO-G3 R-PDSO-G3 R-PDSO-G3
JESD-609 code e3 e3 e3
Humidity sensitivity level 1 1 1
Number of components 2 2 2
Number of terminals 3 3 3
Maximum operating temperature 125 °C 125 °C 125 °C
Maximum output current 0.07 A 0.07 A 0.2 A
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) 260 260 260
Maximum power dissipation 0.2 W 0.2 W 0.2 W
Certification status Not Qualified Not Qualified Not Qualified
Maximum repetitive peak reverse voltage 70 V 70 V 40 V
Maximum reverse recovery time 0.005 µs 0.005 µs 0.005 µs
surface mount YES YES YES
technology SCHOTTKY SCHOTTKY SCHOTTKY
Terminal surface Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn)
Terminal form GULL WING GULL WING GULL WING
Terminal location DUAL DUAL DUAL
Maximum time at peak reflow temperature 10 10 10
Base Number Matches 1 1 1
