SM4A: DescriptionRF Mixer LO/RF 10-1500MHz IF DC-1000MHz; CategoryWireless rf/communication Radio frequency and microwave; File Size86KB，3 Pages; ManufacturerMACOM; Websitehttp://www.macom.com; Environmental Compliance

Download Datasheet Parametric View All

SM4A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SM4A	-	-	View	Buy Now

SM4A Overview

RF Mixer LO/RF 10-1500MHz IF DC-1000MHz

SM4A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	MACOM
Objectid	1815267908
package instruction	MODULE,4LEAD,.35
Reach Compliance Code	compliant
compound_id	7292552
Other features	I/P POWER-MAX (PEAK)=23DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum frequency conversion loss	10 dB
Number of terminals	4
Maximum operating frequency	1500 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	50 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	MODULE,4LEAD,.35
RF/Microwave Device Types	DOUBLE BALANCED

Preview

Download Datasheet

View All

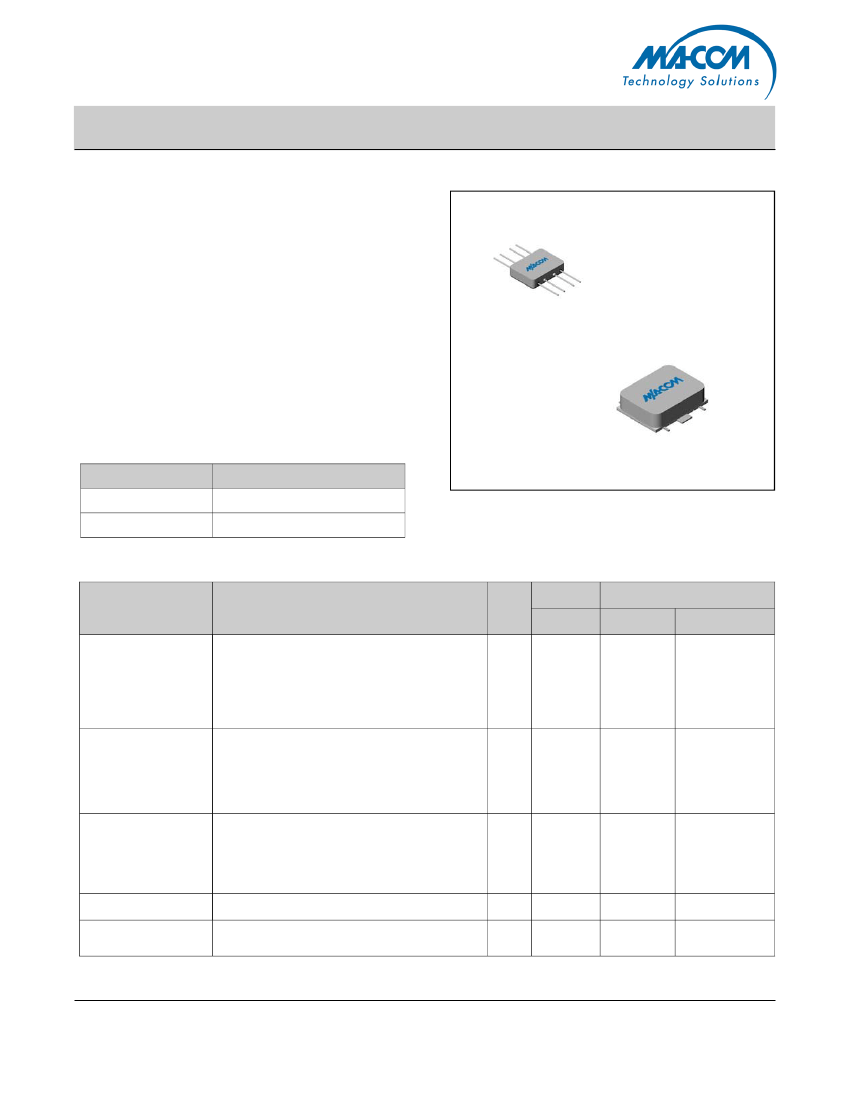

M4A / SM4A

Double-Balanced Mixer

Rev. V4

Features

•

LO 10 TO 1500 MHz

RF 10 TO 1500 MHz

IF DC TO 1000 MHz

LO DRIVE: +7 dBm (NOMINAL)

HIGH ISOLATION: 35 dB (TYP.)

Product Image

Description

The M4A is a double balanced mixer, designed for use in military,

commercial, and test equipment applications. The design utilizes

Schottky ring quad diodes and broadband ferrite baluns to attain

excellent performance. This mixer can also be used as a phase

detector and/or bi-phase modulator since the IF port is DC cou-

pled to the diodes. Environmental screening is available to MIL-

STD-883, MIL-STD-202, or MIL-DTL-28837, consult factory.

Ordering Information

Part Number

M4A

SM4A

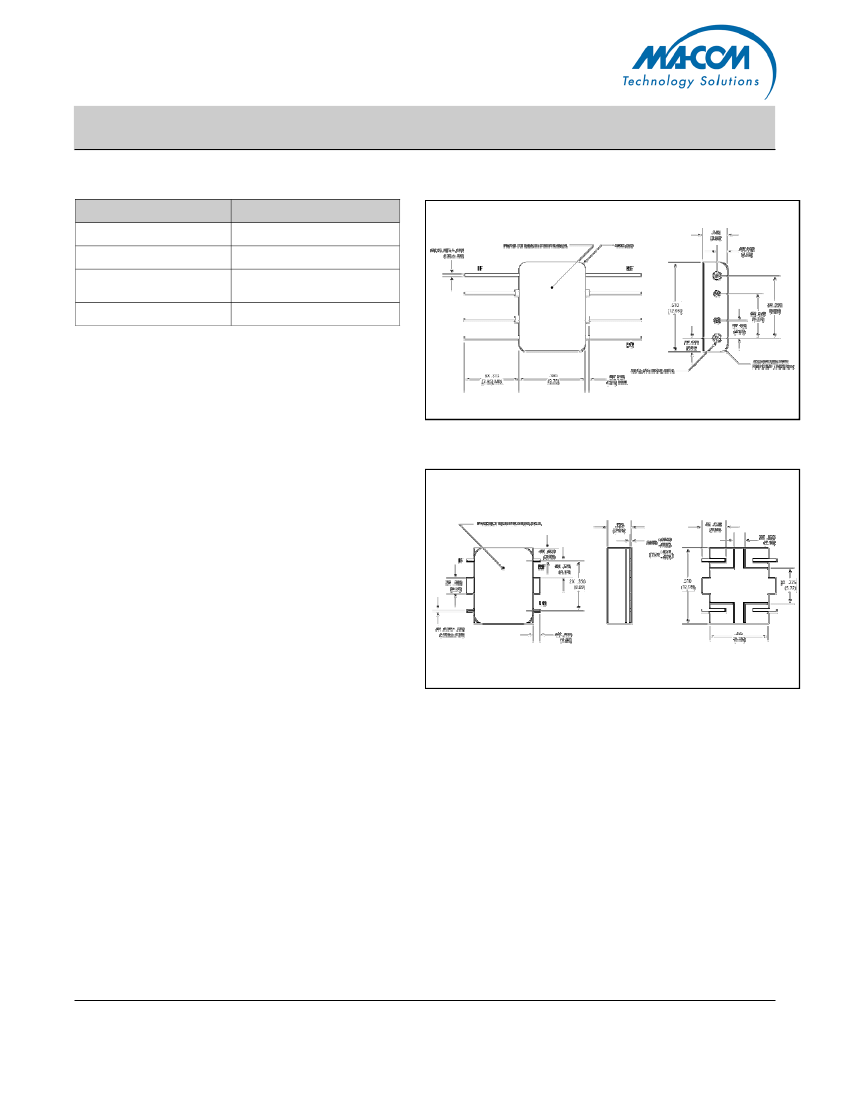

Package

Flatpack

Surface Mount

Electrical Specifications: Z

= 50Ω Lo = +7 dBm (Downconverter application only)

Typical

Parameter

Test Conditions

Units

+25ºC

SSB Conversion Loss

(max) & SSB Noise

Figure (max)

fR = 0.02 to 0.6 GHz, fL =0.01 to 0.8 GHz, fI =0.001 to 0.2 GHz

fR = 0.01 to 1.2 GHz, fL =0.01 to 1.4 GHz, fI =0.001 to 0.2 GHz

fR = 0.01 to 1.5 GHz, fL =0.01 to 1.5 GHz, fI =0.001 to 0.2 GHz

fR = 0.01 to 1.5 GHz, fL =0.01 to 1.5 GHz, fI =0.001 to 1 GHz

6.0

7.0

7.5

8.5

7.0

8.0

8.5

9.5

Guaranteed

-54º to +85ºC *

7.5

8.5

9.0

10.0

Isolation, L to R (min)

fL = 0.01 to 0.6 GHz

fL = 0.6 to 1.2 GHz

fL = 1.2 to 1.5 GHz

Isolation, L to I (min)

fL = 0.1 to 0.6 GHz

fL = 0.6 to 1.2 GHz

fL = 1.2 to 1.4 GHz

1 dB Conversion Comp.

Input IP3

fL @ +7 dBm

dBm

* The SM4A specification limits apply at 0ºC to +50ºC.

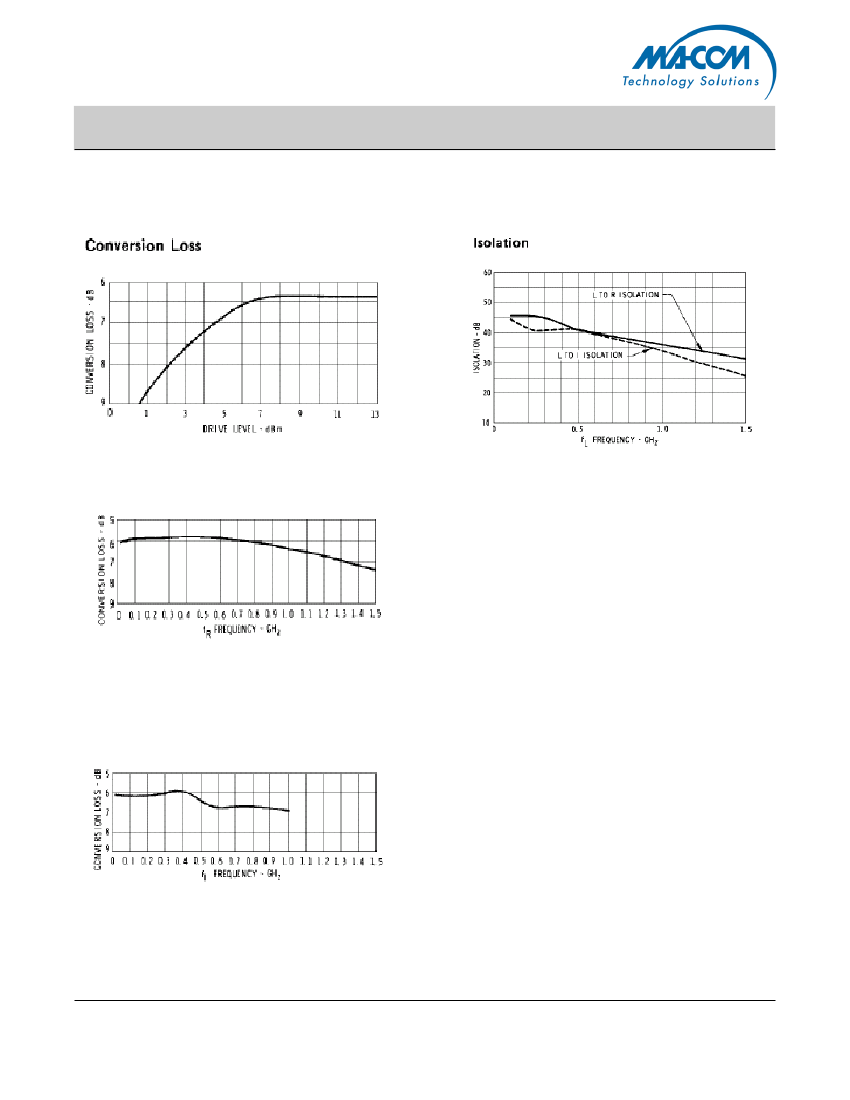

ADVANCED:

Data Sheets contain information regarding a product M/A-COM Technology Solutions

•

North America

Tel: 800.366.2266 •

Europe

Tel: +353.21.244.6400

is considering for development. Performance is based on target specifications, simulated results,

•

India

Tel: +91.80.4155721

•

China

Tel: +86.21.2407.1588

and/or prototype measurements. Commitment to develop is not guaranteed.

Visit www.macomtech.com for additional data sheets and product information.

PRELIMINARY:

Data Sheets contain information regarding a product M/A-COM Technology

Solutions has under development. Performance is based on engineering tests. Specifications are

typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.

M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make

Commitment to produce in volume is not guaranteed.

changes to the product(s) or information contained herein without notice.
