Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> MX7501JN

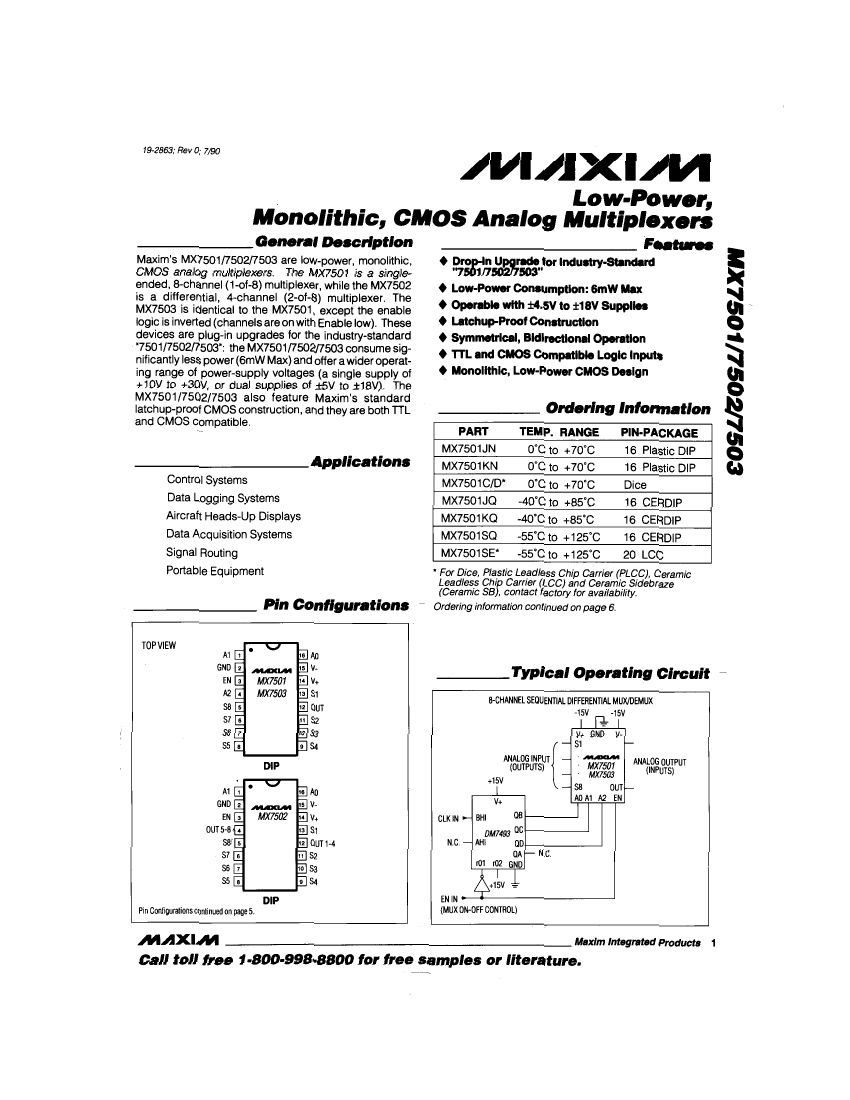

Preview

MX7501JN: DescriptionMultiplexer Switch ICs Low Power Monolithic CMOS Analog Multiplexers; CategoryAnalog mixed-signal IC The signal circuit; File Size246KB，8 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

MX7501JN Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MX7501JN	-	-	View	Buy Now

MX7501JN Overview

Multiplexer Switch ICs Low Power Monolithic CMOS Analog Multiplexers

MX7501JN Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Maxim
Parts packaging code	DIP
package instruction	0.300 INCH, PLASTIC, DIP-16
Contacts	16
Reach Compliance Code	not_compliant
Other features	ALSO OPERATES WITH 10 TO 30 SINGLE SUPPLY
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
length	19.175 mm
Humidity sensitivity level	1
Maximum negative supply voltage (Vsup)	-18 V
Negative supply voltage minimum (Vsup)	-4.5 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	8
Number of functions	1
Number of terminals	16
Nominal off-state isolation	70 dB
On-state resistance matching specifications	12 Ω
Maximum on-state resistance (Ron)	300 Ω
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	245
power supply	+-15 V
Certification status	Not Qualified
Maximum seat height	4.572 mm
Maximum signal current	0.02 A
Maximum supply current (Isup)	0.5 mA
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	1000 ns
Maximum connection time	2000 ns
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn85Pb15)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

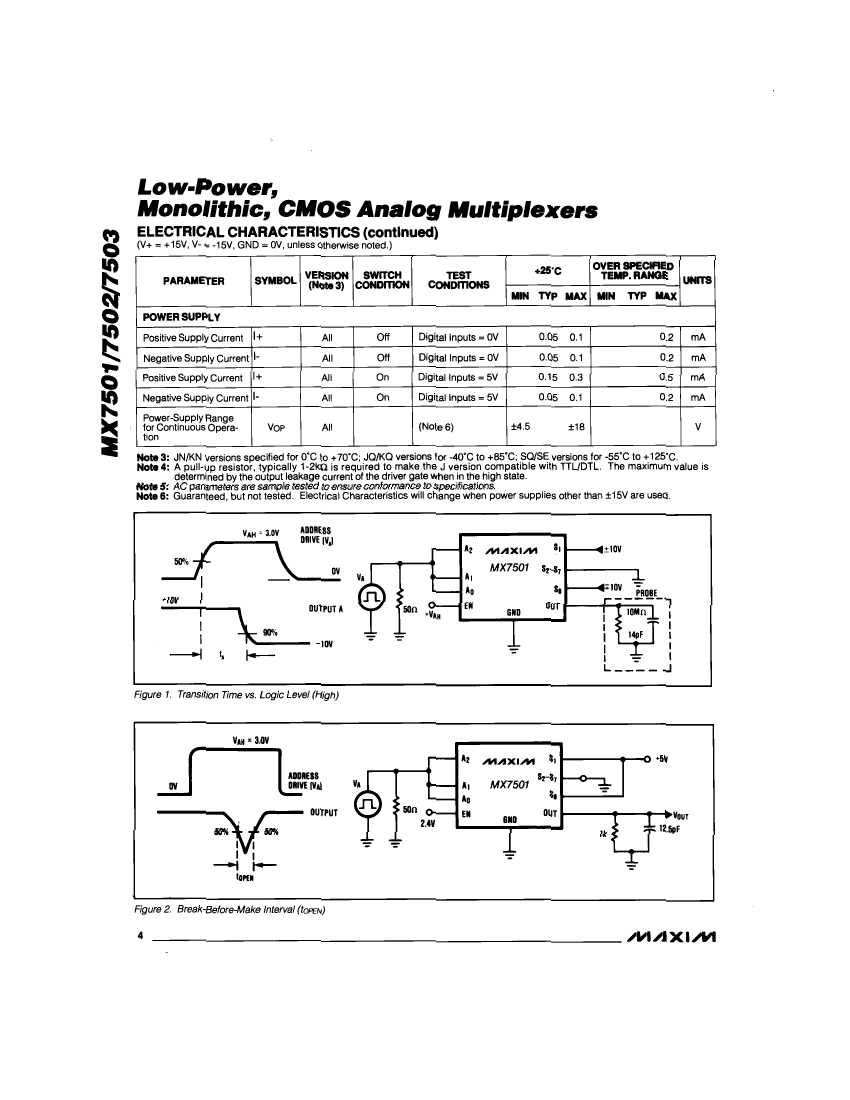

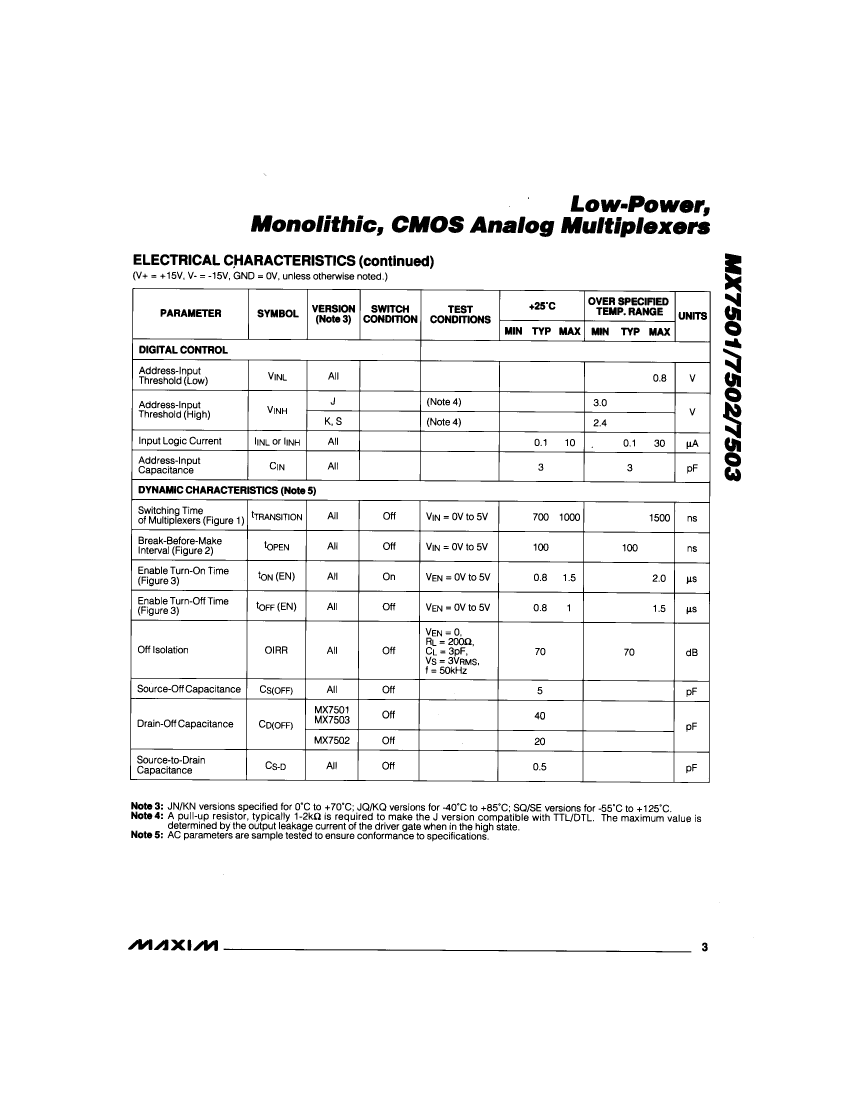

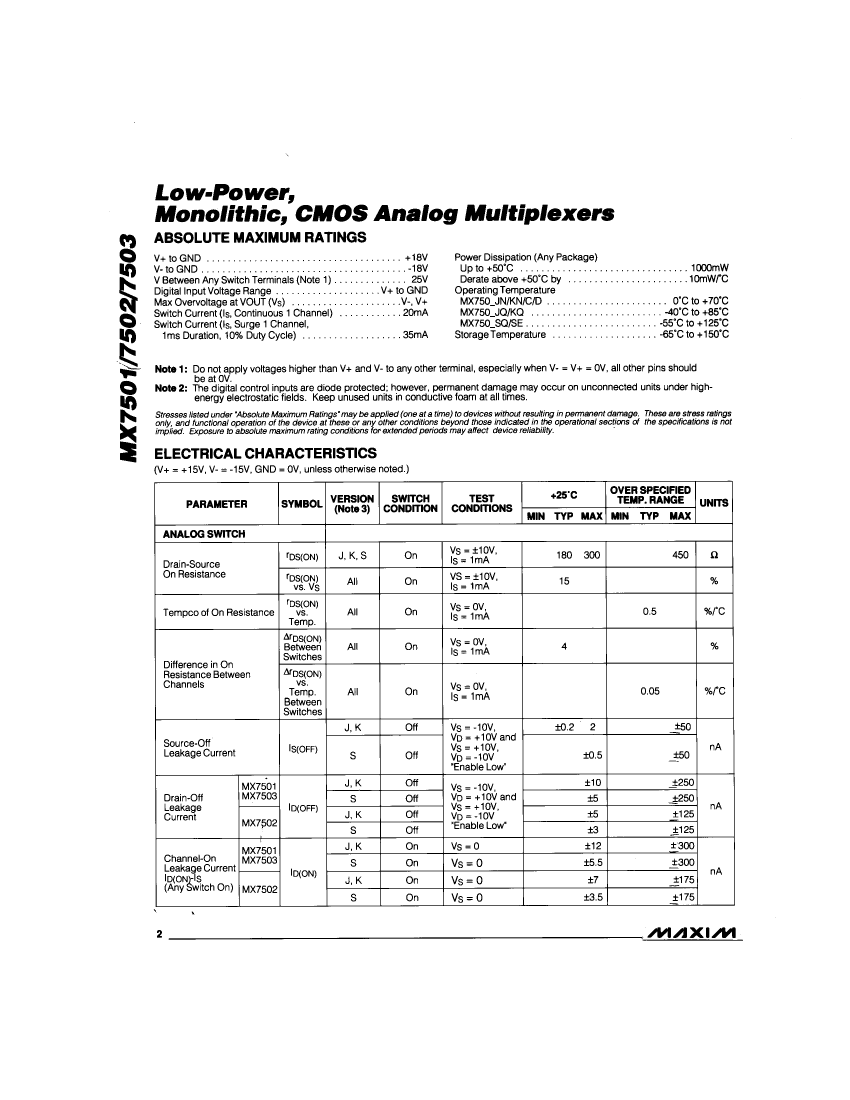

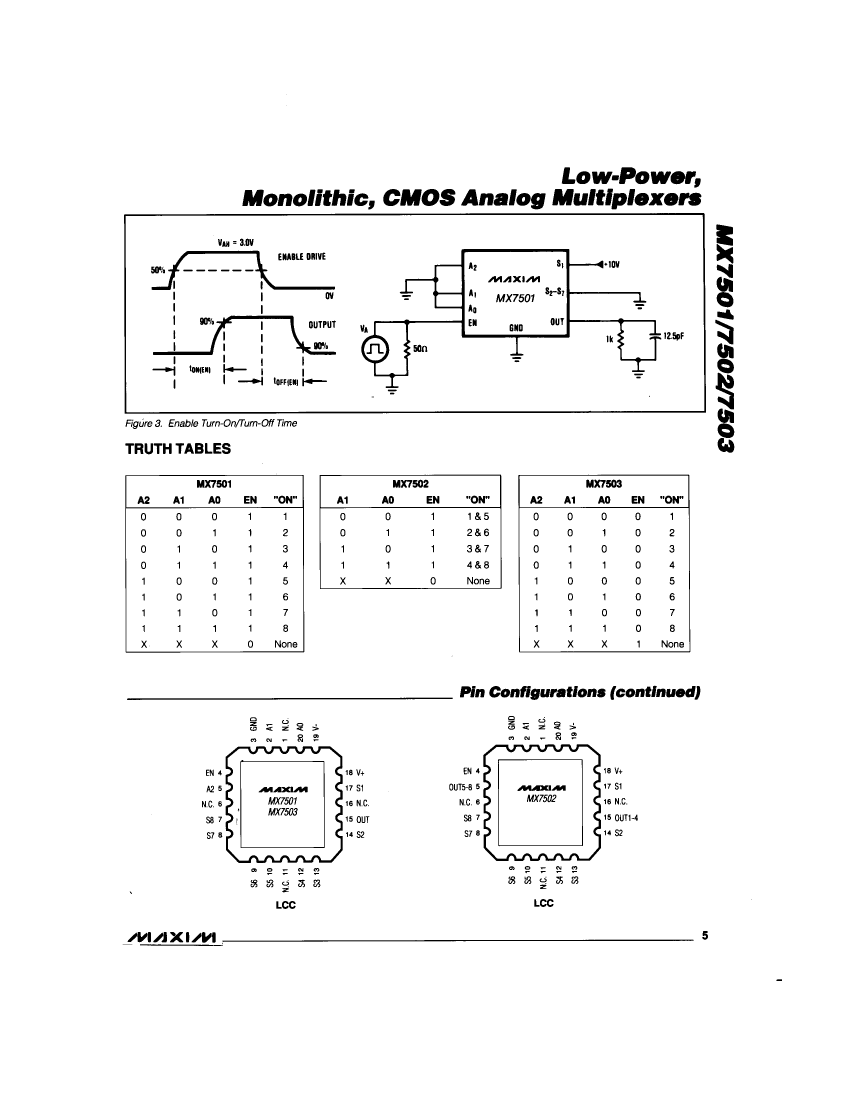

Preview

Download Datasheet

View All

MX7501JN Related Products

	MX7501JN	MX7501JQ	MX7502JQ
Description	Multiplexer Switch ICs Low Power Monolithic CMOS Analog Multiplexers	Multiplexer Switch ICs 8-Channel Low-Power Monolithic CMOS Multiplexer	Multiplexer Switch ICs Low Power Monolithic CMOS Analog Multiplexers
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible
Parts packaging code	DIP	DIP	DIP
package instruction	0.300 INCH, PLASTIC, DIP-16	0.300 INCH, CERAMIC, DIP-16	0.300 INCH, CERAMIC, DIP-16
Contacts	16	16	16
Reach Compliance Code	not_compliant	not_compliant	not_compliant
Other features	ALSO OPERATES WITH 10 TO 30 SINGLE SUPPLY	ALSO OPERATES WITH 10 TO 30 SINGLE SUPPLY	ALSO OPERATES WITH 10 TO 30 SINGLE SUPPLY
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-PDIP-T16	R-GDIP-T16	R-GDIP-T16
JESD-609 code	e0	e0	e0
Humidity sensitivity level	1	1	1
Maximum negative supply voltage (Vsup)	-18 V	-18 V	-18 V
Negative supply voltage minimum (Vsup)	-4.5 V	-4.5 V	-4.5 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V
Number of channels	8	8	4
Number of functions	1	1	1
Number of terminals	16	16	16
Nominal off-state isolation	70 dB	70 dB	70 dB
On-state resistance matching specifications	12 Ω	12 Ω	12 Ω
Maximum on-state resistance (Ron)	300 Ω	300 Ω	300 Ω
Maximum operating temperature	70 °C	85 °C	85 °C
Minimum operating temperature	-	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	245	245	245
power supply	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.572 mm	5.08 mm	5.08 mm
Maximum signal current	0.02 A	0.02 A	0.02 A
Maximum supply current (Isup)	0.5 mA	0.5 mA	0.5 mA
Maximum supply voltage (Vsup)	18 V	18 V	18 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V
surface mount	NO	NO	NO
Maximum disconnect time	1000 ns	1000 ns	1000 ns
Maximum connection time	2000 ns	2000 ns	2000 ns
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	7.62 mm	7.62 mm
Maker	Maxim	-	Maxim
