Scotchlok
Data Sheet
Application
™
Insulation Displacement Electrical
Tap Connector 560
WIRE CONNECTOR
540H
½½½½½½
Engineering Specification
Insulation Displacement Connector (as manufactured by
3M, part No. 560) capable of connecting a tap wire to
a run wire in the range of 18-16 AWG (0,75-1,0 mm
2
)
solid or stranded, and 14 AWG (1,5 mm
2
) stranded,
tinned or untinned copper conductors. The connector
shall be UL Listed and CSA Certified for 600 Volts
maximum building wire: 1000 Volts maximum,
signs fixtures and luminaires, and have a maximum
insulating temperature of 105˚C (221˚F).
Use 3M
™
Scotchlok
™
Tap Connector 560 to
electrically connect a (tap) wire end to a through
(run) wire, join parallel run wires, and insulate the
connection.
Wire Range
18 -16 AWG (0,75-1,0 mm
2
) solid or stranded,
14 AWG (1,5 mm
2
) stranded, tinned or untinned
copper conductors. For use with thermoplastic
insulated wires such as: T, TW, TFF, TFN, TFFN,
AWN, TEW, SAE-GPT, with a maximum insulation
diameter of .145 inches (3,5 mm).
Maximum recommended current for general purpose
applications: 18 AWG - 7 Amps, 16 AWG - 10 Amps,
14 AWG - 15 Amps
Regulatory Agencies
UL Listed
as a Pressure Cable Connector
Tested per UL Standard 486C
UL File No. E23438
Operating Temperature: 105˚C (221˚F)
Voltage Rating: 600 volts max. building wire;
1000 volts max. signs and fixtures
CSA Certified-CSA
Standard C22.2 No. 0, 188-M1983
CSA File No. LR15503
Operating Temperature: 105˚C (221˚F)
Voltage Rating: 600 volts max. building wire
1000 volts max. signs and luminaires.
Flammability Rating: C22.2 No. 0.6 V-2
Federal Specification W-S-610:
“Commercial package only”
Type
Class
Kind
Style
1
1
cu
G
Construction
U-Contact - Tin plated brass, .03 in. thick (0,8 mm)
Insulator - Polypropylene
Color - Light blue
UL 94-V-2
Weight
.0032 lb. (1,45 gm)
Recommended Installation Tools
3M
™
Crimping Tool No. E-9BM

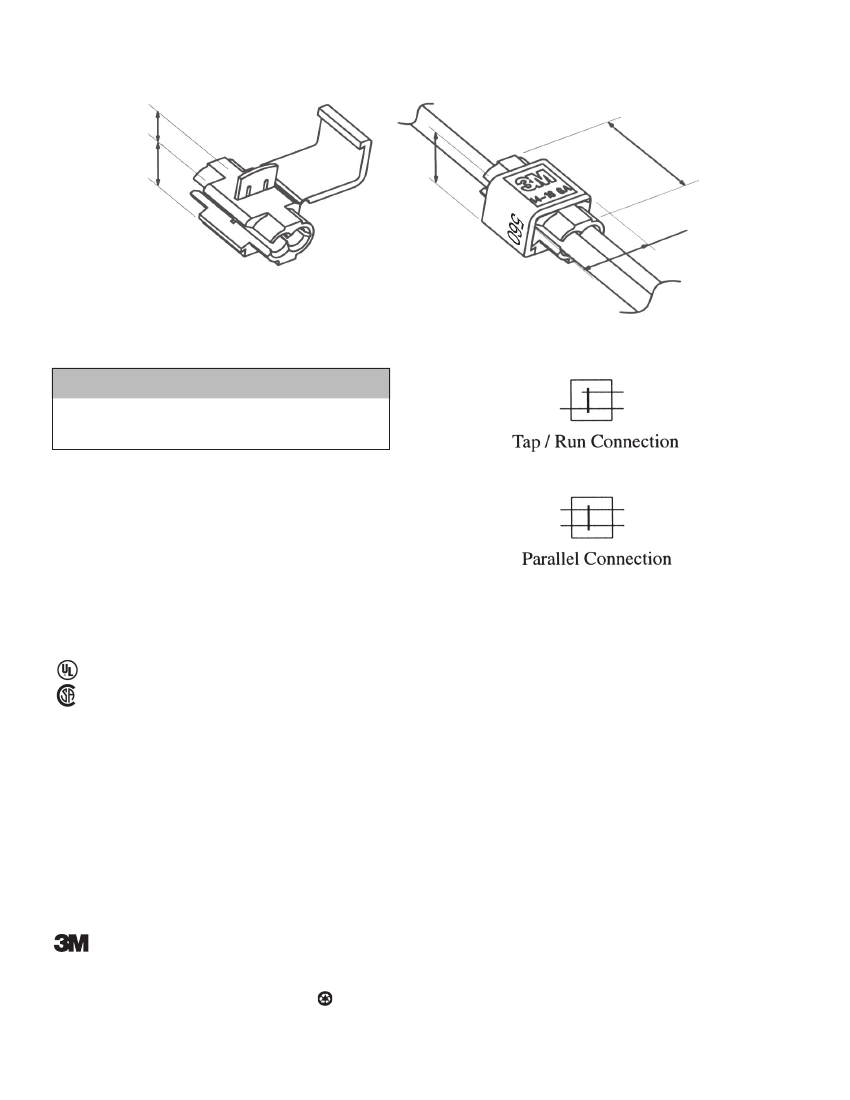

9” Linemans Pliers
.19
.80
.34
.39
.53
Installation Instructions
WARNING
Turn power off before installing or removing terminal. All electri-
cal work should be done according to appropriate electrical
codes.
1. Place unstripped run wire inside run channel.
2. Insert unstripped tap wire completely.
3. Hold tool perpendicular to the wire and make the
connection by crimping the u-contact down flush
with the top of the plastic insulator.
4. Close top hinged cover until latched.
3M and Scotchlok are trademarks of 3M Company.
is a trademark of Underwriters Laboratories.
is a trademark of Canadian Standards Association.
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the
accuracy or completeness is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended
application. You assume all risks and liability associated with such use. Any statements related to the product which are not contained in
3M’s current publications, or any contrary statements contained on your purchase order shall have no force or effect unless expressly agreed
upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase.
3M MAKES NO
OTHER WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE.
If this product is defective within the warranty period stated above, your exclusive remedy shall be, at 3M’s
option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except where prohibited by law, 3M will not
be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of the legal
theory asserted.
Electrical Markets Division
6801 River Place Blvd.
Austin, TX 78726-9000
800-626-8381
Fax 800-828-9329
www.3M.com/electrical
Recycled paper
40% Pre-consumer waste paper
10% Post-consumer waste paper
Litho in USA
© 3M 2006 78-8126-5925-4-B
