390-015

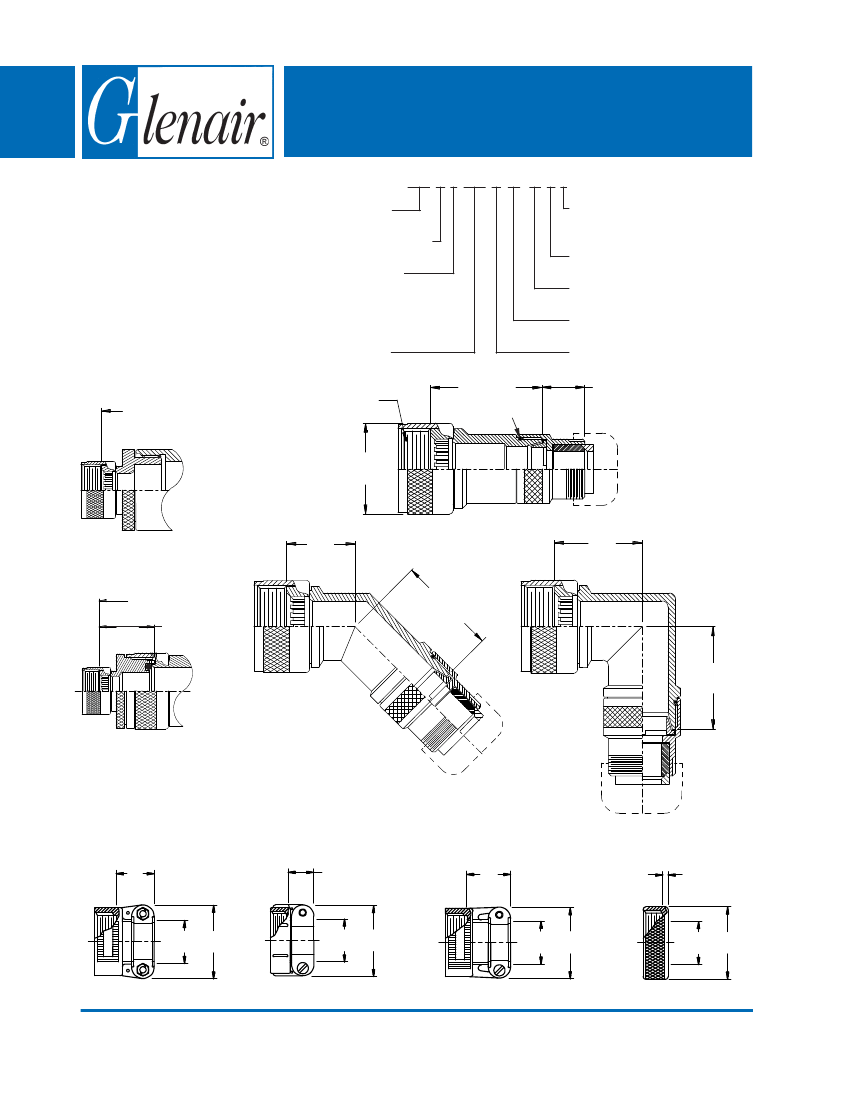

Submersible EMI/RFI Cable Sealing Backshell
with Strain Relief
Type B - Rotatable Coupling - Standard Profile
39
CONNECTOR
DESIGNATOR
390 G S 015 M 17 10 H 6
Product Series
Connector Designator
Strain Relief Style (H, A, M, D)
Angle and Profile
H = 45°
J = 90°
S = Straight
Basic Part No.
A Thread
(Table I)
Length *
O-Ring
Cable Entry (Tables X, XI)
Shell Size (Table I)
Finish (Table II)
1.188
(30.2)
Approx.
Length: S only (1/2 inch incre-
ments: e.g. 6 = 3 inches)
G
ROTATABLE
COUPLING
TYPE B INDIVIDUAL
AND/OR OVERALL
SHIELD TERMINATION
Length ± .060 (1.52)
Min. Order Length 2.5 Inch
(See Note 4)
C Typ.
(Table I)
* Length
± .060 (1.52)
Min. Order Length
2.0 Inch
(See Note 4)
STYLE 2
(STRAIGHT
See Note 1)
Length ± .060 (1.52)
1.25 (31.8)
Max
E
(Table III)
G
(Table III)
F (Table III)
H (Table III)
STYLE 2
(45° & 90°
See Note 1)
STYLE H
Heavy Duty
(Table X)
T
STYLE A
Medium Duty
(Table XI)
W
STYLE M
Medium Duty
(Table XI)
X
STYLE D
Medium Duty
(Table XI)
.135 (3.4)
Max
Cable
Range
V
Cable
Range
Y
Cable
Range
Y
Cable
Entry
Z
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 39 - Page 26
with Strain Relief
Type B - Rotatable Coupling - Standard Profile
See inside back cover fold-out or pages 13 and 14 for Tables I and II.
Shell
Size
11
13
15
17
19
23
25
29
33
TABLE III: ELBOW DIMENSIONS
E
F
G
Max
Max
Max
1.240 (31.5)
1.100 (27.9)
1.380 (35.1)
1.120 (28.4)
1.440 (36.6)
1.260 (32.0)
1.172 (29.8)
1.290 (32.8)
1.500 (38.1)
1.310 (33.3)
1.192 (30.3)
1.570 (39.9)
1.340 (34.0)
1.312 (33.3)
1.630 (41.4)
1.380 (35.1)
1.352 (34.3)
1.730 (43.9)
1.382 (35.1)
1.800 (45.7)
1.410 (35.8)
1.612 (40.9)
2.040 (51.8)
1.580 (40.1)
1.632 (41.5)
1.620 (41.1)
2.130 (54.1)
H
Max
1.240 (31.5)
1.300 (33.0)
1.392 (35.4)
1.452 (36.9)
1.622 (41.2)
1.702 (43.2)
1.772 (45.0)
2.072 (52.6)
2.142 (54.4)
TABLE X: CABLE ENTRY
V
Cable Range
Dash
T
Max
No.
Max
Min
Max
.780 (19.8)
.957 (24.3)
.125 (3.2) .312 (7.9)
04
.250 (6.4) .437 (11.1)
06
.780 (19.8) 1.145 (29.1)
.780 (19.8) 1.332 (33.8)
.387 (9.8) .562 (14.3)
08
.350 (8.9) .625 (15.9)
10
.780 (19.8) 1.332 (33.8)
12
.811 (20.6) 1.551 (39.4)
.500 (12.7) .750 (19.1)
16
.905 (23.0) 1.770 (45.0)
.625 (15.9) .937 (23.8)
.875 (22.2) 1.250 (31.8)
20
1.092 (27.7) 2.113 (53.7)
1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9)
24
28
1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3)
32
1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6)
1. When maximum cable entry (page 21)
is exceeded, Style 2 will be supplied.
Dimensions E, F, G and H will not apply.
Please consult factory.
2. Metric dimensions (mm) are indicated in
parentheses.
3. Cable range is defined as the accom-
modations range for
the wire bundle or cable. Dimensions
shown are not intended for inspection
criteria.
4. Consult factory for shorter lengths on
straight backshells.
TABLE XI: CABLE ENTRY
Dash
Z
Y
X
W
No.
Max
Max
Max
Max
03* .437 (11.1) .760 (19.3) .843 (21.4)
.630 (16.0)
04* .437 (11.1) .760 (19.3) .906 (23.0)
.755 (19.2)
06* .500 (12.7) .760 (19.3) 1.093 (27.8)
.942 (23.9)
08
.563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1)
10
.563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3)
12
.563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1)
16
.656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0)
20
.656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9)
24
.656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3)
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6)
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0)
40* 1.125 (28.6) 1.572 (39.9) 3.531 (89.7) 3.255 (82.7)
* Not available in Style M clamp.
Cable Range
Max
Min **
.156 (4.0) .250 (6.4)
.188 (4.8) .312 (7.9)
.281 (7.1) .438 (11.1)
.387 (9.8) .562 (14.3)
.375 (9.5) .625 (15.9)
.438 (11.1) .750 (19.1)
.625 (15.9) .938 (23.8)
.875 (22.2) 1.250 (31.8)
1.000 (25.4) 1.375 (34.9)
1.250 (31.8) 1.625 (41.3)
1.437 (36.5) 1.875 (47.6)
1.875 (47.6) 2.375 (60.3)
** Not Applicable Style D
Add “-445” to Specify Glenair’s Non-Detent,
("NESTOR") Spring-Loaded, Self-Locking Coupling.
See Page 41 for Details.
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 39 - Page 27
39
390-015
Submersible EMI/RFI Cable Sealing Backshell
