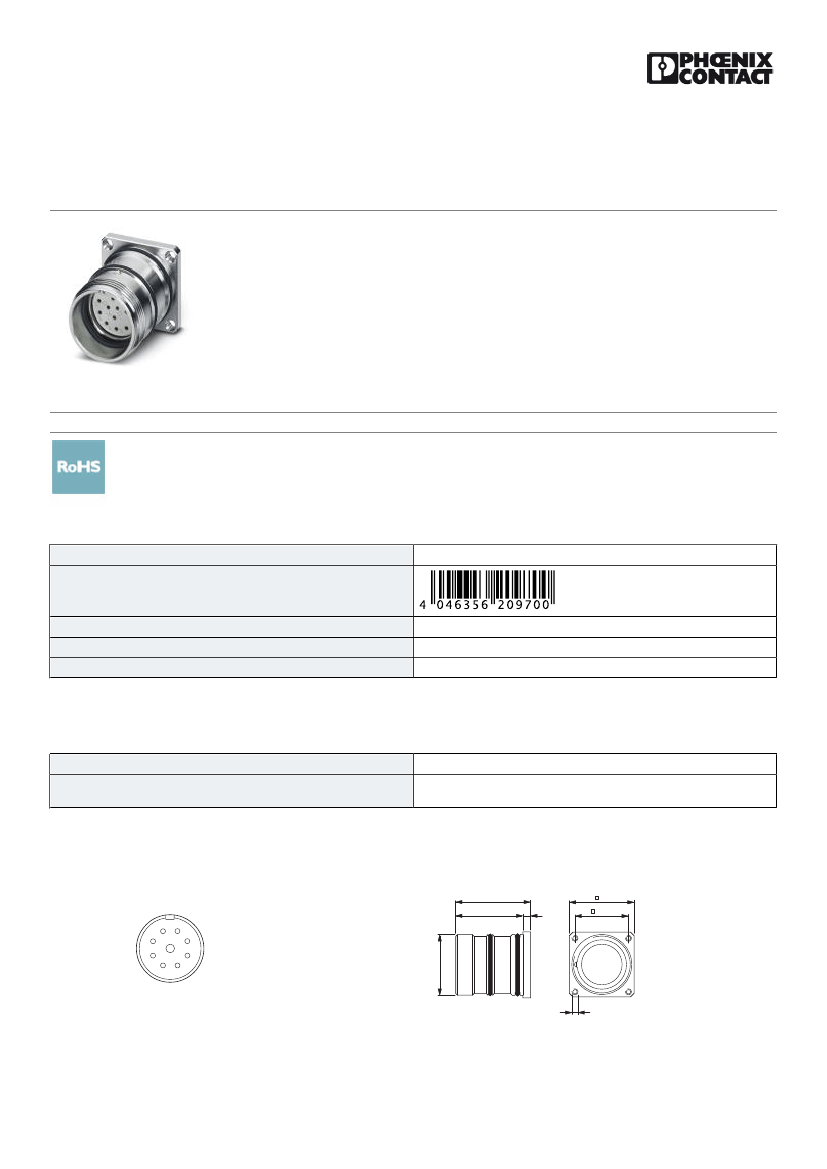

Device connector, rear mounting - RC-09S1N12E100 - 1596076

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

Device connector for rear wall, straight, shielded: yes, Screw locking, M23, Number of positions: 8+1, Type

of contact: Socket, Solder connection, Flat gasket, 4xM3, Panel thickness min.: 3 mm, Panel thickness max.:

10.5 mm

The figure shows the 17-pos.

product version with O-ring seal

Key Commercial Data

Packing unit

GTIN

Custom tariff number

Note

4046356209700

85366990

Made to Order (non-returnable)

40 STK

Technical data

Environmental Product Compliance

China RoHS

Environmentally Friendly Use Period = 50

For details about hazardous substances go to tab “Downloads”,

Category “Manufacturer's declaration”

Drawings

Schematic diagram

N

1

2

3

4

9

SO

5

8

7

Dimensional drawing

(28,8)

25,8

3

25

20,5

6

M23

4xM3

11/14/2016 Page 1 / 2
