8199-7 Overview

Terminals SCREW TERMINAL YLW

8199-7 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Keystone Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	8199
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

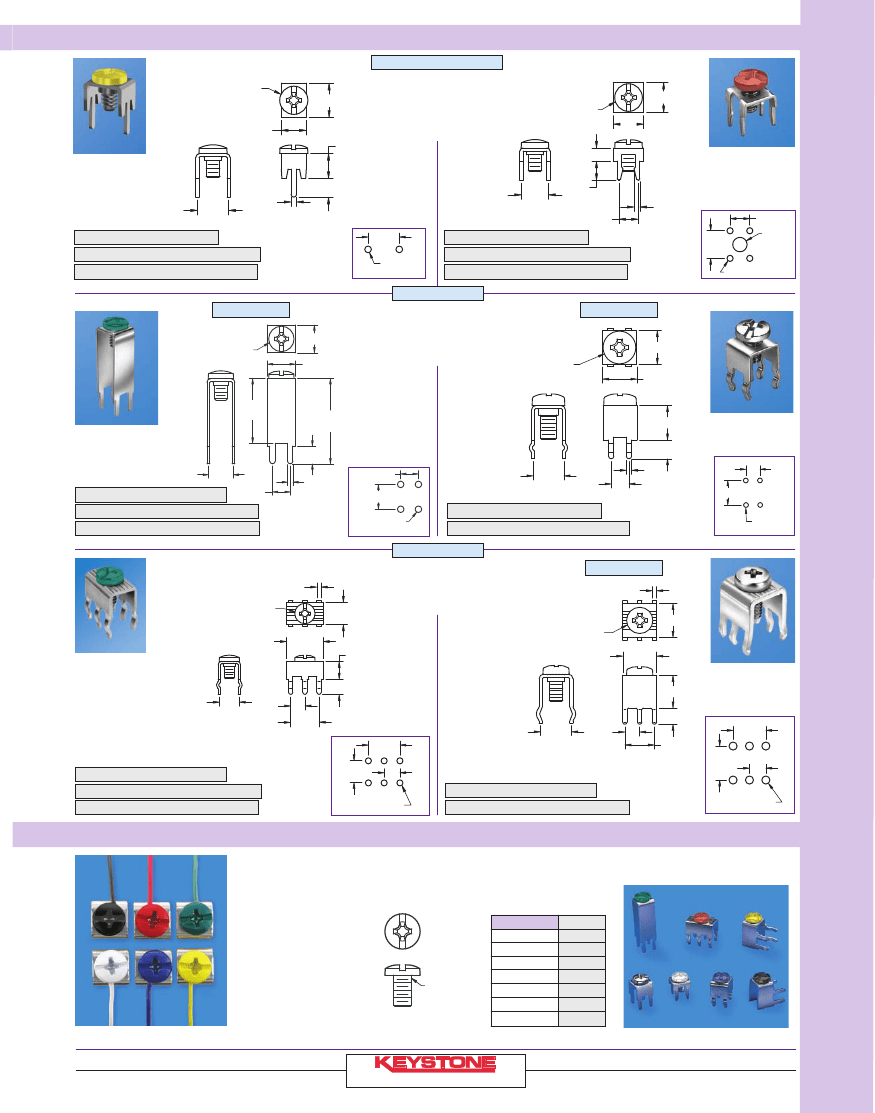

PC SCREW TERMINALS

LOW PROFILE VERTICAL TYPE

6-32 X .250 [6.3] L.

SCREW

SPECIFICATIONS

.343 [8.7]

.250 [6.3]

Rated:

15 Amps

Terminal:

.032 (.81) Brass, Matte Tin

Plate

Binding Head Screw:

Brass, Nickel Plate

.310 [7.9]

6-32 x .250 [6.3] L.

SCREW

.310

[7.9]

7778-7

.250 [6.4]

.134 [3.4]

7775-2

•

Color coded screws

available (add color

screw suffix to Cat. No.)

.312

[7.9]

.055 [1.4]

(2) PLS

.187 [4.7]

.276

[7.0]

.197 [5.0]

.059 [1.5]

(4) PLS

.197 [5.0]

•

Color coded screws

available (add color

screw suffix to

Cat. No.)

Mounting Detail

.187 [4.7]

.276

[7.0]

.144 [3.7]

DIA.

Mounting Detail

.312 [7.9]

CAT. NO. 7784

(No Screw Supplied)

CAT. NO. 8198

(Screw Supplied Unassembled)

CAT. NO. 7778

(Screw Installed & Captivated)

CAT. NO. 7785

(No Screw Supplied)

CAT. NO. 8195

(Screw Supplied Unassembled)

CAT. NO. 7775

(Screw Installed & Captivated)

.067 [1.7] DIA.

(2) PLS

.062 [1.57] DIA. (4) PLS

VERTICAL TYPE

EXTENDED

.310 [7.9]

6-32 x .250 [6.3] L.

SCREW

SPECIFICATIONS

Rated:

15 Amps

Terminal:

.032 (.81) Brass, Mattte Tin Plate

Binding Head Screw:

Brass, Nickel Plate

10-32 X .375 [9.5] L.

SCREW

HEAVY DUTY

.375 [9.5]

.310 [7.9]

.382 [9.7]

SCREW TERMINALS

7699-6

.718

[18.3]

8174

.947

[24.1]

.383 [9.7]

PC MOUNT

•

Color coded screws

available (add color

screw suffix to Cat. No.)

.197 [5.0]

.276

[7.0]

.209 [5.3]

Mounting Detail

.197

[5.0]

.341 [8.7]

Mounting Detail

.197 [5.0]

.341 [8.7]

.060

[1.5]

.197

[5.0]

.197 [5.0]

CAT. NO. 7789

(No Screw Supplied)

CAT. NO. 7697

(Screw Supplied Unassembled)

.060 [1.52]

(4) PLS

.276 [7.0]

CAT. NO. 7791

(No Screw Supplied)

.073 [1.85] DIA.

(4) PLS

CAT. NO. 7699

(Screw Installed & Captivated)

CAT. NO. 8174

(Screw Supplied Unassembled)

.073 [1.85] DIA.

(4) PLS

30 AMP - VERTICAL

PRINCIPAL FEATURES

.060 [1.5] (6) PLS

6-32 x .250 [6.3] L.

SCREW

•

Compact, heavy duty design

•

Six snap-in legs for total stability

•

Serrated top surface secures connection

.310 [7.9]

HEAVY DUTY

.060 [1.5] (6) PLS

.470 [11.9]

.507 [12.9]

.250 [6.3]

10-32 x .375 [9.5] L.

SCREW

8199-6

•

Combination drive, binding

head screw

•

Color coded screws

available (add color

screw suffix to Cat. No.)

.470 [11.9]

8196

.210 [5.3]

.276

7.0

.197

[5.0]

.394

[10.0]

.453 [11.5]

Mounting Detail

.394

[10.0]

.276

[7.0]

.197

[5.0]

SPECIFICATIONS

Rated:

30 Amps

Terminal:

.032 (.81) Brass, Matte Tin Plate

Binding Head Screw:

Brass, Nickel Plate

SPECIFICATIONS

.226 [5.7]

.425

.205

[5.2]

.410 [10.4]

.425

10.8

.205

[5.2]

.410

[10.4]

CAT. NO. 7786

(No Screw Supplied)

CAT. NO. 8197

(Screw Supplied Unassembled)

CAT. NO. 8199

(Screw Installed & Captivated)

Rated:

30 Amps

[10.8]

Terminal:

.045 (1.14) Brass, Matte Tin Plate

Screw:

Stainless Steel

CAT. NO. 7787

(No Screw Supplied)

.076 [1.93] DIA. (6) PLS

CAT. NO. 8196

(Screw Supplied Unassembled)

.101 [2.6] DIA. (6) PLS

COLOR CODED SCREW TERMINAL SELECTION GUIDE

Color Coded Screw Terminals

provide:

•

Quick identification

•

Visibility for field service

troubleshooting

SPECIFICATIONS

Combination Binding Head:

Standard screw is Brass,

Nickel Plate. For painted,

color head, add suffix as

shown.

•

Available for screw terminals where noted.

COLOR SELECTION:

Select desired screw terminal

and add color suffix to the

screw terminal Cat. No.

HEAD COLOR

RED

BLACK

WHITE

BLUE

GREEN

YELLOW

NICKEL

SUFFIX

-2

-3

-4

-5

-6

-7

none

CAT. NO. COLOR SUFFIX

Ex:

XXXX

-X

7699-6

8199-2

7692-7

6-32 x

.250 [6.3] L.

THREAD

7775-4

7701

7693-5

7700-3

Refer to page 133 for color screws only

Tel (718) 956-8900

•

Fax (718) 956-9040

(800) 221-5510

•

kec@keyelco.com

RoHS COMPLIANT

ISO 9001 CERTIFIED

www.keyelco.com

31-07 20th Road – Astoria, NY 11105-2017

8199-7 Related Products

	8199-7	8199-4	8199-5	8199-6
Description	Terminals SCREW TERMINAL YLW	TERM SCREW 6-32 6 PIN PCB	TERM SCREW 6-32 6 PIN PCB	TERM SCREW 6-32 6 PIN PCB
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Manufacturer's serial number	8199	8199	8199	8199
Terminal and terminal strip types	PCB TERMINAL	PCB TERMINAL	PCB TERMINAL	PCB TERMINAL
Base Number Matches	1	1	1	1
Maker	Keystone Electronics	-	Keystone Electronics	Keystone Electronics
