17S-DE09P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 17S-DE09P

17S-DE09P: DescriptionD-Sub Standard Connectors 9P PLUG SOLDER CUP; CategoryThe connector; File Size249KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

17S-DE09P Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	17S-DE09P	-	-	View	Buy Now

17S-DE09P Overview

D-Sub Standard Connectors 9P PLUG SOLDER CUP

17S-DE09P Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Amphenol
Product Category	D-Sub Standard Connectors
RoHS	No -; RoHS Version Available
Number of Positions	9 Position
Contact Gender	Pin (Male)
Termination Style	Solder
Number of Rows	2 Row
Shell Size	1 (E)
Contact Plating	Gold
Mounting Style	Wire
Current Rating	5 A
Gender	Male
Type	Plug
Voltage Rating	250 V
Contact Material	Brass
Shell Plating	Yellow Chromated over Zinc
Insert Arrangement	E09
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
Shell Material	Steel

Preview

Download Datasheet

View All

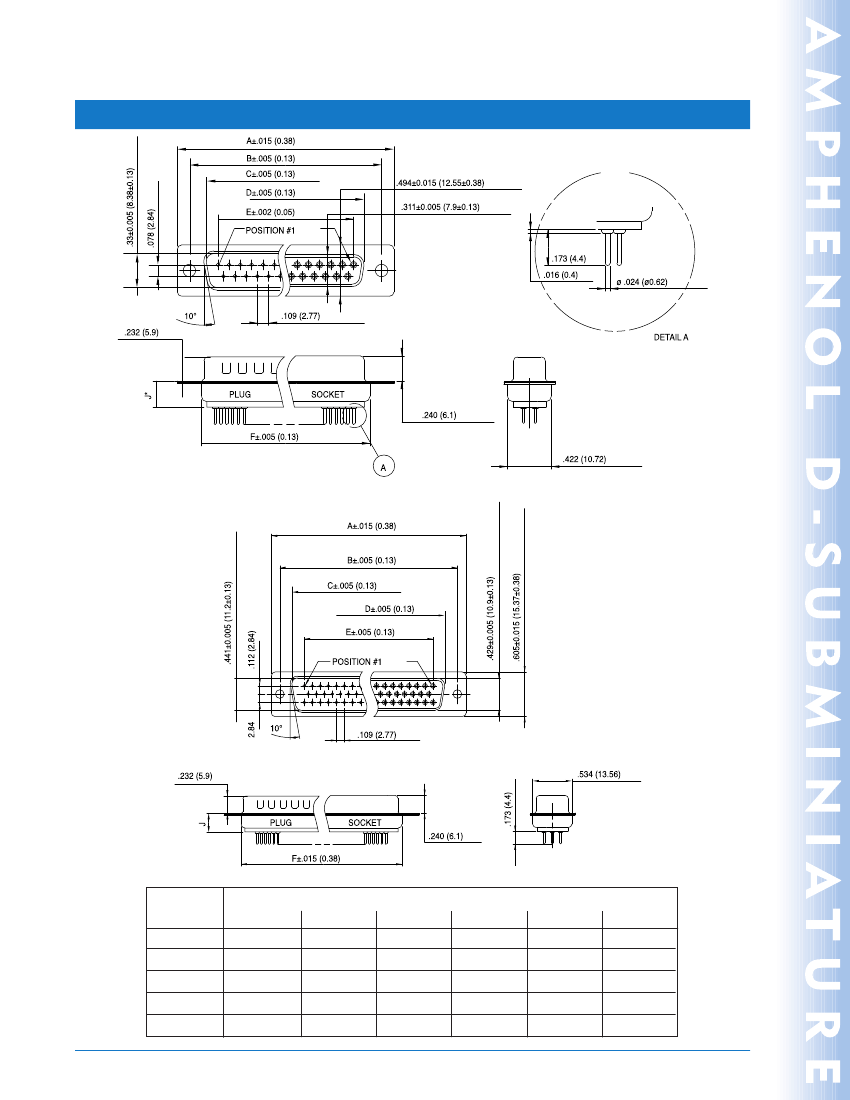

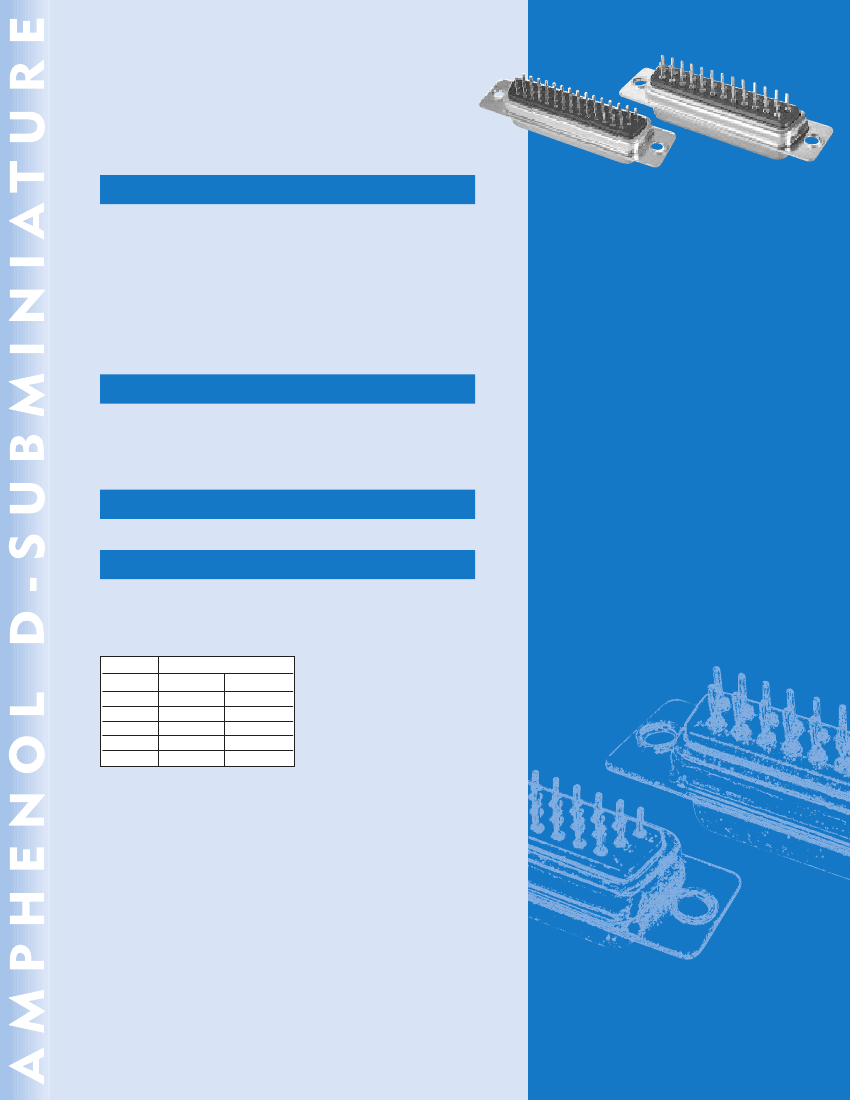

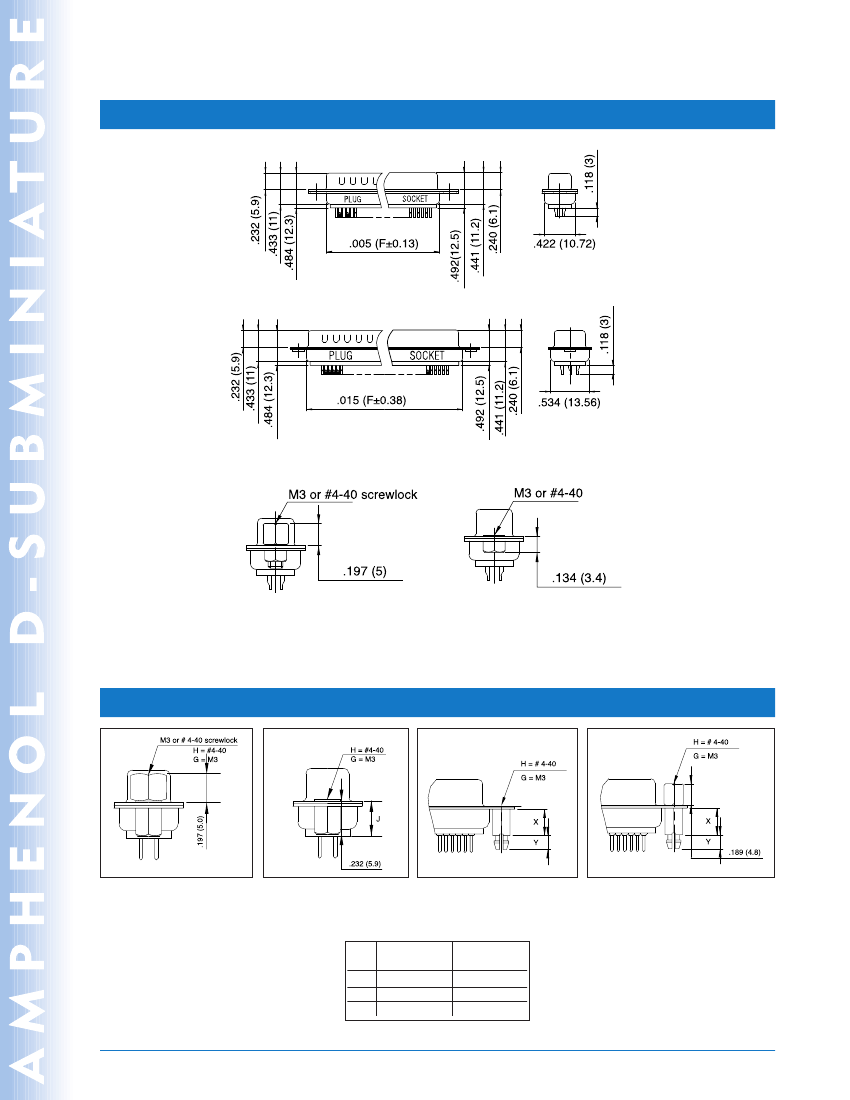

Stamped And Formed Contacts

Solder-Cup And Straight PCB Termination

Standards:

UL File:

E149426

Connectors according to:

MIL C24308 - NFC 93425-HE5

SD S

ERIES

PECIFICATIONS

ATERIALS

Shells

Insulator

Pin Contact

Socket Contact

Rear Insert

Boardlock

Screwlock

AND

LATINGS

Steel

Glass-ﬁlled thermoplastic, UL 94V-0

Brass, selected gold in mating area;

100µ" (2.54µm) min. tin-lead on

termination area over 50µ" (1.27µm) min.nickel

Phosphor bronze, selected gold in mating area;

100µ" (2.54µ) min. tin-lead on termination area

over 50µ" (1.27µm) min. nickel

Brass, 100µ" (2.54µm) min. nickel plated

Amphenol’s SD series, features

precision stamped and formed

contacts with closed entry contact

cavities in insulator.

This series provides Amphenol’s

high standard of quality and

reliability, to meet all of your

commercial requirements.

LECTRICAL

ATA

Current Rating

Voltage Rating

Withstanding Voltage

Insulation Resistance

Contact Resistance

Standard Density: 5A per contact

250V AC/ rms 50Hz

1000V AC/ rms 50Hz for one minute

1000MΩ at 500V DC

20 mΩ max.

• Industrial

• Telecom

• Any industry standard

I / O connections

LIMATIC

ATA

Operating Temperature

-67°F (-55°C) to +257°F (125°C)

ECHANICAL

ATA

Single Contact Insertion Force

Single Contact Withdrawal Force

Mating and Unmating Force

Unit: lb. (kg.)

No. of Pos

Mate (max.)

3.05

5.09

8.44

12.51

14.65

(6.74)

(11.24)

(18.66)

(27.65)

(32.38)

Unmate (min.)

0.36

0.46

0.81

1.1

1.6

(0.79)

(1.01)

(1.8)

(2.47)

(3.56)

1.19 lb. (0.54 kg.) max.

0.13 lb. (0.06 kg.) min.

Standard plating thicknesses

• gold ﬂash

• 15µ" (0.381µm) gold

• 30µ" (0.76 µm) gold

NCHES

(

)

ELEPHONE

: (416) 754-5656 F

: (416) 754-8668

E-M

AIL

SALES

AMPHENOLCANADA

COM

17S-DE09P Related Products

	17S-DE09P	17S-DB25P	17S-DE09S	17S-DC37P	17S-DA15S	17S-DD50P	17S-DB25S
Description	D-Sub Standard Connectors 9P PLUG SOLDER CUP	D-Sub Standard Connectors 25P PLUG SOLDER CUP	D-Sub Standard Connectors 9P RECPT SOLDER CUP	D-Sub Standard Connectors 37P PLUG SOLDER CUP	D-Sub Standard Connectors 15P RECPT SOLDER CUP	D-Sub Standard Connectors 50P PLUG SOLDER CUP	D-Sub Standard Connectors 25P RECPT SOLDER CUP
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Product Category	D-Sub Standard Connectors	D-Sub Standard Connectors	D-Sub Standard Connectors	D-Sub Standard Connectors	D-Sub Standard Connectors	D-Sub Standard Connectors	D-Sub Standard Connectors
RoHS	No -; RoHS Version Available	No -; RoHS Version Available	No -; RoHS Version Available	No -; RoHS Version Available	No -; RoHS Version Available	N	No -; RoHS Version Available
Number of Positions	9 Position	25 Position	9 Position	37 Position	15 Position	50 Position	25 Position
Number of Rows	2 Row	2 Row	2 Row	2 Row	2 Row	3 Row	2 Row
Shell Size	1 (E)	3 (B)	1 (E)	4 (C)	2 (A)	5 (D)	3 (B)
Insert Arrangement	E09	B25	E09	C37	A15	D50	B25
Contact Gender	Pin (Male)	Pin (Male)	Socket (Female)	Pin (Male)	Socket (Female)	Pin (Male)	-
Termination Style	Solder	Solder	Solder	Solder	Solder	Solder	-
Contact Plating	Gold	Gold	Gold	Gold	Gold	Gold	-
Mounting Style	Wire	Wire	Wire	Wire	Wire	Wire	-
Current Rating	5 A	5 A	5 A	5 A	5 A	5 A	-
Gender	Male	Male	Female	Male	Female	Male	-
Type	Plug	Plug	Receptacle	Plug	Receptacle	Plug	-
Voltage Rating	250 V	250 V	250 V	250 V	250 V	250 V	-
Contact Material	Brass	Brass	Phosphor Bronze	Brass	Phosphor Bronze	Brass	-
Shell Plating	Yellow Chromated over Zinc	Yellow Chromated over Zinc	Steel	Yellow Chromated over Zinc	Steel	Yellow Chromated over Zinc	-
Maximum Operating Temperature	+ 125 C	-	+ 125 C	+ 125 C	+ 125 C	+ 125 C	-
Minimum Operating Temperature	- 55 C	-	- 55 C	- 55 C	- 55 C	- 55 C	-
Shell Material	Steel	Steel	Steel	Steel	Steel	Steel	-
