87340-0814 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87340-0814

87340-0814: DescriptionHeaders & Wire Housings MGrid Rec SMT VLPR2 R2 /OPg .38AuLF 8Ckt; CategoryThe connector The connector; File Size33KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

87340-0814 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	87340-0814	-	-	View	Buy Now

87340-0814 Overview

Headers & Wire Housings MGrid Rec SMT VLPR2 R2 /OPg .38AuLF 8Ckt

87340-0814 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TOP ENTRY
body width	0.173 inch
subject depth	0.085 inch
body length	0.315 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL
Contact completed and terminated	TIN (75) OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	25 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.7514 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	87340
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.7404 mm
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	8
Evacuation force-minimum value	.1946 N
Base Number Matches	1

Preview

Download Datasheet

View All

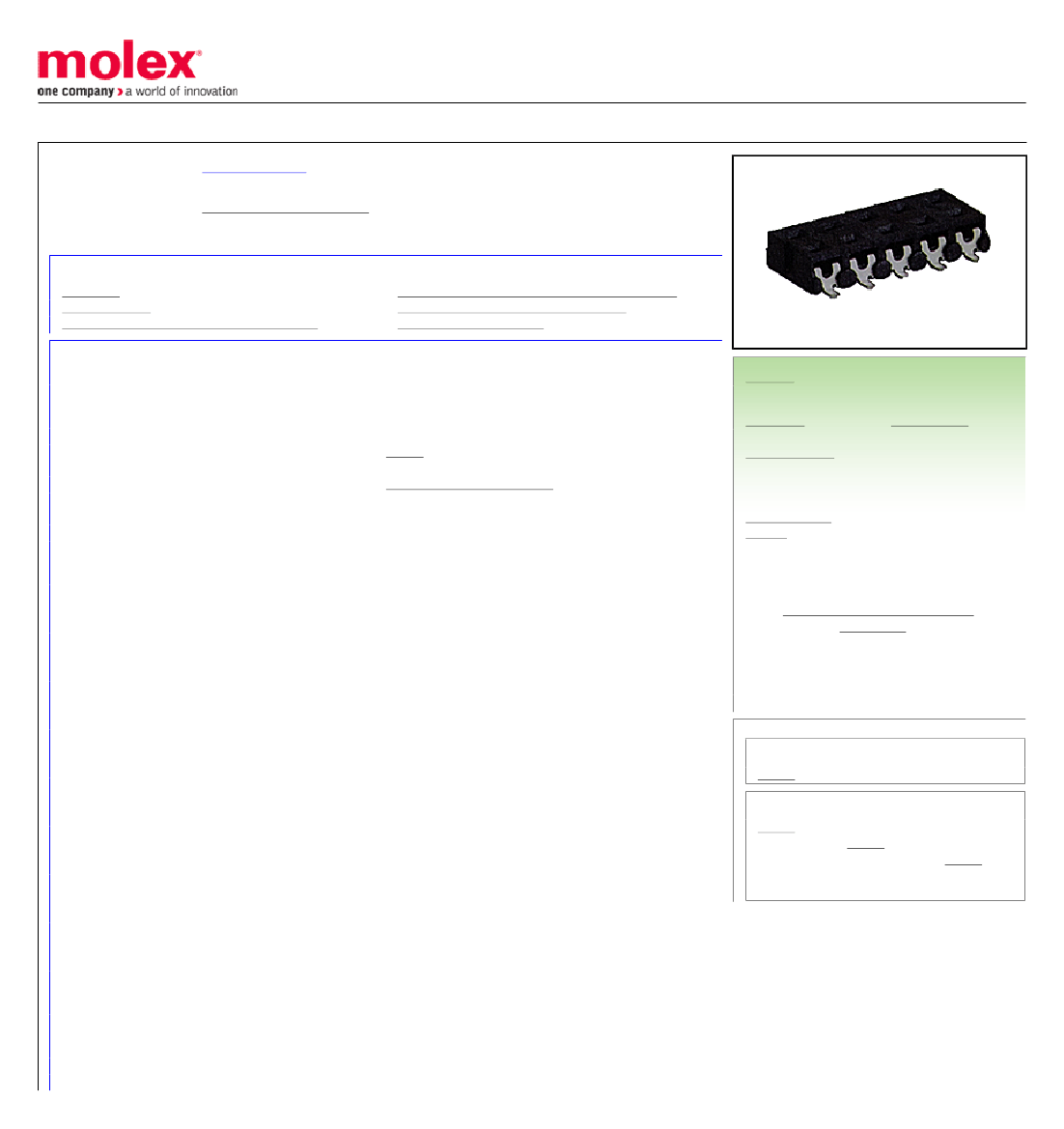

This document was generated on 03/02/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0873400814

Active

Milli-Grid Connector System

2.00mm Pitch Milli-Grid Receptacle, Surface Mount (Very Low Profile), Top Entry,

without Locating Peg, 0.38µm Gold (Au) Plating, 8 Circuits, Lead-Free, Tube, Black

Documents:

3D Model

Drawing (PDF)

Product Specification PS-87340-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Overview

Product Literature Order No

Product Name

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Capable

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Voltage - Maximum

Solder Process Data

Duration at Max. Process Temperature (seconds)

Lead-freeProcess Capability

Packaging Specification PK-87264-0001 (PDF)

RoHS Certificate of Compliance (PDF)

Product Literature (PDF)

Series image - Reference only

LR19980

E29179

PCB Receptacles

87340

Board-to-Board, Signal

Milli-Grid Connector System

987650-1991

Milli-Grid

822348473052

Black

94V-0

Yes

Phosphor Bronze

Gold

Tin

High Temperature Thermoplastic

0.099/g

Vertical

None

Tube

2.00mm

0.381µm

1.905µm

N/A

-55°C to +105°C

Surface Mount

1.0A

125V

014

REFLOW

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2017 (12

January 2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

87340 Series

Mates With

87759 Vertical, Surface Mount, Stackable

PCB Headers, 87760 Right Angle, Through

Hole, Stackable PCB Headers, 87758

Vertical, Through Hole, Stackable PCB

Headers

Recommended Resources
