Datasheet> All Categories > The connector> socket> D83084B-46

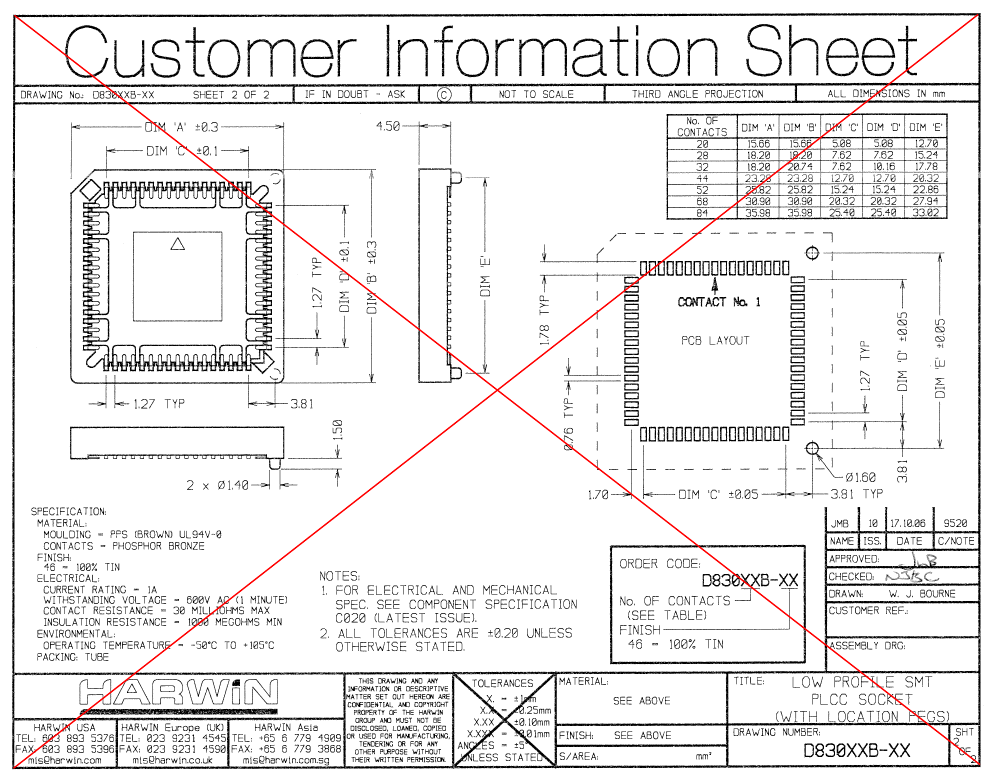

Preview

D83084B-46: DescriptionIC & Component Sockets 84 WAY PLCC SKT SMT; CategoryThe connector socket; File Size86KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

D83084B-46 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D83084B-46	-	-	View	Buy Now

D83084B-46 Overview

IC & Component Sockets 84 WAY PLCC SKT SMT

D83084B-46 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: UL 94V-0, LOW PROFILE
body width	1.417 inch
subject depth	0.177 inch
body length	1.417 inch
Contact structure	21X21
Contact to complete cooperation	TIN
Contact completed and terminated	Matte Tin (Sn)
Contact material	PHOSPHOR BRONZE
Contact style	BELLOWED TYPE
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	PLCC84
Dielectric withstand voltage	600VAC V
Shell material	POLYPHENYLENE SULFIDE
Insulation resistance	1000000000 Ω
JESD-609 code	e3
Manufacturer's serial number	D840
Installation method	STRAIGHT
Number of contacts	84
Maximum operating temperature	105 °C
Minimum operating temperature	-50 °C
Termination type	SURFACE MOUNT
Base Number Matches	1

Preview

Download Datasheet

View All

OBSOLETE

D83084B-46 Related Products

	D83084B-46	D83028B-46	D83044B-46	D83068B-46	D83052B-46
Description	IC & Component Sockets 84 WAY PLCC SKT SMT	IC & Component Sockets 28 WAY PLCC SKT SMT	IC & Component Sockets 44 WAY PLCC SKT SMT	IC & Component Sockets 68 WAY PLCC SKT SMT	IC & Component Sockets 52 WAY PLCC SKT SMT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	STANDARD: UL 94V-0, LOW PROFILE	STANDARD: UL 94V-0, LOW PROFILE	STANDARD: UL 94V-0, LOW PROFILE	STANDARD: UL 94V-0, LOW PROFILE	STANDARD: UL 94V-0, LOW PROFILE
body width	1.417 inch	0.717 inch	0.917 inch	1.217 inch	1.017 inch
subject depth	0.177 inch	0.177 inch	0.177 inch	0.177 inch	0.177 inch
body length	1.417 inch	0.717 inch	0.917 inch	1.217 inch	1.017 inch
Contact structure	21X21	7X7	11X11	17X17	13X13
Contact to complete cooperation	TIN	TIN	TIN	TIN	TIN
Contact completed and terminated	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Tin (Sn)	Tin (Sn)
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
current rating	1 A	1 A	1 A	1 A	1 A
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	PLCC84	PLCC28	PLCC44	PLCC68	PLCC52
Dielectric withstand voltage	600VAC V	600VAC V	600VAC V	600VAC V	600VAC V
Shell material	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
JESD-609 code	e3	e3	e3	e3	e3
Manufacturer's serial number	D840	D830	D840	D840	D830
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of contacts	84	28	44	68	52
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Base Number Matches	1	1	1	-	1
