Description
Terminals BLADE GRND PIN BLADE 7 SHAPE 18-14 TIN-PL
CategoryThe connector
File Size107KB,1 Pages
ManufacturerHeyco
Environmental Compliance
Download Datasheet Parametric View All

5796 Online Shopping

Suppliers Part Number Price MOQ In stock
5796 - - View Buy Now

5796 Overview

Terminals BLADE GRND PIN BLADE 7 SHAPE 18-14 TIN-PL

5796 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerHeyco
Product CategoryTerminals
RoHSDetails
ProductQuick Disconnects
TypeBlade
Factory Pack Quantity8000
Unit Weight3.668492 oz
“Stay Connected with Heyco”
Power Components

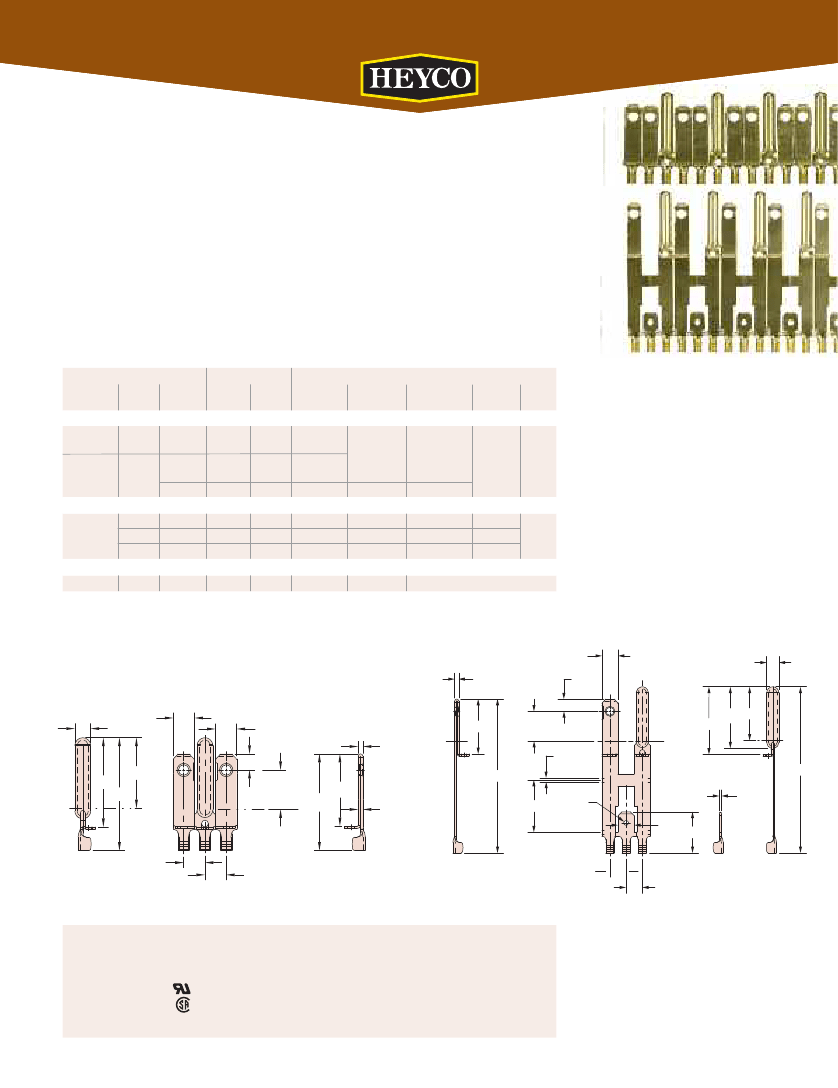

Heyco Full Thickness Male Blades
BGB and BGMT Series
®
Blade-Pin-Blade/Blade-Tab-Pin Strip Sequences
NEMA 1-15P & 5-15P – .058˝ Mold Line Thickness
One shot, one operator, one die terminating!
For mating Female Cord Connectors, see page 8-50.
For Male Ground Pins, see pages 8-39 & 8-40.
For Full Thickness Male/Female Combination Terminals, see pages 8-55 & 8-56.
Blade
Profile
Flat
7-Shape
PART DATA
AWG
Material
Range
18-14
18-14
Brass
Post-Ni
Brass
Tin-Pl
Brass
PART NO.
Non-
polarized Polarized
5790
5794
5792
5796
5793
-
-
-
-
-
Die**
APPLICATION TOOLING*
Feeds
Tool
Pack
Crimp
Punch
Anvil
BGB Series – Blade-Ground Pin-Blade
5790UXX5
5794UXX5
5792UXX5
5796UXX5
5793UXX5
Left to Right
Right to Left
B280L/B281L
C453
C327
18
16
14
B280R/B281R
alternate tooling for above BGB’S:
B282L/B283L
C798
B284L/B285L
C799
C327
B286L/B287L
C800
Consult Heyco
BGMT Series – Blade-Male Tab-Ground Pin
Flat
18-14
Brass
5797
-
Consult Heyco Left to Right
7-Shape Blades feature a retention ledge to maintain position during overmolding (mold stop).
* Use the Heyco Universal Applicator Die (indicated by “U” in the Die Part No.), page 8-59.
** “XX” represents Wire Gauge. Please specify Wire Gauge when ordering.
BGB and BGMT Series Blades feature
(3) components on one reel, allowing
the operator to attach all three
conductors at once for highly efficient
“3-Up” terminating: one shot, one
operator, one die.
Flat BGB/BGMT Plug Blades are
front
loaded
for overmolding.
Due to their profile, 7-Shape BGB
Blades are
side loaded
for overmolding.
Both BGB and BGMT feature a
unique folded, double-seam
Ground Pin design.
DFARS Compliant
.248
.063
.19
.187
.187
.250
.250
.060
.19
.85
.464
.060 TYP.
2.39
1.05
.95 .83
1.05
1.33
.83
2.58
n.075
.250
.64
.033
.464
1.14
UL/CSA
BLADE
MOLD LINE
.250
.85
.058
.810
UL/CSA
PIN
MOLD LINE
.250
.250
BGB Series
BGMT Series
.250
Materials
Certifications
Standards
Alloy 260 Brass (70% Cu, 30% Zn. Higher Cu content resists dezincification)
Tin-Pl = Brass, Tin plated before or after stamping
Post-Ni = Brass, Nickel plated after stamping
Recognized Component under UL File E164169
Certified by the Canadian Standards Association File 91824
NEMA 1-15P & NEMA 5-15P
