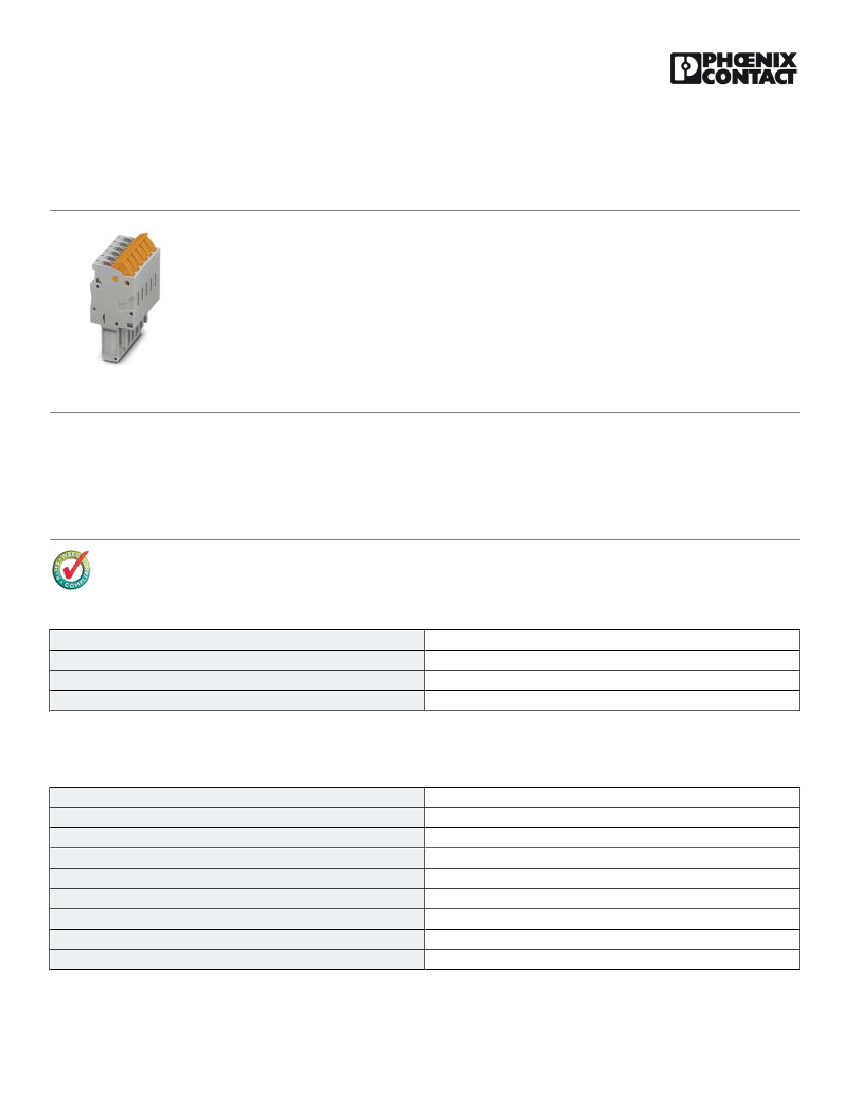

Plug - QP 1,5/ 8 - 3051179
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Plug, Connection method: Quick connection, Number of positions: 8, Cross section: 0.25 mm² - 1.5 mm²,
AWG: 24 - 16, Width: 41.6 mm, Height: 40 mm, Color: gray
Illustration shows the product version
QP 1,5/ 6
Product Features
■
■
■
■
Just like the basic terminal blocks, the plugs also offer the right connection technology for every application
The conductor is connected using the familiar IDC connection with no stripping, therefore saving time
Tested for railway applications
The QP 1,5/... fast connector plug is designed for the connection of solid and stranded conductors
Key Commercial Data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
31.01 g
85366990
Turkey
Technical data
General
Number of levels
Number of connections
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Area of application
1
8
1.5 mm²
gray
PA
V0
Railway industry
Machine building
Plant engineering
04/22/2016 Page 1 / 8
https://www.phoenixcontact.com/us/products/3051179
Plug - QP 1,5/ 8 - 3051179
Technical data
General
Maximum load current
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Connection in acc. with standard
Maximum load current
Nominal current I
N
Nominal voltage U
N
17.5 A (with 1.5 mm² conductor cross section)
6 kV
3
III
I
IEC 61984
17.5 A (with 1.5 mm² conductor cross section)
17.5 A
500 V
Dimensions
Width
Length
Height
Pitch
41.6 mm
20 mm
40 mm
24.00 mm
5.20 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Material wire insulation
Structure of individual litz in acc. with VDE 0295 / smallest wire diameter
Max. wire diameter incl. insulation
Quick connection
IEC 61984
0.25 mm²
1.5 mm²
24
16
0.25 mm²
1.5 mm²
24
16
PVC / PE
VDE 0295 Cl.1-5
3 mm
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
CSA
IEC 61984
V0
04/22/2016 Page 2 / 8
https://www.phoenixcontact.com/us/products/3051179
Plug - QP 1,5/ 8 - 3051179
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
272607xx
27260701
27260701
27260701
27141120
27141120
27141151
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000897
EC000897
EC002021
EC002021
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211802
39121402
39121402
39121402
39121402
Approvals
Approvals
Approvals
CSA / UL Recognized / cUL Recognized / GL / EAC / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
04/22/2016 Page 3 / 8
https://www.phoenixcontact.com/us/products/3051179
Plug - QP 1,5/ 8 - 3051179
Approvals
CSA
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
24-16
10 A
300 V
C
24-16
10 A
300 V
D
24-16
5A
600 V
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
24-16
10 A
600 V
B
24-16
10 A
300 V
C
24-16
10 A
300 V
D
24-16
5A
600 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
24-12
10 A
600 V
B
24-12
10 A
300 V
C
24-12
10 A
300 V
D
24-12
5A
600 V
GL
EAC
cULus Recognized
Accessories
Accessories
Insulating sleeve
04/22/2016 Page 4 / 8
https://www.phoenixcontact.com/us/products/3051179
Plug - QP 1,5/ 8 - 3051179

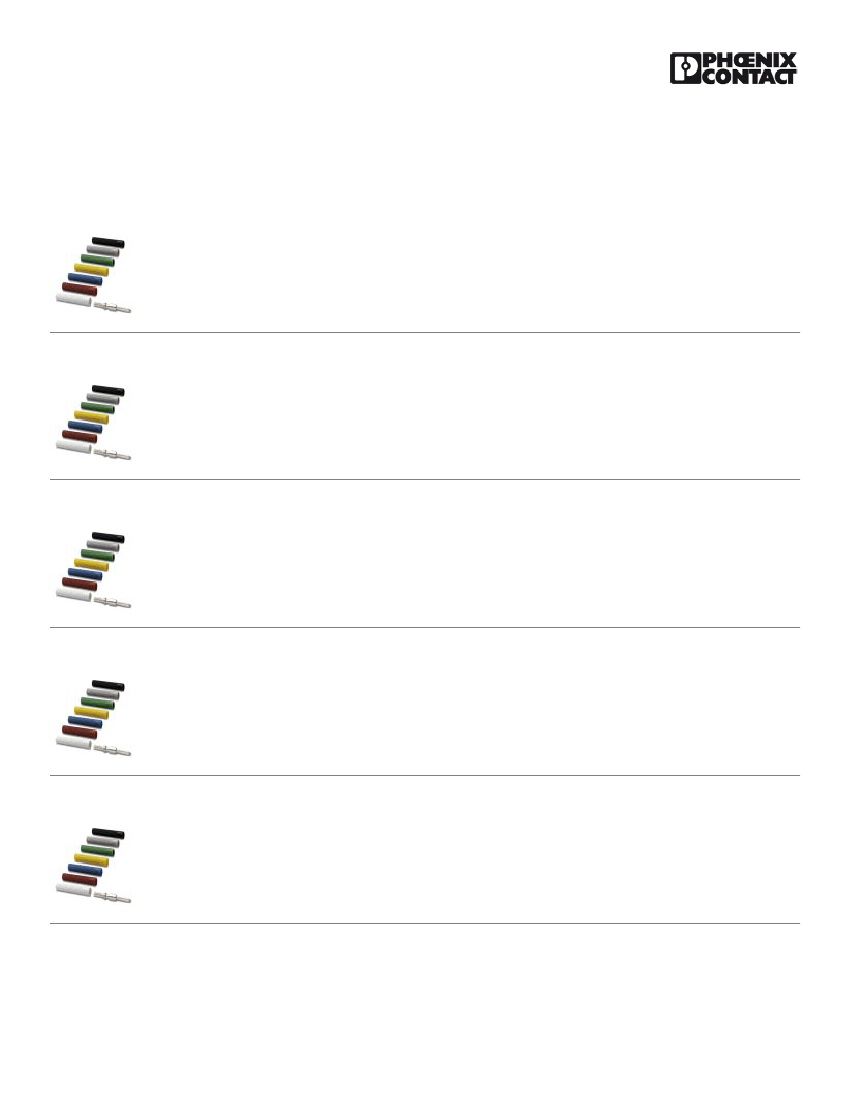

Accessories
Insulating sleeve - MPS-IH WH - 0201663
Insulating sleeve, Color: white
Insulating sleeve - MPS-IH RD - 0201676
Insulating sleeve, Color: red
Insulating sleeve - MPS-IH BU - 0201689
Insulating sleeve, Color: blue
Insulating sleeve - MPS-IH YE - 0201692
Insulating sleeve, Color: yellow
Insulating sleeve - MPS-IH GN - 0201702
Insulating sleeve, Color: green
04/22/2016 Page 5 / 8
