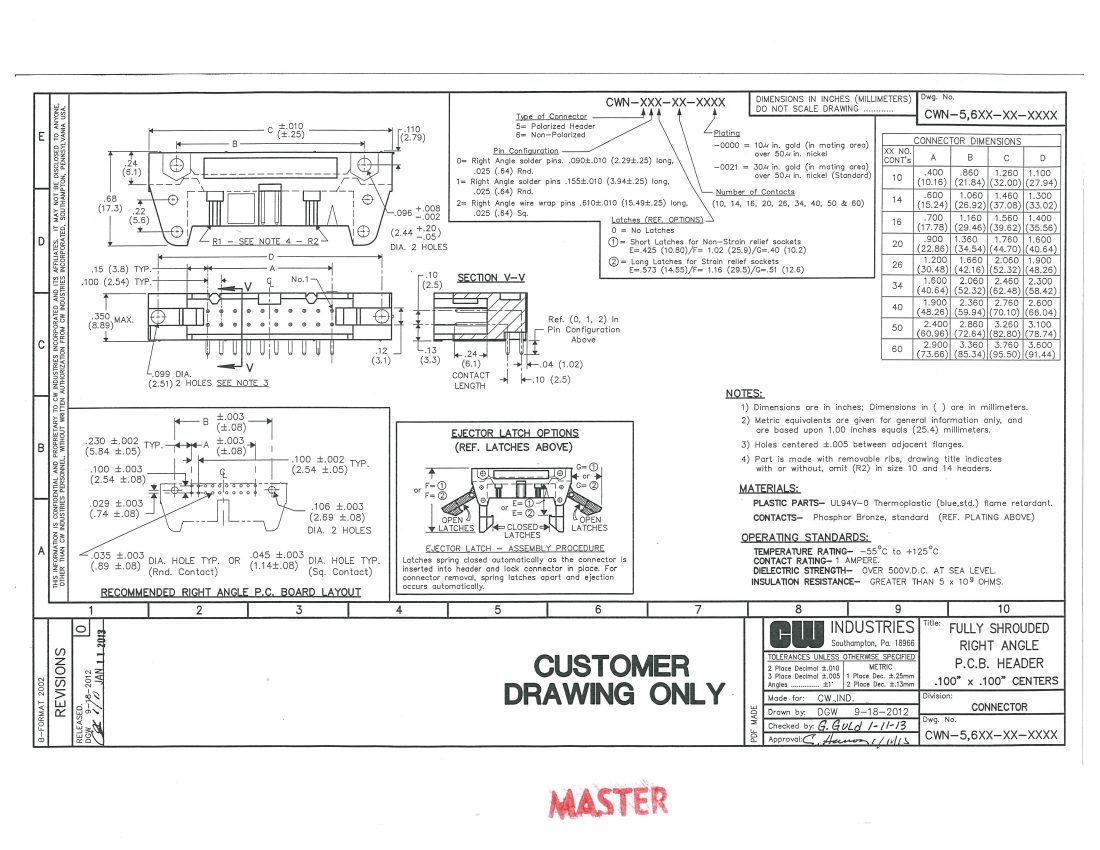

Headers & Wire Housings IDC Commercial Header
| Parameter Name | Attribute value |
| Maker | CW Industries |
| Reach Compliance Code | compliant |
| body width | 0.35 inch |
| subject depth | 0.681 inch |
| body length | 2.76 inch |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | AU ON NI |
| Contact point gender | MALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact style | RND PIN-SKT |
| Dielectric withstand voltage | 500VDC V |
| Insulation resistance | 5000000000 Ω |
| Insulator color | BLUE |
| insulator material | THERMOPLASTIC |
| Manufacturer's serial number | CWN |
| Plug contact pitch | 0.1 inch |
| Match contact row spacing | 0.1 inch |
| Installation option 1 | LATCH |
| Installation option 2 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.54 mm |
| Plating thickness | 30u inch |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 1 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.155 inch |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 40 |
