Color: Black Body, Cover – White & Color (see Table 1)
Contact
Underplating: 1.27-2.54
μm
[50-100
μ”]
Nickel
Material: Copper Alloy
Plating
Wire Accomodation:
Copper Alloy, 7-19 Bare and Tinned Strands, 0.14-0.50 mm
2
, 20-26 AWG
Wire Insulation:
Flexible Vinyl, Semi-Flexible Vinyl, Polyethylene, X-Linked Polyethylene, or PTFE
For approved cables contact your local sales representative
Marking: 3M Logo, Position Indicator, Wire Gauge, Insulator Material
Wiping Area: 0.2
μm
[8
μ”]
Minimum Gold with Lubricant
IDC:
2.0-7.62
μm
[80-300
μ”]
Matte Tin
Electrical
Current Rating:
Voltage Rating:
Insulation Resistance:
Withstanding Voltage:
3.0 Amps
32 Volts
>1x10
6
Ω
at 600 V
DC
1000 V
RMS
at Sea Level
Environmental
Temperature Ratings:
-20
o
C to 85
o
C
UL File No: E68080
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M and Scotchlok are trademarks of 3M Company.
For technical, sales or ordering information
call your local sales representative

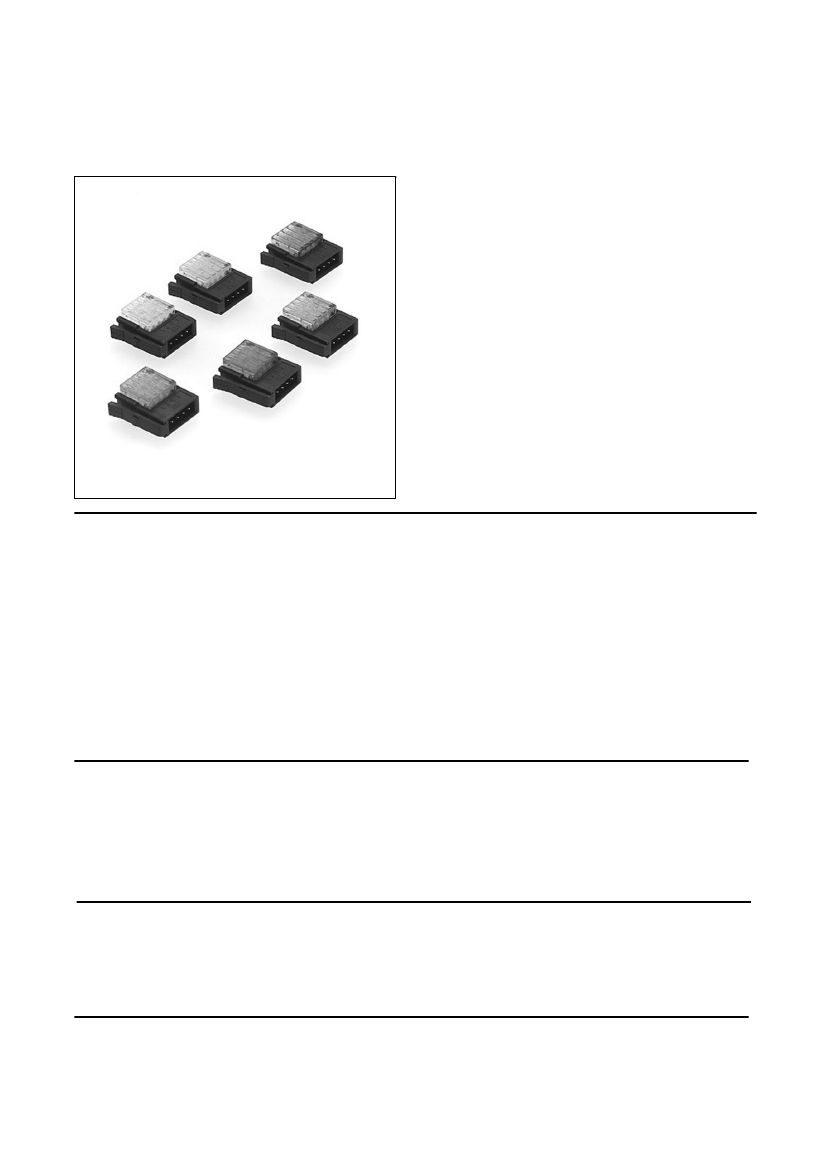

3M™ Mini-Clamp II Plug
Designed for Wiring Supplied from Europe and North America
2mm, IDC, Wiremount
371
Series
# Positions
3
4
Dim A
12.9 [.51]
14.9 [.59]
Wire OD
Part #
0.25-0.50 mm
2
20-24 AWG
Cover Color
Part #
0.14-0.25 mm
2
24-26 AWG
Cover Color
1.6 ~ 2.0
[.063~.079]
A206
Gray
Table 1
1.2 ~ 1.6
[.047~.063]
A165
Blue
B163
Orange
1.0 ~ 1.2
[.039~.047]
A124
Green
B122
Yellow
0.8 ~ 1.0
[.031~.039]
mm
[inch]
Tolerance Unless
Noted
.0
mm ±.1
.00
±.10
B101
Red
[ ] Dimensions for
Reference Only
Ordering Information
371XX-XXXX-00E-MB
Positions
03 or 04
Wire AWG & OD:
2
AXXX = 0.25-0.50 mm
20-24 AWG
2
BXXX = 0.14-0.25 mm
24-26 AWG
Wire OD – see Table 1
TS-2233-D
Sheet 2 of 2
Note: Terminate using common pliers or 3M
TM
Scotchlok
TM
Crimping Tools E-9BM or E-9E
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M and Scotchlok are trademarks of 3M Company.
For technical, sales or ordering information
call your local sales representative

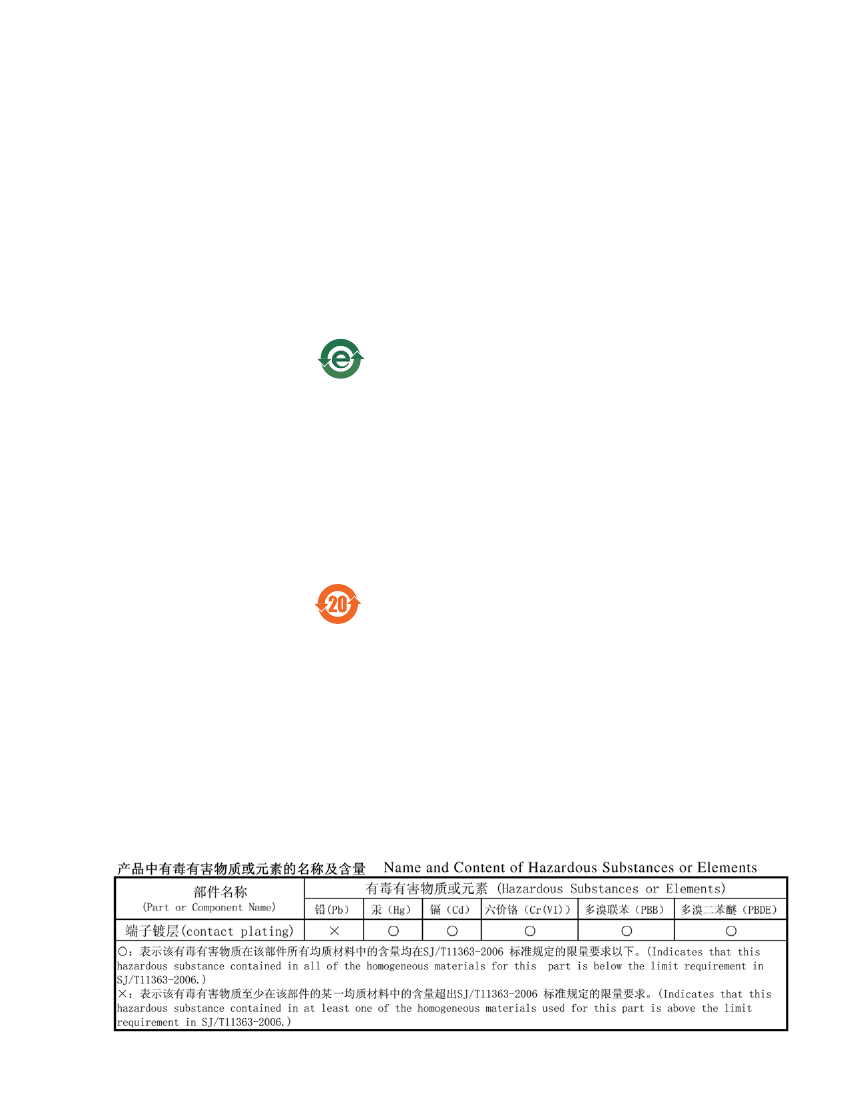

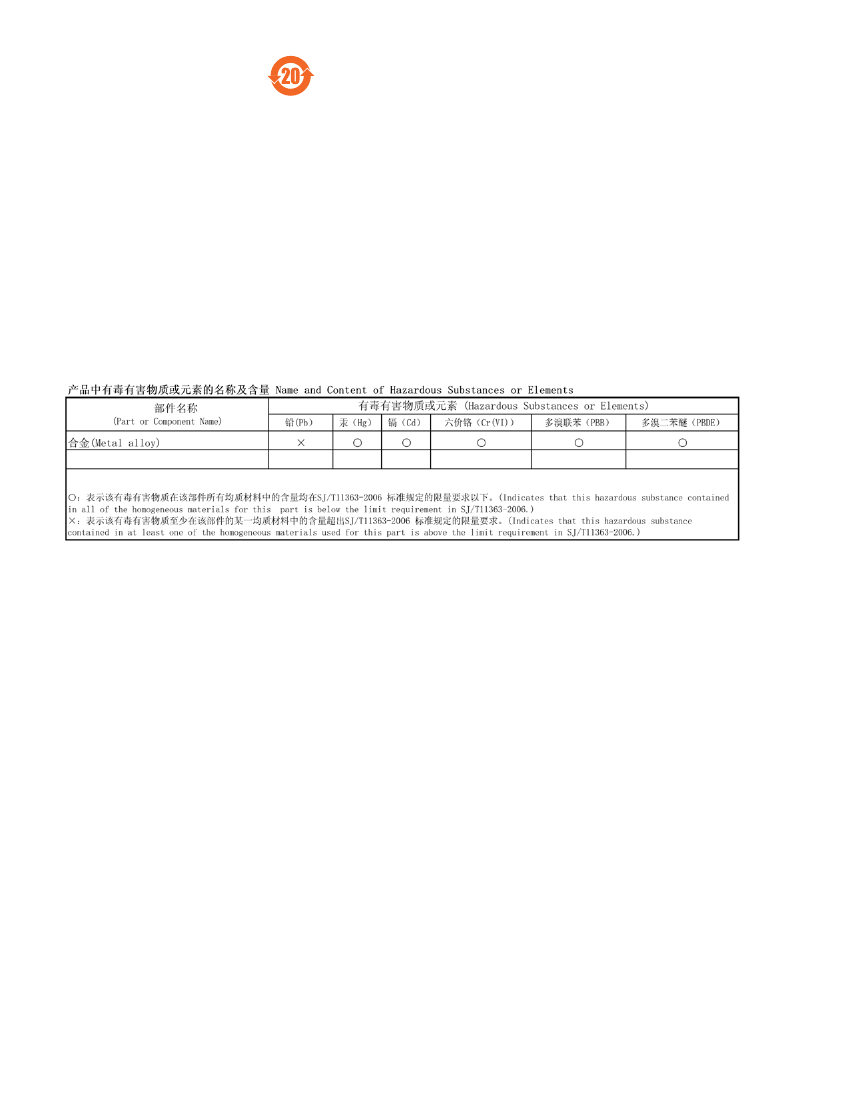

Regulatory Information Appendix
