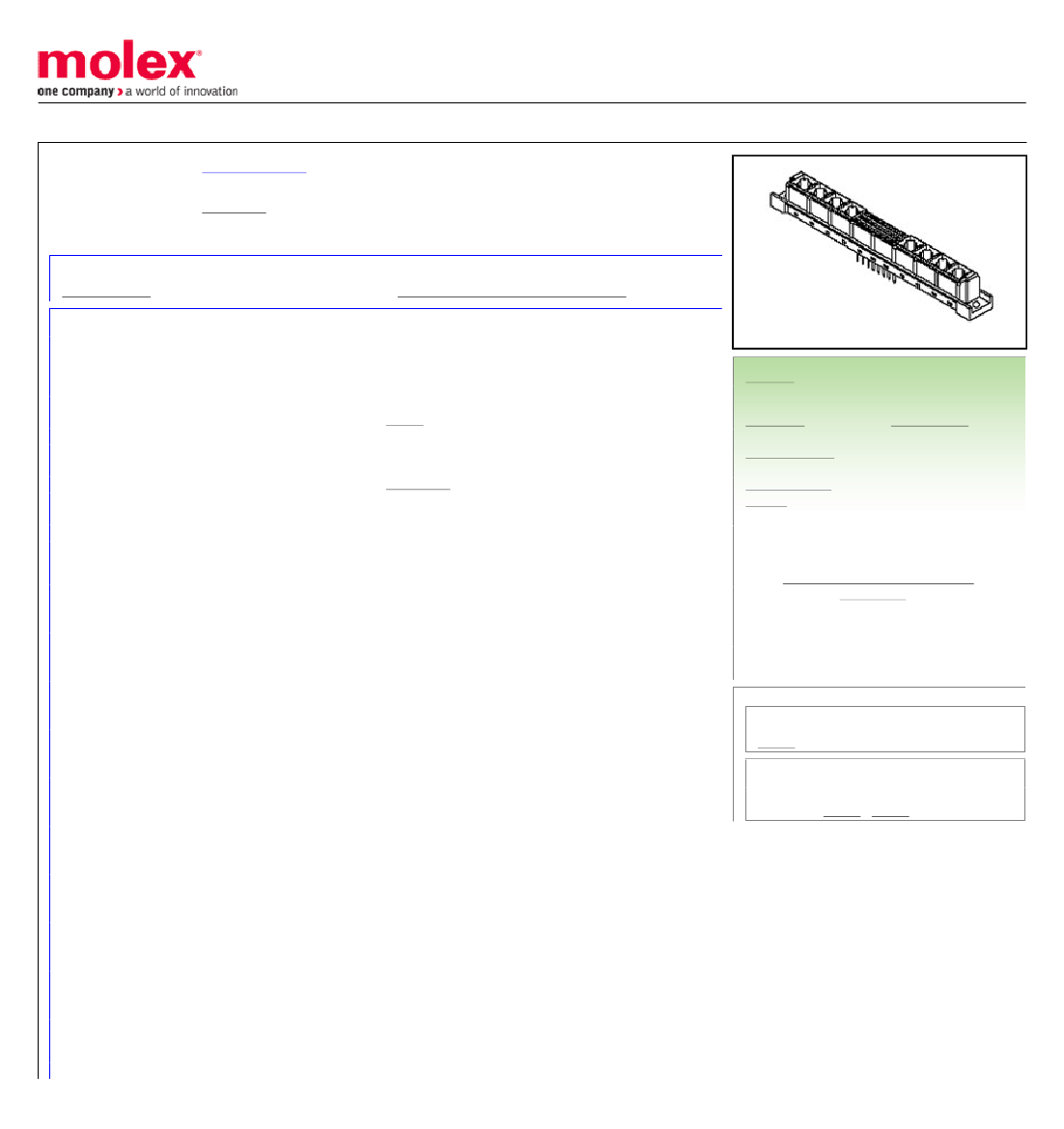

85048-1782: DescriptionDIN 41612 Connectors AE-85048-1782; CategoryThe connector; File Size27KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

85048-1782 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	85048-1782	-	-	View	Buy Now

85048-1782 Overview

DIN 41612 Connectors AE-85048-1782

85048-1782 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Molex
Product Category	DIN 41612 Connectors
RoHS	N
Number of Rows	3 Row
Termination Style	Through Hole
Current Rating	1 A
Contact Plating	Gold
Packaging	Bulk
Voltage Rating	250 VAC
Factory Pack Quantity	500

Preview

Download Datasheet

View All

This document was generated on 10/31/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0850481782

Active

DIN 41612

2.54mm Pitch DIN 41612/IEC 603-2 Mixed Layout Connector, Through Hole, Vertical,

Female Style M, with 4 additional high current solder contacts, 42 Circuits

Documents:

Drawing (PDF)

Agency Certification

CSA

UL

General

Product Family

Series

Application

Comments

Component Type

Overview

Product Name

Style

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Circuits Detail

Durability (mating cycles max)

First Mate / Last Break

Flammability

Guide to Mating Part

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Polarized to PCB

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Data Rate

RoHS Certificate of Compliance (PDF)

LR19980

E29179

Backplane Connectors

85048

Daughtercard

Mixed Layout

PCB Receptacle

DIN 41612

IEC 603-2/DIN 41612

M

800753857711

42

Standard Contacts at: A:a10-a23; B:b10-b23; C:c10-

c23 . High Current Solder Pins at: B:b2,b5,b8,b25

400

No

94V-0

No

Yes

Copper Alloy

Gold

Tin

14

Open Pin Field

3

Vertical

4.50mm

No

Yes

Carton

2.54mm

0.610µm

Yes

No

-55°C to +125°C

Through Hole

1.0A

622.0 Mbps

Series image - Reference only

EU ELV

Not Reviewed

EU RoHS

China RoHS

Not Reviewed

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Not Reviewed

Search Parts in this Series

85048 Series

Mates With

DIN 41612/EIC 603-2 Mixed Layout

Connector 85009 , 85017
