M83723/35S14A

Description
Circular MIL Spec Backshells M83723/35S BKSHLL NON ENV STRAIN RLF
CategoryThe connector
File Size96KB,1 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet Parametric View All

M83723/35S14A Overview

Circular MIL Spec Backshells M83723/35S BKSHLL NON ENV STRAIN RLF

M83723/35S14A Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerGlenair
Product CategoryCircular MIL Spec Backshells
MIL TypeMIL-DTL-83723 II
Factory Pack Quantity1
M83723/35S

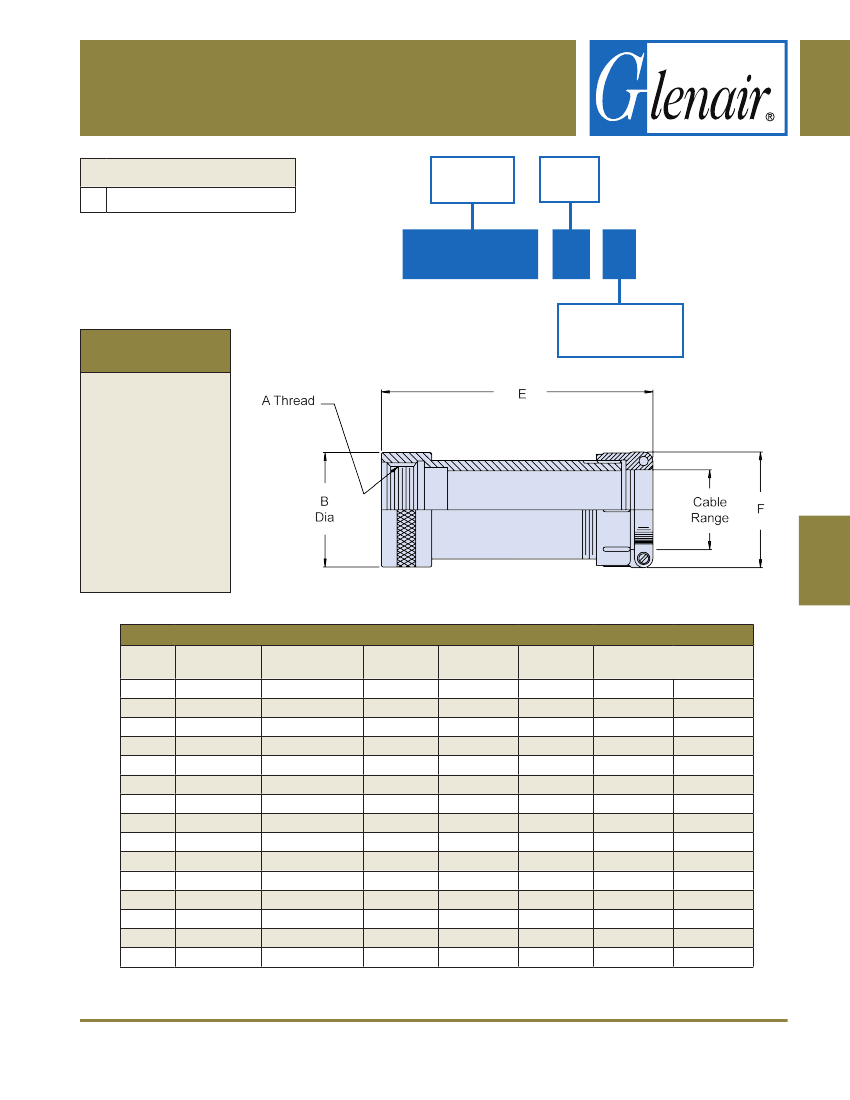

Straight Non-Environmental Strain Relief Backshell
CONNECTOR DESIGNATOR:
K
MIL-DTL-83723 Series II
Basic
Part Number
Shell
Size
M83723/35S
-
22
A
APPLICATION
NOTES
1.
For complete
dimensions see the
applicable Military
Specification.
Metric dimensions
(mm) are in
parentheses.
Cable Range is
defined as the
accommodation
range for the wire
bundle or cable.
Dimensions shown
are not intended for
inspection criteria.
Finish
A
= Anodize Black
R
= Electroless Nickel
2.
3.
TABLE I: Shell Size, Cable Range and Dimensions
Shell
Size
08
10
11
13
15
16
17
18
20
22
24
28
32
36
40
Shell Size (s)
(Ref)
8S
10S
10SL
12 & 12S
14 & 14S
16
16S
18
20
22
24
28
32
36
40
A Thread
Class 2B
.438 - 28 UNEF
.500 - 28 UNEF
.562 - 24 UNEF
.625 - 24 UNEF
.625 - 24 UNEF
.750 - 20 UNEF
.750 - 20 UNEF
.875 - 20 UNEF
.875 - 20 UNEF
1.000 - 20 UNEF
1.125 - 18 UNEF
1.250 - 18 UNEF
1.375 - 18 UNEF
2.125 - 16 UN
2.375 - 16 UN
B Dia
Max
.590 (15.0)
.650 (16.5)
.730 (18.5)
.770 (19.6)
.910 (23.1)
1.030 (26.2)
1.030 (26.2)
1.170 (29.7)
1.300 (33.0)
1.420 (36.1)
1.530 (38.9)
1.800 (45.7)
2.040 (51.8)
2.270 (57.7)
2.780 (70.6)
E
Max
1.290 (32.8)
1.290 (32.8)
1.290 (32.8)
1.290 (32.8)
1.368 (34.7)
1.587 (40.3)
1.430 (36.3)
1.695 (43.1)
1.695 (43.1)
1.695 (43.1)
1.931 (49.0)
1.931 (49.0)
1.869 (47.5)
1.869 (47.5)
2.875 (73.0)
F
Max
.843 (21.4)
.843 (21.4)
.906 (23.0)
1.085 (27.6)
1.093 (27.8)
1.275 (32.4)
1.187 (30.1)
1.475 (37.5)
1.500 (38.1)
1.710 (43.4)
1.719 (43.7)
2.040 (51.8)
2.332 (59.2)
2.312 (58.7)
2.950 (74.9)
Cable Range
Min
Max
.125 (3.2)
.125 (3.2)
.170 (4.3)
.170 (4.3)
.235 (6.0)
.295 (7.5)
.295 (7.5)
.325 (8.3)
.380 (9.7)
.380 (9.7)
.500 (12.7)
.500 (12.7)
.705 (17.9)
.725 (18.4)
.911 (23.1)
.235 (6.0)
.235 (6.0)
.297 (7.5)
.297 (7.5)
.422 (10.7)
.547 (13.9)
.547 (13.9)
.610 (15.5)
.735 (18.7)
.735 (18.7)
.922 (23.4)
.922 (23.4)
1.235 (31.4)
1.360 (34.5)
1.630 (41.4)
© 2013 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
1211 AIR WAY
GLENDALE, CA 91201-2497
818-247-6000
FAX 818-500-9912
www.glenair.com
E-3
E-Mail: sales@glenair.com
MIL-DTL-83723
E
