PSE Technology Corporation
SPECIFICATION FOR APPROVAL
CUSTOMER
NOMINAL FREQUENCY
PRODUCT TYPE
SPEC. NO. ( P/N )
CUSTOMER P/N
ISSUE DATE
VERSION
APPROVED
156.250000 MHz
TYPE UX 5.0x3.2 SEAM SEALED CRYSTAL CLOCK OSCILLATOR
E
R
P
IM
L
I
A
N
UX52F62008
Y
R
0
01
November 7, 2014
PREPARED
QA
APPROVED BY CUSTOMER：
AVL Status
Please return one copy with approval to PSE-TW
PSE Technology Corporation
No.2, Tzu-Chiang 5th Rd, Chung Li Industrial Park,
Chung Li City, Taoyuan County, Taiwan (R.O.C.)
TEL: 886-3-451-8888
FAX: 886-3-461-3865
http://www.saronix-ecera.com.tw
*Pb-free
*RoHS Compliant
*HF-Halogen Free
*REACH Compliant
E0-R-4-014 Rev. E
Page
i
TYPE UX 5.0x3.2 SEAM SEALED CRYSTAL CLOCK OSCILLATOR
UX52F62008
VERSION HISTORY
Version
No.
01
Version
Date
Nov.7,2014
Customer Receipt
Date
Supplier Receipt
Date
Initial Release
Description
VER. 01
7-Nov-14
Notes
E
R
P
IM
L
I
A
N
Y
R
E0-R-4-014 Rev. E
Page
ii
TYPE UX 5.0x3.2 SEAM SEALED CRYSTAL CLOCK OSCILLATOR
UX52F62008
ELECTRICAL SPECIFICATIONS
SRe Part Number :
UX52F62008
VER. 01
7-Nov-14
Item
Nominal Frequency
Frequency Stability
Operating Temperature Range
Supply Voltage
Logic Type
Supply Current, Output Enabled
Supply Current, Output Disabled
Symbol
Fo
FT
TR
V
CC
LT
I
CC
/OE
I
CC
/OD
DC/SY
T
R
/T
F
V
OL
V
OH
Specifications
156.250000
± 50
-20 to +70
+3.3 ± 10.0%
LVPECL
70
30
45 / 55
0.85
Units
MHz
ppm
°C
V
**See note
Notes
Duty Cycle (Symmetry)
Rise / Fall Time
Output Voltage "0" Level
Output Voltage "1" Level
Output Load
Jitter, Phase
Jitter, Accumulated
Jitter, Peak to Peak
Start Up Time
Storage Temperature Range
V
CC
-1.620V
V
CC
-1.025V
L
E
R
P
RMS
RMS(1-σ)
Pk-Pk
50Ω to V
CC
-2V
0.15
7
40
10
ps
ps
ps
Max. 12KHz ~ 20MHz Frequency Band
Typ. 20,000 Consecutive Periods
Max. 100,000 Random Periods
Max.
IM
I
A
N
uA
%
ns
V
V
ms
°C
mA
Y
R
Max.
Max.
Max.
Min.
Measured 50% of Waveform
Max. measured 20/80% of Waveform
-55 to +125
※
This product doesn't include harmful substance that stipulated by SONY SS-00259 Level 1 and S-AT2-001 Level 1 standard. RoHS Compliant (Pb - Free).
**Stability includes all combinations of Operating Temperature, Load changes, rated Input (Supply) Voltage changes, Initial
Calibration Tolerance (25°C), Aging (1 year at 25°C Average Effective Ambient Temperature), Shock and Vibration.
Output Enable / Disable Function
Parameter
Input Voltage (Pin1), Output Enable
Input Voltage (Pin1), Output Disable (low power standby)
Internal Pullup Resistance
Output Disable Delay
Min.
0.7V
CC
Typ.
Max.
0.3V
CC
Units
V
V
KΩ
ns
Notes
Or Open
Output is Hi-Z
30
200
E0-R-4-014 Rev. E
Page 1
TYPE UX 5.0x3.2 SEAM SEALED CRYSTAL CLOCK OSCILLATOR
UX52F62008

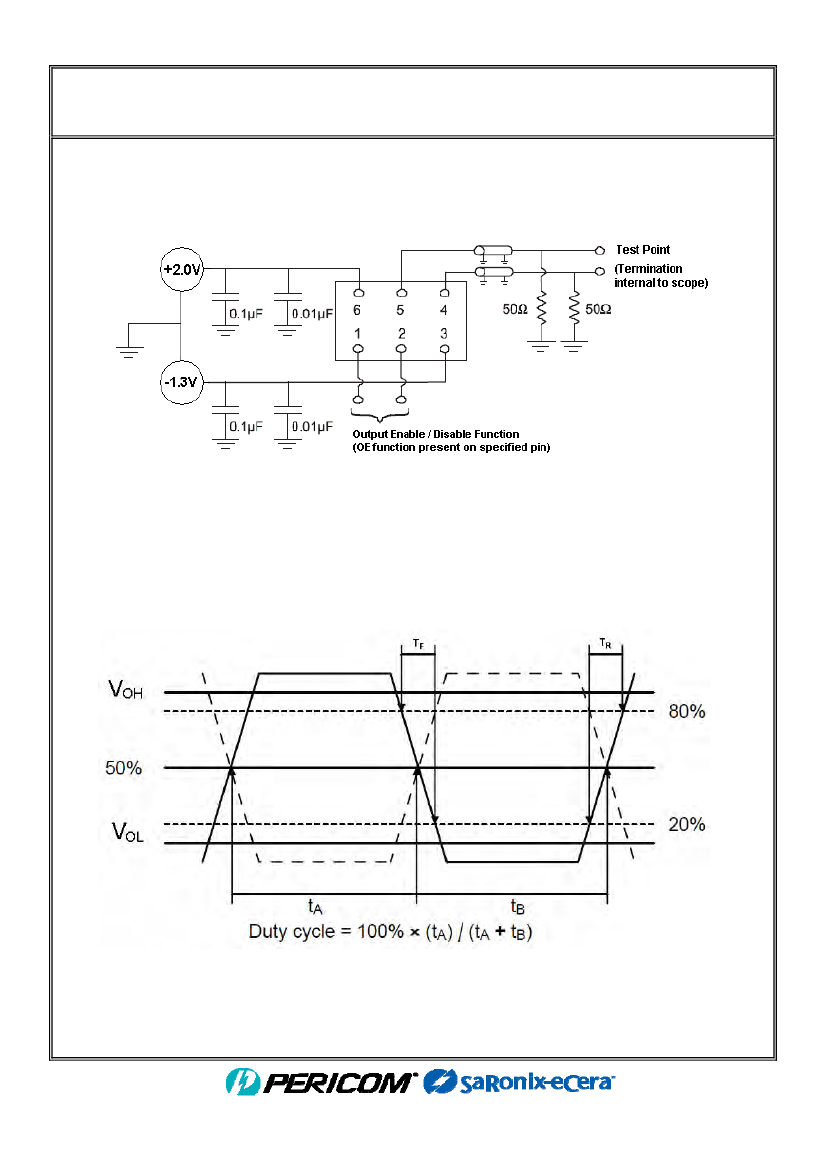

TEST CIRCUIT
VER. 01
7-Nov-14
OUTPUT WAVEFORM
E
R
P
IM
L
I
A
N
Y
R
E0-R-4-014 Rev. E
Page 2
TYPE UX 5.0x3.2 SEAM SEALED CRYSTAL CLOCK OSCILLATOR
UX52F62008
RELIABILITY SPECIFICATIONS
ENVIRONMENTAL:
a) THERMAL SHOCK: MIL-STD-883, Method 1011, Condition A
b) MOISTURE RESISTANCE: MIL-STD-883, Method 1004
c) VIBRATION: MIL-STD-883, Method 2007, Condition A
d) RESISTANCE TO SOLDERING HEAT: J-STD-020D Table 5-2 Pb-free devices
(except 2 cycles max)
e) HAZARDOUS SUBSTANCE: Pb - free and RoHS/Green Compliant.
VER. 01
7-Nov-14
MECHANICAL:
a) SHOCK: MIL-STD-883, Method 2002, Condition B
b) SOLDERABILITY: JESD22-B102-D Method 2 (Preconditioning E)
c) TERMINAL STRENGTH: MIL-STD-883, Method 2004, Test Condition D
d) GROSS LEAK: MIL-STD-883, Method 1014, Condition C
e) FINE LEAK: MIL-STD-883, Method 1014, Condition A2, R1=2x10
-8
atm cc/s
f) SOLVENT RESISTANCE: MIL-STD-202, Method 215

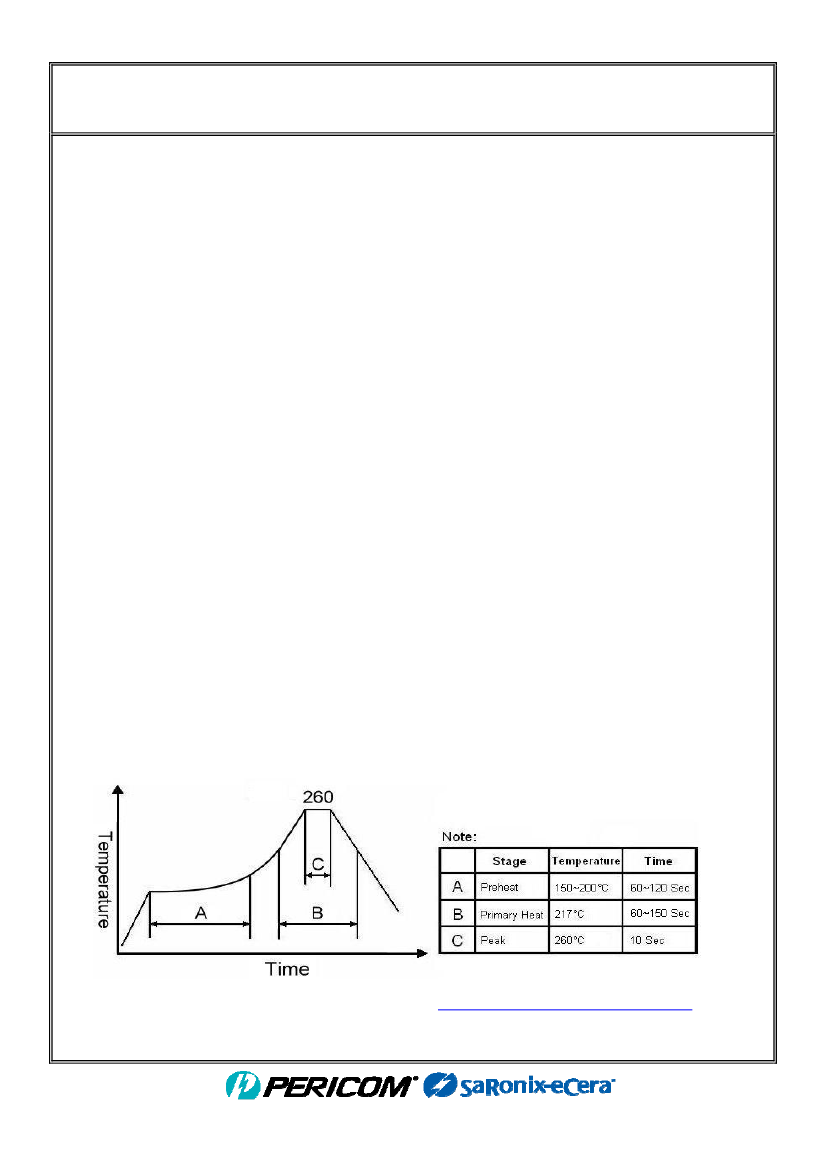

SUGGESTED IR REFLOW PROFILE
*As per IPC-JEDEC J-STD-020D
E
R
P
IM
L
I
A
N
Y
R
For soldering reflow profile and reliability test ratings go to:
http://www.pericom.com/pdf/sre/reflow.pdf
E0-R-4-014 Rev. E
Page 3
