MP035J100GBSGTR\500 datasheet, PDF

Datasheet> All Categories > Passive components> MP035J100GBSGTR\500

MP035J100GBSGTR\500: DescriptionMultilayer Ceramic Capacitors MLCC - SMD/SMT 50V 10pF 30ppm/C 0603 Medical Grade; CategoryPassive components; File Size2MB，24 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

MP035J100GBSGTR\500 Overview

Multilayer Ceramic Capacitors MLCC - SMD/SMT 50V 10pF 30ppm/C 0603 Medical Grade

MP035J100GBSGTR\500 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	AVX
Product Category	Multilayer Ceramic Capacitors MLCC - SMD/SMT
RoHS	Details
Termination	Standard
Capacitance	10 pF
Voltage Rating DC	50 VDC
Dielectric	-
Tolerance	2 %
Case Code - in	0603
Case Code - mm	1608
Height	0.63 mm
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 125 C
Product	General Type MLCCs
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Length	1.6 mm
Package / Case	0603 (1608 metric)
Termination Style	SMD/SMT
Type	Medical Grade
Width	0.81 mm
Factory Pack Quantity	500

Preview

Download Datasheet

View All

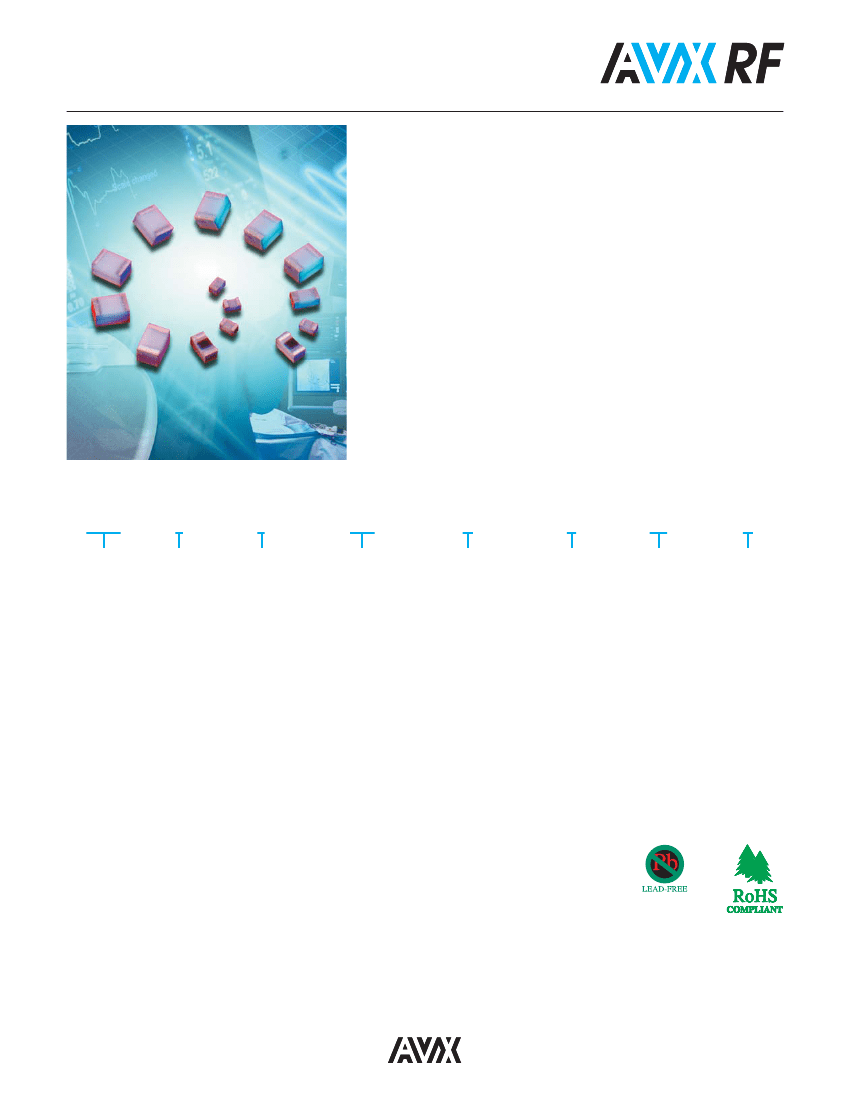

Accu-P

MP Medical Grade

General Specifications

GENERAL DESCRIPTION

AVX has a wide range of thin-film chip capacitors that feature highly repeatable

performance, extremely accurate capacitance, and very high Q factor. These

features have now been applied to the new Accu-P

MP series, which can

provide all of these benefits in a thin-film chip capacitor for medical and

healthcare RF signal and power applications. These capacitors provide ultra-

tight capacitive tolerance, low ESR at very high frequency, and high stability

with respect to temperature, time, frequency, and voltage variation. The Accu-

MP is available in both Sn/Pb and RoHS compliant termination styles.

APPLICATIONS

• Embedded medical systems

• Medical systems featuring RF Signals

• Medical power applications which require extremely high accuracy

PRODUCT ADVANTAGES

•

Extremely tight capacitive tolerance

Low ESR and high Q at very high frequencies

Improved RF power handling capability

Sn/Pb and RoHS compliant termination styles available.

HOW TO ORDER

MP01

Size

MP01 = 0201

MP02 = 0402

MP03 = 0603

For 01005

case size,

contact factory

Rated

Voltage

Z = 10V

Y = 16V

3 = 25V

5 = 50V

1 = 100V

Dielectric

Code

J = 0±30ppm/°C

K = 0±60ppm/°C

See Capacitance

Voltage Range

Chart for available

Temperature

Coefficients

100

Capacitance

expressed in pF.

(2 significant

digits + number

of zeros)

for values <10pF,

letter R denotes

decimal point.

Example:

68pF = 680

8.2pF = 8R2

For Capacitance

values which

require more than

2 significant

figures, contact

factory.

Tolerance

for

C≤2.0pF*

Z = ±0.01pF

P = ±0.02pF

Q = ±0.03pF

A = ±0.05pF

B = ±0.1pF

C = ±0.25pF

Accu-P

Technology

Type

Termination

Finish

W = Sn90Pb10

S = Sn100

Medical Grade

for C≤3.0pF

Q = ±0.03pF

A = ±0.05pF

B = ±0.1pF

C = ±0.25pF

for C≤5.6pF

A = ±0.05pF

B = ±0.1pF

C = ±0.25pF

for 5.6pF<C<10pF

B = ±0.1pF

C = ±0.25pF

D = ±0.5pF

for C≥10pF

F = ±1%

G = ±2%

J = ±5%

LEAD-FREE COMPATIBLE

COMPONENT

For RoHS compliant products,

please select correct termination style.

050118
