VLF403212MT-6R8M-CA datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> VLF403212MT-6R8M-CA

Preview

VLF403212MT-6R8M-CA: DescriptionFixed Inductors 6.8uH 0.15ohms 1.09A; CategoryPassive components; File Size357KB，3 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com; Environmental Compliance

Download Datasheet Parametric View All

VLF403212MT-6R8M-CA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	VLF403212MT-6R8M-CA	-	-	View	Buy Now

VLF403212MT-6R8M-CA Overview

Fixed Inductors 6.8uH 0.15ohms 1.09A

VLF403212MT-6R8M-CA Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	TDK Corporation
Product Category	Fixed Inductors
RoHS	Details
Termination Style	SMD/SMT
Shielding	Shielded
Inductance	6.8 uH
Tolerance	20 %
Maximum DC Current	1.09 A
Maximum DC Resistance	150 mOhms
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 105 C
Test Frequency	1 MHz
Termination	-
Length	4 mm
Width	3.2 mm
Height	1.2 mm
Application	Automotive
Qualification	AEC-Q200
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Core Material	Ferrite
Product	Fixed Inductors
Factory Pack Quantity	1000
Unit Weight	0.001693 oz

Preview

Download Datasheet

View All

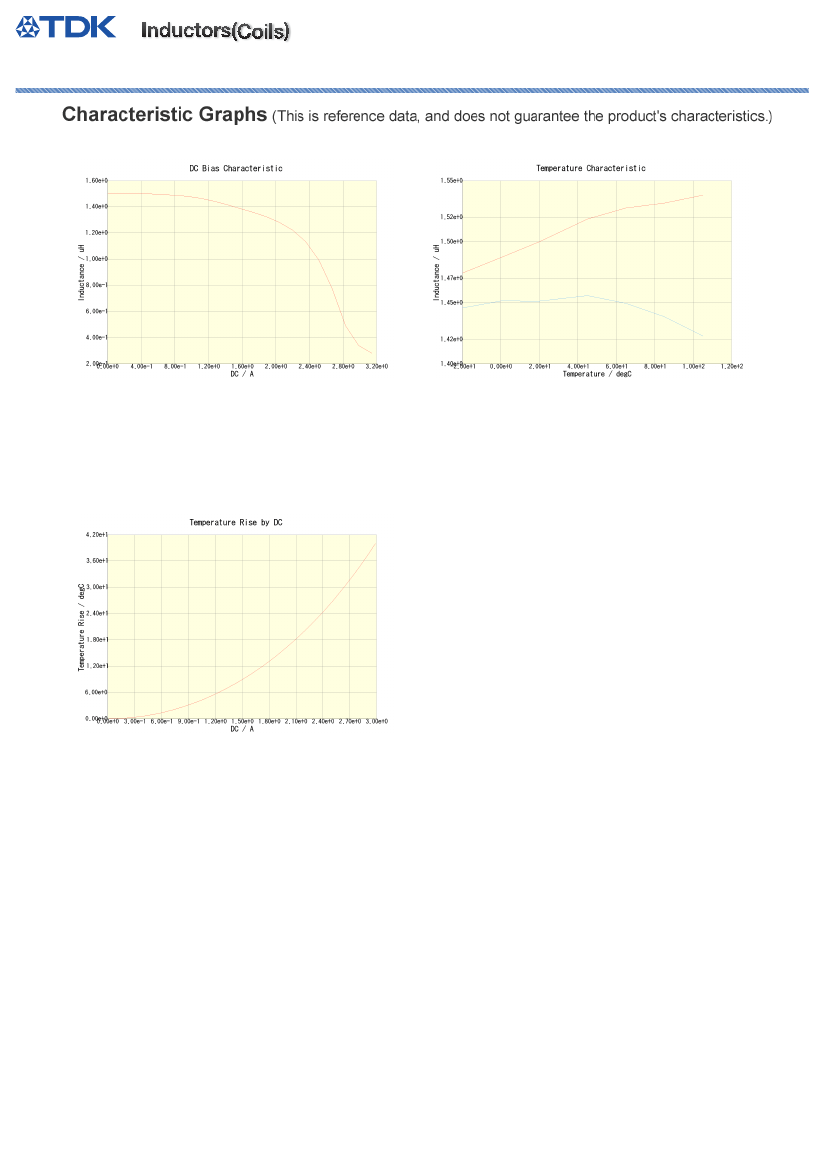

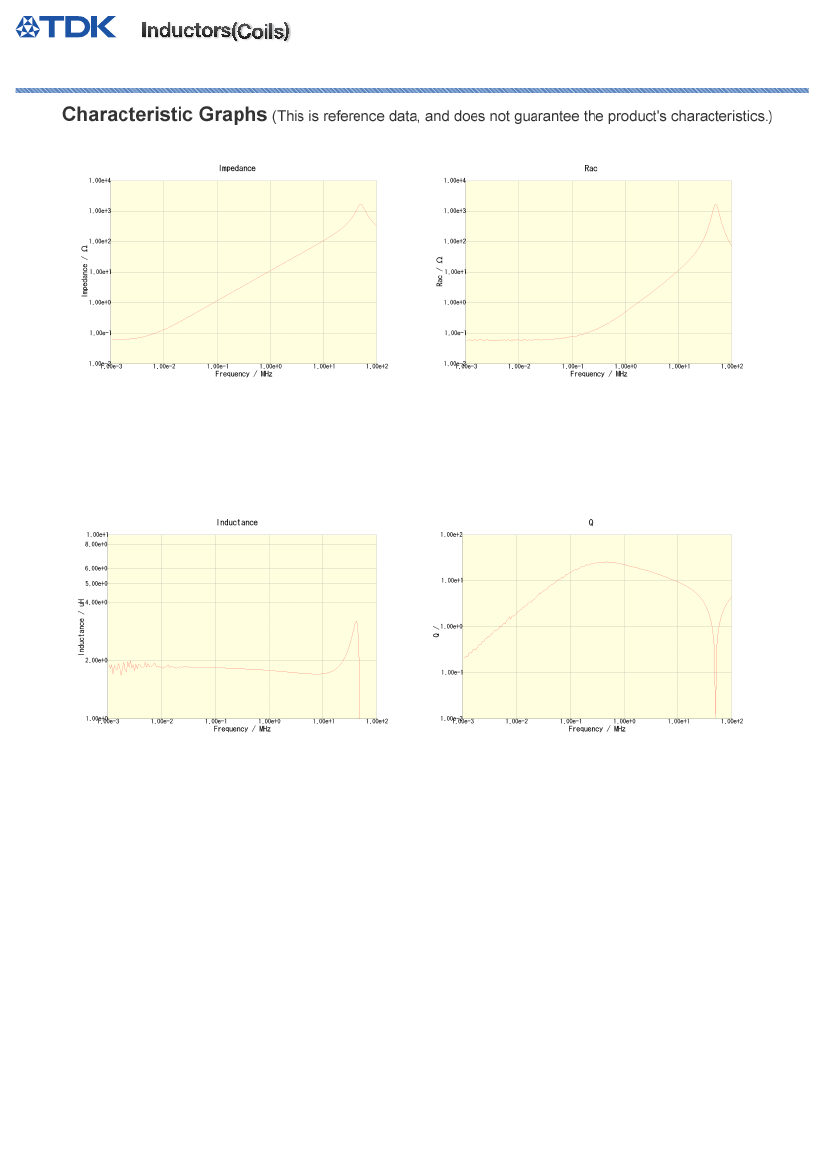

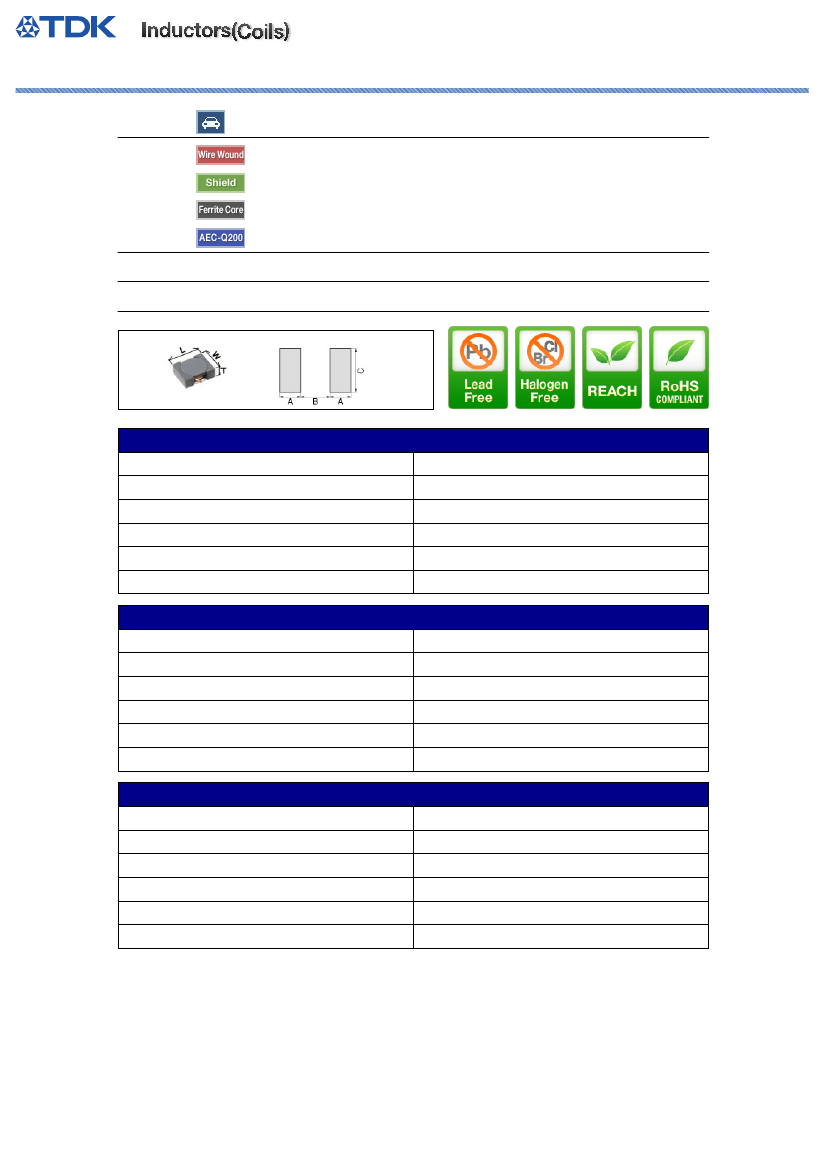

1 of 3

VLF403212MT-1R5N-CA

Applications

Feature

Automotive Grade

Wire Wound

Magnetic Shield

Ferrite Core

AEC-Q200

Series

Status

VLF-M Series / VLF403212MT-CA Type

PROD

Creation Date :June 18 2014

Size

Length(L)

Width(W)

Thickness(T)

Recommended Land Pattern (A)

Recommended Land Pattern (B)

Recommended Land Pattern (C)

Electrical Characteristics

Inductance

Rated Current (L Change) [Typ.]

Rated Current (L Change) [Max.]

Rated Current (Temperature Rise) [Typ.]

DC Resistance [Nom.]

DC Resistance [Max.]

Other

Operating Temp. Range (Including Self-Temp. Rise)

Soldering Method

AEC Q200

Packing

Package Quantity

Weight

-40 to 105degC

Reflow

Yes

Blister (Plastic)Taping [180mm Reel]

1000Pcs Min.

0.059g

1.5uH +/-30% at 1MHz

2.68A (30% Down)

2.41A (30% Down)

2.98A (40degC Rise)

42mΩ

50mΩ

4.00mm +/-0.20mm

3.20mm +/-0.20mm

1.20mm Max.

1.10mm Nom.

1.30mm Nom.

1.80mm Nom.

•This PDF document was created based on the data listed on the TDK Corporation website.

•All specifications are subject to change without notice.
