3x3 Shielded Drum Inductor
SMD Shielded Drum Core
Conflict
FREE
Product Features:
Inductance Values from 1.5uH to 47uH
RoHS Compliant/Lead-Free
Operating Temp Range -20 to +85°C
Low Profile
Part Number
HDS2D11-1R5NTR
HDS2D14-1R5NTR
HDS2D11-2R2NTR
HDS2D14-2R2NTR
HDS2D11-3R3NTR
HDS2D14-3R3NTR
HDS2D11-4R7NTR
HDS2D14-4R7NTR
HDS2D11-6R8NTR
HDS2D14-6R8NTR
HDS2D11-100NTR
HDS2D14-100NTR
HDS2D11-150NTR
HDS2D18-150NTR
HDS2D11-220NTR
HDS2D18-220NTR
HDS2D11-330NTR
HDS2D18-330NTR
HDS2D11-470NTR
Inductance
(µH)
1.5
1.5
2.2
2.2
3.3
3.3
4.7
4.7
6.8
6.8
10
10
15
15
22
22
33
33
47
Tolerance
30%
30%
30%
30%
30%
30%
30%
30%
30%
30%
30%
30%
30%
30%
30%
30%
30%
30%
30%
Test Freq.
(kHz)
Rdc
(Ω Max)
0.095
0.063
0.125
0.094
0.160
0.125
0.216
0.169
0.304
0.213
0.470
0.294
0.610
0.257
1.050
0.331
1.460
0.481
2.250
Idc*
(A Max)
0.90
1.80
0.64
1.50
0.60
1.20
0.50
1.00
0.40
0.85
0.34
0.70
0.24
0.35
0.22
0.30
0.21
0.23
0.20
Max Ht.
(mm)
1.3
1.6
1.3
1.6
1.3
1.6
1.3
1.6
1.3
1.6
1.3
1.6
1.3
2.0
1.3
2.0
1.3
2.0
1.3
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
* Maximum rated current determined by a temp rise of 40°C or an indcutance drop of 35%, whichever is less
Notes:
1) Tighter tolerances available
2) Contact your local representative or the factory for samples and specific datasheets
For additional information contact your
local representative,
or HALO’s support staff at (650) 903-3800 or
info@haloelectronics.com
HALO Shielded Drum Core
Top View

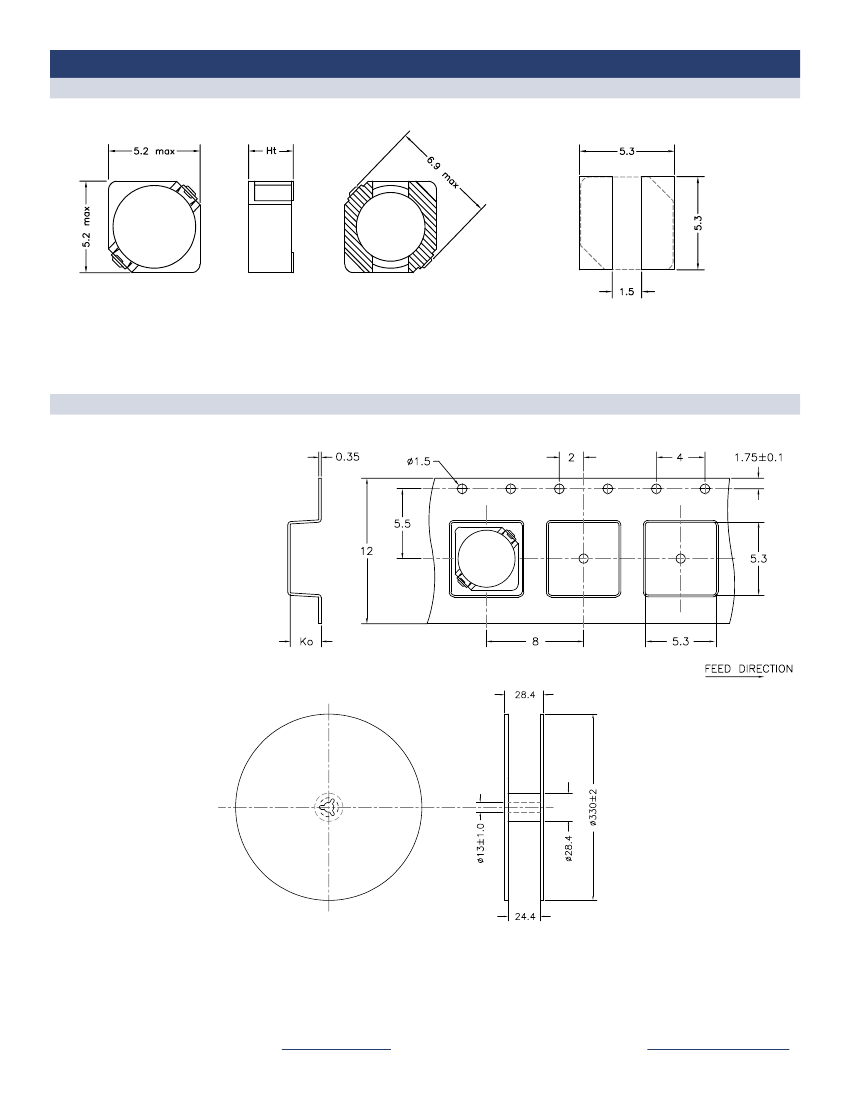

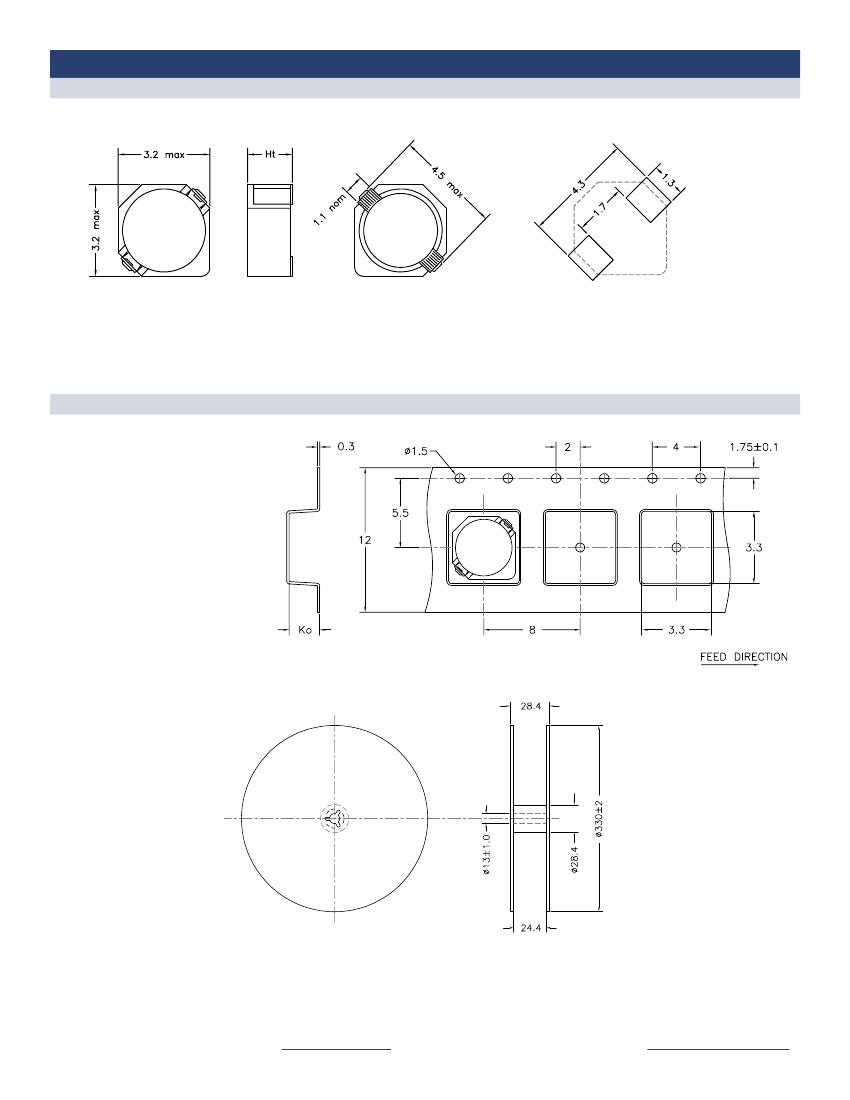

Mechanical
Bottom View
Dimensions: mm
Recommended Solder Pad
Dimensions
Packaging
HDS2D11 Ko = 1.4mm, 4000/reel
HDS2D14 Ko = 1.7mm, 4000/reel
HDS2D18 Ko = 2.1mm, 3500/reel
For additional information contact your
local representative,
or HALO’s support staff at (650) 903-3800 or
info@haloelectronics.com

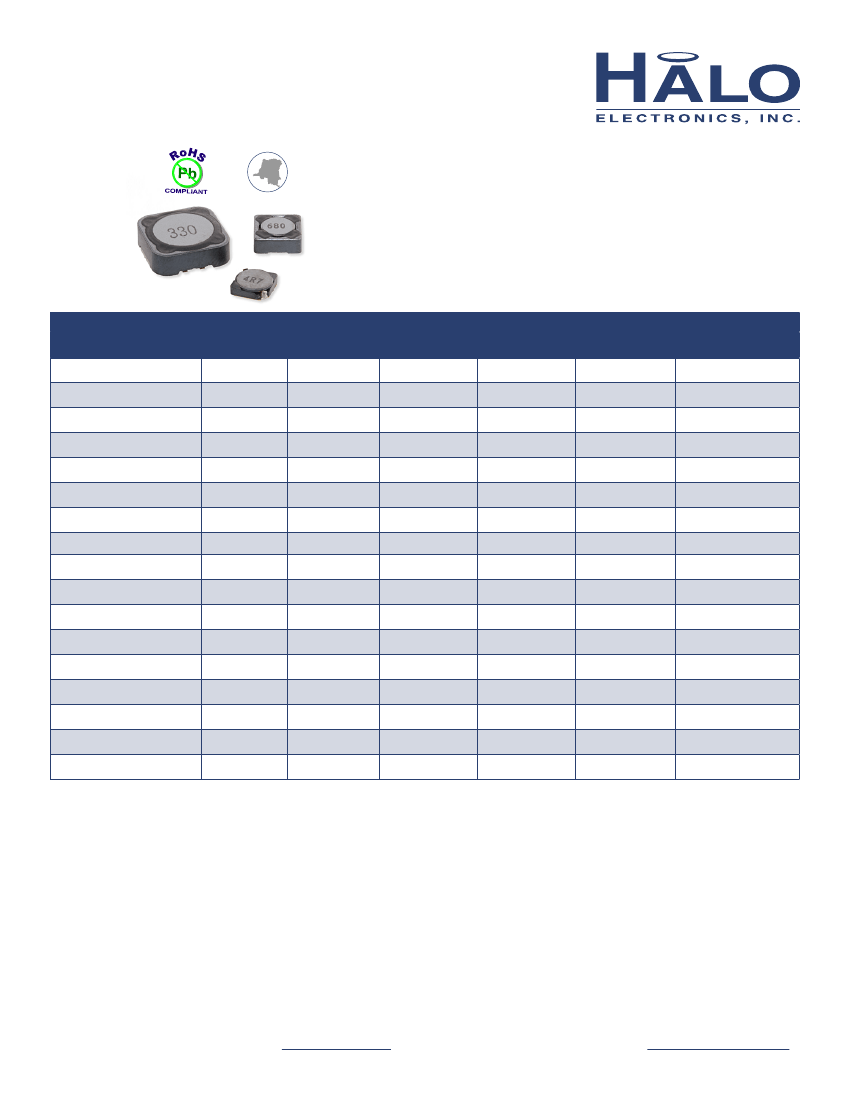

5x5 Shielded Drum Inductor
SMD Shielded Drum Core
Conflict
FREE
Product Features:
Inductance Values from 1.0uH to 33uH
RoHS Compliant/Lead-Free
Operating Temp Range -20 to +85°C
Low Profile
Part Number
HDS4D18-1R0NTR
HDS4D18-2R2NTR
HDS4D28-2R2NTR
HDS4D18-3R3NTR
HDS4D28-3R3NTR
HDS4D18-4R7NTR
HDS4D28-4R7NTR
HDS4D18-6R8NTR
HDS4D28-6R8NTR
HDS4D18-100NTR
HDS4D28-100NTR
HDS4D18-150NTR
HDS4D28-150NTR
HDS4D18-220NTR
HDS4D28-220NTR
HDS2D18-330NTR
HDS4D28-330NTR
Inductance
(µH)
1.0
2.2
2.2
3.3
3.3
4.7
4.7
6.8
6.8
10
10
15
15
22
22
33
33
Tolerance
30%
30%
30%
30%
30%
30%
30%
30%
30%
30%
30%
30%
30%
30%
30%
30%
30%
Test Freq.
(kHz)
Rdc
(Ω Max)
0.045
0.075
0.032
0.110
0.050
0.152
0.072
0.170
0.109
0.200
0.129
0.240
0.150
0.397
0.235
0.694
0.378
Idc*
(A Max)
1.72
1.32
2.04
1.04
1.57
0.84
1.32
0.76
1.12
0.61
1.00
0.50
0.76
0.41
0.70
0.32
0.56
Max Ht.
(mm)
2.0
2.0
3.0
2.0
3.0
2.0
3.0
2.0
3.0
2.0
3.0
2.0
3.0
2.0
3.0
2.0
3.0
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
* Maximum rated current determined by a temp rise of 40°C or an indcutance drop of 35%, whichever is less
Notes:
1) Tighter tolerances available
2) Contact your local representative or the factory for samples and specific datasheets
For additional information contact your
local representative,
or HALO’s support staff at (650) 903-3800 or
info@haloelectronics.com
HALO Shielded Drum Core
Top View
Mechanical
Bottom View
Dimensions: mm
Recommended Solder Pad
Dimensions
Packaging
HDS4D18 Ko = 2.3mm, 2500/reel
HDS4D28 Ko = 3.3mm, 2000/reel
For additional information contact your
local representative,
or HALO’s support staff at (650) 903-3800 or
info@haloelectronics.com

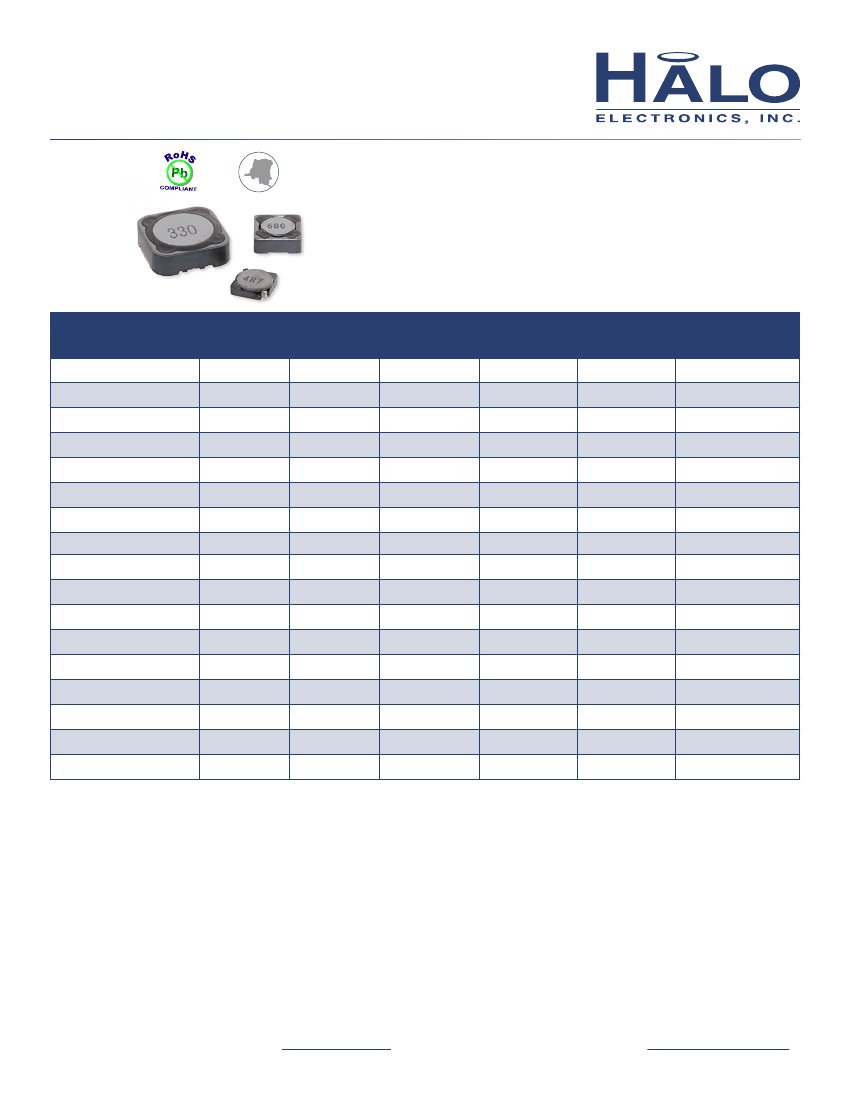

6x6 Shielded Drum Inductor
SMD Shielded Drum Core
Conflict
FREE
Product Features:
Inductance Values from 3.3uH to 100uH
RoHS Compliant/Lead-Free
Operating Temp Range -20 to +85°C
Low Profile
Part Number
HDS5D18-3R3NTR
HDS5D18-6R2NTR
HDS5D28-6R2NTR
HDS5D18-100NTR
HDS5D28-100NTR
HDS5D18-150NTR
HDS5D28-150NTR
HDS5D18-220NTR
HDS5D28-220NTR
HDS5D18-330NTR
HDS5D28-330NTR
HDS5D18-470NTR
HDS5D28-470NTR
HDS5D18-680NTR
HDS5D28-680NTR
HDS5D18-101NTR
HDS5D28-101NTR
Inductance
(µH)
3.3
6.2
6.2
10
10
15
15
22
22
33
33
47
47
68
68
100
100
Tolerance
30%
30%
30%
30%
30%
30%
30%
30%
30%
30%
30%
30%
30%
30%
30%
30%
30%
Test Freq.
(kHz)
Rdc
(Ω Max)
0.050
0.096
0.045
0.124
0.065
0.196
0.103
0.290
0.122
0.386
0.189
0.595
0.260
0.840
0.355
1.200
0.520
Idc*
(A Max)
2.15
1.40
1.80
1.20
1.30
0.97
1.10
0.80
0.90
0.65
0.75
0.54
0.62
0.43
0.52
0.36
0.42
Max Ht.
(mm)
2.0
2.0
3.0
2.0
3.0
2.0
3.0
2.0
3.0
2.0
3.0
2.0
3.0
2.0
3.0
2.0
3.0
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
* Maximum rated current determined by a temp rise of 40°C or an indcutance drop of 35%, whichever is less
Notes:
1) Tighter tolerances available
2) Contact your local representative or the factory for samples and specific datasheets
For additional information contact your
local representative,
or HALO’s support staff at (650) 903-3800 or
info@haloelectronics.com
