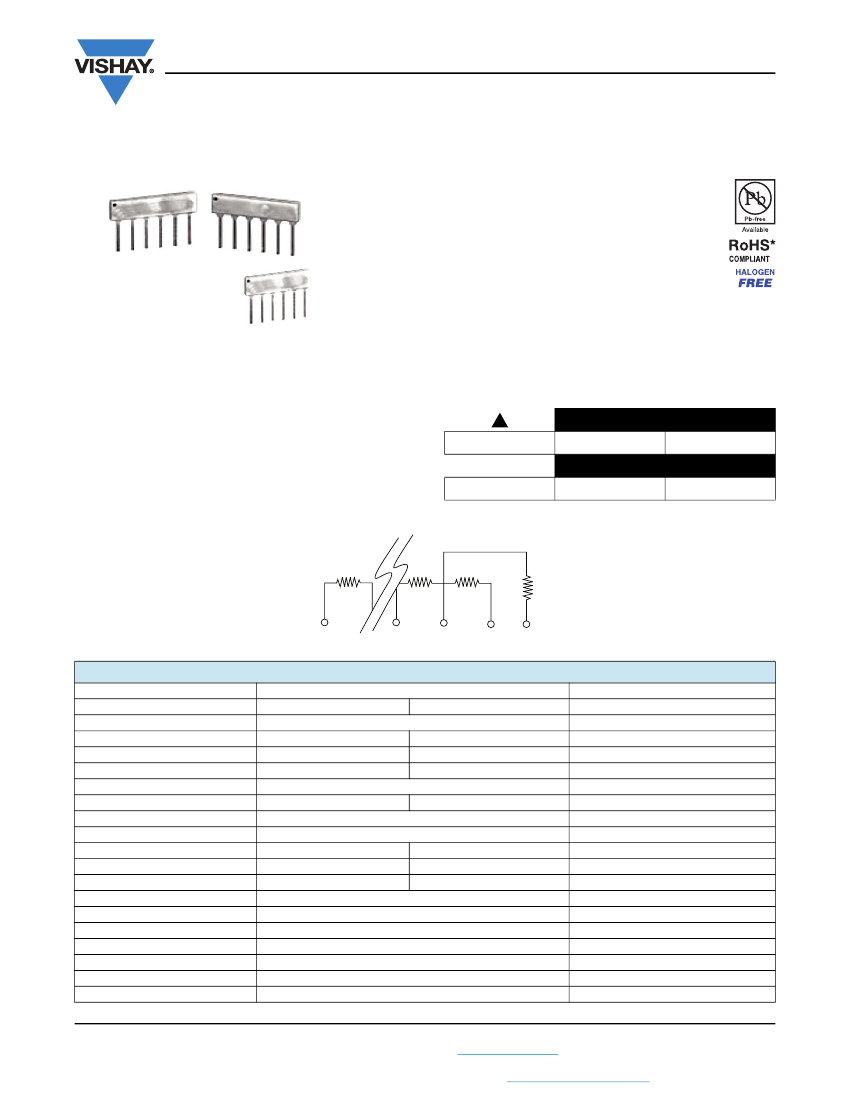

CS
www.vishay.com
Vishay Dale Thin Film
Ceramic Sandwich, Single-In-Line Thin Film Resistor,
Through Hole Network (Low Profile 0.20 Custom)
FEATURES
• Gold-to-gold terminations. External leads are
attached directly to gold pads on the ceramic
substrate by thermo-compression bonding (no
internal solder)
• Low profile (0.200 min.)
• Custom pin-outs available
• Compliant to RoHS Directive 2002/95/EC
• Halogen-free according to IEC 61249-2-21
definition
Note
*
Pb containing terminations are not RoHS compliant, exemptions
may apply
Actual Size
Vishay Dale Thin Film presents a design concept in precision
thin film resistor networks. The essence of this new concept
is the marriage of two principle design elements . . . a unique
resistive film, having electrical properties comparable to
those of wire-wound resistors, and a rugged, low cost,
ceramic package and an almost limitless variety of sizes and
configurations.
TYPICAL PERFORMANCE
ABSOLUTE
TCR
25
ABSOLUTE
TOL.
0.05
TRACKING
2
RATIO
0.01
SCHEMATIC
Custom
schematics
available.
Please consult factory.
STANDARD ELECTRICAL SPECIFICATIONS
TEST
Material
Pin/Lead Number
Resistance Range
TCR: Absolute
TCR: Tracking
Tolerance: Absolute
Tolerance: Ratio
Power Rating: Resistor
Power Rating: Package
Stability: Absolute
Stability: Ratio
Voltage Coefficient
Working Voltage
Operating Temperature Range
Storage Temperature Range
Noise
Thermal EMF
Shelf Life Stability: Absolute
Shelf Life Stability: Ratio
SPECIFICATIONS
Passivated nichrome
Tantalum nitride
3 to 10
20
to 2000 k (total)
20
to 500 k (total)
± 10 ppm/°C to ± 25 ppm/°C ± 50 ppm/°C to ± 100 ppm/°C
± 2 ppm/°C
± 5 ppm/°C
± 0.05 % to ± 1.0 %
± 0.01 % to ± 0.5 %
± 0.02 % to ± 0.5 %
100 mW (per element)
-
R
± 0.05 %
R
± 0.1 %
R
± 0.015 %
R
± 0.02 %
< 0.1 ppm/V
< 0.1 ppm/V
100 V
- 55 °C to + 125 °C
- 55 °C to + 150 °C
< - 30 dB
< 0.08 μV/°C
R
± 0.01 %
R
± 0.002 %
CONDITIONS
-
-
-
- 55 °C to + 125 °C
- 55 °C to + 125 °C
+ 25 °C
+ 25 °C
Typical at + 25 °C
-
2000 h at + 70 °C
2000 h at + 70 °C
-
-
-
-
-
-
1 year at + 25 °C
1 year at + 25 °C
Revision: 20-Oct-11
Document Number: 60081
1
For technical questions, contact:
thinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
CS
www.vishay.com
Vishay Dale Thin Film
DIMENSION
A
B
C
D
E
L (3 Pins)
L (4 Pins)
L (5 Pins)
L (6 Pins)
L (7 Pins)
L (8 Pins)
L (9 Pins)
L (10 Pins)
H (3 Pins)
H (4 Pins)
H (5 Pins)
H (6 Pins)
H (7 Pins)
H (8 Pins)
H (9 Pins)
H (10 Pins)
INCHES
0.100 typ.
(1)
0.020 ± 0.002 typ.
0.125 min.
0.100 max.
0.010
0.320
0.420
0.520
0.620
0.720
0.820
0.920
1.020
MILLIMETERS
2.54 typ.
0.51 ± 0.05 typ.
3.17 min.
2.54 max.
0.25
8.13
10.67
13.21
15.75
18.25
20.83
23.37
25.91
DIMENSIONS AND IMPRINTING
in inches and millimeters
L Max.
H
C
A
B
Pin 1
Part Number
Date Code
0.200
(2)
7.11
(2)
Vishay Logo
Notes
(1)
Non-accum.
(2)
Resistance value and schematic dependent. By occupying more than one 0.100 inch square, higher values are available.
MECHANICAL SPECIFICATIONS
Resistive Element
Substrate Material
Body
Terminals
Plating
Tin/Lead Option
Lead (Pb)-free Option
Tin/Lead and Lead (Pb)-free Finish
Passivated nichrome or tantalum nitride
Alumina
Ceramic
Copper alloy
Gold
Sn63
Sn96.5, Ag3.0, Cu0.5
Hot solder dip
ORDERING INFORMATION CHECK LIST
Special requirements should be identified in advance, but as a minimum, you should have the following information ready.
ELECTRICAL
1. Resistors, by value and tolerance
2. Reference resistor(s) and matching of which resistors to which
reference resistors
3. Resistance by ratio
4. Absolute temperature coefficient of resistivity
5. Temperature tracking of subordinate resistors to reference
resistor(s)
6. Maximum operating voltage
7. Resistor power ratings
8. Operating temperature range
MECHANICAL
1. Maximum allowable seated height (from PC board to top of
network)
2. Special marking concerns
3. Schematic pin out of package
4. Specify if lead (Pb)-free
For additional assistance refer to Vishay Dale Thin Film’s guide to understanding Thin Film precision.
Resistor networks or application engineering.
All standard products may be ordered directly from Vishay Dale Thin Film.
Revision: 20-Oct-11
Document Number: 60081
2
For technical questions, contact:
thinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
