BLM18BB471SZ1D: DescriptionFerrite Beads 0603 470ohms 300mA Auto Infotainment; CategoryPassive components; File Size2MB，3 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric View All

BLM18BB471SZ1D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BLM18BB471SZ1D	-	-	View	Buy Now

BLM18BB471SZ1D Overview

Ferrite Beads 0603 470ohms 300mA Auto Infotainment

BLM18BB471SZ1D Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Murata
Product Category	Ferrite Beads
RoHS	Details
Product	Ferrite Beads
Termination Style	SMD/SMT
Package / Case	0603 (1608 metric)
Impedance	470 Ohms
Maximum DC Current	300 mA
Tolerance	25 %
Maximum DC Resistance	850 mOhms
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 125 C
Length	1.6 mm
Width	0.8 mm
Height	0.6 mm
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Operating Temperature Range	- 55 C to + 125 C
Shielding	Unshielded
Type	Chip Ferrite Bead
Factory Pack Quantity	4000
Termination	-
Test Frequency	100 MHz

Preview

Download Datasheet

View All

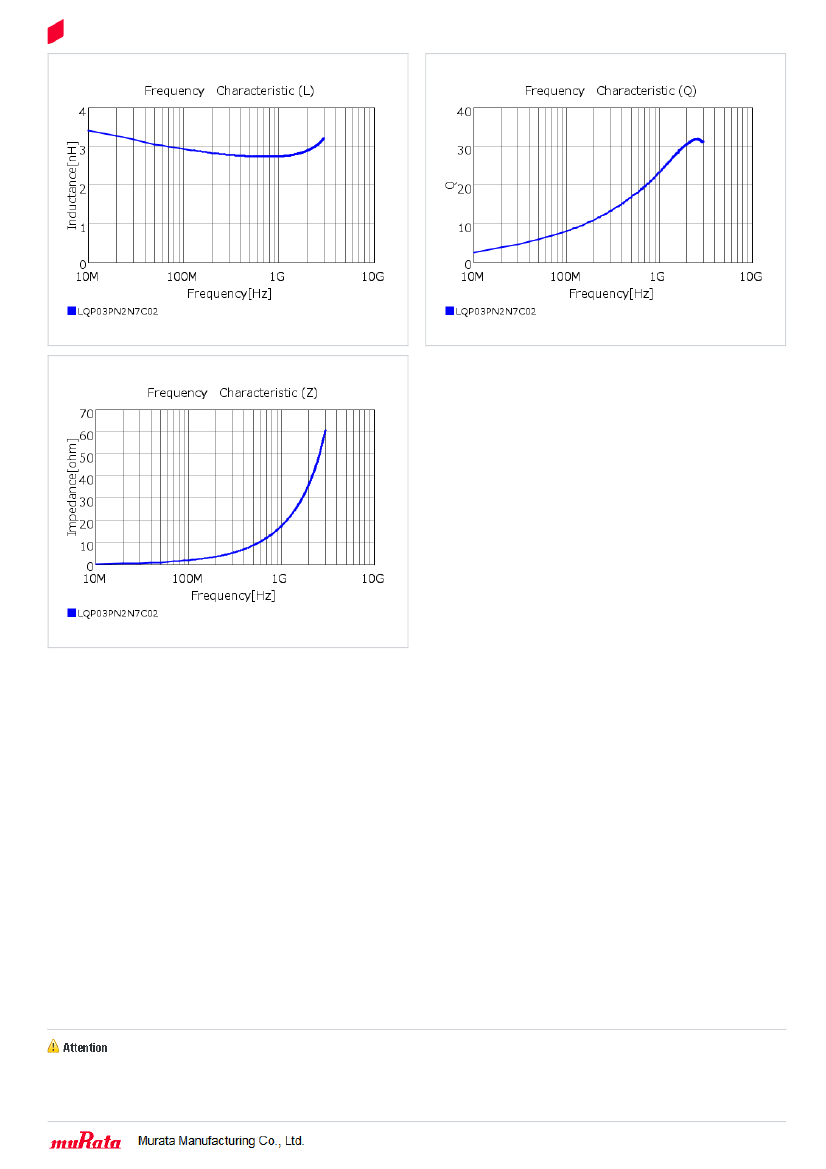

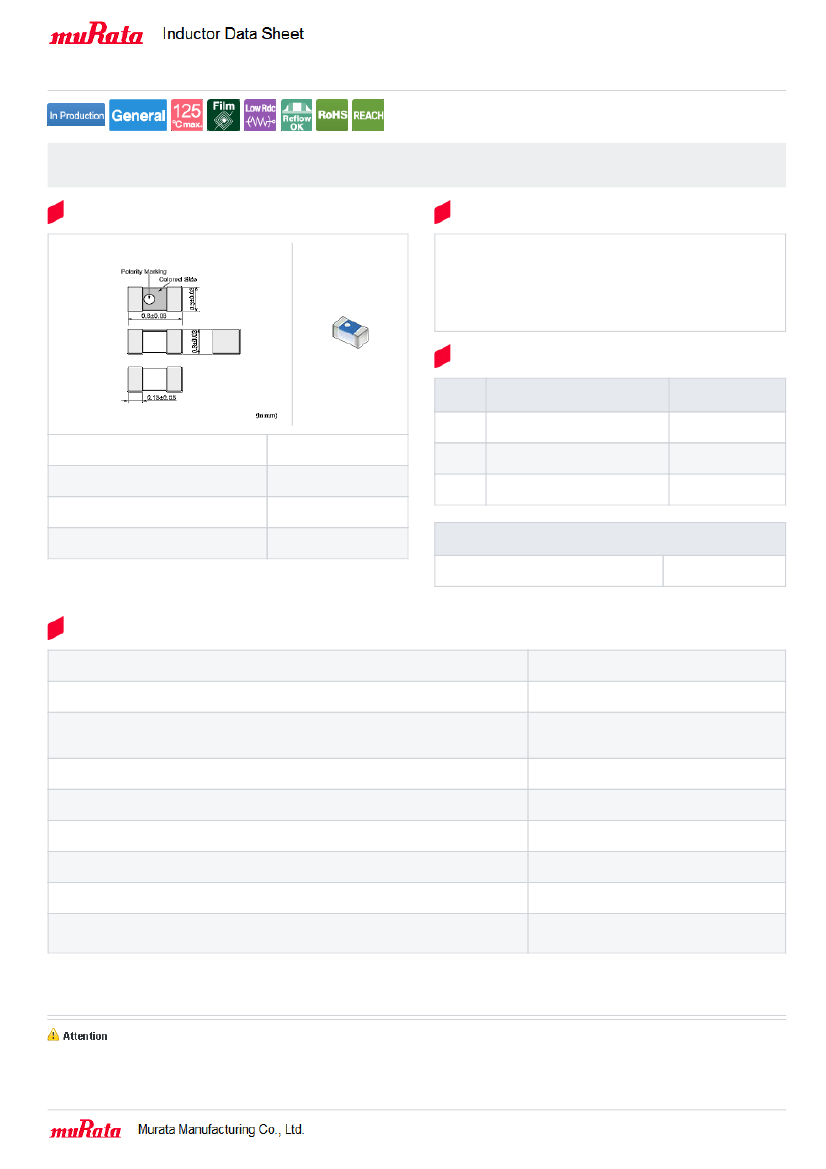

LQP03PN2N7C02#

< List of part numbers with package codes >

“#” indicates a package specification code.

LQP03PN2N7C02D , LQP03PN2N7C02J , LQP03PN2N7C02B

Shape

Notes

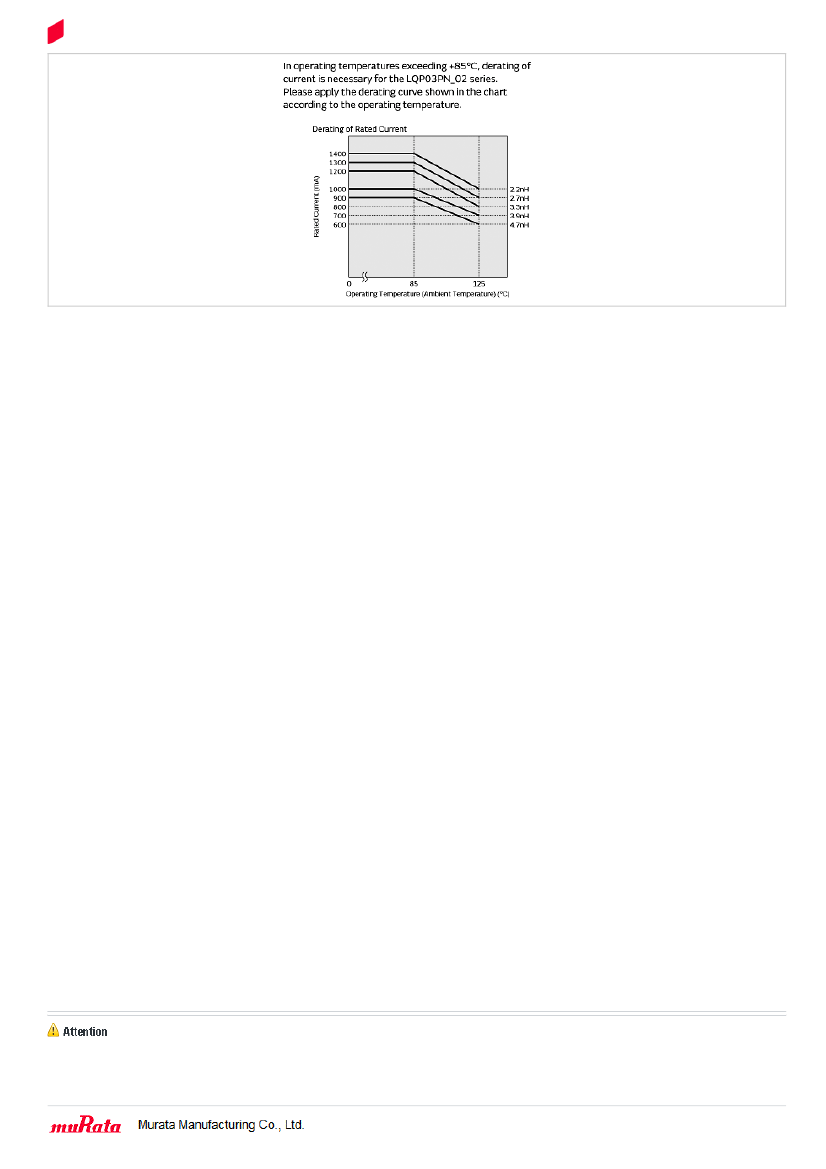

In operating temperatures exceeding +85°C, derating of current is

necessary for the LQP03PN_02 series.

Please apply the derating curve shown in the chart according to the

operating temperature.

Please consider "Notice (Rating)."

References

Packaging

code

D

L size

W size

T size

Size code in inch (mm)

0.6 ±0.03mm

0.3 ±0.03mm

0201 (0603)

1 piece

Mass (Typ.)

0.0002g

J

B

Specifications

φ180mm

Paper taping

φ330mm

Paper taping

Packing in bulk

Minimum quantity

15000

50000

500

Specifications

Inductance

Inductance test frequency

2.7nH ±0.2nH

500MHz

1300mA(Ambient temp.85℃)

900mA(Ambient temp.125℃)

0.065Ω

10

500MHz

6600MHz

-55〜125℃

LQP03PN_02

Rated current (Itemp) (Based on Temperature rise)

Max. of DC resistance

Q (min.)

Q test frequency

Self resonance frequency (min.)

Operating temperature range (Self-temperature rise is not included)

Series

1 of 3

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : https://www.murata.com/

Last updated: 2018/10/08
