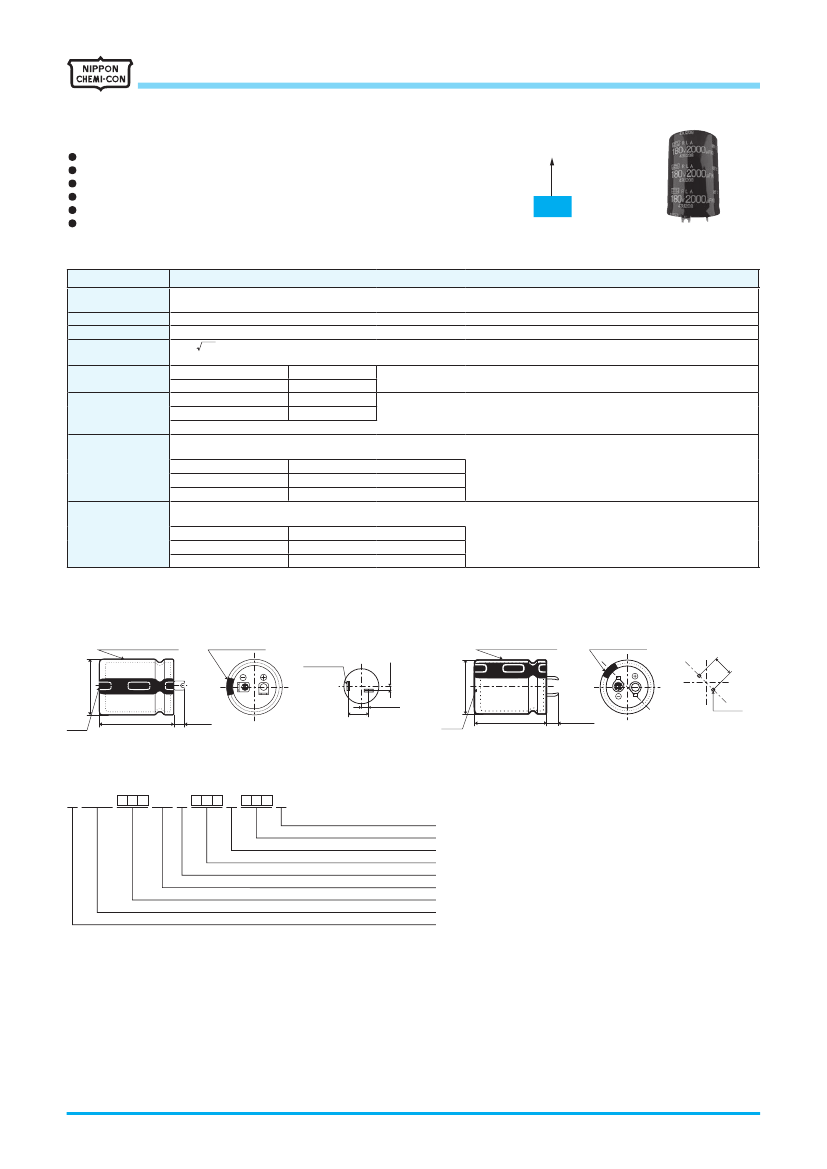

LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS
High ripple snap-ins, 85℃
RLA
Series
RLB
Longer life
・Endurance
with ripple current : 3,000 hours at 85℃
・High
ripple current capability in a commercial frequency range
・High
ripple current for inverter control like air conditioner
・Rated
voltage range : 180 to 250Vdc, Capacitance range : 600 to 2,200µF
・Non
solvent resistant type
・RoHS2
Compliant
RLA
◆SPECIFICATIONS
Items
Category
Temperature Range
Rated Voltage Range
Capacitance Tolerance
Leakage Current
Dissipation Factor
(tanδ)
Low Temperature
Characteristics
(Max. Impedance Ratio)
Endurance
-25 to +85℃
180 to 250V
±10%
(K)
I≦3 CV
Where, I : Max. leakage current (µA), C : Nominal capacitance (µF), V : Rated voltage (V)
Rated voltage (V
dc
)
180 to 250V
tanδ (Max.)
0.15
Rated voltage (V
dc
)
180 to 250V
Z(-25℃)/Z(+20℃)
4
(at 20℃, 120Hz)
(at 20℃ after 5 minutes)
(at 20℃, 120Hz)
Characteristics
Shelf Life
(at 120Hz)
The following specifications shall be satisfied when the capacitors are restored to 20℃ after subjected to DC voltage with the rated
ripple current is applied (the peak voltage shall not exceed the rated voltage) for 3,000 hours at 85℃.
Capacitance change
≦±20%
of the initial value
D. F. (tanδ)
≦200%
of the initial specified value
Leakage current
≦The
initial specified value
The following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1,000 hours at 85℃ without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Capacitance change
≦±15%
of the initial value
D. F. (tanδ)
≦150%
of the initial specified value
Leakage current
≦The
initial specified value
◆DIMENSIONS
[mm]
●
Terminal
Code : LI (φ30,
φ35)
: Standard
Negative mark
PC board pin-out
(View from Solder side)
2-1.2×6
4.2
±
0.5
●
Terminal
Code : VS (φ30,
φ35)
Negative mark
PC board pin-out
(View from Solder side)
10
Sleeve (PVC : Black)
φD+1max.
Sleeve (PVC : Black)
φD+1max.
5
±
0.5
L
±
2.5
4.5
±
1
14.2
±
1
2-
φ2
L
±
2.5
4.0
±
0.5
Vent
Vent
The standard design has no plastic disc.
◆PART
NUMBERING SYSTEM
E RLA
AAA
L I N
AAA
K
AAA
M
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex .800µF:801, 2,200µF:222)
Dummy terminal code
Terminal code ( LI,VS)
Voltage code (ex.180V:181, 200V:201)
Series code
Category
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Please refer to "Product code guide (snap-in type)"
Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.
CAT. No. E1001S
LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS
High ripple snap-ins, 85℃
RLA
Series
◆STANDARD
RATINGS
WV
(V
dc
)
Cap
(µF)
900
1,100
1,300
1,500
1,500
1,700
1,800
2,000
900
1,000
1,200
1,200
1,400
1,400
1,500
1,600
1,900
2,200
800
900
1,100
1,100
1,200
1,300
Rated ripple
Case size
current
tanδ
(Arms/
φD×L(mm)
85℃, 120Hz)
30× 35
30
×
40
30
×
45
30
×
50
35
×
40
30
×
55
35
×
45
35
×
50
30
×
35
30
×
40
30
×
45
35
×
35
30
×
50
35
×
40
30
×
55
35
×
45
35
×
50
35
×
55
30
×
35
30
×
40
30
×
45
35
×
35
30
×
50
35
×
40
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
4.66
5.17
5.64
6.07
5.75
6.63
6.37
6.84
4.66
5.01
5.51
5.14
5.95
5.66
6.36
6.14
6.82
7.60
4.48
4.86
5.39
5.06
5.71
5.65
Part No.
ERLA181LIN901KR35M
ERLA181LIN112KR40M
ERLA181LIN132KR45M
ERLA181LIN152KR50M
ERLA181LIN152KA40M
ERLA181LIN172KR55M
ERLA181LIN182KA45M
ERLA181LIN202KA50M
ERLA201LIN901KR35M
ERLA201LIN102KR40M
ERLA201LIN122KR45M
ERLA201LIN122KA35M
ERLA201LIN142KR50M
ERLA201LIN142KA40M
ERLA201LIN152KR55M
ERLA201LIN162KA45M
ERLA201LIN192KA50M
ERLA201LIN222KA55M
ERLA211LIN801KR35M
ERLA211LIN901KR40M
ERLA211LIN112KR45M
ERLA211LIN112KA35M
ERLA211LIN122KR50M
ERLA211LIN132KA40M
WV
(V
dc
)
Cap
(µF)
1,400
1,500
1,700
2,000
700
900
1,000
1,000
1,200
1,200
1,300
1,400
1,600
1,800
600
800
900
900
1,000
1,100
1,200
1,200
1,400
1,600
Rated ripple
Case size
current
tanδ
(Arms/
φD×L(mm)
85℃, 120Hz)
30
×55
35
×45
35
×50
35
×55
30
×35
30
×40
30
×45
35
×35
30
×50
35
×40
30
×55
35
×45
35
×50
35
×55
30
×35
30
×40
30
×45
35
×35
30
×50
35
×40
30
×55
35
×45
35
×50
35
×55
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
6.31
6.21
6.82
7.62
4.27
4.85
5.19
4.87
5.68
5.44
6.09
5.96
6.51
7.10
4.03
4.66
5.01
4.73
5.32
5.33
5.96
5.68
6.25
6.87
Part No.
ERLA211LIN142KR55M
ERLA211LIN152KA45M
ERLA211LIN172KA50M
ERLA211LIN202KA55M
ERLA221LIN701KR35M
ERLA221LIN901KR40M
ERLA221LIN102KR45M
ERLA221LIN102KA35M
ERLA221LIN122KR50M
ERLA221LIN122KA40M
ERLA221LIN132KR55M
ERLA221LIN142KA45M
ERLA221LIN162KA50M
ERLA221LIN182KA55M
ERLA251LIN601KR35M
ERLA251LIN801KR40M
ERLA251LIN901KR45M
ERLA251LIN901KA35M
ERLA251LIN102KR50M
ERLA251LIN112KA40M
ERLA251LIN122KR55M
ERLA251LIN122KA45M
ERLA251LIN142KA50M
ERLA251LIN162KA55M
210
180
220
200
250
210
◆RATED
RIPPLE CURRENT MULTIPLIERS
・Frequency
Multipliers
Frequency(Hz)
180 to 250V
dc
50
0.70
120
1.00
300
1.17
1k
1.32
10k
1.45
50k
1.50
The endurance of capacitors is reduced with internal heating produced by ripple current at the rate of halving the lifetime with every 5℃ rise.
When long life performance is required in actual use, the rms ripple current has to be reduced.
Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.
CAT. No. E1001S
