WIMA DC-LINK HC
Metallized Polypropylene (PP) - Capacitors for DC-Link Applications.
Capacitances from 140
mF
to 8250
mF.
Rated Voltages from 450 VDC to 1500 VDC.
D
Special Features
˜
Very high volume/capacitance ratio
˜
Self-healing, internal safety
disconnector
˜
Safe contact configurations by
screwable plates
˜
Dry construction without electrolyte
or oil
˜
Very low disipation factor
˜
Negative capacitance change versus
temperature
˜
Very low dielectric absorption
˜
According to RoHS 2011/65/EU
˜
Customer-specific tabs, capacitances
or voltages on request
˜
105° C version on request
Electrical Data
Capacitance range:
140
mF
to 8250
mF
Rated voltages:
450 VDC, 900 VDC, 1500 VDC
Capacitance tolerance:
±10%
Operating temperature:
–55+ C to +85° C (+105° C on request)
Insulation resistance
at +20+ C:
30 000 sec (M¸ x
mF)
(mean value: 100 000 sec)
Measuring voltage: 100 V/1 min.
Self-inductance:
50 nH depending
on tab configuration
ESR
at +20° C: See General Data.
Test voltage:
1.5 U
r
, 10 sec
Dielectric absorption:
0.05 %
Voltage derating:
A derating factor of 1.35% per K must be
applied from +70° C for AC currents (I
rms
)
Reliability:
Operational life
100 000 hours at 70° C
hot spot
Failure rate
50 fit (hot spot
70° C)
Specific dissipation:
See General Data.
Standards:
in accordance with IEC 61071
Typical Applications
As intermediate circuit capacitor e. g.
in high power converter technology

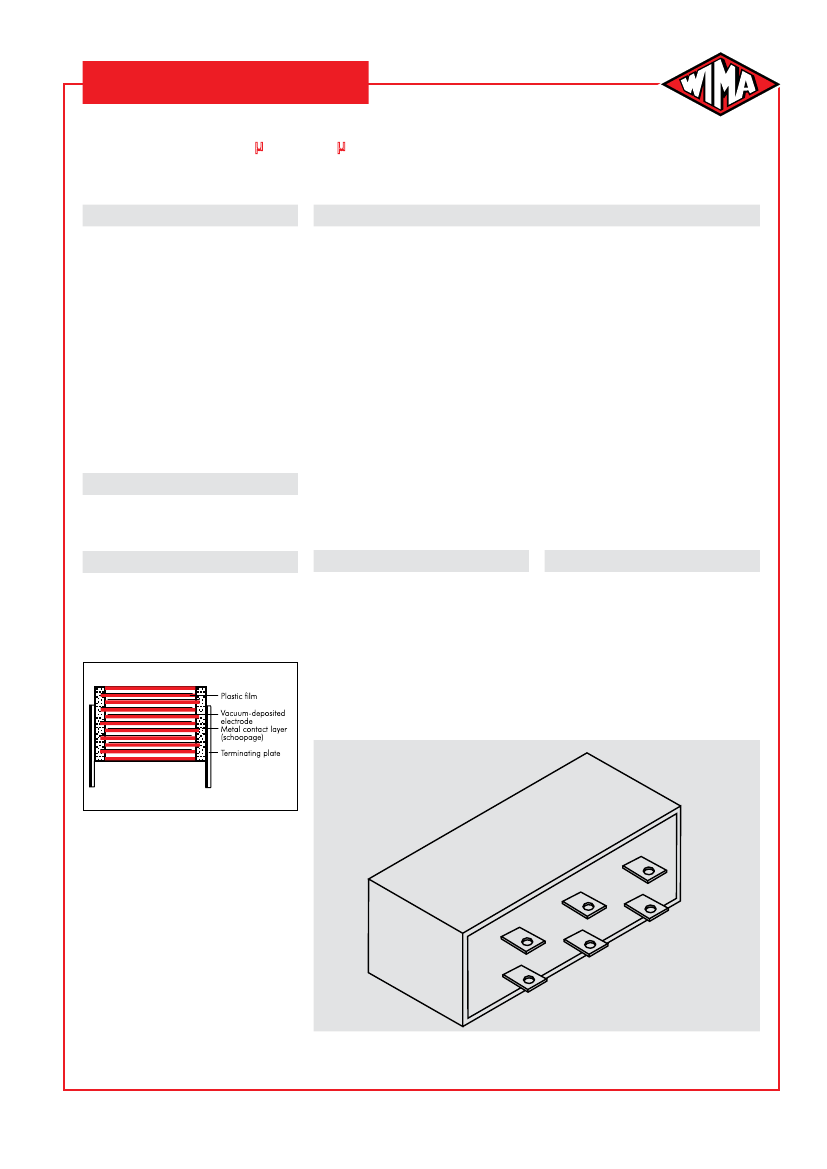

Construction
Dielectric:
Polypropylene (PP) film
Capacitor electrodes:
Vacuum-deposited
Internal construction:
Mounting Recommendation
Excessive mechanical strain, e. g. pressure
or shock onto the capacitor body, is to be
avoided during mounting and usage of the
capacitors. When fixing the capacitor the
screw torque is to be limited to max. 5 Nm.
Packing
Transportation-safe packing in
cardboard boxes.
For further details and graphs please refer
to Technical Information.
Encapsulation:
Solvent resistant, flame-retardant plastic
case with PU seal
Terminations:
Tinned plates, customized plate
configurations are possible.
Marking:
Colour: Black. Marking: Gold.
04.16
137
D
WIMA Part Number System
A WIMA part number consists of 18 digits and is composed as follows:
Field
Field
Field
Field
Field
Field
Field
Field
1
M
1 - 4: Type description
5 - 6: Rated voltage
7 - 10: Capacitance
11 - 12: Size and PCM
13 - 14: Version code (e.g. Snubber versions)
15:
Capacitance tolerance
16:
Packing
17 - 18: Pin length (untaped)
2
K
3
S
4
2
5
C
6
0
7
2
8
1
9
0
10
0
11
1
12
A
13
0
-
14
0
15
M
20 %
16
S
bulk
17
S
6 -2
18
D
MKS 2
63 VDC
0.01
mF
2.5 x 6.5 x 7.2
Type description:
SMD-PET
= SMDT
SMD-PEN
= SMDN
SMD-PPS
= SMDI
FKP 02
= FKP0
MKS 02
= MKS0
FKS 2
= FKS2
FKP 2
= FKP2
FKS 3
= FKS3
FKP 3
= FKP 3
MKS 2
= MKS2
MKP 2
= MKP2
MKS 4
= MKS4
MKP 4C
= MKPC
MKP 4
= MKP4
MKP 10
= MKP1
FKP 1
= FKP1
MKP-X2
= MKX2
MKP-X1 R
= MKX1
MKP-Y2
= MKY2
MP 3-X2
= MPX2
MP 3-X1
= MPX1
MP 3-Y2
= MPY2
MP 3R-Y2
= MPRY
MKP 4F
= MKPF
Snubber MKP = SNMP
Snubber FKP
= SNFP
GTO MKP
= GTOM
DC-LINK MKP 3 = DCP3
DC-LINK MKP 4 = DCP4
DC-LINK MKP 4S = DCPS
DC-LINK MKP 5 = DCP5
DC-LINK MKP 6 = DCP6
DC-LINK HC
= DCHC
DC-LINK HY
= DCHY
Rated voltage:
50 VDC = B0
63 VDC = C0
100 VDC = D0
250 VDC = F0
400 VDC = G0
450 VDC = H0
520 VDC = H2
600 VDC = I0
630 VDC = J0
700 VDC = K0
800 VDC = L0
850 VDC = M0
900 VDC = N0
1000 VDC = O1
1100 VDC = P0
1200 VDC = Q0
1250 VDC = R0
1500 VDC = S0
1600 VDC = T0
2000 VDC = U0
2500 VDC = V0
3000 VDC = W0
4000 VDC = X0
6000 VDC = Y0
250 VAC = 0W
275 VAC = 1W
300 VAC = 2W
305 VAC = AW
350 VAC = BW
440 VAC = 4W
500 VAC = 5W
...
Capacitance:
22 pF
= 0022
47 pF
= 0047
100 pF = 0100
150 pF = 0150
220 pF = 0220
330 pF = 0330
470 pF = 0470
680 pF = 0680
1000 pF = 1100
1500 pF = 1150
2200 pF = 1220
3300 pF = 1330
4700 pF = 1470
6800 pF = 1680
0.01
mF
= 2100
0.022
mF
= 2220
0.047
mF
= 2470
0.1
mF
= 3100
0.22
mF
= 3220
0.47
mF
= 3470
= 4100
1
mF
2.2
mF
= 4220
4.7
mF
= 4470
= 5100
10
mF
= 5220
22
mF
= 5470
47
mF
100
mF
= 6100
220
mF
= 6220
1000
mF
= 7100
1500
mF
= 7150
...
Size:
4.8 x 3.3 x 3 Size 1812 = KA
4.8 x 3.3 x 4 Size 1812 = KB
5.7 x 5.1 x 3.5 Size 2220 = QA
5.7 x 5.1 x 4.5 Size 2220 = QB
7.2 x 6.1 x 3 Size 2824 = TA
7.2 x 6.1 x 5 Size 2824 = TB
10.2 x 7.6 x 5 Size 4030 = VA
12.7 x 10.2 x 6 Size 5040 = XA
15.3 x 13.7 x 7 Size 6054 = YA
2.5 x 7 x 4.6 PCM 2.5 = 0B
3 x 7.5 x 4.6 PCM 2.5 = 0C
2.5 x 6.5 x 7.2 PCM 5 = 1A
3 x 7.5 x 7.2 PCM 5
= 1B
2.5 x 7 x 10 PCM 7.5
= 2A
3 x 8.5 x 10 PCM 7.5
= 2B
3 x 9 x 13 PCM 10
= 3A
4 x 9 x 13 PCM 10
= 3C
5 x 11 x 18 PCM 15
= 4B
6 x 12.5 x 18 PCM 15 = 4C
5 x 14 x 26.5 PCM 22.5 = 5A
6 x 15 x 26.5 PCM 22.5 = 5B
9 x 19 x 31.5 PCM 27.5 = 6A
11 x21 x 31.5 PCM 27.5 = 6B
9 x 19 x 41.5 PCM 37.5 = 7A
11 x 22 x 41.5 PCM 37.5 = 7B
19 x 31 x 56 PCM 48.5 = 8D
25 x 45 x 57 PCM 52.5 = 9D
...
Version code:
Standard
=
Version A1
=
Version A1.1.1 =
Version A2
=
...
Tolerance:
±20 % =
±10 % =
±5 %
=
±2.5 % =
±1 %
=
...
M
K
J
H
E
Packing:
AMMO H16.5 340 x 340
AMMO H16.5 490 x 370
AMMO H18.5 340 x 340
AMMO H18.5 490 x 370
REEL H16.5 360
REEL H16.5 500
REEL H18.5 360
REEL H18.5 500
ROLL H16.5
ROLL H18.5
BLISTER W12 180
BLISTER W12 330
BLISTER W16 330
BLISTER W24 330
Bulk/TPS Standard
...
=A
=B
=C
=D
=F
=H
=I
=J
=N
=O
=P
=Q
=R
=T
=S
00
1A
1B
2A
Pin length (untaped)
3.5 ±0.5 = C9
6 -2
= SD
16 ±1
= P1
...
Pin length (taped)
none
= 00
04.16
The data on this page is not complete and serves only to explain the part number system. Part number information is listed on the
pages of the respective WIMA range.
143
