6-144006-7 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > relay> 6-144006-7

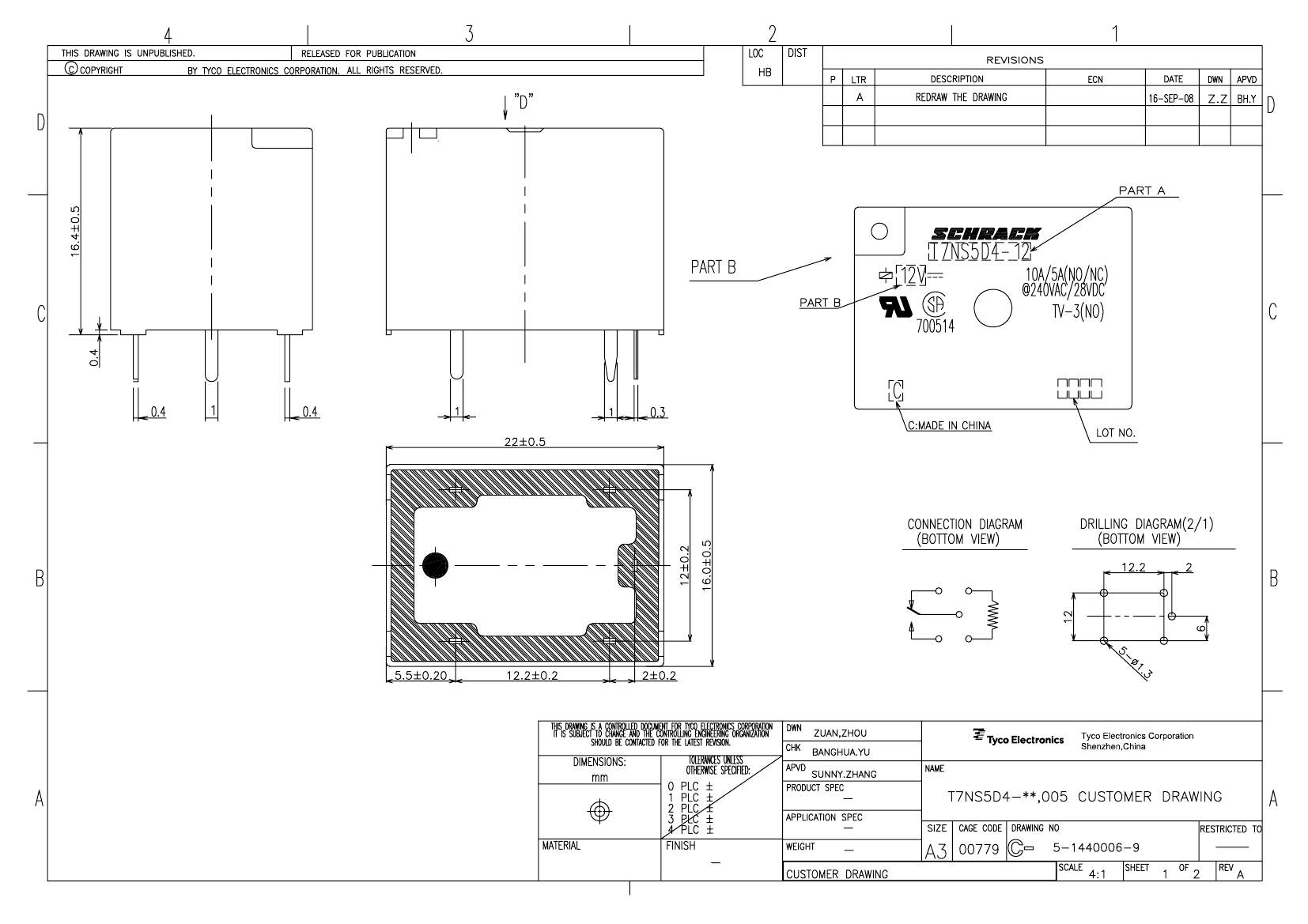

Preview

6-144006-7: DescriptionPOWER/SIGNAL RELAY, SPDT, MOMENTARY, 48VDC (COIL), 10A (CONTACT), 28VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT; Categoryrelay; File Size163KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

6-144006-7 Overview

POWER/SIGNAL RELAY, SPDT, MOMENTARY, 48VDC (COIL), 10A (CONTACT), 28VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT

6-144006-7 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
body width	16 mm
body height	16.4 mm
Body length or diameter	22 mm
Maximum coil voltage (DC)	48 V
Contact (AC) maximum rated R load	10A@240VAC
Maximum contact current (AC)	10 A
Maximum contact current (DC)	10 A
Contact (DC) maximum rated R load	10A@28VDC
Maximum contact voltage (AC)	240 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Manufacturer's serial number	144006
Installation features	THROUGH HOLE-STRAIGHT MOUNT
physical size	22mm X 16mm X 16.4mm
Guideline	CSA; UL
Relay action	MOMENTARY
Relay function	SPDT
Relay type	POWER/SIGNAL RELAY
seal	EPOXY TERMINAL SEALED
surface mount	NO
Termination type	SOLDER
Base Number Matches	1

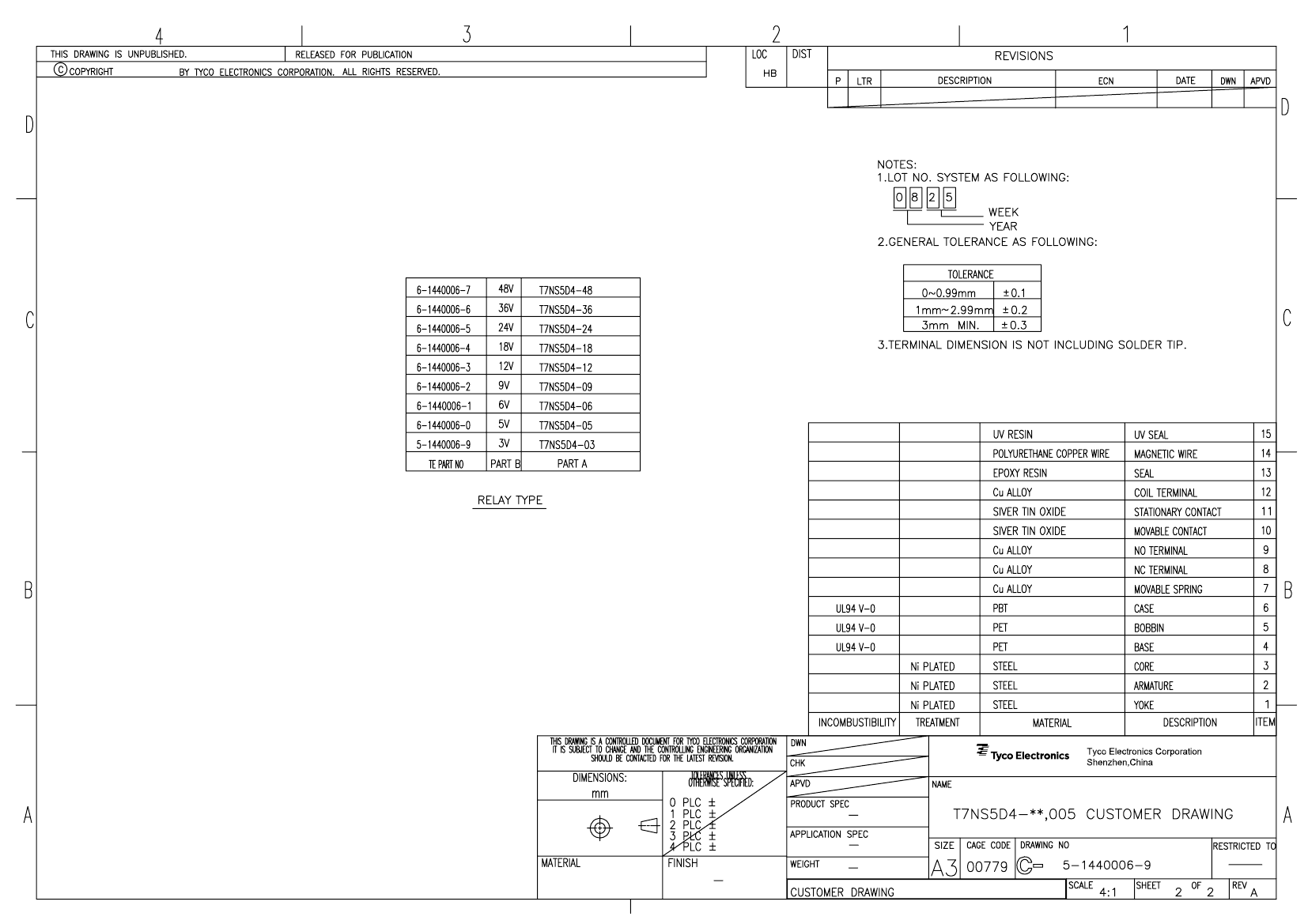

Preview

Download Datasheet

View All

6-144006-7 Related Products

	6-144006-7	6-144006-0	6-144006-1	6-144006-2	6-144006-3	6-144006-4	6-144006-5	6-144006-6	5-144006-9
Description	POWER/SIGNAL RELAY, SPDT, MOMENTARY, 48VDC (COIL), 10A (CONTACT), 28VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT	POWER/SIGNAL RELAY, SPDT, MOMENTARY, 5VDC (COIL), 10A (CONTACT), 28VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT	POWER/SIGNAL RELAY, SPDT, MOMENTARY, 6VDC (COIL), 10A (CONTACT), 28VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT	POWER/SIGNAL RELAY, SPDT, MOMENTARY, 9VDC (COIL), 10A (CONTACT), 28VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT	POWER/SIGNAL RELAY, SPDT, MOMENTARY, 12VDC (COIL), 10A (CONTACT), 28VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT	POWER/SIGNAL RELAY, SPDT, MOMENTARY, 18VDC (COIL), 10A (CONTACT), 28VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT	POWER/SIGNAL RELAY, SPDT, MOMENTARY, 24VDC (COIL), 10A (CONTACT), 28VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT	POWER/SIGNAL RELAY, SPDT, MOMENTARY, 36VDC (COIL), 10A (CONTACT), 28VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT	POWER/SIGNAL RELAY, SPDT, MOMENTARY, 3VDC (COIL), 10A (CONTACT), 28VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT
Maker	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body width	16 mm	16 mm	16 mm	16 mm	16 mm	16 mm	16 mm	16 mm	16 mm
body height	16.4 mm	16.4 mm	16.4 mm	16.4 mm	16.4 mm	16.4 mm	16.4 mm	16.4 mm	16.4 mm
Body length or diameter	22 mm	22 mm	22 mm	22 mm	22 mm	22 mm	22 mm	22 mm	22 mm
Maximum coil voltage (DC)	48 V	5 V	6 V	9 V	12 V	18 V	24 V	36 V	3 V
Contact (AC) maximum rated R load	10A@240VAC	10A@240VAC	10A@240VAC	10A@240VAC	10A@240VAC	10A@240VAC	10A@240VAC	10A@240VAC	10A@240VAC
Maximum contact current (AC)	10 A	10 A	10 A	10 A	10 A	10 A	10 A	10 A	10 A
Maximum contact current (DC)	10 A	10 A	10 A	10 A	10 A	10 A	10 A	10 A	10 A
Contact (DC) maximum rated R load	10A@28VDC	10A@28VDC	10A@28VDC	10A@28VDC	10A@28VDC	10A@28VDC	10A@28VDC	10A@28VDC	10A@28VDC
Maximum contact voltage (AC)	240 V	240 V	240 V	240 V	240 V	240 V	240 V	240 V	240 V
Maximum contact voltage (DC)	28 V	28 V	28 V	28 V	28 V	28 V	28 V	28 V	28 V
Contact/Output Power Type	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC	AC/DC
Manufacturer's serial number	144006	144006	144006	144006	144006	144006	144006	144006	144006
Installation features	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT
physical size	22mm X 16mm X 16.4mm	22mm X 16mm X 16.4mm	22mm X 16mm X 16.4mm	22mm X 16mm X 16.4mm	22mm X 16mm X 16.4mm	22mm X 16mm X 16.4mm	22mm X 16mm X 16.4mm	22mm X 16mm X 16.4mm	22mm X 16mm X 16.4mm
Guideline	CSA; UL	CSA; UL	CSA; UL	CSA; UL	CSA; UL	CSA; UL	CSA; UL	CSA; UL	CSA; UL
Relay action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
Relay function	SPDT	SPDT	SPDT	SPDT	SPDT	SPDT	SPDT	SPDT	SPDT
Relay type	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY
seal	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED	EPOXY TERMINAL SEALED
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Is Samacsys	N	N	N	N	N	N	N	N	-
Base Number Matches	1	1	1	1	1	1	1	1	-
