High Current/High Voltage
Resin Sealed Filters
High current filters are ideal for use in high current
5 volt logic buss, but also can be used for ±48 VDC
telephone rack buss, high current switch mode power
supplies and DC charging systems. High voltage filters
find use in high voltage power supplies and applications
requiring U.L. Hi-Pot.

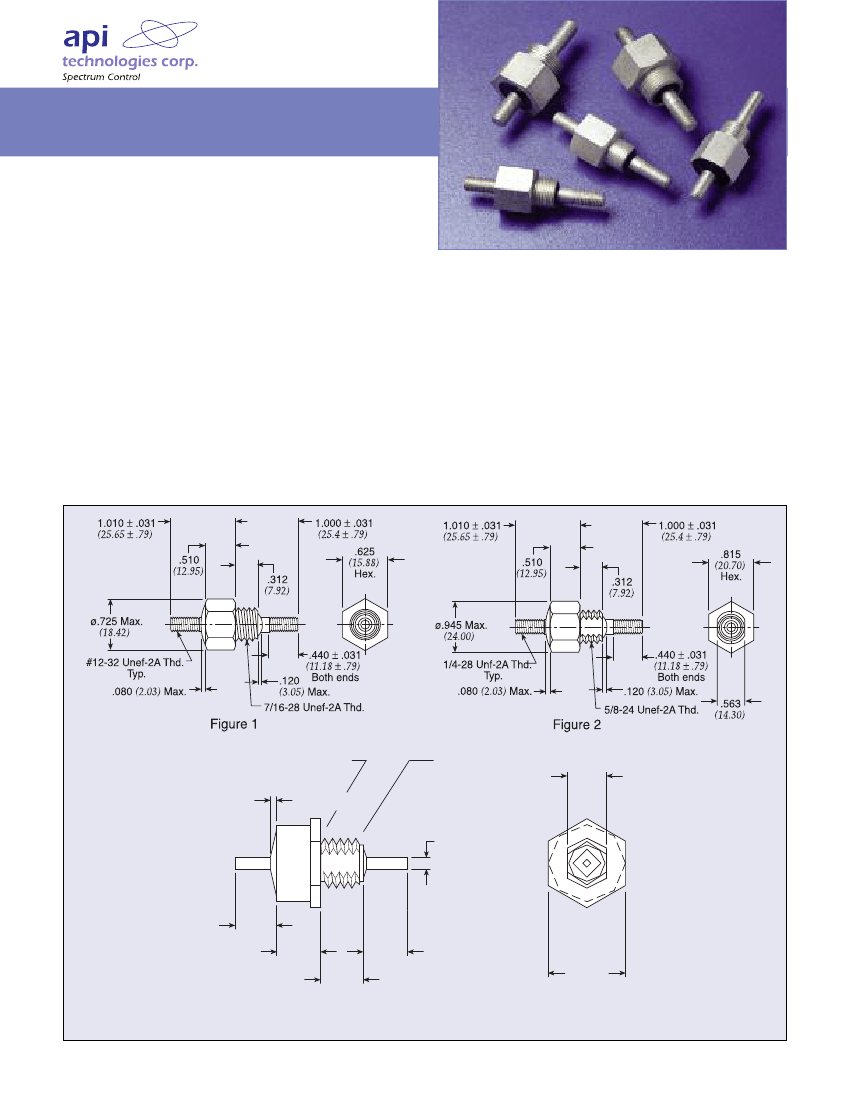

Installation Notes
for Figure 1 & 2 — see below (Figure 3 see page CF6)
Features
s
s
Current ratings up to 100 Amps
Continuous voltage ratings up to
1250 VDC/240 VAC (400Hz)
U.L. 1459 recognized and CSA C22.2 approved
versions available
Rugged bolt-in style for easy installation
1. Mounting installation torque
Method A:
Mounting in full threaded through-hole
Maximum torque:
96 in-lbs
Method B:
Mounting w/hardware
Maximum torque:
84 in-lbs
2. Terminal installation torque
Maximum torque:
20 in-lbs
Note: Use two-wrench method to install
terminal hardware
s
s
1-1/2 Imperfect Thds.
5/16–24 Unf–2A Thd.
.250
(6.35)
.060 Max., Typ.
ø .062
±
.005
(1.58
±
.13)
Typ.
.815
(
Hex.
.250
(6.35)
Min.
.250
(6.35)
.250
(6.35)
.250
(6.35)
Min.
.
Typ.
.500
(12.7)
Hex.
.563
(
Figure 3
Dimensions in inches
(mm)
API TECHNOLOGIES
• 8061 Avonia Rd. • Fairview, PA 16415 • Ph: 814-474-1571 • Fax: 814-474-3110 • eis.apitech.com
API TECHNOLOGIES’ SPECTRUM CONTROL GmbH
• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58
LP24
High Current/High Voltage
Resin Sealed Filters

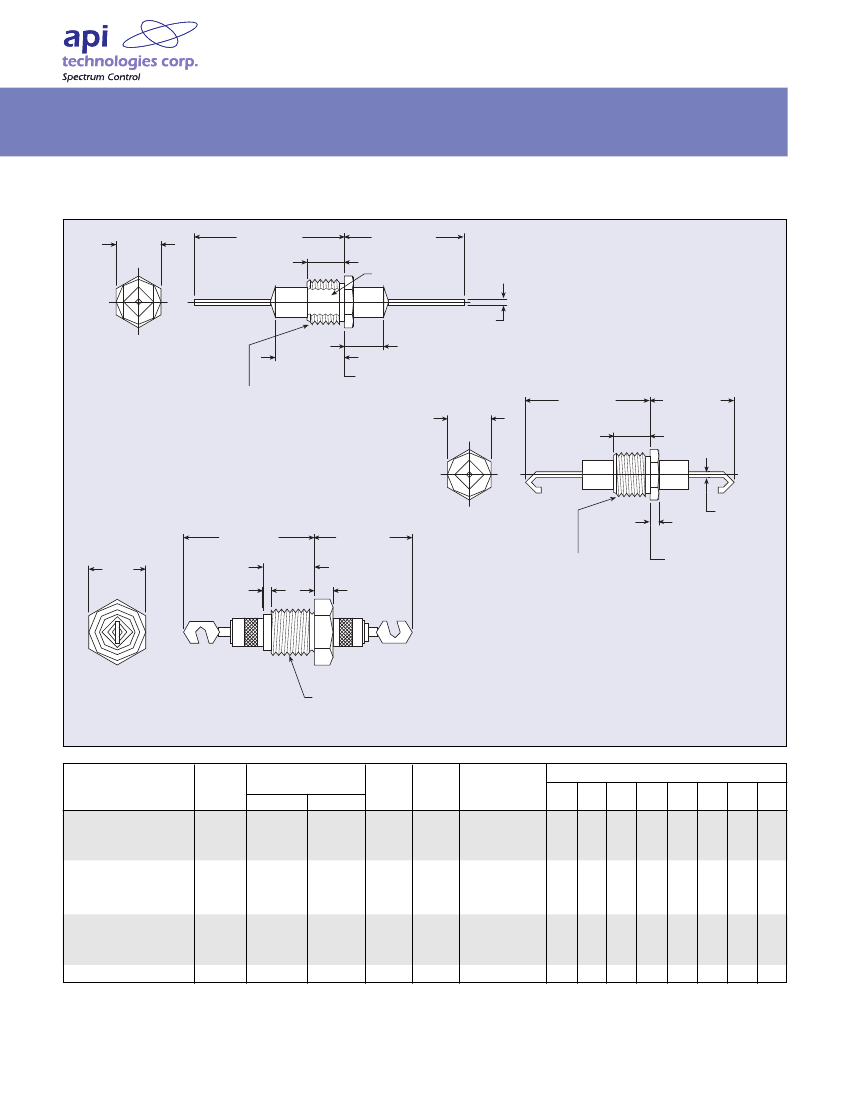

High Current High Voltage Feed-through
.375
(9.53)
1.250
±
.031
(31.8
±
.79)
.312
(7.93)
1.000
±
.031
(25.4
±
.79)
.250 Flats
ø .051
±
.005
(ø 1.30
±
.13)
.578 Max.
(14.68 Max.)
5/16–24 Unf–2A
.327 Max.
(8.30 Max.)
Mounting Surface
.937
±
.031
(23.8
±
79)
.325
(8.26)
.689
±
.031
(17.5
±
.79)
Figure 4
.500
(12.7)
.990
±
.031
(25.15
±
.79)
.500
(12.70)
.020
(.51)
.375
(9.53)
.740
±
.031
(18.61
±
.79)
.075
(1.91)
3/8–32unef–2A Thd.
ø .057
±
.005
(ø 1.45
±
.13)
Mounting Surface
.125
(3.18)
Figure 5
3/8–32 Unef–2A Thd.
Figure 6
Dimensions in inches
(mm)
Part Number
54-848-005*
54-853-001*
54-853-004
€
54-848-008
54-844-001**
54-844-002**
54-763-008
54-763-009
54-789-003
¦
1280-060
€
Figure
1
2
2
1
3
3
4
4
5
6
Rated Voltage
125°C
DC
AC***
60
—
60
200
200
600
600
750
750
1250
2500
—
140
140
240
240
—
—
—
—
I
Amp
50
50
100
100
25
25
25
25
25
25
CKT
C
C
C
C
C
C
C
C
C
Pi
Min
Cap
0.22 µF
0.22 µF
0.22 µF
0.22 µF
4700 pF ± 20%
0.01 µF ± 20%
1000 pF
4000 pF
4000 pF
1500 pF
Minimum Insertion Loss (dB)
10
1
3
1
10
30 100 300
MHz MHz MHz MHz MHz MHz GHz GHz
50
50
40
50
50
50
30
20
20
20
20
—
3
—
—
—
—
30
30
30
—
7
—
—
—
—
40
40
40
12
20
—
10
6
5
50
50
50
20
25
10
22
20
15
50
50
50
30
35
20
32
30
50
50
50
50
33
40
28
35
35
50
50
50
50
50
57
28
35
35
50
50
50
50
50
57
28
40
35
50
¦
Also available through API’s authorized distributors.
€
Also available through API’s authorized European distributors/agents.
*
Denotes parts that are UL recognized to UL 60950 and certified to CSA C22.2
**
Denotes parts that meet 1500 VAC Dielectric Withstanding Voltage per UL 1283
***
AC Voltage to be 400Hz
and CSA C22.2
LP25
API TECHNOLOGIES
• 8061 Avonia Rd. • Fairview, PA 16415 • Ph: 814-474-1571 • Fax: 814-474-3110 • eis.apitech.com
API TECHNOLOGIES’ SPECTRUM CONTROL GmbH
• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58
