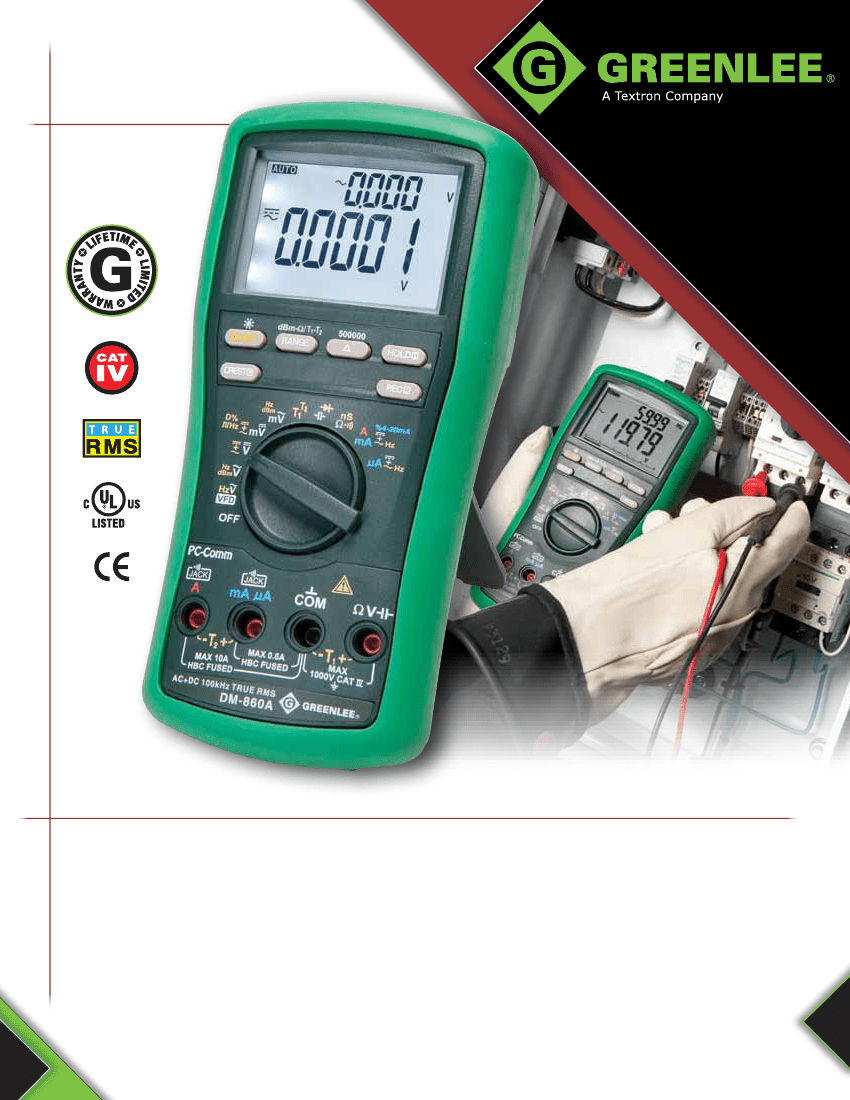

DM-860A
Industrial
Digital
Multimeter
More Safety. More Performance. More Versatility.
Safety, performance and versatility set Greenlee’s series of
Enhanced Smart Meter
™
(ESM
™
) Digital Multimeters apart from the
rest. The DM-860A is a full featured Industrial Digital Multimeter
and the latest addition to the family.
Safety –
The highest level of safety protection with a UL Category
IV, 1000V rating. The Beep-Jack
™
visual and audible warning
system helps prevent improper test lead connections and avoids
blown fuses and damage to the meter.
Performance –
Provides the user with superior accuracy and
functionality. The 50,000 count display with AC+DC True RMS and
VFD (Variable Frequency Drive) voltage and frequency functions
allow for accurate readings on noisy waveforms. Autoranging for
convenient operation and time savings.
Versatility –
Rugged, multifunction capability to meet today’s
demanding jobs. The relative offset display mode makes
monitoring relative measurement changes simple. The USB
interface using the optional DMSC-9U cable and software allows
for connection to a PC for extended measurement capability.
Dollar for dollar the Greenlee DM-860A Digital Multimeter provides
the features, functions, and overall value demanded by today’s
professionals.
www.greenlee.com
Features
• AC+DC True RMS, 50,000-count dual display for greater accuracy. 500,000 count available in
DC voltage mode.
• VFD (variable frequency drive) voltage and frequency functions for accurate readings on noisy
drive waveforms.
• Beep-Jack
™
audible and visual input alert helps avoid blown fuses or damage to meter.
• 41-segment analog bar graph makes it easy to view quick changes.
• Record max, min, avg, and max-min and data hold.
• Crest capture (peak hold) max and min readings.
• Relative offset display mode makes monitoring relative measurement changes simple.
• Performs resistance, conductance, frequency, duty cycle, temperature and capacitance
measurements, plus diode and continuity tests.
• Dual temperature measurement up to 1832°F/1000°C using type K thermocouples.
• Autoranging for convenient operation and time savings.
• Bright, backlit display is easy to read under any light condition.
• Intelligent Auto Power Off conserves battery life but will not turn meter off during measurements.
• Wide AC bandwidth – to 100 kHz for voltage and 20 kHz for current.
• USB interface using optional DMSC-9U cable and software allows connection to a PC for
extended measurement capability.
• Accessories included: (1) 9V battery, bead temperature probe (400°F/ 204°C max.), test leads,
protective boot, carrying case.
• Lifetime Limited Warranty.
DM-860A DETAILED FEATURES
True RMS
AC+DC
VFD (variable frequency
drive) Volts & Frequency
DCA (A max)
10
Maximum resolution (µA)
0.01
Best accuracy (%)
0.1
ACA (A max)
10
Maximum resolution (µA)
0.01
Best accuracy (%)
0.5
DCV (V max)
1000
Maximum Resolution (µV)
1
Best accuracy (%)
0.02
1000
ACV (V max)
Maximum resolution (µV)
10
Best accuracy (%)
0.3
Resistance (MΩ)
50
Maximum resolution (mΩ)
10
Best accuracy (%)
0.07
Conductance
Continuity and beeper
•
Diode Test
•
Capacitance
•
•
Frequency
Duty Cycle
•
Frequency Response (Hz) 20~100k
Temperature Inputs
2
Display Type
Digital
Dual Digital Display
50,000 /
Display Counts
500,000
Backlight
•
Display update X/sec
5
Analog bar graph
41
Analog update X/sec
60
Computer Interface
USB
Auto and manual ranging
•
Intelligent Auto Power Off
•
™
Beep-Jack Input error
•
warning
Peak (crest)
•
Hold - Max, Min
Data Hold
•
Max/Min/Avg
Relative offset mode (
∆
)
•
Process measurement
•
(%4-20 mA)
Measurement
IV 1000
Category Rating
UL
•
cUL or CSA
•
CE
•
Improved
features over previous dM-860
Specifications
Voltage Measurement
DC Voltage Measurement
Amperage Measurement
Resistance
Conductance
Capacitance
Frequency
Temperature
Measurement Category
500.00mV; 5.0000, 50.000, 500.00, 1000.0V
500,000 counts mode: 500.000mV; 5.00000, 50.0000, 500.000, 1000.00V
500.00, 5000.0µA; 50.000, 500.00mA; 5.0000, 10.000A
500.00Ω; 5.0000, 50.000, 500.00kΩ; 5.0000, 50.000MΩ
99.99 nS
50.00; 500.0nF; 5.000, 50.00, 500.0µF; 5.000, 25.00 mF
5Hz-200kHz sine wave; 5Hz-2MHz logic level square wave
K type, -58°F to 1832°F (-50°C to 1000°C)
CAT IV, 1000V
= new producT
= Replacement paRt
= accessoRy
USA
Tel: 800.435.0786
Fax: 800.451.2632

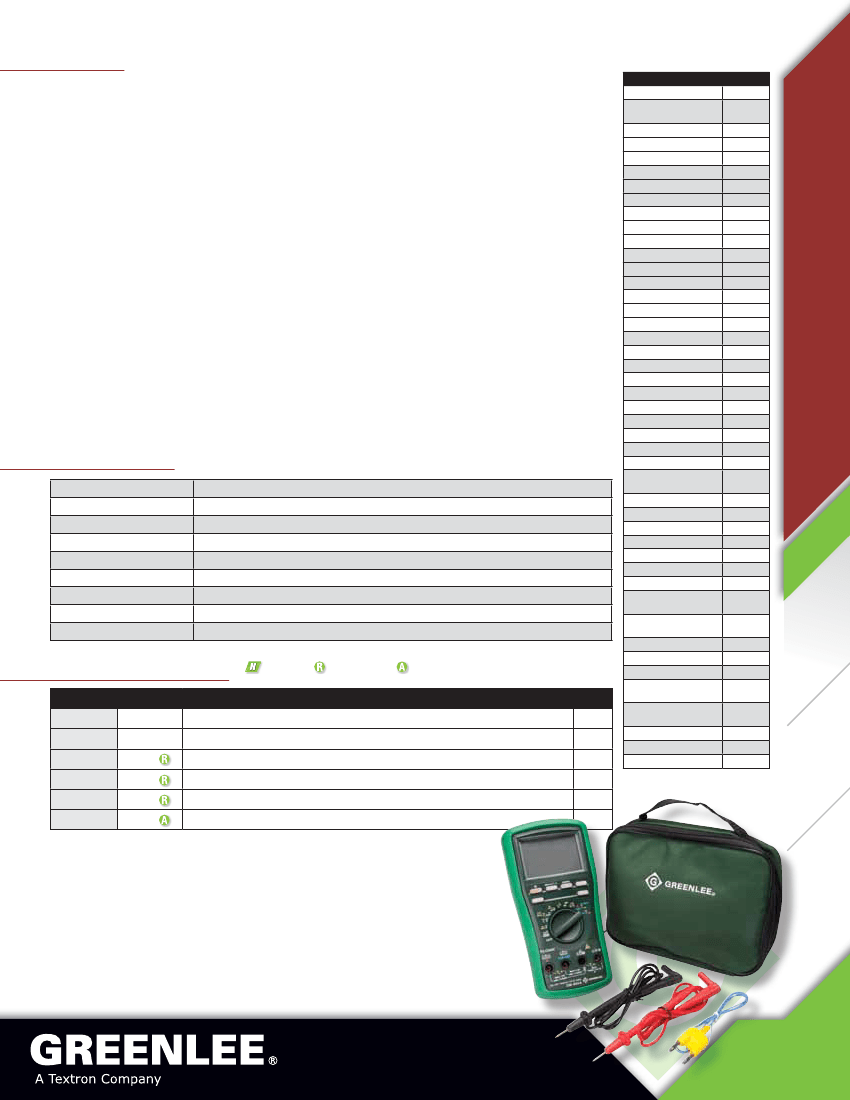

Ordering Information
CAT NO.
DM-860A
DM-860A-C
TC-20
TSG-3
TPB
DMSC-9U
UPC NO.
12938
02069
07535
12034
07592
35773
DESCRIPTION
QTY.
1
1
1
1
1
1
CANADA
Industrial 500,000-Count Digital Multimeter
Industrial 500,000-Count Digital Multimeter (Calibrated)
Carrying Case (included)
Sure-Grip Test Leads
Bead Temperature Probe
For DM-800A Series and DML-430A Multimeters
Tel: 866.384.8813
Fax: 800.524.2853
Tel: +1.815.397.7070
Fax: +1.815.397.9247
INTERNATIONAL
DISTRIBUTOR INFORMATION:
www.greenlee.com
• MA-5591
Greenlee Textron Inc. is a subsidiary of Textron Inc.
4455 Boeing Drive • Rockford, IL 61109-2988 • USA • 815-397-7070
©2011 Greenlee Textron Inc. • An ISO 9001 Company • Printed in USA
02/11
