NOTES:
MAX. ERROR FROM E-Z OF 10 WHEN ROTOR IS MOUNTED ON SHAFT
WITH RUNOUT OF .003 F.I.R. AND STATOR MOUNTING CONCENTRICITY OF .004 F.I.R.
2. MATERIAL: HOUSING - ALUMINUM
ROTOR SLEEVE - PLATED 12L14
3 LEADS TO BE TWISTED IN PAIRS RED/WHT & YEL/WHT, YELLOW & BLUE,
RED & BLACK.
4 UNIT ACCURACY VALUE TO BE MARKED IN AREA SHOWN NEAR LEAD EXIT OR ON NAMEPLATE.
5
MOUNTING DIMENSION.
1
ME C HA NIC A L D A TA
Tem perature R ange
D eg. C -55 To +155
R otor Mom ent O f Inertia O Z-IN-SE C ²
3.8 X 10
-4
W eight
O z.
4.5
Max. C ontinoues Speed
KR PM
20
ELECTRICAL DATA
Input Voltage
Volts RMS
Input Currenet
Max. MA
Input Power
Nom. Watts
Impedance ZRO
Ohms
Impedance ZRS
Ohms
Impedance ZSO
Ohms
Impedance ZSS
Ohms
Transformation Ratio
±5%
DC Rotor Resitance
±15% Ohms
DC Stator Resitance
±15% Ohms
Max. Error From E-Z
Minutes
Phase Shift (Open Circuit)
Nom.
Null Voltage
Max. MV
Hipot to Case
60Hz
VRMS
Hipot Between Phases
60Hz
VRMS
7 KHZ
4.25
55
.12
42+J 72
37+J 59
70+J107
62+J 92
.470
14
30
±7
4±3º
20
500
250
DELTRAN PT - HAROWE
15BRCX-600-J17
B44273
1.000
.995
.078
.093
ST. KITTS, WEST INDIES
S/N:
DC:
Acc:
1
5
.380±.015
A
1.450
1.451
1.450
2X
.544
.438
.437
1.390
1.385
.200 .125 TO
BRAIDED CABLE
4
A
.600 .125 TO
SHRINK TUBING
1.147
1.530
1.525
PHASING EQUATION
R1
RED/WHT
RED
S1
E (S1-S3) = KE (R1-R2) COS
E (S2-S4) = -KE (R1-R2) SIN
SCHEMATIC
BLUE
ROTOR
PRIMARY
YELLOW
#24 AWG(ET) LEADS
3
12" MIN. LENGTH
R2
FOR CCW ROTATION AS VIEWED FROM
TRANSFORMER END
YEL/WHT
BLACK
S3
STATOR
SECONDARY
S4
TOLERANCES
UNLESS SPECIFIED
DECIMAL
.XXX
±.005
DECIMAL
.XX
±.010
DECIMAL
.X
±.030
FRACTION
±1/64
ANGLES
±0°30'
DRAWN
S2
THIS DRAWING HAS BEEN
CREATED BY CAD/CAM. DO NOT
MANUALLY REVISE OR UPDATE.
D. HERRINGTON
DCH 11/10/99
RKT 11/15/99
MCP 11/19/99
D
C
B
ECO#100261
ECO#100052
ECO#D5774
ECO#16180
REVISIONS
3/10/15
DRW
CHECKED
ENGR
APPROV
10/11
11/01
10/99
DATE
TSM
RKT
RKT
APPR.

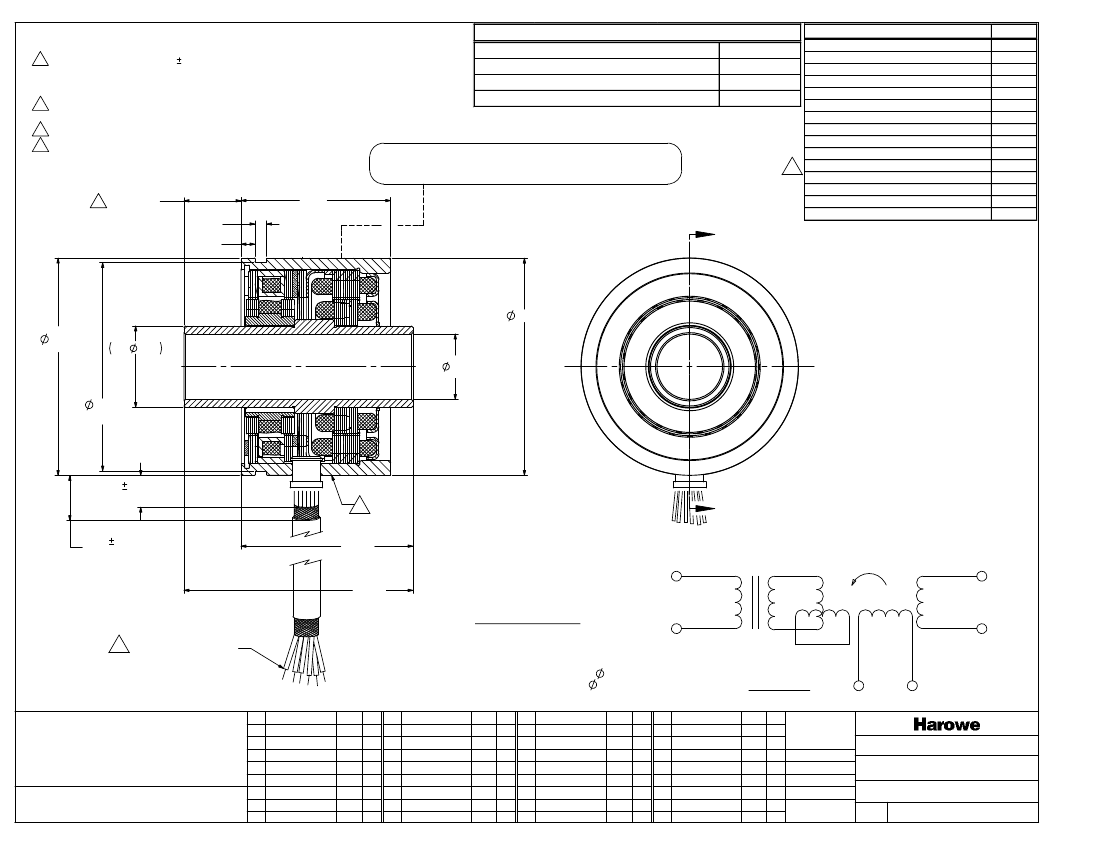

OUTLINE & PERFORMANCE
SPECIFICATIONS
RESOLVER BRUSHLESS FRAMELESS
3:1
SCALE
PROPRIETARY RIGHTS OF DELTRAN PT - HAROWE ARE INCLUDED IN THE
INFORMATION DISCLOSED HEREIN. DO NOT DUPLICATE OR DISCLOSE TO
THIRD PARTIES WITHOUT WRITTEN PERMISSION OF DELTRAN PT.
Tolerancing Complies With ANSI/ASME Y14.5M-1994
CHG.
REVISIONS
DATE
APPR.
CHG.
REVISIONS
DATE
APPR.
CHG.
REVISIONS
DATE
APPR.
A
CHG.
CODE IDENT NO.
58655
DWG.
NO.
15BRCX-600-J17
SHEET 1 OF 2
