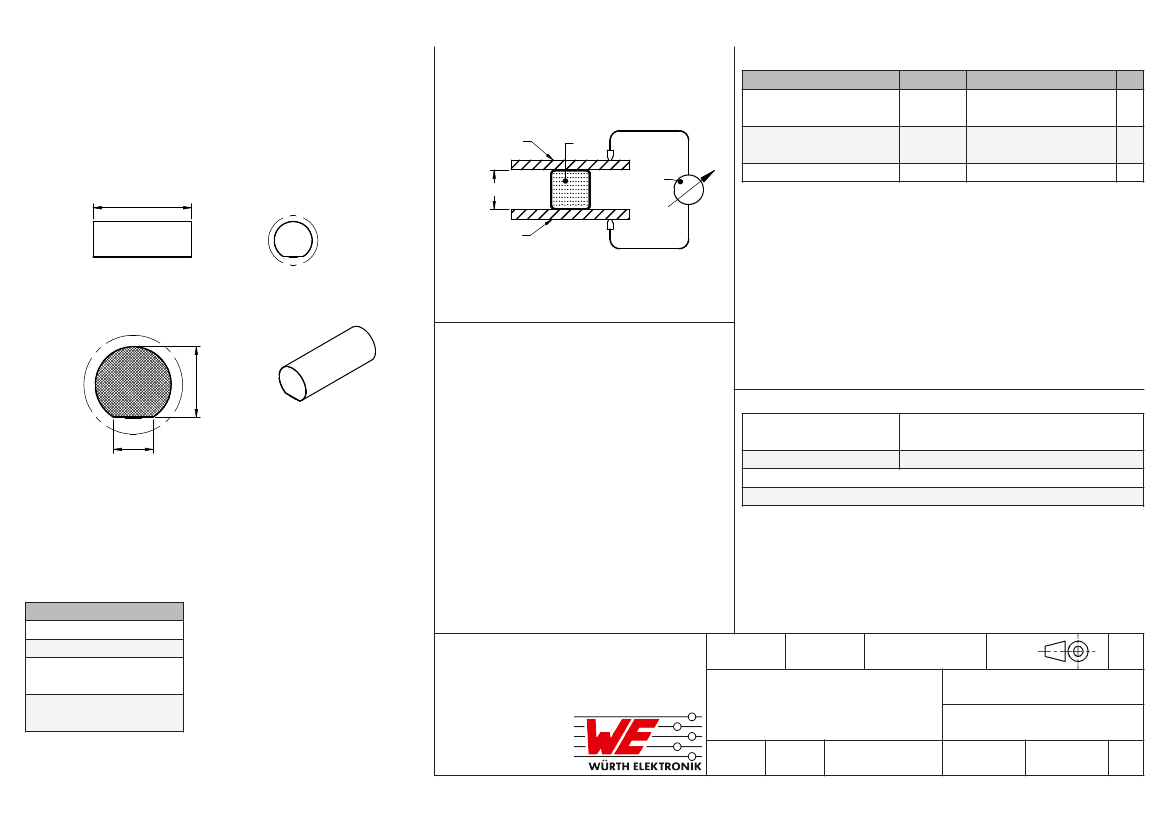

Dimensions: [mm]
Surface Resistance vs. Compression:
Electrical Properties:
Properties
Shielding Effectiveness @ 100
MHz
1)
Shielding
Effectiveness
@ 100 MHz
Shielding
Effectiveness
@ 1 GHz
R
S
Value
80
75
0.08
Unit
dB
dB
Ω
Copper Plate
WE-LTx
Ohm Meter
Shielding Effectiveness @ 1 GHz
2)
Surface Resistance
3)
Compression
~ 1000
1)
based on MIL-STD-225
2)
based on MIL-STD-225
3)
Measurement equipment: Loresta AX MCP-T370
Copper Plate
A
detail A
18,0
General Information:
10,0
Storage Temperature (in original
packaging)
Operating Temperature
-40 °C up to +85 °C
-40 °C up to +85 °C
Flammability: UL94 V-0 (File Number E474708)
Test conditions of Electrical Properties: +20°C, 33% RH if not specified differently
Scale - 1:2
Material
Metallized Fiber
Polyether Urethane Foam
Rayon Paper with acrylic
adhesive
Reactive Polyurethane Hotmelt
Adhesive
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
KaS
DESCRIPTION
JoV
DIN ISO 2768-1m
WE-LT Conductive Shielding
Gasket
SIZE
REVISION
STATUS
ORDER CODE
3031018
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
D-Profile
005.001
Valid
2017-03-30
eiSos
1/3
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
Typical Shielding Effectiveness:
