AS85049/141

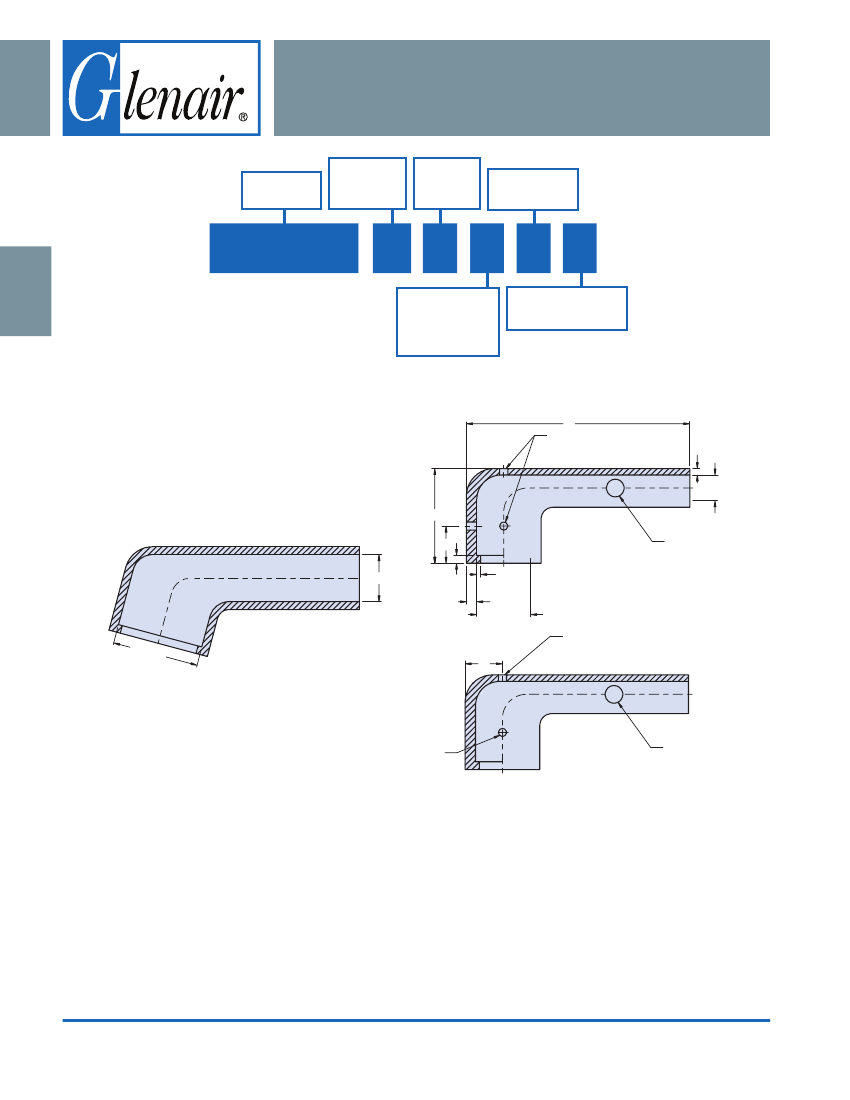

90°
Lipped Miniature Low Profile Heat Shrink Boot
B
AS85049
H Dia
Basic
Part Number
Dash
Number
Table I
Material
Table II
See Note 2
Drain Holes
Omit for None
M85049/141
-
19
H
Adhesive
C
D
P
Injection Vent-Ports
Omit for None
C
= Adhesive Lined
U
= No Adhesive
Table III
P
Optional Ø.120 (3.05)
Drain Holes (4 Plcs) 90° apart
and one on Top. See Note 3
JW
J Dia
H
R
S
J Dia
.120 Ref
(3.05)
T
HW
H Dia
Optional
Ø.180 (4.57)
Injection Port
Recovered
with Drain Holes
See
Note 2
As Supplied
U
H
Optional
Ø.120 (3.05)
Vent Port
See Note 3
See Note 2
Recovered
with Injection-Vent Port
© 2013 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
Mil-Spec Backshells
U.S. CAGE Code 06324
Rev. 8.29.14
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
B-154
E-Mail: sales@glenair.com
AS85049/141
90°
Lipped Miniature Low Profile Heat Shrink Boot
TABLE I: Dash Number and Dimensions (Continued Below)
H Dia
J Dia Min
J Dia Max
J Dia
P
R
Max
(As Supplied)
(As Supplied)
Max
(As Recovered) (As Recovered)
(As Recovered) Material A, B, H
Material G
(As Recovered)
±10%
Ref
0.510 (13.0)
0.750 (19.1)
1.020 (25.9)
1.340 (34.0)
0.250 (6.4)
0.300 (7.6)
0.380 (9.7)
0.450 (11.4)
0.180 (4.6)
0.220 (5.6)
0.260 (6.6)
0.310 (7.9)
0.080 (2.0)
0.100 (2.5)
0.120 (3.0)
0.140 (3.6)
1.750 (44.5)
2.650 (67.3)
3.200 (81.3)
4.550 (115.6)
0.640 (16.3)
0.710 (18.0)
0.740 (18.8)
0.840 (21.3)
Dash
No.
19
20
21
22
H Dia
Min
(As Supplied)
0.760 (19.3)
1.030 (26.2)
1.350 (34.3)
1.720 (43.7)
TABLE I: Dash Number and Dimensions (Continued from Above)
T
HW
JW
S
U
Dash
(As Recovered) (As Recovered)
Max
(As Recovered) (As Recovered)
No.
Ref
±20%
(As Recovered)
±10%
±10%
19
20
21
22
0.040 (1.0)
0.040 (1.0)
0.040 (1.0)
0.070 (1.8)
0.060 (1.5)
0.070 (1.8)
0.070 (1.8)
0.070 (1.8)
0.050 (1.1)
0.050 (1.1)
0.050 (1.1)
0.050 (1.1)
0.470 (11.90)
0.470 (11.90)
0.470 (11.90)
0.470 (11.90)
0.220 (5.6)
0.330 (8.4)
0.450 (11.4)
0.610 (15.5)
B
TABLE II: Shrink Boot Materials
Material
Code Compound
A
B
G
H
2071
2040
2010
2025
Material Description
Flexible Polyolefin
General Purpose Polyolefin
Zero Halogen Polyolefin
High Performance Elastomer
Color
Code
WHITE
RED
GREEN
BLUE
TABLE III: Adhesive Description
Symbol
C
Adhesive Description
Zero Halogen / Hot Melt
APPLICATION NOTES
1.
See bag identification for matching boot
number, not number on boot. See part number
development for full description.
Encircled material letter designator located
on O.D. approximately mid length along the
“J” end. See part number development for full
description.
Dimensions applicable for both injection and
vent ports.
Metric dimensions (mm) are in parentheses.
2.
3.
4.
© 2013 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
Mil-Spec Backshells
U.S. CAGE Code 06324
Rev. 8.29.14
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
B-155
E-Mail: sales@glenair.com
AS85049
