DUAL SELECTABLE AC INPUT AC-DC SINGLE & MULTIPLE OUTPUT

45-150 WATTS 19" COMPATIBLE EUROCARD SWITCHING

POWER SUPPLIES HSU45,HSU60 & HSU100 SERIES

FEATURES:

DUAL INPUT RANGE USER SELECTABLE

19" COMPATIBLE EUROCARD FORMAT

MEET THE SAFETY STANDARDS

EMI MEET CISPR PUB.22 & FCC CLASS B

CE MARKING COMPLIANCE

HSU45 6TE x 3U x 160MM VMEbus STANDARD

HSU60 8TE x 3U x 160MM VMEbus STANDARD

HSU100 10TE x 3U x 160MM VMEbus STANDARD

SPECIFICATION

INPUT SPECIFICATION

Input Voltage:

115Vac/230Vac dual selectable.

Input Connector:

DIN 41612 at rear.

Input Frequency:

47-63Hz.

Inrush Current:

Typ.25A @230Vac.

Input Current:

HSU45 0.88A@115Vac/0.44A@230Vac.

Use T2.0A/250Vac fuse.

HSU60 1.2A@115Vac/0.7A@230Vac.

Use T2.5A/250Vac fuse.

HSU100 2.2A@115Vac/1.2A@230Vac.

Use T3.15A/250Vac fuse.

Dielectric Withstand:

Meet IEC950.

EMI:

Meet CISPR PUB.22 or FCC Class B.

Power Fail Signal:

Installed.

Remote (Logic) Inhibit:

Available.

Hold-up Time:

Typ. 20mS @115Vac/50mS @230Vac.

Earth leakage:

Typ. 0.3mA @230Vac.

Overload Protection (OLP):

Fully protected against

output overload and short circuit.

Consult the factory for OLP setting.

OUTPUT SPECIFICATION

Output Voltage:

See Ratings Chart.

Output Current:

See Ratings Chart.

Output Wattage:

Typ. 45 Watts for HSU45.

Typ. 60 Watts for HSU60.

Typ. 100 Watts for HSU100.

Output Connector:

DIN 41612 at rear.

Line Regulation:

Typ. 0.4%.

Load Regulation:

Main VO1 typ. ±1.0%.

Aux. VO2 typ. ±2-3.0% (PR).

±2.0% (Mag. Amp.)

Aux. VO3 typ. ±2-3.0% (PR).

Aux. VO4 typ. ±2-3.0% (PR).

Noise & Ripple:

Typ. 1% peak to peak.

OVP:

Built-in at main VO1 (latch).

Adjustability:

Available at main output VO1 and

Aux. output VO2 (Mag. Amp.).

Remote Sense:

Installed in main VO1.

Operating Temperature:

0 to +50°C at full load.

Derate linearly to +70°C at half load.

Storage Temperature:

-20 to +85°C.

Temperature Coefficient:

Typ. 0.04%/°C.

Cooling:

Free air convection cooling.

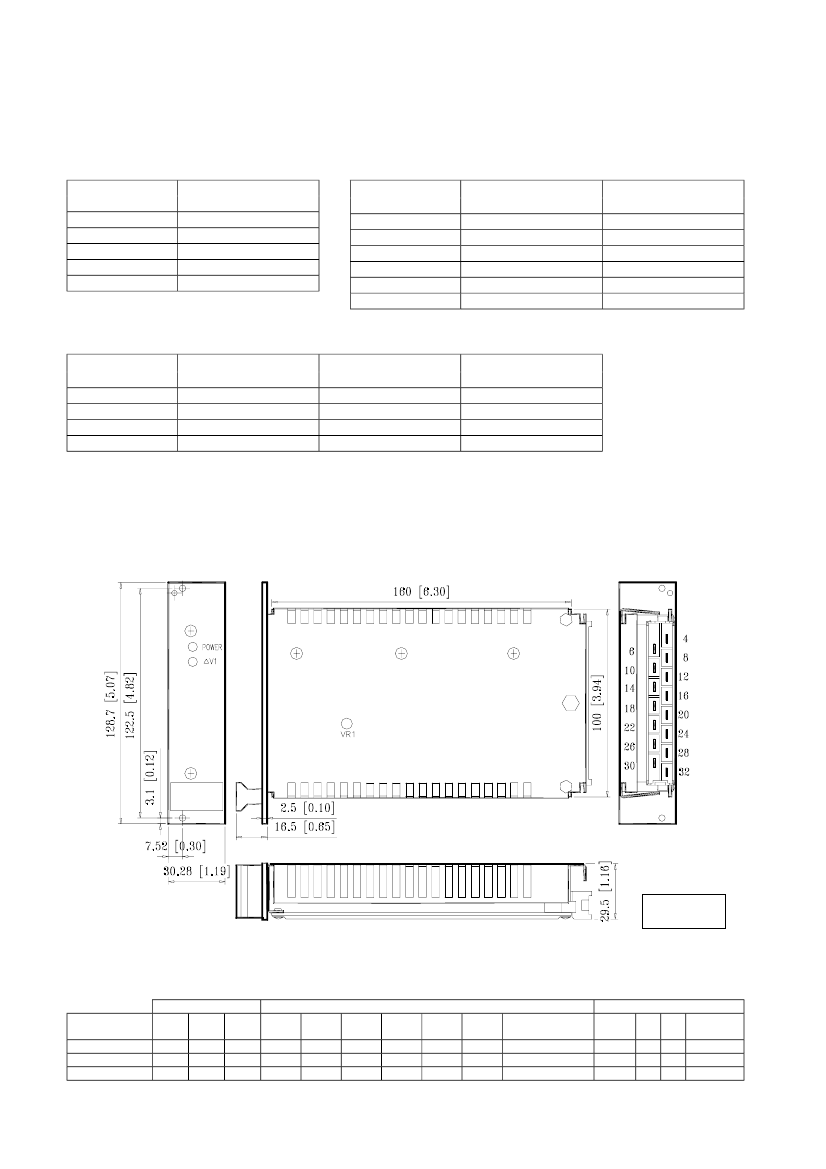

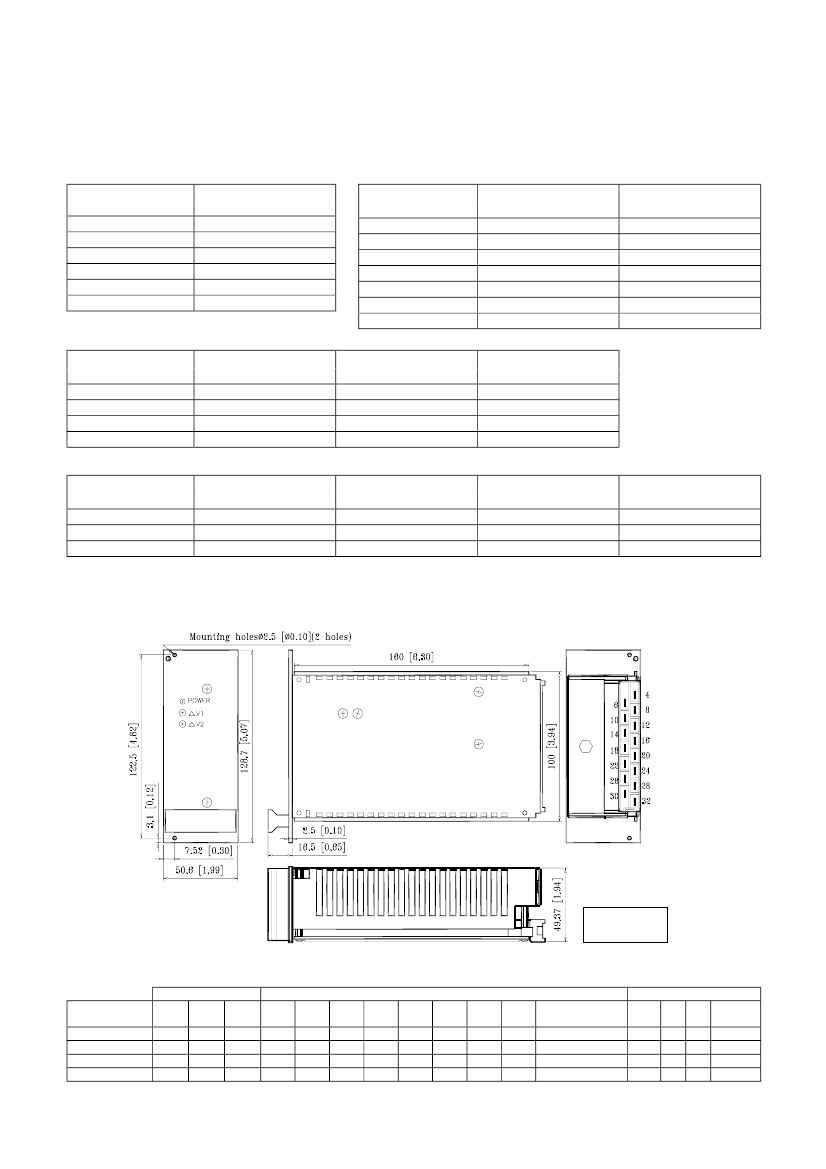

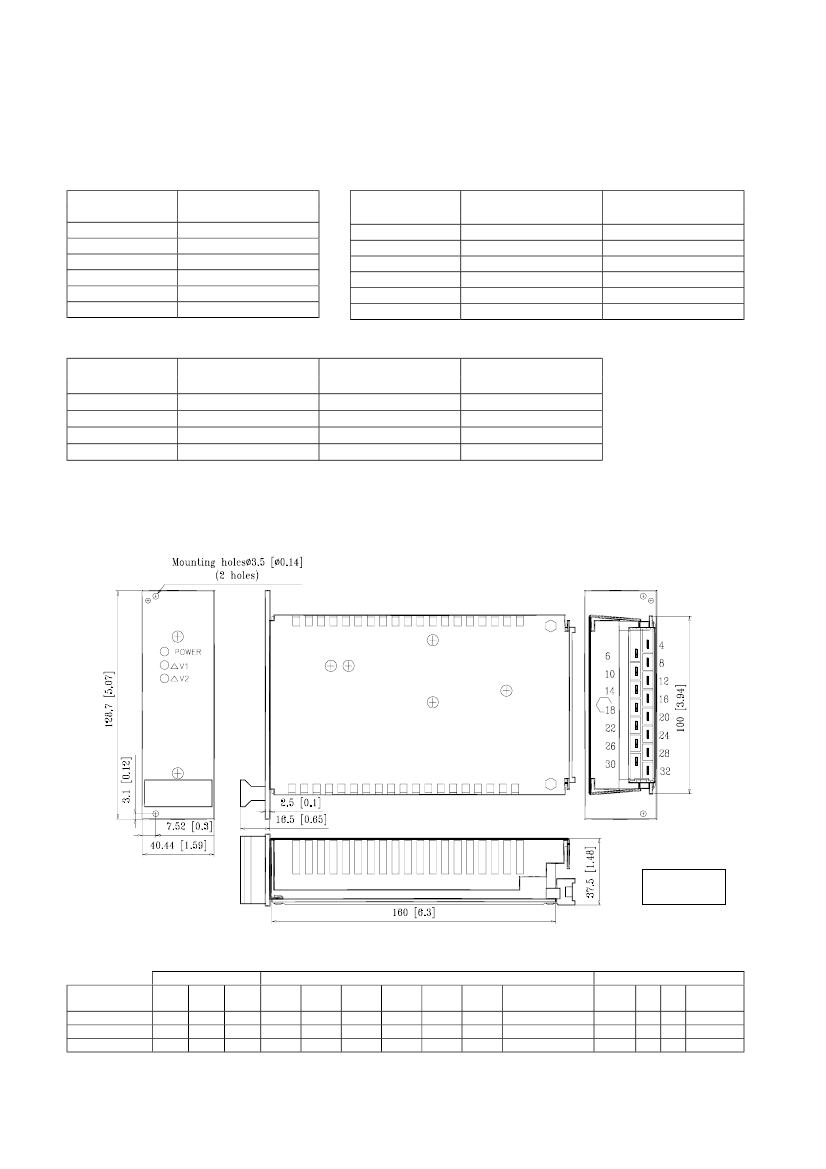

Construction format:

6,8,10TEx3Ux160mm

19” compatible Eurocard VMEbus standard.

GENERAL SPECIFICATION

Efficiency:

Typ. 70-75%.

Switching Frequency:

Typ. 100K Hz.

Circuit Topology:

Forward circuit.

Transient Response:

Output voltage returns in less than

3mS following a 25% load change.

Safety Standard:

IEC950/UL1950.

Power Density:

1.4 Watt / Cubic Inch for HSU45 & HSU60.

1.9 Watt / Cubic Inch for HSU100.

Note: All measurements are at nominal input, full load, and +40°C unless otherwise specified.
