SAW components
SAW RF filter
Data sheet
Table of contents
B3791
433.42 MHz
1
Application.........................................................................................................................................
3
2
Features............................................................................................................................................
3
3
Package............................................................................................................................................
4
4
Pin configuration................................................................................................................................
4
5
Matching circuit.................................................................................................................................
5
6
Characteristics...................................................................................................................................
7
7
Maximum ratings...............................................................................................................................
8
8
Transmission coefficient....................................................................................................................
9
9
Packing material..............................................................................................................................
10
10
Marking..........................................................................................................................................
11
11
Soldering profile.............................................................................................................................
13
12
ESD protection of SAW filters........................................................................................................14
13
Annotations...................................................................................................................................
15
14
Cautions and warnings..................................................................................................................
16
Important notes.................................................................................................................................
17
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 17
June 13, 2016
SAW components
SAW RF filter
Data sheet
1
Application
Low-loss RF filter for remote control receivers
Balanced to unbalanced operation possible
2
Features
Package size 3.8±0.15 mm × 3.8±0.15 mm
Package height 1.5+0.1/−0.15 mm
Package code QCC8B
Approximate weight 0.07 g
RoHS compatible
Package for Surface Mount Technology (SMT)
Lead free soldering compatible with J-STD20C
Filter surface passivated
AEC-Q200 qualified component family
Electrostatic Sensitive Device (ESD)
Moisture Sensitivity Level 1 (MSL1)
B3791
433.42 MHz

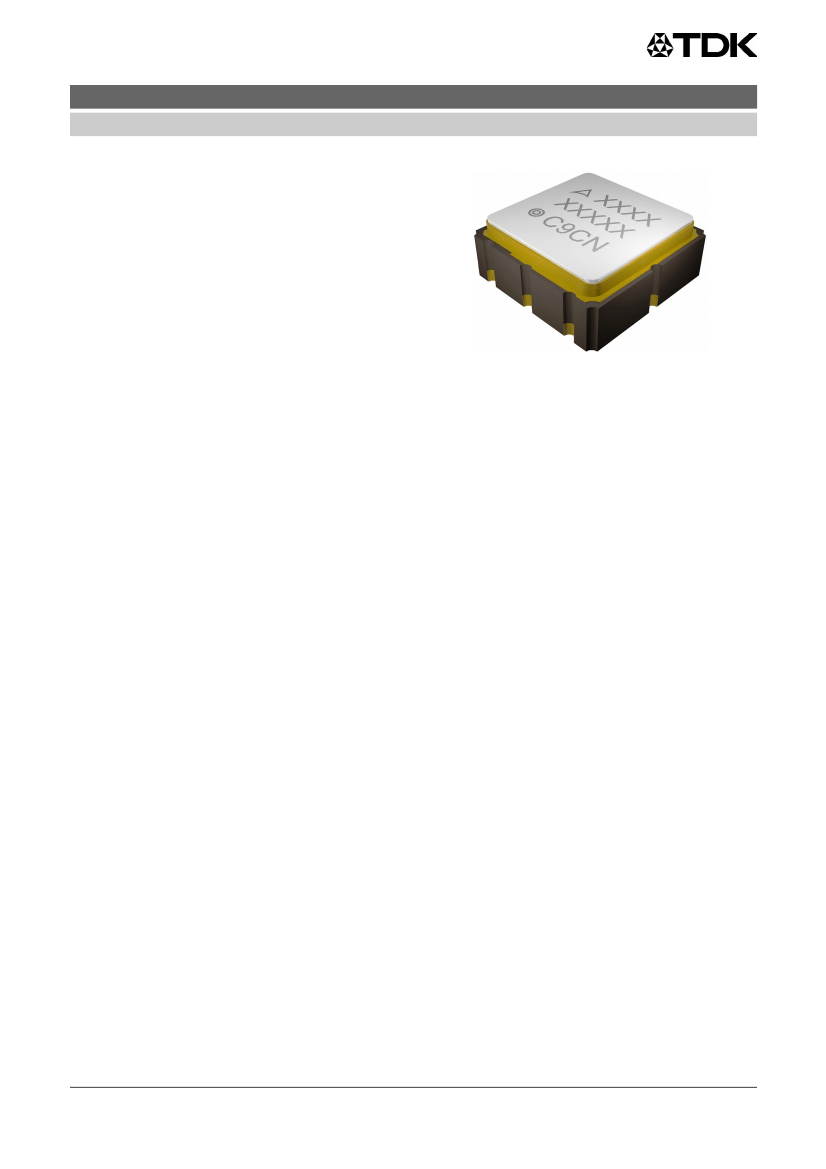

Figure 1:
Picture of component
with example of product marking.
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 17
June 13, 2016
