HSMS-8207-BLK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> HSMS-8207-BLK

HSMS-8207-BLK: DescriptionSILICON, X-KU BAND, MIXER DIODE; CategoryDiscrete semiconductor diode; File Size94KB，5 Pages; ManufacturerHP（Keysight）; Websitehttp://www.semiconductor.agilent.com/

Download Datasheet Parametric View All

HSMS-8207-BLK Overview

SILICON, X-KU BAND, MIXER DIODE

HSMS-8207-BLK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	HP（Keysight）
package instruction	R-PDSO-G4
Contacts	4
Reach Compliance Code	unknow
ECCN code	EAR99
Shell connection	ANODE AND CATHODE
Configuration	RING, 4 ELEMENTS
Maximum diode capacitance	0.26 pF
Diode component materials	SILICON
Diode type	MIXER DIODE
frequency band	X BAND TO KU BAND
maximum impedance	150 Ω
JESD-30 code	R-PDSO-G4
JESD-609 code	e0
Number of components	4
Number of terminals	4
Maximum operating frequency	14 GHz
Minimum operating frequency	10 GHz
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	YES
technology	SCHOTTKY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

HSMS-8207-BLK Preview

Surface Mount Microwave

Schottky Mixer Diodes

Technical Data

HSMS-8101 Single

HSMS-8202 Series Pair

HSMS-8207 Ring Quad

HSMS-8209 Crossover Quad

Features

• Optimized for use at

10-14 GHz

• Low Capacitance

• Low Conversion Loss

• Low RD

• Low Cost Surface Mount

Plastic Package

• Lead-free Option Available

Plastic SOT-23 Package

Package Lead Code

Identification

(Top View)

SINGLE

SERIES

Plastic SOT-143 Package

Description/Applications

These low cost microwave

Schottky diodes are specifically

designed for use at X/Ku-bands

and are ideal for DBS and VSAT

downconverter applications. They

are available in SOT-23 and

SOT-143 standard package

configurations.

Note that Agilent's manufacturing

techniques assure that dice found in

pairs and quads are taken from

adjacent sites on the wafer, assur-

ing the highest degree of match.

RING

QUAD

CROSS-OVER

QUAD

Absolute Maximum Ratings

[1]

, T

= +25°C

Symbol Parameter

STG

, T

Total Device Dissipation

[2]

Peak Inverse Voltage

Junction Temperature

Storage and Operating

Temperature

Unit

°C

Min.

—

-65

Max.

+150

Notes:

1. Operation in excess of any one

of these conditions may result

in permanent damage to the

device.

2. Measured in an infinite heat

sink at T

CASE

= 25°C. Derate

linearly to zero at 150°C per

diode.

ESD WARNING:

Handling Precautions Should Be Taken To Avoid Static Discharge.

DC Electrical Specifications, T

= 25°C

Symbol Parameters and Test Conditions

∆C

∆R

∆V

Breakdown Voltage

= 10

µA

Total Capacitance

= 0 V, f = 1 MHz

Capacitance Difference

= 0 V, f = 1 MHz

Dynamic Resistance

= 5 mA

Dynamic Resistance Difference

= 5 mA

Forward Voltage

= 1 mA

Forward Voltage Difference

= 1 mA

Lead Code

Package Marking Code in White

where x is date code

HSMS-8101

Units Min. Max.

Ω

R1x

250

0.26

—

350

—

HSMS-8202

Min. Max.

0.26

0.04

250

350

2Rx

HSMS-8207

Min. Max.

0.26

0.04

250

350

R7x

HSMS-8209

Min. Max.

0.26

0.04

250

350

R9x

RF Electrical Parameters, T

= 25°C

Symbol

SWR

Parameter

Conversion Loss at 12 GHz

IF Impedance

SWR at 12 GHz

Units

Ω

Typical

6.3

150

1.2

Note:

DC Load Resistance = 0

Ω;

LO Power = 1 mW.

SPICE Parameters

= 4.6 E-8

= 6

N = 1.09

= 7.3

= 10E-5

= 0.69

= 0.18 E-12

) = 0.5

M = 0.5

FC = 0.5

TT = 0

Linear Equivalent Circuit

0.08 pF

1.0 nH

1.3 nH

Ω

0.17 pF

Self Bias

1 mA

263

2.5 mA

142

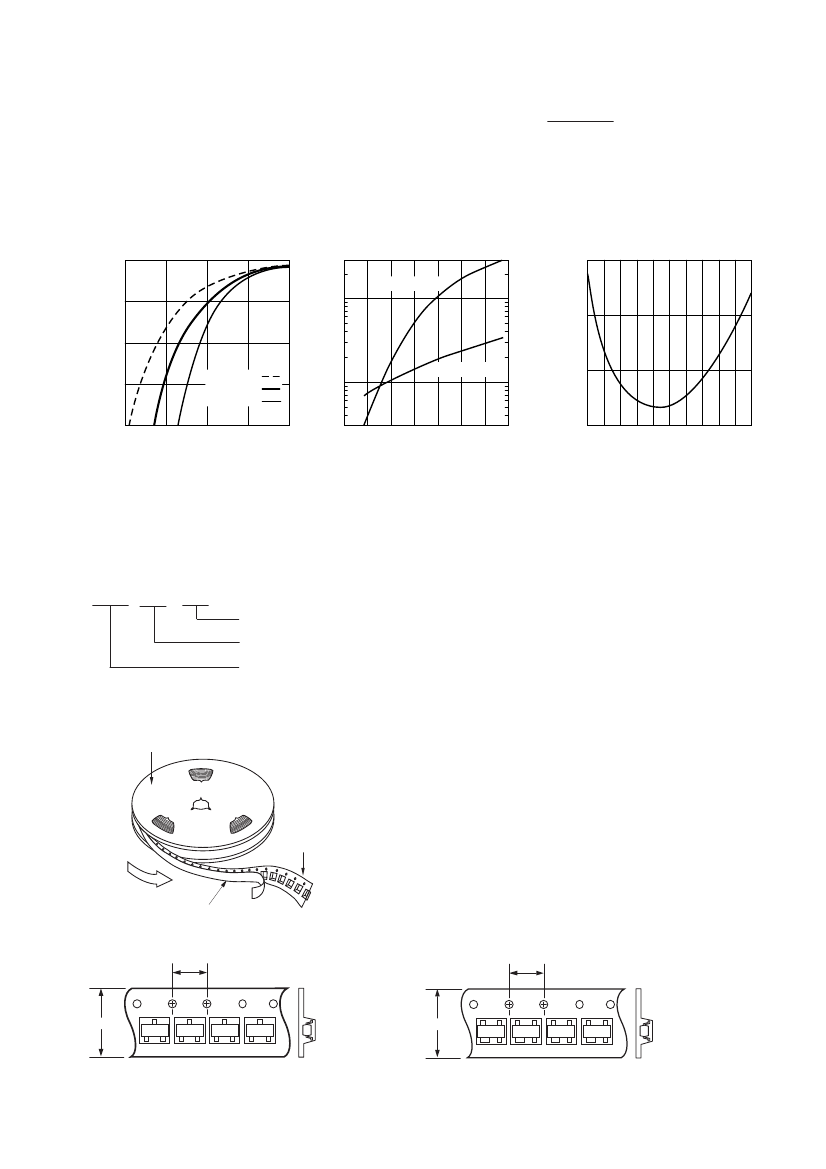

Typical Performance, T

= 25°C

∆V

- FORWARD VOLTAGE DIFFERENCE (mV)

100

- FORWARD CURRENT (mA)

FORWARD CURRENT (mA)

(Left Scale)

CONVERSION LOSS (dB)

0.1

= +125°C

= +25°C

= –55°C

∆V

(Right Scale)

0.01

0.2

0.4

0.6

0.8

0.3

0.20 0.25 0.30 0.35 0.40 0.45 0.50 0.55

V - FORWARD VOLTAGE (V)

–7 –5 –3 –1 1

11 13

FORWARD VOLTAGE (V)

LOCAL OSCILLATOR POWER (dBm)

Figure 1. Typical Forward Current

vs. Forward Voltage at Three

Temperatures.

Figure 2. Typical VF Match, HSMS-

820X Pairs and Quads.

Figure 3. Typical Conversion Loss

vs. Local Oscillator Power.

Ordering Information

Specify part number followed by option. For example:

HSMS - 8101 - XXX

Bulk or Tape and Reel Option

Part Number

Surface Mount Schottky

Profile Option

Descriptions

-BLK = Bulk

-TR1 = 3K pc. Tape and Reel,

Device Orientation

Figures 4, 5

-TR2 = 10K pc. Tape and Reel,

Device Orientation

Figures 4, 5

Tape and Reeling conforms to

Electronic Industries RS-481,

“Taping of Surface Mounted

Components for Automated

Placement.”

For lead-free option, the part

number will have the character "G"

at the end, eg. -TR2G for a 10K pc

lead-free reel.

Device Orientation

REEL

CARRIER

TAPE

USER

FEED

DIRECTION

COVER TAPE

TOP VIEW

4 mm

END VIEW

TOP VIEW

4 mm

END VIEW

8 mm

ABC

8 mm

ABC

Note: "AB" represents package marking code.

"C" represents date code.

Note: "AB" represents package marking code.

"C" represents date code.

Figure 4. Option -TR1/-TR2 for SOT-23 Packages.

Figure 5. Option -TR1/-TR2 for SOT-143 Packages.

Package Characteristics

Lead Material ...................................................................................... Alloy 42

Lead Finish ............................................................................ Tin-Lead 85-15%

Maximum Soldering Temperature .............................. 260°C for 5 seconds

Minimum Lead Strength .......................................................... 2 pounds pull

Typical Package Inductance .................................................................. 2 nH

Typical Package Capacitance .............................. 0.08 pF (opposite leads)

Package Dimensions

Outline 23 (SOT-23)

1.02 (0.040)

0.89 (0.035)

0.54 (0.021)

0.37 (0.015)

1.40 (0.055)

1.20 (0.047)

2.04 (0.080)

1.78 (0.070)

TOP VIEW

0.152 (0.006)

0.066 (0.003)

1.02 (0.041)

0.85 (0.033)

2.65 (0.104)

2.10 (0.083)

DATE CODE (X)

PACKAGE

MARKING

CODE (XX)

XXX

0.60 (0.024)

0.45 (0.018)

3.06 (0.120)

2.80 (0.110)

0.10 (0.004)

0.013 (0.0005)

SIDE VIEW

DIMENSIONS ARE IN MILLIMETERS (INCHES)

0.69 (0.027)

0.45 (0.018)

END VIEW

Outline 143 (SOT-143)

0.92 (0.036)

0.78 (0.031)

DATE CODE (X)

PACKAGE

MARKING

CODE (XX)

XXX

1.40 (0.055)

1.20 (0.047)

2.65 (0.104)

2.10 (0.083)

0.60 (0.024)

0.45 (0.018)

2.04 (0.080)

1.78 (0.070)

3.06 (0.120)

2.80 (0.110)

0.54 (0.021)

0.37 (0.015)

0.15 (0.006)

0.09 (0.003)

1.04 (0.041)

0.85 (0.033)

0.10 (0.004)

0.013 (0.0005)

0.69 (0.027)

0.45 (0.018)

DIMENSIONS ARE IN MILLIMETERS (INCHES)

Tape Dimensions and Product Orientation

For Outline SOT-23

9° MAX

8° MAX

13.5° MAX

DESCRIPTION

CAVITY

LENGTH

WIDTH

DEPTH

PITCH

BOTTOM HOLE DIAMETER

DIAMETER

PITCH

POSITION

WIDTH

THICKNESS

CAVITY TO PERFORATION

(WIDTH DIRECTION)

CAVITY TO PERFORATION

(LENGTH DIRECTION)

SYMBOL

SIZE (mm)

3.15

0.10

2.77

0.10

1.22

0.10

4.00

0.10

1.00 + 0.05

1.50 + 0.10

4.00

0.10

1.75

0.10

8.00 +0.30 –0.10

0.229

0.013

3.50

0.05

2.00

0.05

SIZE (INCHES)

0.124

0.004

0.109

0.004

0.048

0.004

0.157

0.004

0.039

0.002

0.059 + 0.004

0.157

0.004

0.069

0.004

0.315 +0.012 –0.004

0.009

0.0005

0.138

0.002

0.079

0.002

PERFORATION

CARRIER TAPE

DISTANCE

BETWEEN

CENTERLINE

For Outline SOT-143

www.agilent.com/semiconductors

For product information and a complete list of

distributors, please go to our web site.

9° MAX

For technical assistance call:

Americas/Canada: +1 (800) 235-0312 or

(916) 788-6763

Europe: +49 (0) 6441 92460

DESCRIPTION

CAVITY

LENGTH

WIDTH

DEPTH

PITCH

BOTTOM HOLE DIAMETER

DIAMETER

PITCH

POSITION

WIDTH

THICKNESS

CAVITY TO PERFORATION

(WIDTH DIRECTION)

CAVITY TO PERFORATION

(LENGTH DIRECTION)

SYMBOL

SIZE (mm)

3.19

0.10

2.80

0.10

1.31

0.10

4.00

0.10

1.00 + 0.25

1.50 + 0.10

4.00

0.10

1.75

0.10

SIZE (INCHES)

0.126

0.004

0.110

0.004

0.052

0.004

0.157

0.004

0.039 + 0.010

0.059 + 0.004

0.157

0.004

0.069

0.004

0.315+0.012 –0.004

0.0100

0.0005

0.138

0.002

0.079

0.002

China: 10800 650 0017

Hong Kong: (65) 6756 2394

India, Australia, New Zealand: (65) 6755 1939

Japan: (+81 3) 3335-8152(Domestic/International), or

0120-61-1280(Domestic Only)

Korea: (65) 6755 1989

Singapore, Malaysia, Vietnam, Thailand, Philippines,

Indonesia: (65) 6755 2044

Taiwan: (65) 6755 1843

Data subject to change.

Obsoletes 5988-3328EN

March 24,

2004

5989-0481EN

PERFORATION

CARRIER TAPE

DISTANCE

8.00 +0.30 –0.10

0.254

0.013

3.50

0.05

2.00

0.05

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
