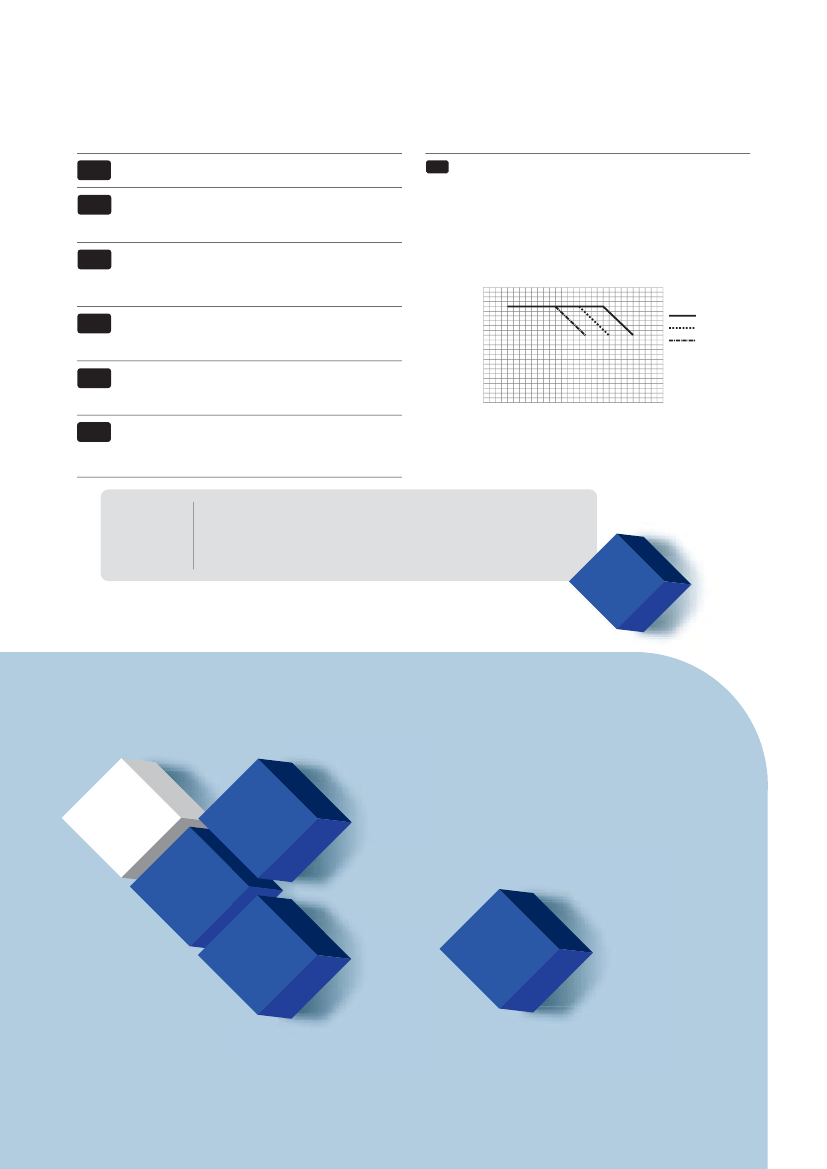

Explanation of Symbols in This Catalog
Ultra-
L x W dimension: products of 0.6 x 0.3 mm or less
compact
Derating
Voltage and temperature derating recommended product
HiQ
By devising ceramic materials and electrode materials,
low dissipation is achieved in frequency bands of VHF,
UHF and microwave or beyond.
Low
ESL
Low dissipation for high frequency
Operating Voltage/Rated Voltage (%)
Low inductance
This capacitor is designed so that
the parasitic inductance component (ESL)
that the capacitor has on the high frequency
side becomes lower.
This product is suitable when a voltage continuously applied
to a capacitor in an operating circuit, is used below (derated)
the rated voltage of the capacitor.
This model guarantees the test conditions in the endurance test,
at a rated voltage x 100% at the maximum operating temperature.
A reliability assurance level equivalent to a common product
can be secured, by using this product within the voltage and
temperature derated conditions recommended in the figure below.
Recommended Conditions of the Derating Operating Voltage and Temperature
120
100
Anti-
Product suitable for acoustic noise reduction and low distortion
noise
This product suppresses acoustic noise,
80
which occurs when a ceramic capacitor is used,
by devising the materials and configuration.
Deflecting
Product resistant to deflection cracking
crack
This capacitor is designed to prevent failures as much
60
40
125°C Type
105°C Type
85°C Type
20
as possible by short mode caused by cracking
when there is board deflection.
Soldering
Product with solder cracking suppression
crack
This capacitor is configured with metal terminals
0
0
25
50
75
100
125
150
Product Temperature (°C)
and leads connected to the chip.
The metal terminals and leads relieve the stress from expansion
and contraction of the solder, to suppress solder cracking.
EU RoHS
Compliant
All the products in this catalog comply with EU RoHS.
EU RoHS is "the European Directive 2011/65/EU on the Restriction of the Use
of Certain Hazardous Substances in Electrical and Electronic Equipment."
For more details, please refer to our website 'Murata's Approach for EU RoHS'
(http://www.murata.com/info/rohs.html).
For General Purpose GRM Series Capacitance Table
Pur ose
e
!Note
• Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
C02E.pdf
Oct.1,2012
Contents
Chip Monolithic Ceramic Capacitors
(Medium Voltage)
Cap. Table
For General Purpose
GRM (250Vdc min.)/GRJ/GR3 Series
Temperature Compensating Type
GRM Series (250Vdc min.)
High Dielectric Constant Type
GRM Series (250Vdc min.)
Soft Termination Type GRJ Series
Large Capacitance and High Allowable
Ripple Current GR3 Series
p136 separate volume
p143 separate volume
p148
p11
p153
p11
Product specifications are as of
ecifications
July 2012
.
Selection Guide
Capacitance Table
Part Numbering
p2
p3
p15
Only for Applications
For LCD Backlight Inverter Circuit
GRM/DC3.15kV Series
For Information Devices GR4 Series
For Camera Flash Circuit GR7 Series
p158
p161
p165
p12
p12
p12
Chip Monolithic Ceramic Capacitors
Cap. Table
AC250V Type (Which Meet Japanese Law)
GA2 Series
p169
Safety Standard Certified GA3 Series
p12
For General Purpose GRM Series
(Less than 250Vdc)
p21 separate volume
Capacitor Array GNM Series
p76
p4
UL, IEC60384-14 Class X1/Y2 Type GC
IEC60384-14 Class Y2, X1/Y2 Type GF
IEC60384-14 Class Y3 Type GD
IEC60384-14 Class X2 Type GB
p173
p174
p176
p177
p13
p13
p13
p13
Low ESL LLL/LLR/LLA/LLM Series
p79
p5
Reference Data (Typical Example)
Package
!Caution/Notice
p182
p185
p188
High-Q Type GJM Series
p82
p7
Metal Terminal Monolithic
Ceramic Capacitors
Cap. Table
High Frequency GQM Series
p104
p8
For General Purpose KRM/KR3 Series
High Capacitance for General Use
KRM Series
Large Capacitance and High Allowable
Ripple Current KR3 Series
p200
p204
p14
p14
Monolithic Microchip GMA Series
p113
p9
Package
!Caution/Notice
p208
p210
For Bonding GMD Series
p115
p10
ISO 9001 Certifications
Introduction of WEB SimSurfing
EMICON-FUN!
p215
p216
p217
!Caution/Notice
p118
Product Information p218
Please check the MURATA home page (http://www.murata.com/) if you cannot find the part number in the catalog.
!Note
• Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
C02E.pdf
Oct.1,2012
Selection Guide For Chip Monolithic Ceramic Capacitors
Function
Type
High Capacitance
Decoupling, Smoothing
Array (2 or 4 Elements)
GNM
470pF–2.2μF
Series
GRM (X5R, X7R, Y5V etc.)
68pF–150μF
GRM (C0G)
Frequency Control/Tuning,
Impedance Matching
0.1pF–0.1μF
Class 1 TC's
GRM (U2J etc.)
Low Inductance
(Reverse Geometry)
LLL
2200pF–10μF
High Speed Decoupling
Low Inductance
(Controlled ESR)
Low Inductance
(Multi-Termination)
Low ESR, Ultra Small
LLR
1.0μF
LLA/LLM (From 1GHz)
0.01μF–4.7μF
GJM (500MHz to 10GHz)
0.1pF–47pF
High Frequency
Lowest ESR
Optical Communications
250Vdc min.
High-Frequency Snubber
250Vdc min.
LCD Backlight Inverter
Wire-Die-Bonding
250V/630V/1kV/2kV/3.15kV
Low Dissipation
3.15kV
Low Dissipation
250V/630V/1kV
High Capacitance
250Vdc min.
Decoupling, Smoothing
250V/630V/1kV
Soft Termination
250V/450V/630V
Large Capacitance and
High Allowable Ripple Current
GQM (500MHz to 10GHz)
0.1pF–100pF
GMA
100pF–0.47μF
GMD
100pF–0.47μF
GRM (C0G, U2J)
10pF–47000pF
Applications?
GRM (C0G)
5pF–47pF
GRM (X7R)
220pF–1μF
GRJ (X7R)
470pF–1μF
GR3 (X7T)
10000pF–1μF
250Vdc min.
For Camera Flash Circuit only
350V
High Capacitance
2kV
High Capacitance
Safety Standard
Certified
Safety Standard
Certified
GR7
10000pF–47000pF
GR4
100pF–10000pF
250Vdc min.
For Information Devices only
Type GD
10pF–4700pF
Type GF
10pF–4700pF
Type GC
100pF–330pF
Type GF
470pF–4700pF
Type GB
10000pF–56000pF
AC Lines Noise Removal
AC250V which meets
Japanese Law
Automotive
(Powertrain,
Safety Equipment)
High Capacitance
Class 1 TC's
250V/630V/1kV
Low Dissipation
250V/630V
Soft Termination
GA2
470pF–0.1μF
GCM (X7R etc.)
100pF–47μF
GCM (C0G etc.)
1.0pF–56000pF
GCM (U2J)
10pF–47000pF
250Vdc min. for Automotive
(Powertrain, Safety Equipment)
GCJ (X7R)
1000pF–0.47μF
2
!Note
• Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
C02E.pdf
Oct.1,2012
Capacitance Table
o
Temperature Characteristics Table
Temperature
Characteristic Codes
Public
STD Code
C0G
C0H
CK
CJ
CH
SL
P2H
PK
PJ
PH
R2H
RK
RJ
RH
S2H
SK
SJ
SH
T2H
TK
TJ
TH
U2J
UK
UJ
X7R
X7S
X7T
X7U
R
X6S
X6T
X5R
X5S
B
EIA
EIA
JIS
JIS
JIS
JIS
EIA
JIS
JIS
JIS
EIA
JIS
JIS
JIS
EIA
JIS
JIS
JIS
EIA
JIS
JIS
JIS
EIA
JIS
JIS
EIA
EIA
EIA
EIA
JIS
EIA
EIA
EIA
EIA
JIS
Temperature Characteristics
Reference
Temperature Capacitance Change
or Temperature
Temperature
Range
Coefficient
25°C
25°C
20°C
20°C
20°C
20°C
25°C
20°C
20°C
20°C
25°C
20°C
20°C
20°C
25°C
20°C
20°C
20°C
25°C
20°C
20°C
20°C
25°C
20°C
20°C
25°C
25°C
25°C
25°C
20°C
25°C
25°C
25°C
25°C
20°C
25°C
25 to 125°C
25 to 125°C
20 to 125°C
20 to 125°C
20 to 125°C
20 to 85°C
25 to 85°C
20 to 85°C
20 to 85°C
20 to 85°C
25 to 85°C
20 to 85°C
20 to 85°C
20 to 85°C
25 to 85°C
20 to 85°C
20 to 85°C
20 to 85°C
25 to 85°C
20 to 85°C
20 to 85°C
20 to 85°C
25 to 125°C
20 to 85°C
20 to 85°C
–55 to 125°C
–55 to 125°C
–55 to 125°C
–55 to 125°C
–55 to 125°C
–55 to 105°C
–55 to 105°C
–55 to 85°C
–55 to 85°C
–25 to 85°C
–55 to 125°C
0±30ppm/°C
0±60ppm/°C
0±250ppm/°C
0±120ppm/°C
0±60ppm/°C
+350 to –1000ppm/°C
–150±60ppm/°C
–150±250ppm/°C
–150±120ppm/°C
–150±60ppm/°C
–220±60ppm/°C
–220±250ppm/°C
–220±120ppm/°C
–220±60ppm/°C
–330±60ppm/°C
–330±250ppm/°C
–330±120ppm/°C
–330±60ppm/°C
–470±60ppm/°C
–470±250ppm/°C
–470±120ppm/°C
–470±60ppm/°C
–750±120ppm/°C
–750±250ppm/°C
–750±120ppm/°C
±15%
±22%
+22%, –33%
+22%, –56%
±15%
±22%
+22%, –33%
±15%
±22%
±10%
±10%
Operating
Temperature
Range
–55 to 125°C
–55 to 125°C
–55 to 125°C
–55 to 125°C
–55 to 125°C
–55 to 125°C
–55 to 125°C
–25 to 85°C
–25 to 85°C
–25 to 85°C
–55 to 125°C
–25 to 85°C
–25 to 85°C
–25 to 85°C
–55 to 125°C
–25 to 85°C
–25 to 85°C
–25 to 85°C
–55 to 125°C
–25 to 85°C
–25 to 85°C
–25 to 85°C
–55 to 125°C
–25 to 85°C
–25 to 85°C
–55 to 125°C
–55 to 125°C
–55 to 125°C
–55 to 125°C
–55 to 125°C
–55 to 105°C
–55 to 105°C
–55 to 85°C
–55 to 85°C
–25 to 85°C
–55 to 125°C
Capacitance Change Each Temperature (%)
–55°C
Max.
0.58
0.87
2.56
1.37
0.82
-
2.33
-
-
-
3.02
-
-
-
4.09
-
-
-
5.46
-
-
-
8.78
-
-
-
-
-
-
-
-
-
-
-
-
-
Min.
–0.24
–0.48
–1.88
–0.9
–0.45
-
0.72
-
-
-
1.28
-
-
-
2.16
-
-
-
3.28
-
-
-
5.04
-
-
-
-
-
-
-
-
-
-
-
-
-
–25°C
Max.
0.4
0.59
1.54
0.82
0.49
-
1.61
2.36
1.65
1.32
2.08
2.74
2.03
1.7
2.81
3.35
2.63
2.3
3.75
4.12
3.4
3.07
6.04
5.65
4.94
-
-
-
-
-
-
-
-
-
-
-
Min.
–0.17
–0.33
–1.13
–0.54
–0.27
-
0.5
–0.45
0.14
0.41
0.88
–0.14
0.45
0.72
1.49
0.36
0.95
1.22
2.26
0.99
1.58
1.85
3.47
2.25
2.84
-
-
-
-
-
-
-
-
-
-
-
–10°C
Max.
0.25
0.38
1.02
0.55
0.33
-
1.02
1.57
1.1
0.88
1.32
1.83
1.35
1.13
1.79
2.23
1.76
1.54
2.39
2.74
2.27
2.05
3.84
3.77
3.29
-
-
-
-
-
-
-
-
-
-
-
Min.
–0.11
–0.21
–0.75
–0.36
–0.18
-
0.32
–0.3
0.09
0.27
0.56
–0.09
0.3
0.48
0.95
0.24
0.63
0.81
1.44
0.66
1.05
1.23
2.21
1.5
1.89
-
-
-
-
-
-
-
-
-
-
-
-
: Murata Temperature Characteristic
c
GRM Series
Chip Monolithic Ceramic Capacitors
For General Purpose GRM Series
Capacitance Table
Tabl
l
le
For the Capacitance Table of General Purpose GRM Series,
please review the inserted Capacitance Table of
"Chip Monolithic Ceramic Capacitor and General Purpose GRM Series".
京公网安备 11010802033920号
EEWORLD
