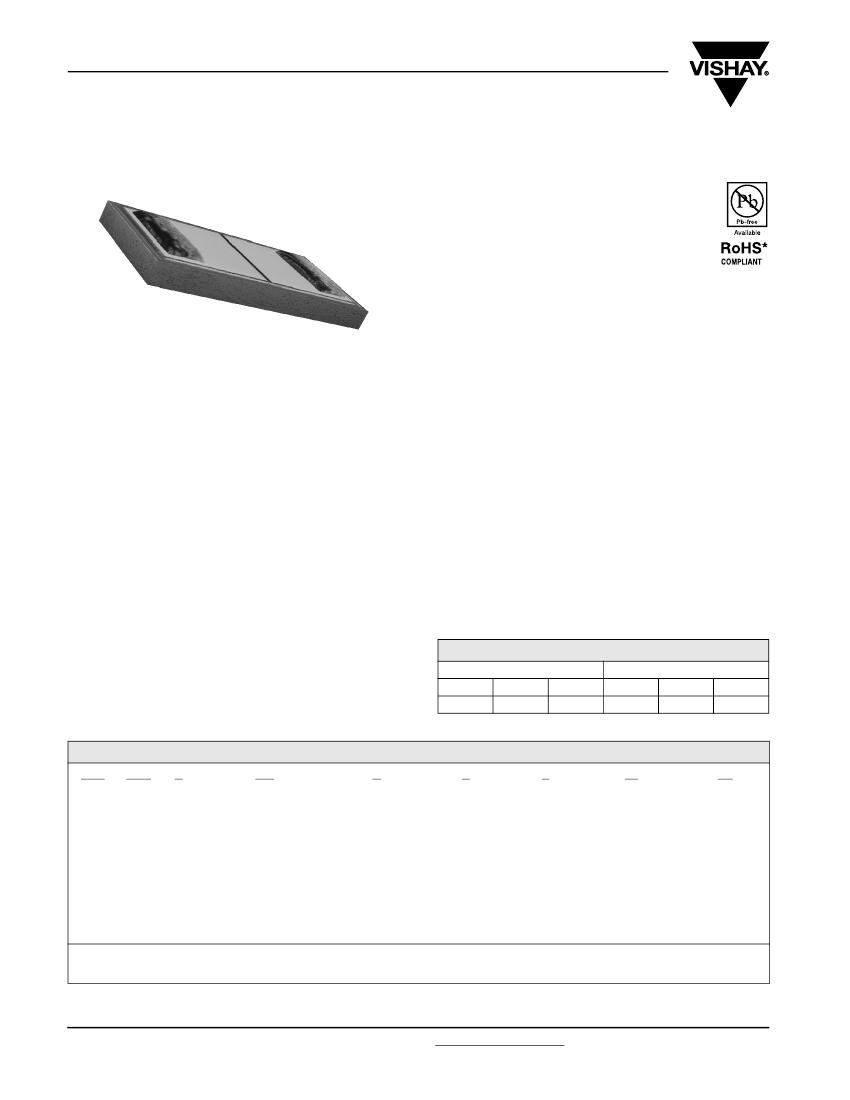

Not for new designs, this product will be discontinued soon
HPC0402A
Vishay
High Performance, High Precision
Surface Mount 0402 Capacitor
FEATURES
•
Terminations are Sn/Ag/Cu or Au. The
standard product is lead (Pb)-free and RoHS
compliant, but terminations containing lead are
available
•
New technology surface mount capacitor
based on a special semiconductor process
•
Construction reduces the parasitic inductance and brings
the SRF values to ultra-high frequencies
•
Capacitance is extremely stable in a wide range of
frequencies from 1 MHz to several GHz
•
High Q and low ESR
•
Tight tolerance to ± 1 % or 0.05 pF
•
Ultra high SRF
•
Low parasitic inductance (~ 0.032 nH)
•
Capacitance range: 0.1 pF to 180
PATENTED
ELECTRICAL SPECIFICATIONS
Operating Temperature:
- 55 °C to + 125 °C
Temperature Coefficient
of Capacitance (TCC):
0 ± 30 ppm/°C
Insulation Resistance:
10
11
Ω
min
Voltage:
2.5 x rated voltage (DC)
for 5 seconds
Ageing:
none
APPLICATIONS
•
•
•
•
•
•
•
•
Wireless communications
Mobile phones
Cordless phones
GPS
VCO
Filter Networks
Matching Networks
Embedded substrates
ENVIRONMENTAL SPECIFICATIONS
Life Test:
Thermal Shock:
Moisture Resistance:
1000 hours, + 125 °C at
2 x rated voltage (DC)
100 Cycles, - 55 °C/+ 150 °C
1000 hours at rated DCV,
85 % RH, + 85 °C
CAPACITANCE TOLERANCE CODE
FOR LESS THAN 10 pF
A
B
C
± 0.05 pF ± 0.10 pF ± 0.25 pF
FOR 10 pF AND HIGHER
F
±1%
G
±2%
J
±5%
ORDERING INFORMATION
HPC
MODEL
0402
SIZE
A
TYPE
100
CAPACITANCE VALUE
G
CAPACITANCE
TOLERANCE
X
TERMINATION
X
VOLTAGE
T0
PACKAGING
XX
SPECIAL
ENGINEERING
CONTROL
CODE
Leave blank
when no special
requirements
apply
The first two digits are
significant, the third is a
multiplier. An “R”
indicates a decimal point.
Examples: 101 = 100 pF
4R7 = 4.7 pF
see chart above
X = Tin/Lead
termination
W = Lead
(Pb)-free
terminations
1=6V
Z = 10 V
Y = 16 V
X = 25 V
M = 50 V
L = 100 V
T0 = 10 000 pcs
T5 = 5000 pcs
T1 = 1000 pcs
tape and reel
“W” terminations preferred.
“See Part Numbering System, Document 10147, for complete explanations.”
* Pb containing terminations are not RoHS compliant, exemptions may apply.
www.vishay.com
12
For technical questions, contact: siliconRFcap@vishay.com
Document Number: 10117
Revision: 16-Dec-08
Not for new designs, this product will be discontinued soon
HPC0402A
High Performance, High Precision
Surface Mount 0402 Capacitor
DIMENSIONS
L
W
Vishay
B
FOR 0.1 - 0.5 pF
W
A
C
FOR 0.6 - 180 pF
W
C
B
B
For PCB pad design please see assembly/reflow recommendations document 10125.
DIMENSION
L
W
T*
A
A1
B
C
D
E
INCHES
0.040 ± 0.002
0.020 ± 0.002
0.016 ± 0.004
0.006 ± 0.002
0.004 ± 0.001
0.028 ± 0.002
0.014 ± 0.002
0.008 ± 0.002
0.010 ± 0.002
MILLIMETERS
1.02 ± 0.05
0.51 ± 0.05
0.40 ± 0.10
0.15 ± 0.05
0.10 ± 0.03
0.71 ± 0.05
0.36 ± 0.05
0.20 ± 0.05
0.25 ± 0.05
D
T
A1
* For low profile versions see data sheet HPC0402B/C
SRF VS. CAPACITANCE (TYPICAL)
100
SRF (GHz)
E
10
1
0.1
1
10
CAPACITANCE (pF)
100
1000
ESR VS. FREQUENCY (TYPICAL)
1
18 pF
6.8 pF
ESR (ohms)
3.3 pF
0.1
0.01
0
500
1000
1500
FREQUENCY (MHz)
2000
2500
3000
Q VS. FREQUENCY (TYPICAL)
10 000
1000
Q FACTOR
1 pF
100
3.3 pF
6.8 pF
18 pF
10
33 pF
1
0
500
1000
1500
FREQUENCY (MHz)
2000
2500
3000
Document Number: 10117
Revision: 16-Dec-08
For technical questions, contact: siliconRFcap@vishay.com
www.vishay.com
13
