CD75NP-270KC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> CD75NP-270KC

CD75NP-270KC: DescriptionFixed Inductors 27uH 1.3A 10% 2.52MHz SMD PWR IND; CategoryPassive components inductor; File Size196KB，5 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

CD75NP-270KC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CD75NP-270KC	-	-	View	Buy Now

CD75NP-270KC Overview

Fixed Inductors 27uH 1.3A 10% 2.52MHz SMD PWR IND

CD75NP-270KC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	3128
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	3128
structure	Unshielded
core material	Ferrite
DC Resistance	0.12 Ω
Nominal inductance(L)	27 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Package height	5 mm
Package length	7.8 mm
Package form	SMT
Package width	7 mm
method of packing	TR, 13 Inch
Maximum rated current	1.3 A
self resonant frequency	15 MHz
series	CD75
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	2.52 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

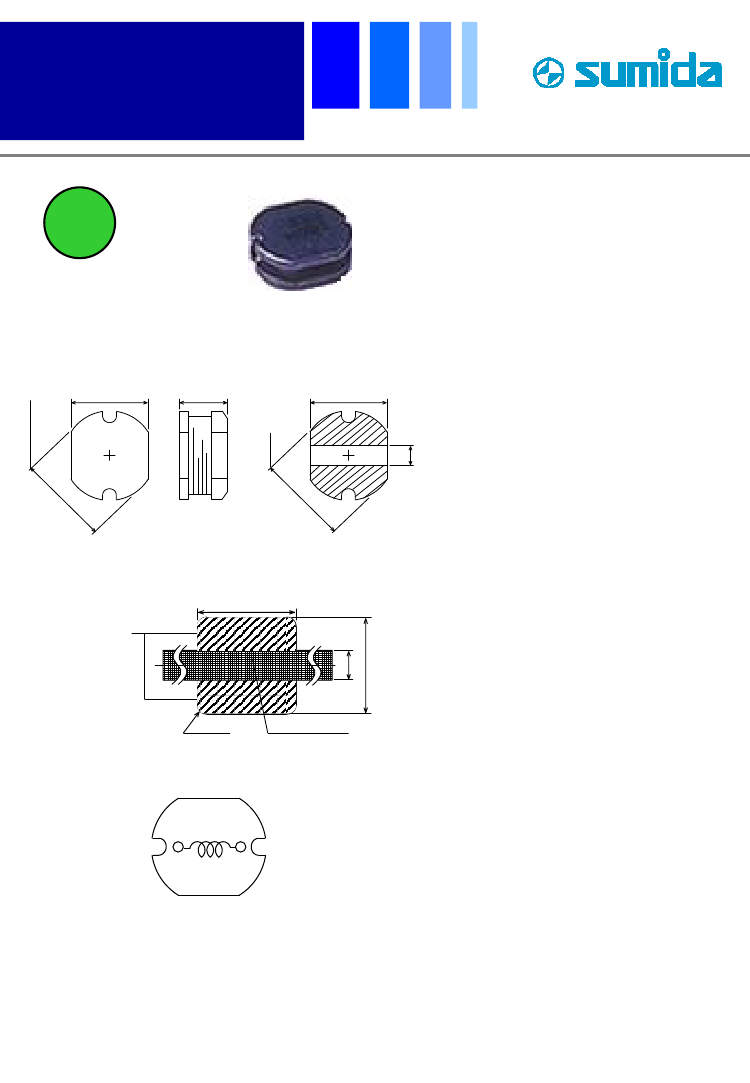

SMD Power Inductor

CD75

Description

• Ferrite drum core construction.

• Magnetically unshielded.

• L×W×H: 8.1×7.3×5.5mm Max.

• Product weight: 0.76g(Ref.)

• Moisture Sensitivity Level: 1

• RoHS compliance.

RoHS

Dimension - [mm]

70 03

. ±.

50 05

. ±.

φ7.8±0.3

Environmental Data

• Operating temperature range: -40℃½+100℃

(including coil’s self temperature rise)

• Storage temperature range: -40℃½+100℃

• Solder reflow temperature: 260

℃

peak.

Packaging

• Carrier tape and reel packaging.

• 12.9”diameter reel

• 500pcs per reel

Applications

• Ideally used in PDA,MP3,DSC/DVC,HDD,

Portable DVD, etc as DC-DC Converter

inductors.

2.1

Land pattern and Schematics - [mm]

PR O EETOE

AT F LCRD

φ7.8

R10

PR O SL

AT F IK

2.0

8.0

Page 1 of 5

Revised: 6-Jan-17
